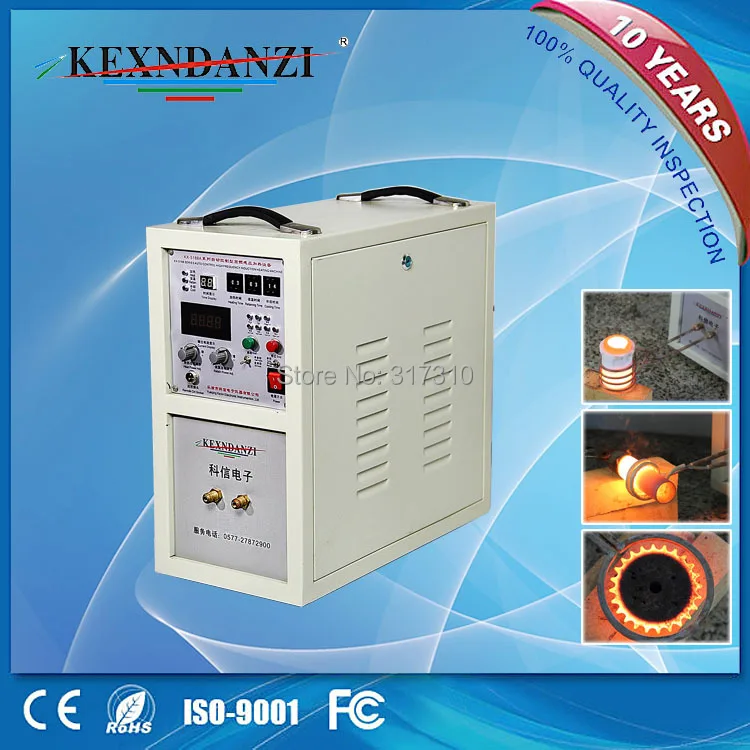

Top seller KX-5188A35 high frequency induction wire and cable welding/soldering machine/wiring devices | Инструменты

Top seller KX-5188A35 high frequency induction wire and cable welding/soldering machine/wiring devices | Инструменты

other related products

 Specifications:


Model

          KX-5188A35

Rated Power output

          35KVA

Frequency rang

        40-60KHZ

Three phase input

 Three-phase 380V /50HZ

Current input

           5-140Ax3

Efficiency

           95%

Duty cycle

           100%

Volume(mm 3)

 760mmx310mmx540mm

Net  Weight

46KG

Gross weight

60KG

Cooling water flow

hydraulic pressure≥0.2MPa,flow rate:5-20L/Min

Cooling water temperature

≤ 40°C

Waterway of power supply

Control box: 2 inlets ,2 outlets

Application

Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc fastener local heating, forging, melting, high frequency induction heating equipment.

 Renderings

Product details

1.   deeply the heat shaping (change to high frequency):
  A. Various standard a tight firmware and other machine piece, hardware tool, handle drill, keep the hot upsetting. keep the hot cutting. it circle steel of the diameter 16 mms. heat 3s-5s or so proceeding to squeeze to squeeze to shaping then.
  B. to the metals mate rail. to neat or to back the fire, in order to pull to stretch, the shape presses flower etc. , for example the steel pipe pulls to stretch. bend the tube and hit head, the steel wire, steel wire heats to make the nail. the stainless steel products to anneal ,pulling to stretch, rising the type .

2.the heat treatment  ( Chang to High frequency first)
  Various hardware tool, electricity-moves components, liquid-presses components, Gas-moves components, Auto car-components, Motorcar-components, etc. machine metals parts, the Quenching for surface, of inside bore or part or for the whole. for example :Quenching for hammer knife. shear. pliers and every kind of stalk. cam. chain belt gears etc. and large machine beds lead the orbit with the cast-iron the Quenching Ductile Iron.
domestic numerous factory productions chain and machine tool leading the orbit they are many have adopted the equipments of our company proceeds the heat treatment.

3.WELD,DRILL (change to high frequency)
  Carbide cutting tools weld, for example: Tuning tool, Milling cutter, Planning  tool, Diamond saw-toothed weld, Saw tooth weld, grinding machine tool welds, drill the machine tool welds blade tool welds .The other metals material reunites to welds. Such as the brass welds ,red copper parts welds, valve door welds. stainless steel a bottom welds etc.

4.METALA MELTING (change to Medium frequency)
  Such as melting gold, silver , copper...etc.

 Main

1)The digit phase locked:
  The digit phase locked the technique realizes the frequency if automatic to follow. can adapt to every kind of inductor automatically

2)The module piece turns the design:
  The adoption drives module a control. insuring the dependable of the equipments. maintaining easily.

3)The resonance flaps to change frequency technique:
  The adoption resonance flaps to change frequency then equipments the whole efficiency≥95%.efficiently.economyenergy.consume the electricity measures only for electronics the tube inductor 20%-30% of the heating equipments.

4)The whole solid turns:

With the function of phase failure, over voltage, water failure, over current ,auto tracking frequency.
  Adoption IGBT inverter device. high frequency. the physical volume is small. the weight is light.

5)Simpleton type design:
 Install simple, have no to need to adjust to try, usage convenience.
can continue 24 hours work.
