Descriptions:

1)Do not put your eyes in front of the nozzle at anytime.

2) Place the foot switch at a hidden place, when the operator leavew the machine for long minutes.

3) Some exterior metal parts (such as the nozzle,the wax pot, lid)may become very hot, avoid to burns to skin.

4) Turn the air pressure regulator knob to “zero” when the operator the machine for long minutes .

5) Fix the machine on stable bench and eathing .

6) Rated fuse should be installed in soclcet, so that damage to the machine at unexpected short–circuit can be prevented.

7) At the time of cleaning or maintenance work ,do not wipe surface of the warning labels affxed to the surface of the machinc.

8) The machine can be used in dew condensation free ambients with remperature range 0 to 40 degrees celsius and humidty less than 90%R F.

9) The machine be used in stable alternating current 220v±10% and 50Hz,single phase.

10) Do not use the machine at a place where dust or harmful gas is generated.

2.SPECIFICAIONS

1)DIMENSIONS OF THE MACHINE

2)QUALITY SPECIFICATION

Power supply :AC 220v 50HZ/60HZ Single phase

Power consumption:500W

Fuse:5A

Wax capacity :about 3kg

Temperature Precision:±0.2

Air pressure supply:4-7kg/cm

Pressure range:0-2kg/cm

Temperature display range:40-99.9C

Temperature adjusting ranges:40-99C

Setting time range for vacuum:0-24.9seconds

Timer ranges:0-99.9hours

Gross Weight: about 36kg

Dimensions:450L×310W×450H(mm)

3.NOMENCLATURE:

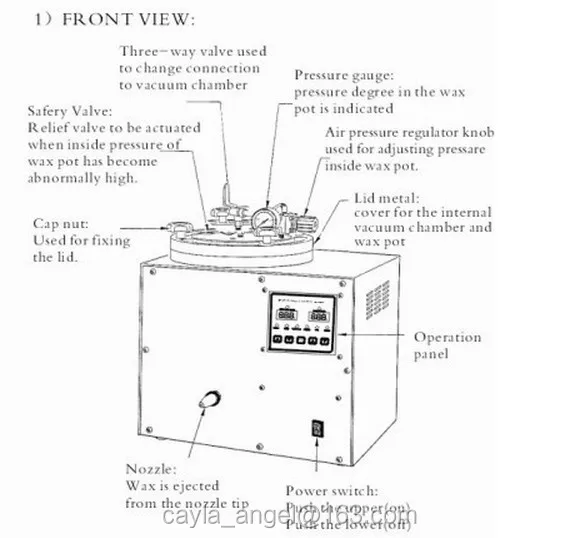

1)FRONTVIEW:

5)CONNECTING VACUUM PUMP

*Connect the machine to a vacuum pump with a minimum pumping speed 20 liters/min, observe instructiongs of vacuum pump when connecting.

*For connection of the tube hose, hand push blue ring of coupling.

*Insert the tube (8mm PVC)into the pore of coupling

*Loosen hand form coupling the Tbue be connected.

6)Connecting AAC(coption):the machine can bc used In combination with the “Ding xin “Brand Advanced Auto Clamp;see the instructions manual provided with AAC about connecting procedure.

7)CONNCTING FOOT SWITCH

*connect the connector of the foot switch to the 2-pin connector Bon the real of the machine .

*Turn the fixation ring of connector of the foot switch clock kwise to tighten.

5.OPERATION

1)WAX FILLING

*Turn the air pressure regulator knob to reduce air pressure make sure that the pressuregange reads”0”.

*Unsreew the four cap nuts o the lid of the body and lift the lid to remove.

Please kindly contact us for more information.
