LED Lighting DFI Wireless DMX Transmitter NEW  Get rid of your cables!

Advantages of our wireless dmx products:

A. Compact in size: Dimension: 13.5cm x 2cm x 2cm(Transmitter),  8.5cm x 2cm x 2cm (Receiver).

B. Convenient in operating. You can just plug the item into your DMX Controller or DMX lighting fixture, it will act as wireless DMX transmitter or receiver.

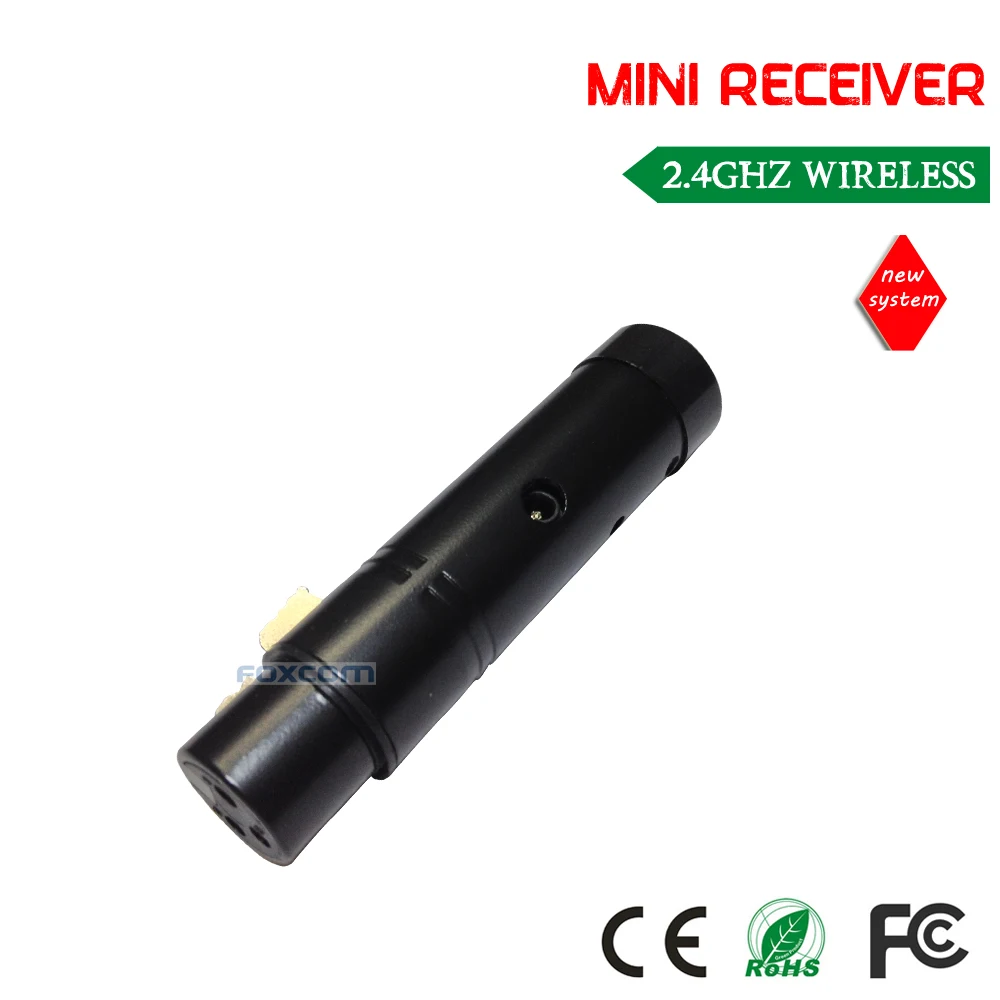

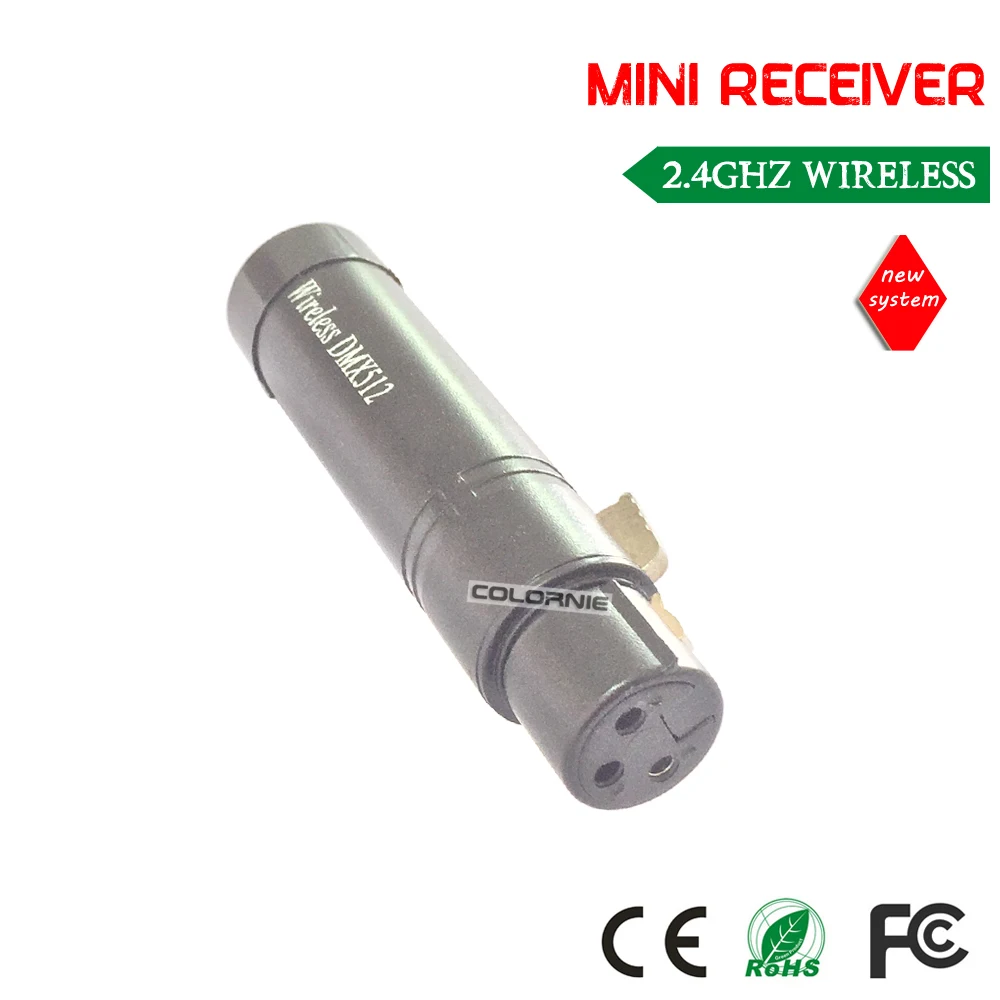

The most advantages of the receiver : It has a extra power supply so that can be used in any dmx lighting. Second the LED indicator is flashing downward, which can help the user to identify the status of the unit when it plugged to the lighting fixture which is hung up on the truss .

Technical Parameters:

Tricolor LED displaying

126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.

7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Input voltage: 5VDC 500mA MIN

Communication distance: 500M

Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

Max transmitting power rate: 20dBm

Receiver sensitive: -94dBm

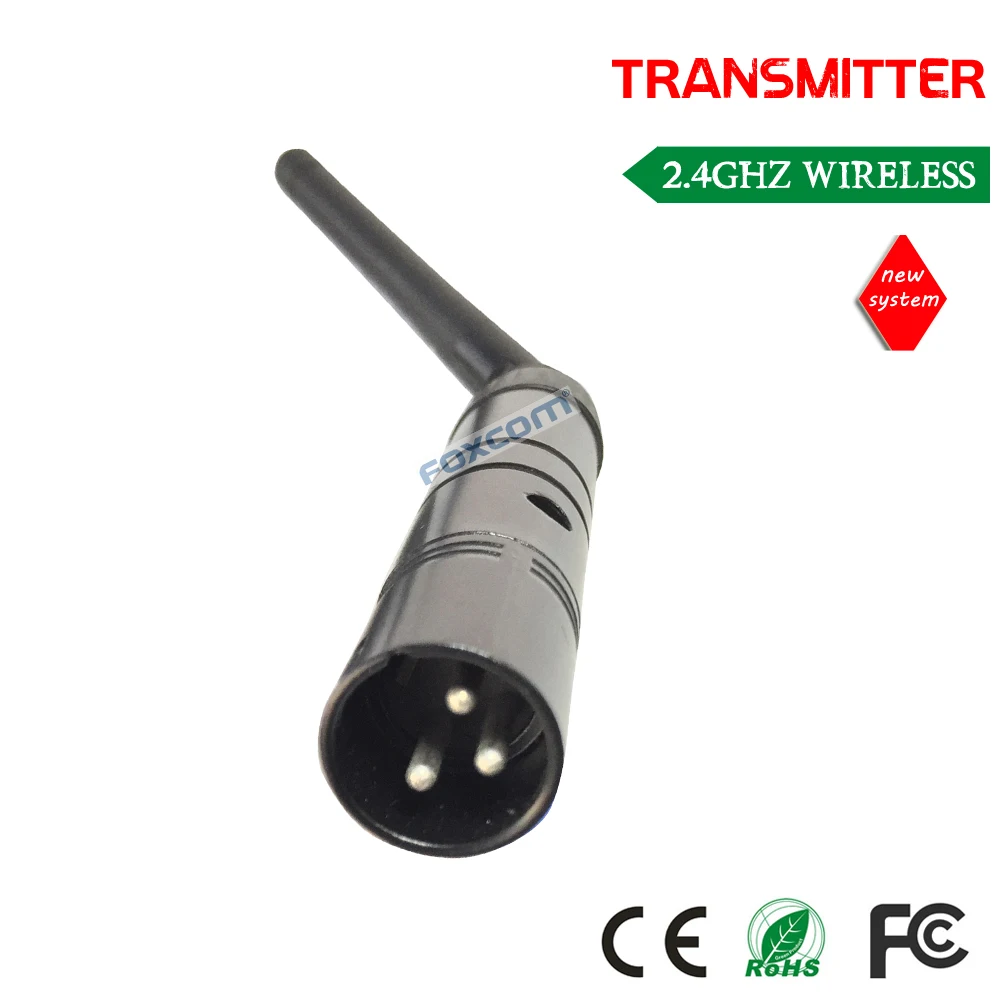

Signal port:  3 pin male plug (for transmitter) & female plug (for receiver)

Product Outline:

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE  = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DMX or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.

Product Brief:

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data(generated by console ) by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.

And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation,communication design is 126 channels jumping frequency, high anti-jamming ability.

Application:

Stage lighting,

Disco hall,

Large literature performance,

Gymnasium lighting,

Temporary stage performance,

City lighting system,

TV station,

Conference center,

Professional showplace,

Theme parks,

Bar lighting and so on.

Caution:

Indoor use only.

3 years warranty, repair, free replacement except damaged artificially.

The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened

It is better to return to manufacturer if repair is a must, do not do any repairing job unless qualified electrician.

The working condition should be under temperature -20~+45 degree, 10%~90%RH, no congelation, so as to ensure its lifetime.

It can not be covered by any superstratum, it should be swept periodical to prevent dust.

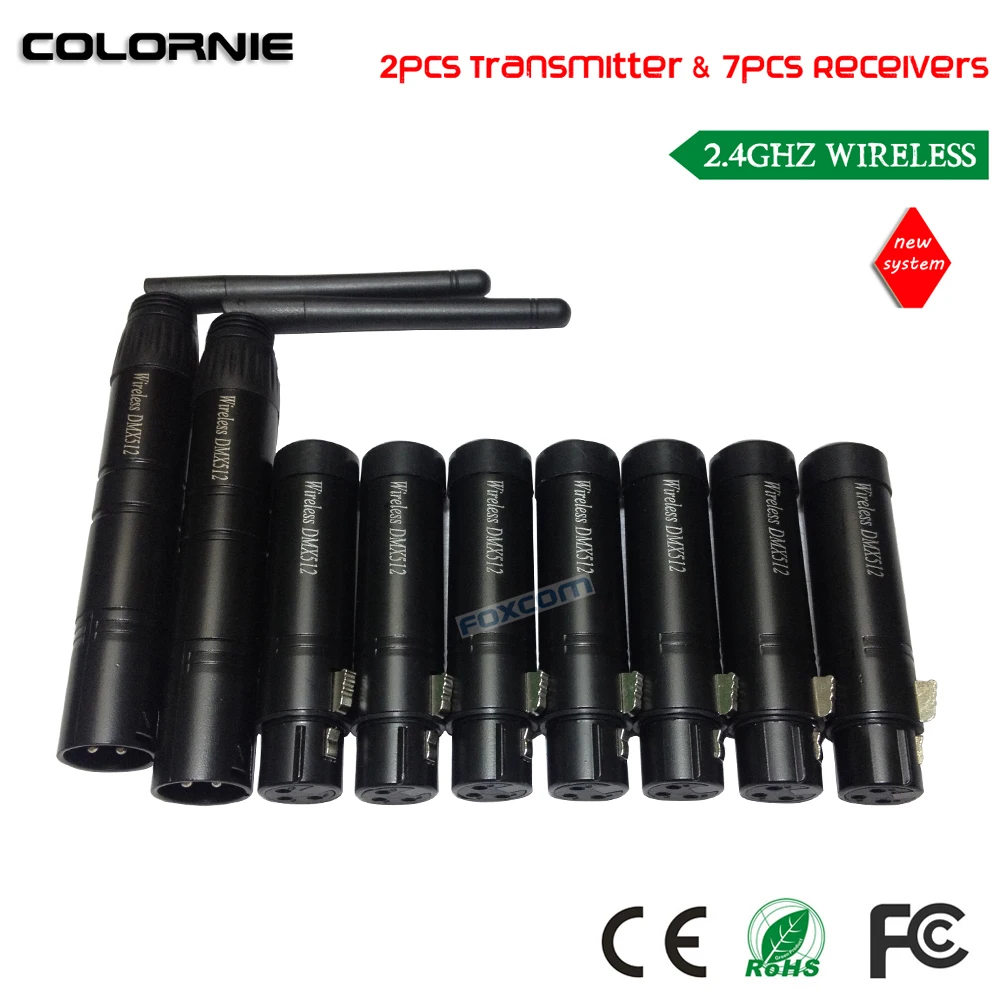

Package included:

2 x DMX Transmitter ( male plug)

7 x DMX Receiver (female plug)

9 x Power Supply (please kindly inform us the power supply you need, or we will choose it all according to your country standard)
