Free shipping nivel profissional laser level measure tool fukuda 3 lines | Инструменты

Free shipping nivel profissional laser level measure tool fukuda 3 lines | Инструменты

Description:

* Automatic Anping (gravity pendulum - magnetic damping) mode, easy to use and reliable.

* Laser with a wavelength of 635nm makes laser lines clear and bright.

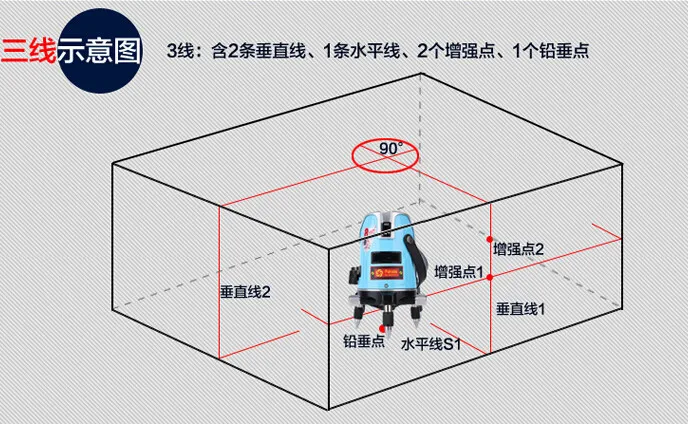

* Create two Orthogonal to each other`s  vertical line and a super-light horizontal line,  vaginal discharge point (red).

* Can be used indoors and outdoors.

* Easy-wide fine-tuning mechanism, 360°rotating, stable and flexible, can be precisely identify the target.

* Touch-type button to waterproof, dust, keys more sensitive.

Specifications:

Horizontal accuracy

± 1mm / 7m

Vertical accuracy

± 1mm / 7m

Under point accuracy

± 0.5mm / 1.5m

Orthogonal accuracy

90 ° ± 60 "

Zenith precision

± 2mm / 3m

Automatic Anping range

approximately ± 2.5°

Launch angle

vertical lines ≥110 °, horizontal ≥130 °

Laser wavelength

vertical and horizontal 7x635nm; next point 1x650nm

Working distance

indoor working radius of about 10m; using  detectors, working radius 50m

Laser emitted power

1mw less (safety standard 2)

Power

4.5V (1050mALi-Po battery)

Operating temperature

-10℃ -- +45℃

Size

10 x20cm

Weight

1.6kg

Continuous working time

about 6 hours (full brightness laser tube)

How to use:

Set the instrument on the tripod or a stable surface, adjust the instrument. If the instrument is too tilted, out of range, the laser tube will automatically turn off (or if audible alarm)
Switch knob clockwise to open the instrument, the instrument top green indicator light, while emitting a laser beam
Turn the instrument, the laser beam toward goals
Gently adjust knob, find work orientation
When work is over, turn the switch knob counterclockwise, turn off the instrument .
With light point designed outdoor environments, provide convenience for the construction.

Package List:

1 x Plastic protective case
1 x 3 Lines Laser Level

1 x AC110-240V Power supply
1 x protective glasses
1 x reference plate
1 x Belt
