Product description:

The 40 key infrared RGBW controller using infrared remote control technology is very mature, used to control the RGBW lights. This product by infrared remote control, can choose different changes effect, it can also be the whole adjust the brightness of the lights, speed, switch function. This product has power storage function, implementation of a power mode of each power up. Users can according to their own needs and select their favorite transform mode by remote control, the remote controller has quick select static color and brightness white; more intelligent RGB and W switch and the brightness control is independent, can control the RGB and white light with the transformation, the effect is more beautiful. Also built a variety of dynamic mode, speed adjustable. It iscost-effective, flexible layout, convenient wiring, easy to use.

Features:

The compact design, light weight;

The remote controller with 40 buttons, simply used, functional model is very intuitive to stick out a mile;

The use of simple wiring, and universal remote control;

The RGB and W into two independent parts, can be individually controlled, so the effect is more beautiful.

Technical parameters:

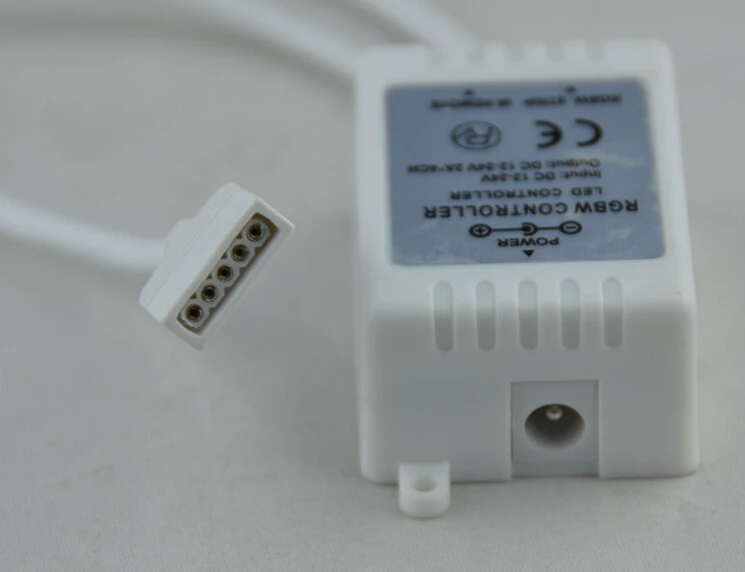

Controller:

Working temperature: -20 degrees ~+60 degrees

Supply voltage: DC5V, 12~24V (two optional)

Output: four chennel, Common Anode(+)

Static power consumption: <1W

Size: L61*W35*H22 mm

Packing size: L136*W48*H59 mm

Net weight: 60g

Gross weight: 85g

Output current: <2A (each chennel)

Output power: 5V<40W, 12V<96W, 24V<192W

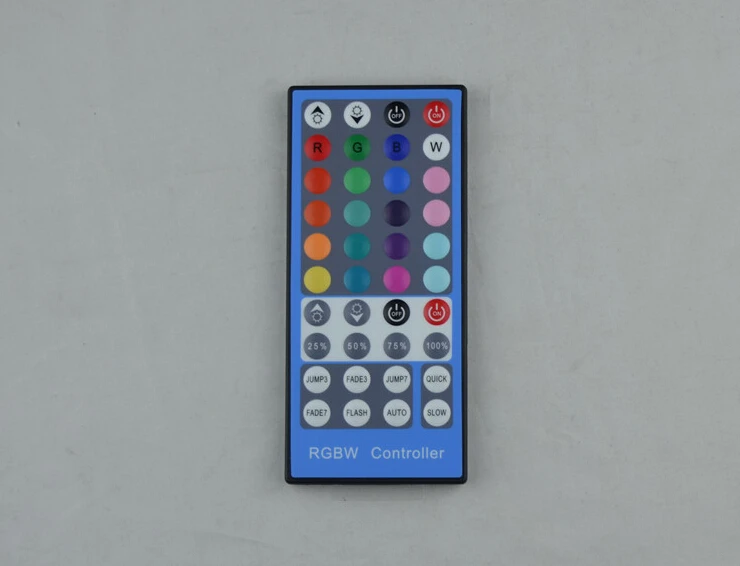

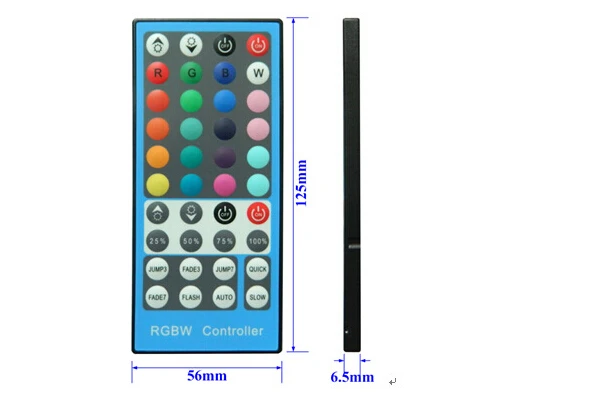

Remote control:

Working temperature: -20 degrees ~+60 degrees

Power supply mode: button battery

Supply voltage: 3V

Standby power: 0.3uW

Standby current: 0.1uA

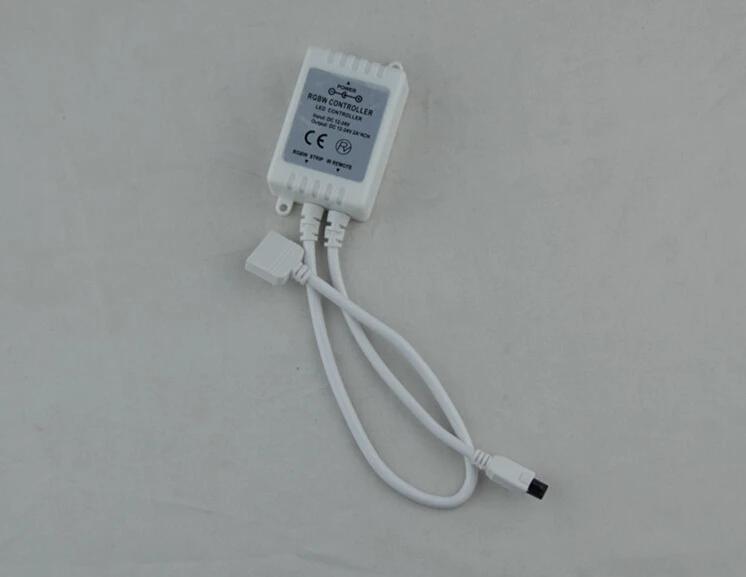

Products Picture
