Description:

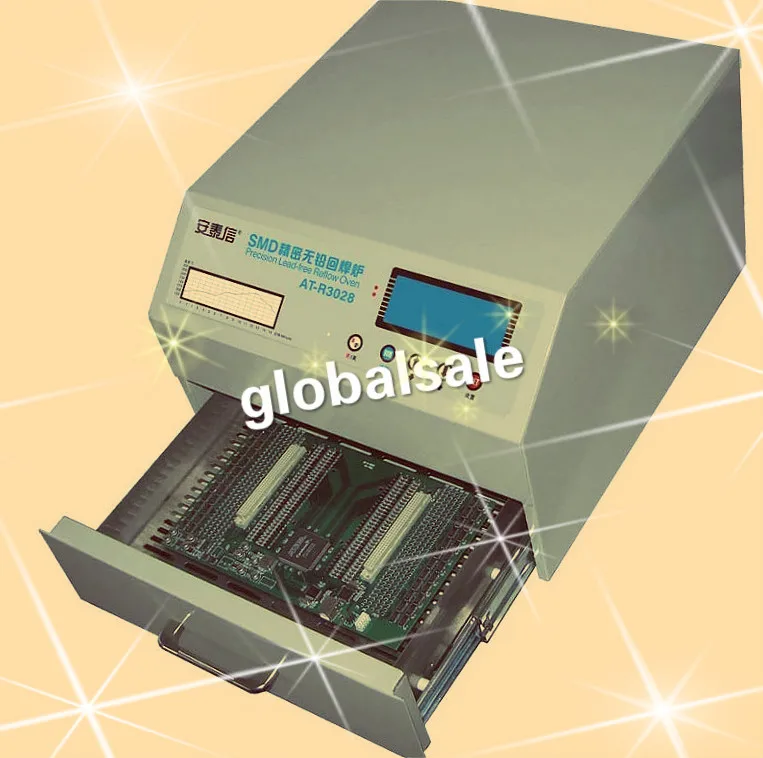

ATTEN AT-R3028 surface mount reflow oven with infrared radiation and hot air mix heating precise temperature curve control

AT-R3028 desktop lead-free back to welding stove is a used in the production and maintenance of the craft products SMT desktop back to welding equipment. This product USES efficient far infrared ray heating element and distributed thermocouple temperature measurement device. Through the microcomputer control precision, make back welding stove temperature curve more precise control and the temperature of welding plane back to more evenly. Fully meet the various alloy and lead-free solder back of welding requirements. The temperature curve precision can be adjusted, in addition equipment also has to be automatic fault detection alarm, automatic shutdown etc. Function. This product is back to welding, maintenance, drying and so on many kinds of USES. Suitable for small batch SMT electronic product manufacturing and trial-produce, electronic product development department, training school of unit use.
The operating software for the latest development "AT-R3028" in both Chinese and English bilingual operating system. Circuit structure with efficient and convenient on the integration of switch power supply, the aluminum silicate high temperature resistant environmental protection heat preservation cotton, structure and operation in performance has improved from surface and upgrades.

Technical parameters:
1. input power: AC220V / (AC110V optional)
2. working frequency: 50 ~ 60 Hz
3. input the maximum power: 1650 W
4. infrared ray radiation and hot air mixed heating mode
5. operating system: bilingual operating system
6.work mode: automatic welding mode, back to adjustable temperature maintenance model
7. temperature curve segment: preheat section, heating section, welding section, heat preservation period, cooling section of five section
8. preheating temperature and time for the set range: 70 ~ 150 C, time: 0 ~ 5 min
9. heating section temperature setting of the scope and duration: preheat temperature to 250 C, period of time: 0 ~ 5 min
10. welding section temperature setting of the scope and duration: heating temperature to 300 C, period of time: 0 ~ 30 s
11. heat preservation period of temperature setting of the scope and duration: welding section temperature-(0 ~ 50 C)
12. effective welding area: 280 x280mm
13. envelop dimensions: 460 x 372 x 275 mm

The product after:
The letter AT-R3028 small desktop lead-free back to welding stove/SMT soldering welding stove/infrared back to guarantee a year.

Equipment installation and installation environment:
1. The equipment should be installed in a convenient place short exhaust pipes. The power of A large current equipped with 15 three feet electrical outlet, the grounding must be reliable grounding.
2. Exhaust pipe should be chosen phi 120 mm aluminum exhaust pipe, exhaust pipes should be higher than high export machine installation height of more than 1000 mm. To use the chimneys of hot air exhaust effect.
3. A short time machines don't install exhaust pipe. But should increase machine at distance away from the wall (200 mm) above.
4. The top of the machines don't place of other goods, especially the combustible liquid. Such as "wash plate water, it that water, alcohol, methanol, gasoline", etc.
5. Machine cleaning can be in machine cooling off condition. With the cloth wash machine with or without water alcohol plate water scrubbing the machine internal, external water cleaning machine can swab. Stay machine all dry, to boot used.
6. Machine in start use phase will have some miscellaneous flavour gas discharge, this is normal phenomenon, after a period of using the smell will disappear.
7. The machine when not in use, should shut behind the machine of the power switch. In a state of shutdown software, the main controlling machine still in work in the board. Long time when not in use should be dismantle the machine, packaging, put back the original package good save. In case the moisture and bugs mouse such things to climb inside damage machine.
8. Back to welding stove in the back to welding small PCB or FPC board, should be used in the production of high temperature mica loading board, with at least four 30 mm clearance. To ensure the uniformity of the temperature. Good back with this machine precision welding process testing save use. The machine built-in temperature curve for guidance only adjust use. As far as possible can do with low temperature long time back to the welding temperature curve back and forth sensitive to temperature of welding type precision components, such as "LED, the optical, miniature connectors, soft packaging IC, camera", etc. In the components of high heat resistance, but right amount improve "welding section" temperature to reduce back to welding time.

Cautions:
1. Please use 15 more than A single special power socket, do not share the same with other electrical outlet, and power socket must be reliable grounding. Back to welding stove level should be placed, peripheral and have 200 mm above wall gap.
2. Please do not in wet or high temperature environment with back to welding stove.
3. Please do not use water flushing the body directly, lest destroy the body's insulation performance.
4. Please insert or block foreign wire, 2 and vents, avoid scald or influence ventilation cooling.
5. Do not put inflammable, explosive near the back of the dangerous goods reflow; With the item cannot be flammable and explosive gas drying, lest produce risk.
6. Please avoid collision body, lest damage hair heat pipe, such as the discovery of hair heat pipe burst, should turn off the power supply, and sent to repair.
7. Work or machine haven't cooling to safety temperature, not reached into case inside, lest burns.
8. Please put the tablecloth back to welding stove use, in order to prevent the wind path jam.
9. Such as infrared ray to heat pipe damaged hair, must match the original special infrared hair heat pipe.

********************************************************************************************************************************************************
