    High Precision Easson ES-17 complete set 2 axis digital readout DRO lathe milling machine and linear slide | Инструменты

    Описание товара





      High Precision Easson complete set 2 axis digital readout DRO lathe milling machine and digital linear slide



      Purchase Notes

      1. The order includes a complete set of  Esson 2 axis digital readout DRO ES-17 and 2 pieces linear scales GS10 with mounting accessories;

      2. You may choose any 2 pcs scales GS10 within 0-1000mm with 5um resolution. Scale length above refers to the real travel of the linear scale. The total length is 144mm longer than travel.

      3. We supply 0.001mm resolution, each 0.001mm(1um) scale should charge extra 20$, for extra please contact us before ordering.



    DRO

    DRO Specification (ES-17 model)   Membrane Seal diaphragm touch keys (Water/Coolant/Dust Proof) Plastic Casing Power Supply Voltage: AC 100V ~230 V,50 Hz ~ 60 Hz (Automatic Detection) Power Consumption: 25VA Input signal: TTL square wave.  Frequency multiplication: 4x.  Input signal frequency: >100KHz   Advanced Optical Measuring System: The slide carrier of the GS series scale uses a five bearing design for optical grating linear transducer which has been proven as the most reliable system design in today's market. The glass grating slideways are lapped and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life. Double Seals Design: The plastics seals of GS series scales use an innovative material to offer superior oil resistance, high elastic recovery properties and durability. Carefully designed lips geometry offer low slide resistance. 100%Laser calibration: All glass grating transducers are individually inspected and calibrated by our in-house laser calibrator to ensure accuracy comply 100% with the specifications. ASIC Interpolator: ASIC Interpolator is built-in inside the GS Series Glass grating linear transducer to facilitate increased resolution of the grating .All frequency multiplication is implemented 100% by hardware phase shifting inside the ASIC interpolator to minimize the real time measurement error. Because all resistor ladders for phase shifting are constructed with same piece of Semiconductor inside the ASIC which have same temperature coefficient. therefore. Error drift caused by environmental temperature change is minimized. Industrial Standard Output Signal Interface: The industrial standard TTL &RS-422-A digital signal output are available for user's choice User can choose the most suitable signal inter face according to their cost, power & EMI requirements. Standard 9 pin DSUB9 and DIN7 7pin connectors are available for user's choice.   Basic functions of Easson Mill and Lathe DRO clear zero centering(1/2) in/mm display abs/inc power off memory 199 subdatum ref memory   Advanced Functions of Easson Mill DRO built in calculator PCD pitch circle diameter LHOLE line hole positioning INCL inclined machining SHRINK shrinkage calculation R function (simple R and smooth R) Linear error compensation   Advanced Functions of Easson Lathe DRO Linear error compensation XZ axes summation ES-17



    linear scale

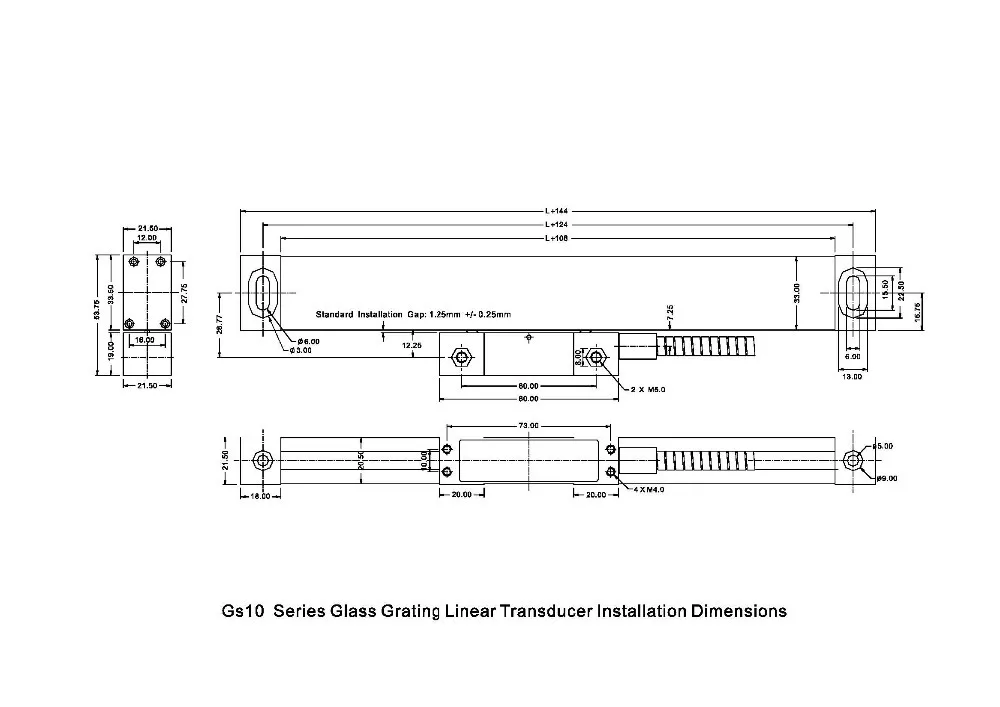

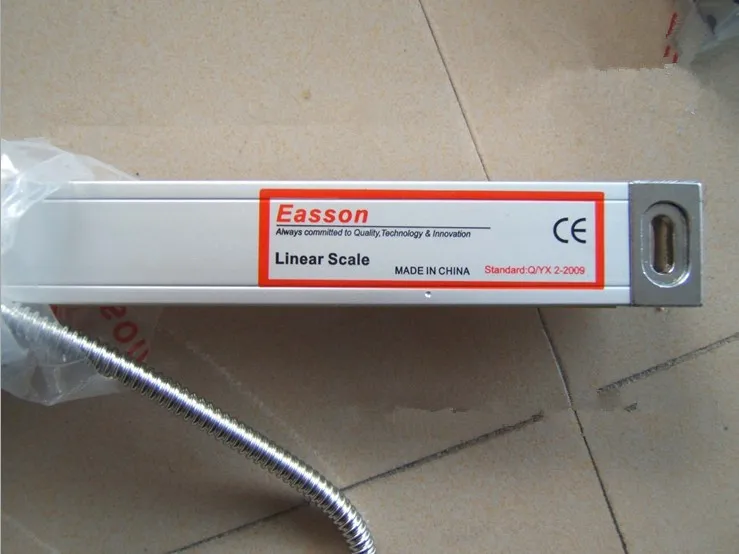

    Glass Scales Specification (GS-10 model)   High Precision Etched glass Resolution : 5um (0.005mm).0002 inch Signal : TTL SQUARE WAVE Grating pitch: 0.02mm (50LP/min) Accuracy: ±0.005 mm or 0.0002" (at 20 deg C) Reference marks at interval of 50mm Response Speed: 60m/min or 40ins/sec Cable length: 3 Meter (about 9 feet)   Scale tech specs EASSON GS10 dimension

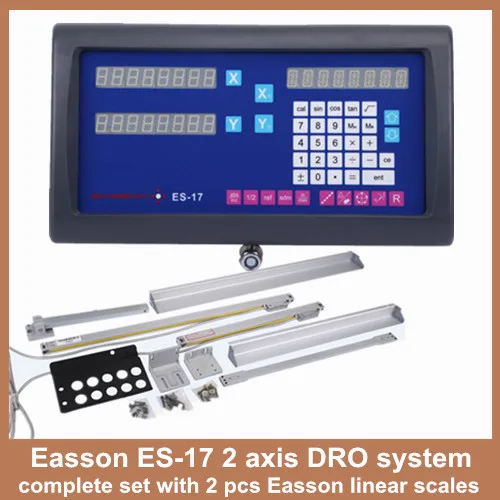

    This is a complete kit. It includes a ES-17 serial readout, two glass scales, each with a 3m cable. Scale covers, user's manual and all the other accessories for installation will also be inclued in the package. Please contact the seller in advance if you prefer other models of readout instead of es-17.

    easson 2 axis DRO
