Low Price + High Quality! 220V 500E hand-held electromagnetic induction sealing machine 20-100MM (induction sealing machine,drug sealer,bottle sealing machine,aluminum foil filling machine

Introduction

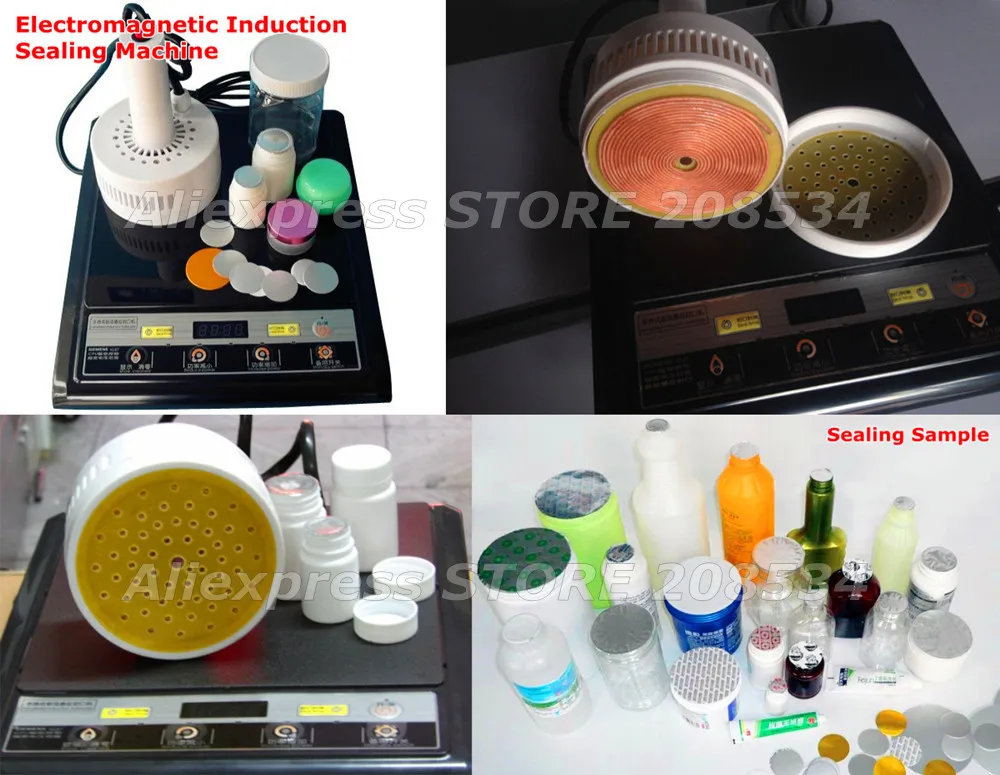

Induction sealing machine utilizing the electromagnetic induction principle, the machine enable to bottles with aluminum foil in moving under the electromagnetic induction device  which will produce instant high heat to melt aluminum foil and make it adhesive to bung hole, and then bottles are sealed it is widely used as packaging machine in pharmaceuticals, pesticide, lubricant and cosmetics industries line.

Machine Specification

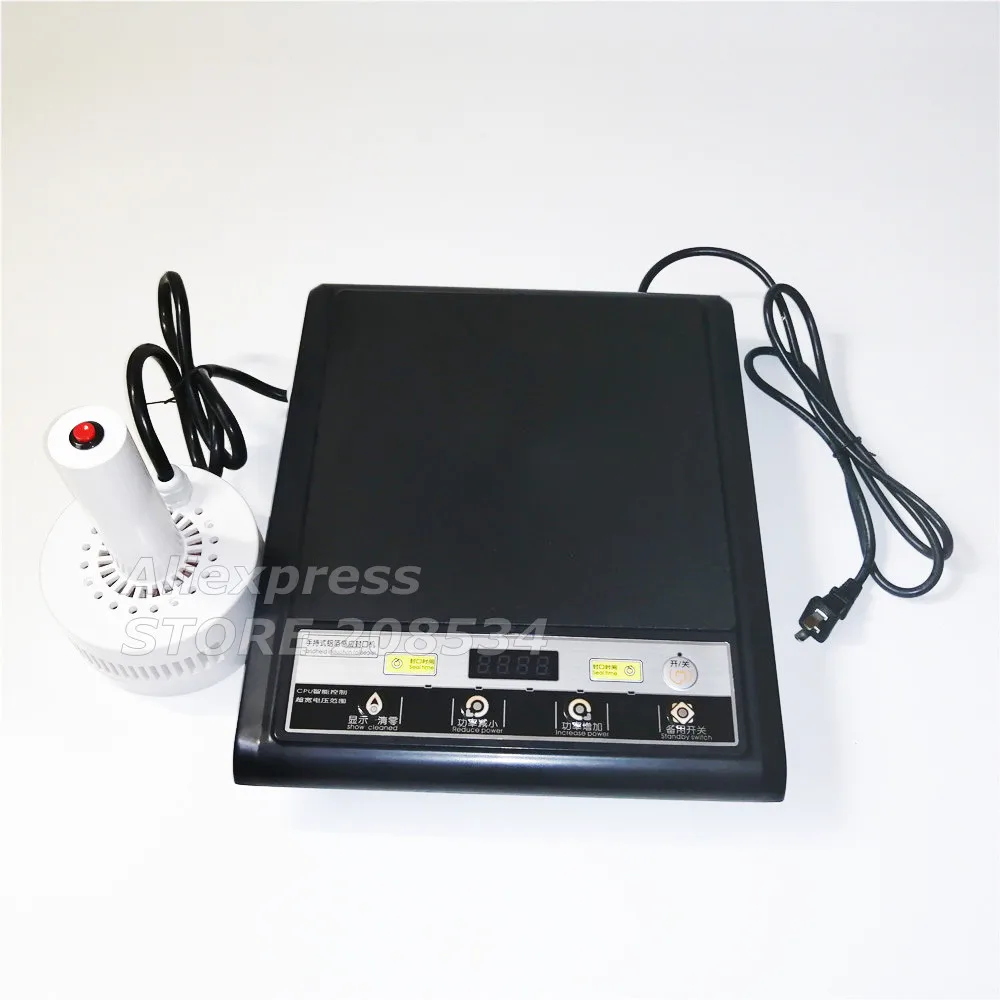

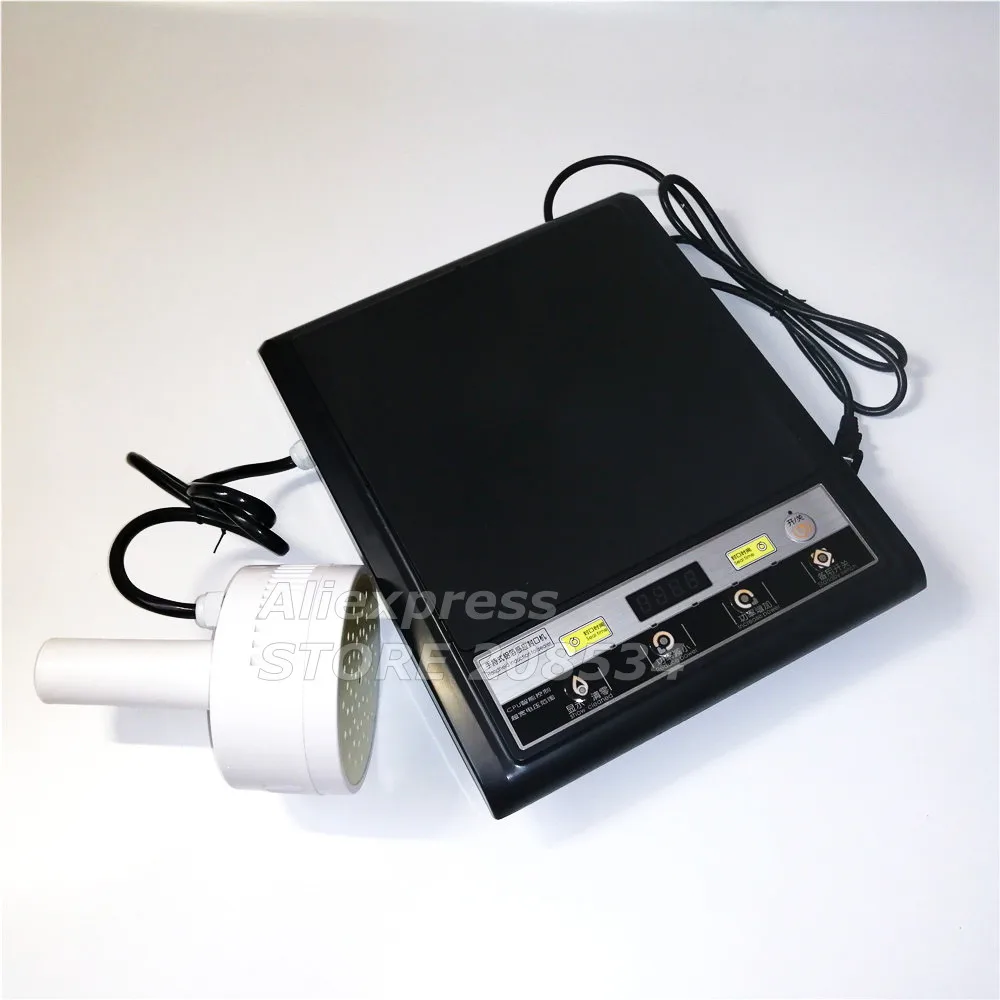

Model: 500E

Power Supply: 220V/50Hz

Power output: 800-1200W

Operating frequency: 30KHz ±5%

Sealing dia.: 20-100mm

Sealable container height: Not limited

The maximum permissible power supply current: <6A

Dimensions: 340×320×75mm

Tool's weight: 2.7kg

The warranty is 1 year.

Important point: the mouth the bottle, this pointed machine can't closure

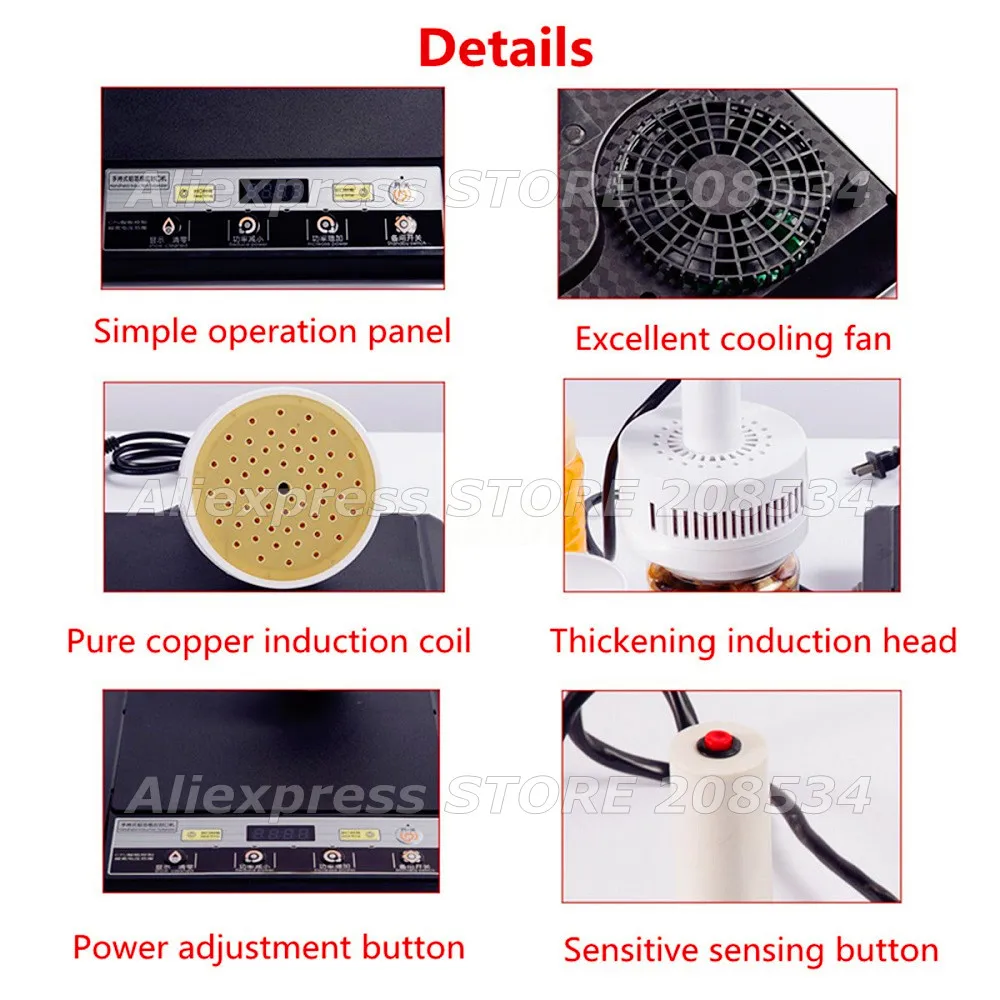

Performance characteristics

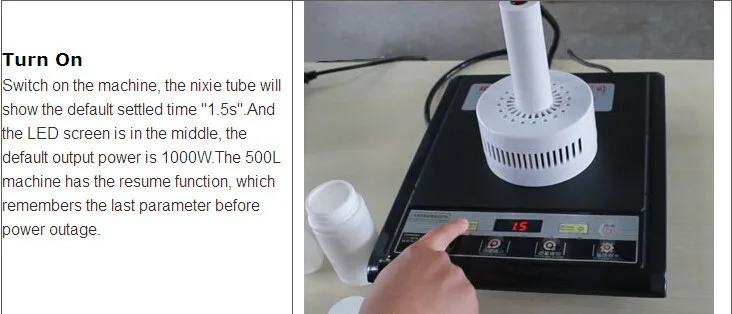

·Easy to use-no tools, plug-in set power level and seal.

·All digital design assures accuracy and eliminates antiquated analog controls.

·No moving parts, noise free,100% solid state surface mount electronics for long life dependability.

·Advanced state of the art design, self contained with built in protection.

Application range

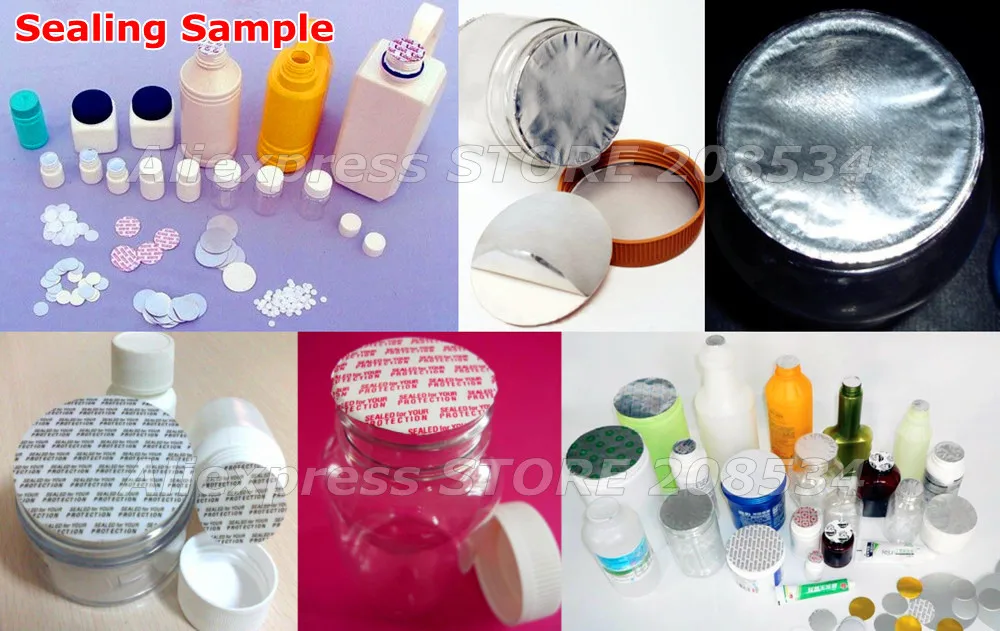

500E is hand-held electromagnetic induction heating apparatus, specializing for the aluminum foil sealing of containers in pharmaceutics, chemical industry, pesticide, foodstuffs, cosmetics and light industry. Containers made of various materials are sealable. With small size, light weight, easy operation, it is suitable for low-volume production and operation in labs. The machine operates on the principle of electromagnetic induction: The aluminum foil on the bottle top is highly heated instantaneously and melted so that the bottle mouth is closely wrapped and sealed. The sealing is damp-proof, mould-proof, forgery-proof and theft-proof and prolongs goods storage time. The containers sealable can be made of PE, PP, PS, PET, ABS, glass, porcelain etc. but not metal. With Japan's latest modular power devices adopted, it is more economized in power and 20~30 times quicker in instantaneous heating than conventional vacuum tube-induced heaters, its heating efficiency being up to more than 90%.

Application
