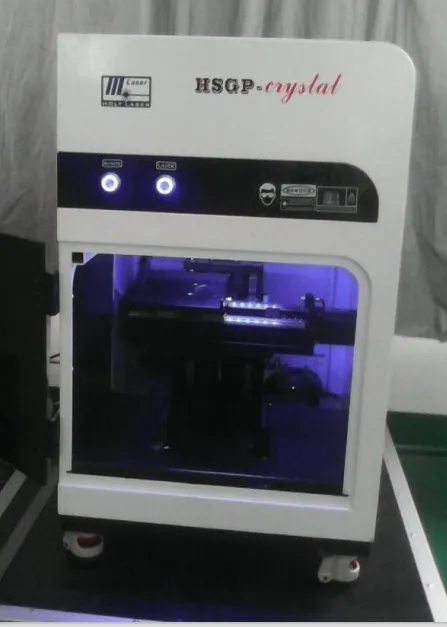

LY 2D/3D laser engraving machine special for inner crystal,working range 150*200*80 mm

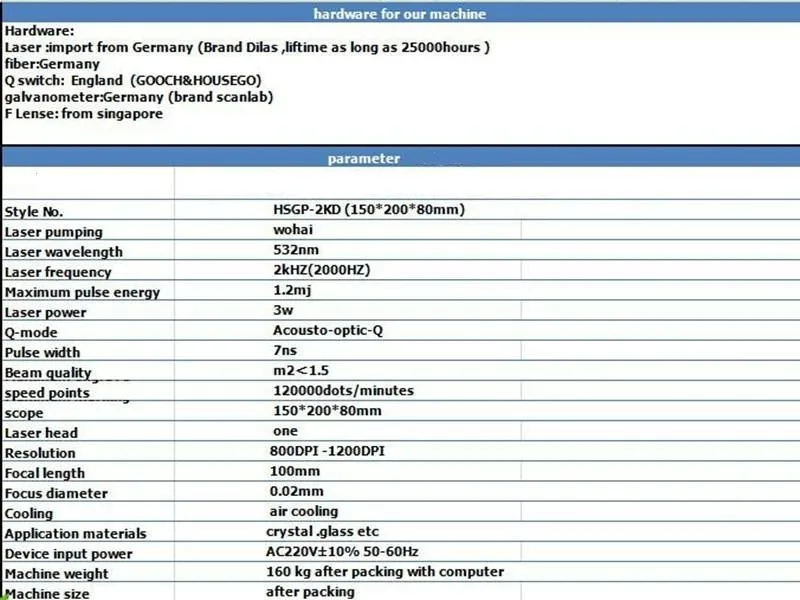

Technical parameters

Style No

HSGP-2KD(150*200*80)mm

Laser pumping

semiconductor diode

Laser wavelength

532nm

Laser frequency

2kHZ(2000HZ)

Maximum pulse energy

1.2mj

Laser power

3w

Q-mode

Acousto-optic-Q

Pulse width

7ns

Beam quality

m2<1.5

Maximum engrave speed points

120000 dots/minutes

Maximum marking scope

150mm*200mm*80mm

Laser module life

25000 hours

Laser head

one

Resolution

800DPI -1200DPI

Focal length

100mm

Focus diameter

0.02mm

Cooling

air cooling

Application materials

Crystal, glass, acrylic, sheet PC/PET, zircon and other light materials

Device input power

AC220V±10% 50-60Hz

environment

No dust ,no vibration source

Machine weight

130kg

Machine size

85*80*114 CM(after packing)

Software: PS \ CAD\ 3D max

Support:jpg(2D),OBJ(3D)

LYLaser Technology self-developed HSGP series three-dimensional laser engraving machine, The device has the characteristics of high quality low power consumption. Using galvanometer and workbench using the way of working, Its 4K HZ work efficiency is much higher than the general equipment, Carving effect delicate Graphics, the software supports DXF ASC BMP format

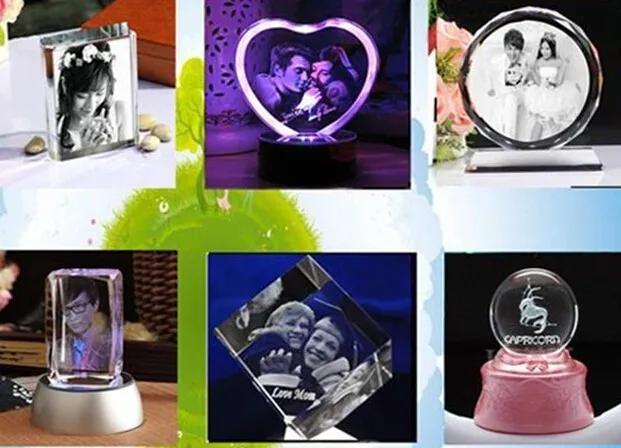

Main function: Inside the transparent material such as crystal glass carving plane or three-dimensional design, Can be carved 2 d / 3 d portrait\ Name hand footprints\ trophy personalized gifts souvenirs, etc;Also can be mass production of 2 d / 3 d animal plant construction products such as car boat plane model and 3 d scene.

Areas of application:Glass and crystal handicrafts, souvenirs of the production and processing; 3 d camera hall, wedding photography, tourist attractions, gift shops, etc

Features:

1. Appearance: the integration of design, small size, light in weight

2. The operation is simple:Software friendly interface, easy to learn; Automatic center function, convenient operation and personnel placement crystal

3. Strong adaptability:Equipped with shockproof system, effectively prevent equipment transport due to accidental impact in use process cause harm to the machine core components

4.High frequency:Using high-speed galvanometer laser scanning way, speed up to 120000 dots/ min, save the time of carving

5. High stability Carving effect delicate:using advanced semiconductor side pumped solid state laser technology

6. Adopt sealed integration design; Good beam quality, high stability; fine engraving effect, equipment is good stability, low maintenance

7. Support for multiple data formats: Including DXF, CAD, BMP, JPG and other format of the data, has the good compatibility

8. Environmental protection \Low noise: no compressor pumps and high power fan, no pollution

9. High resolution:≥800 dpi, Image is clear, the hair is visible

After-sales service

We have established a global after-sale service information processing system, service 24 hours a day

1.One year guarantee period for product quality. (man made damaged is negotiable).

2. Free training for machines installation and operation of the staffs.

3. Lifelong maintenance and spare parts supply.

4. Provide all kinds of size in the shape of a crystal raw material supply

FAQs:

What's the guarantee, in case the machine breaks down?

The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.

How about the documents after shipment?

 After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.


How long is the delivery time?

For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

How's the payment?

Telegraphic Transfer(T/T) or Escrow on Alibaba .

Do You Arrange Shipment For The Machines?

Yes, dear esteemed customers, for CIF price, we will arrange shipment for you. For FOB or   EXW price, clients need to arrange shipment by themselves or their agents.

How is the packing?

Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading.
