Hot runner heater description:

Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.

Product Feature:

1. Heating cross section as follows:

Round(DIA)

3mm,3.3mm,3.5mm

Square

3X3mm,3.3X3.3mm,3.5X3.5mm

Rectangular

2X4mm,4.2X2.4mm,1.3X2.3mm,4.2X2.2mm

2.Heating coil ID 10mm ~ 38mm, heating ring height: 40mm ~ 200mm

3. voltage: 220V ~ 380V,wattages: 200W ~ 3000W(6.5W/CM2 )

4.Built-in thermocouple : with or without J /K thermocouple(Available)

5.Lead wire:500mm 1000mm 1200mm 1500mm,2000mm (Teflon wire lead with s.steel braided or fiberglass silicone sheath)

6. Max. Temperature: 650°C

7.Typical Applications :Plastic Die Applications;Blow Molding Machine ; Extrusion ;Hot Runner Systems ;Injection Molding ; Thermoforming and etc.

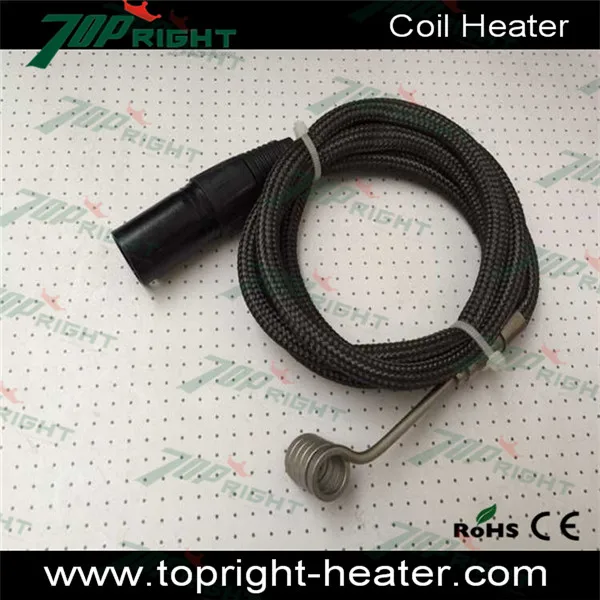

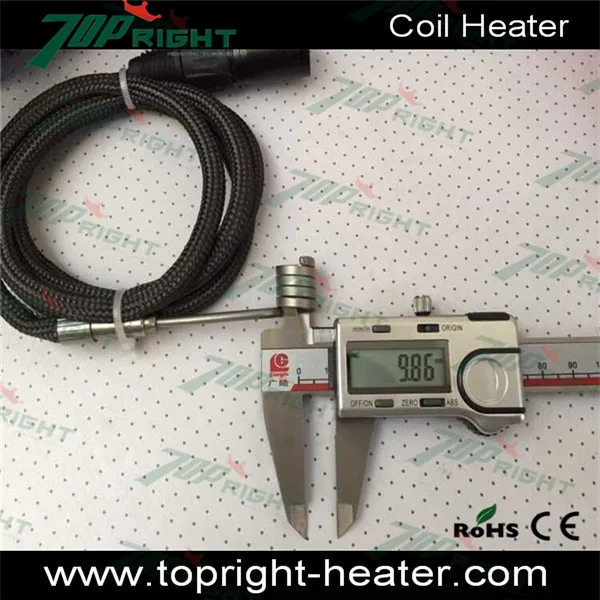

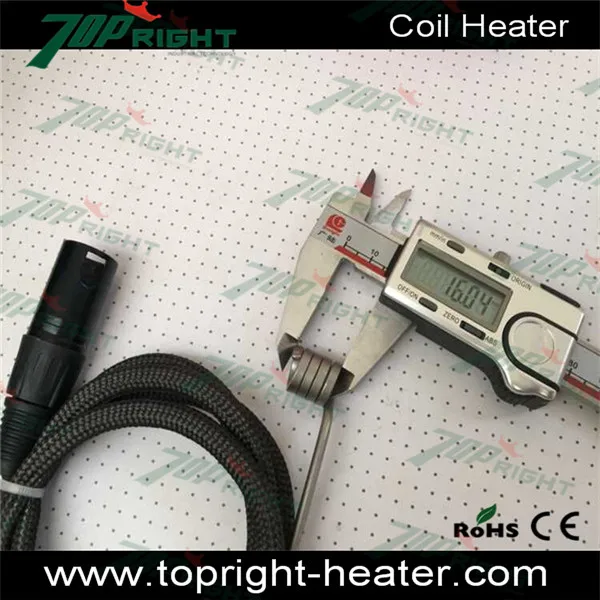

Hot Runner Heater Photos:

ID9.9mm,

Length15mm

Heating section:2.2x4.2mm

120v/100w

With Thermocouple k

with 5pin xlr male connector

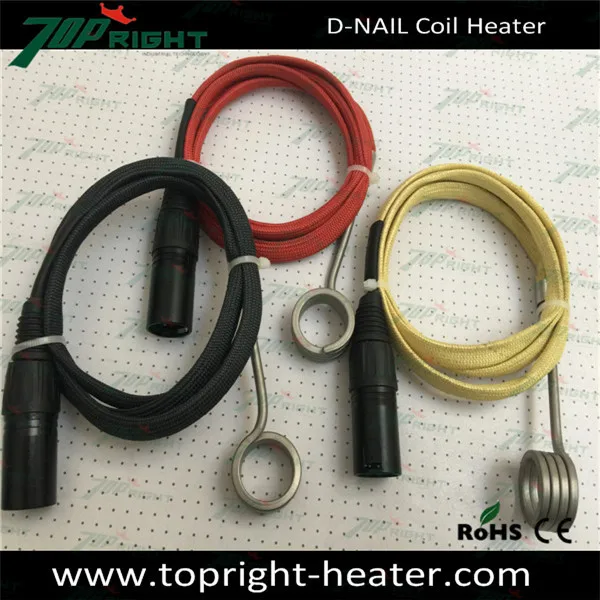

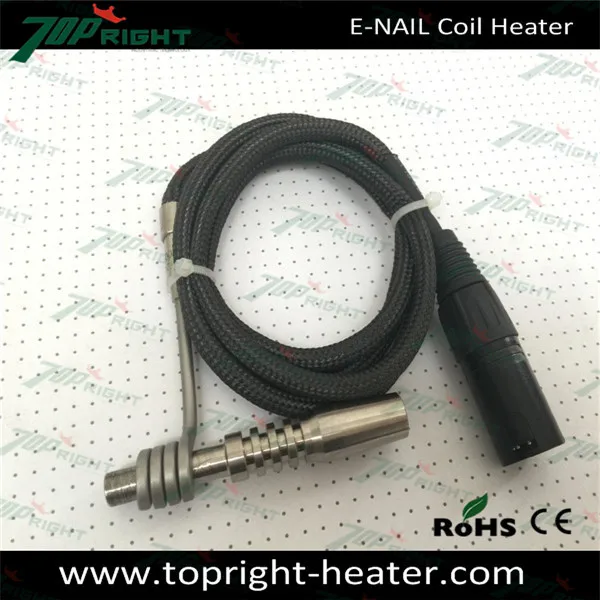

More Hot Runner Coil Heaters In China Topright Industrial:

Hot Runner Heater packaging Photo:

Welcome to contact us for more details ,Thank you!
