2016 Newest V1.5 A++ quality Super Mini ELM327 Bluetooth ELM 327 OBD II CAN-BUS Diagnostic Scanner TooLWith Switch |

2016 Newest V1.5 A++ quality Super Mini ELM327 Bluetooth ELM 327 OBD II CAN-BUS Diagnostic Scanner TooLWith Switch |

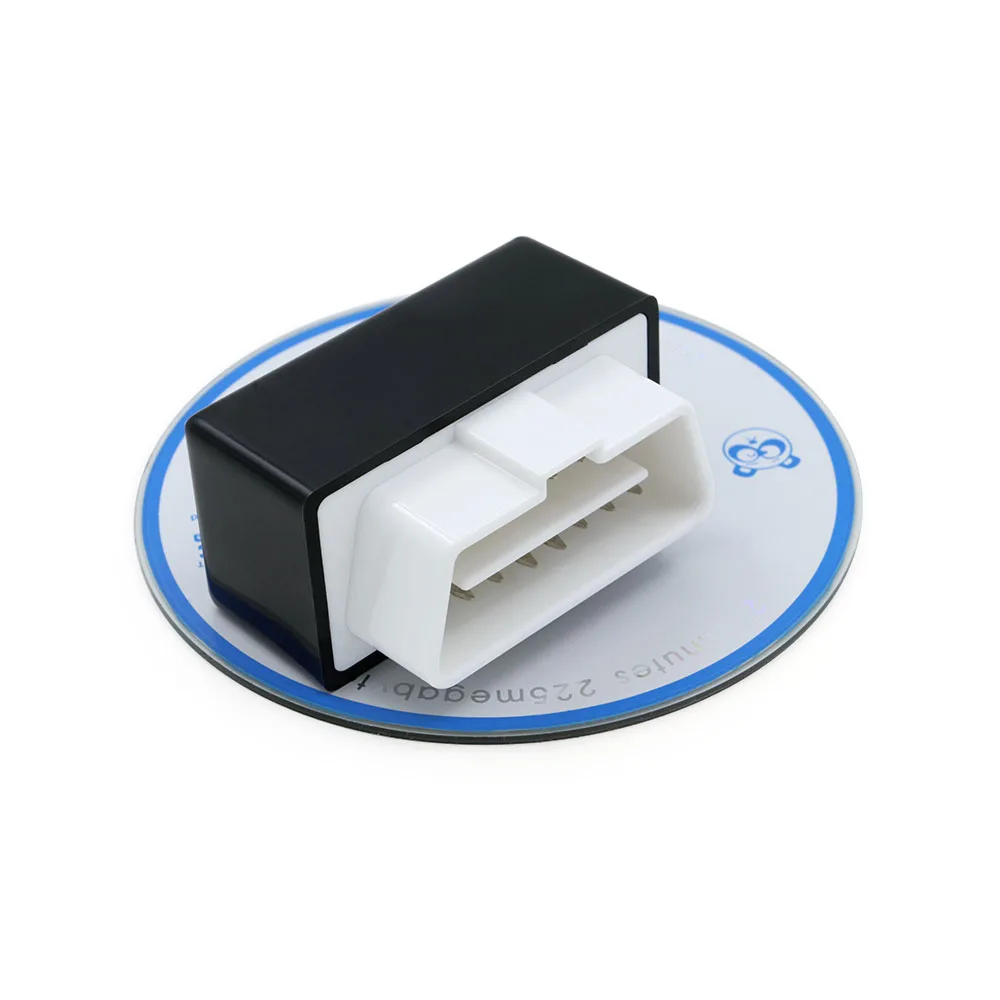

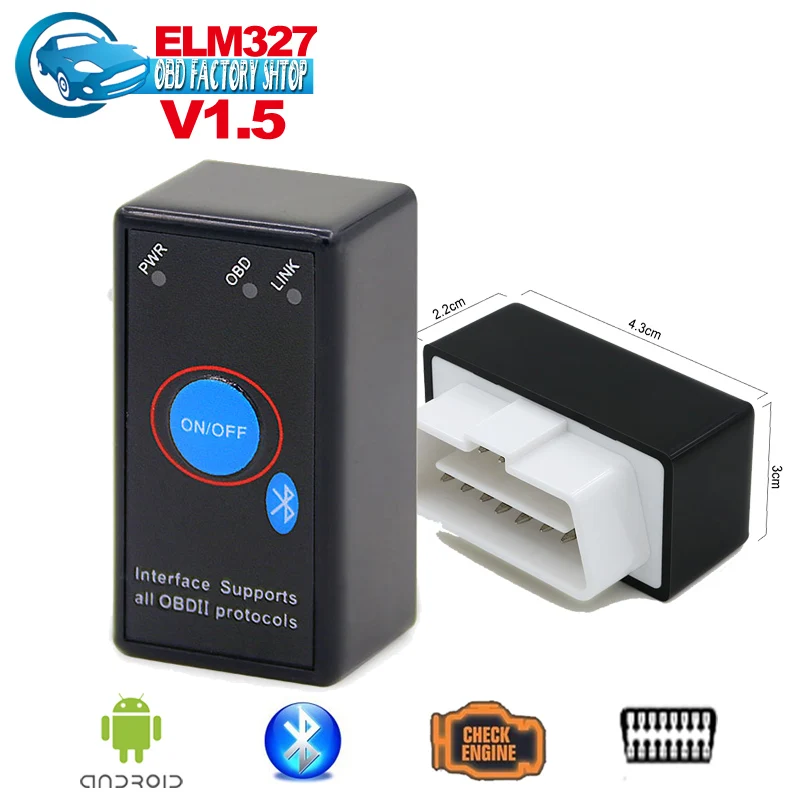

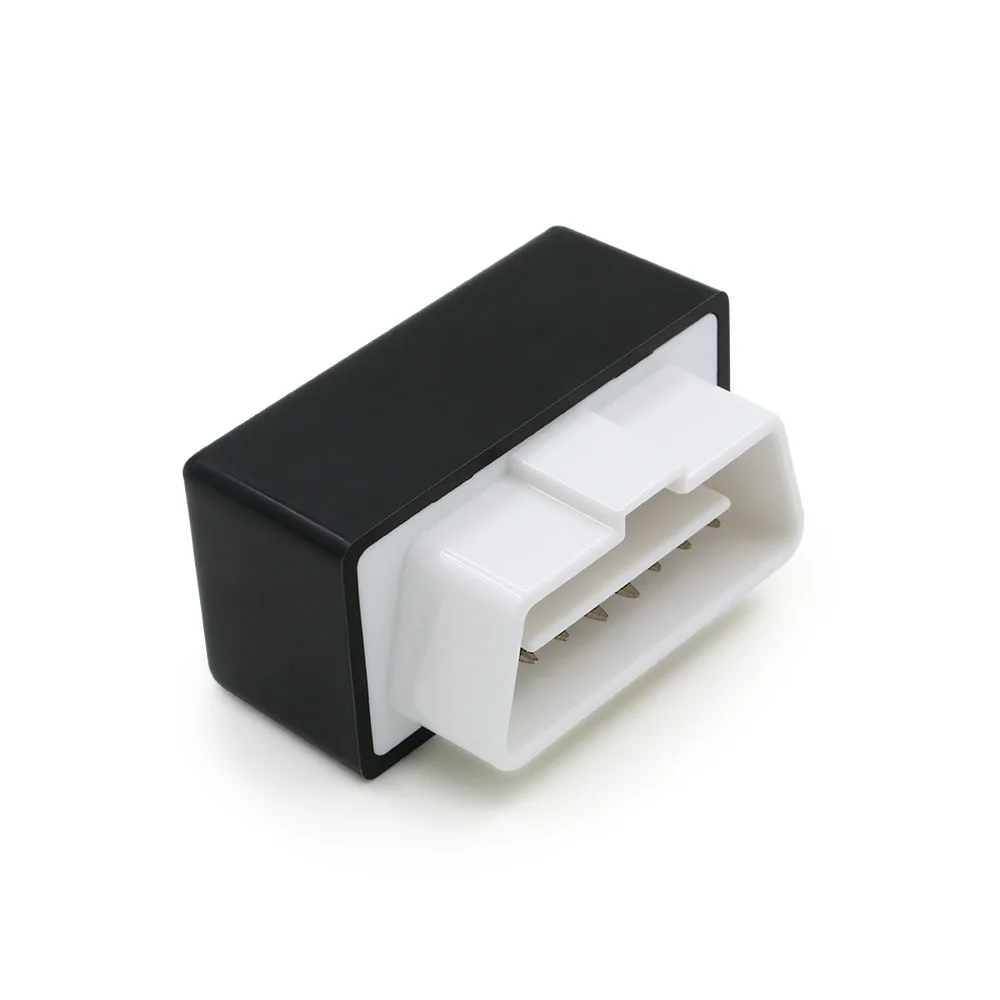

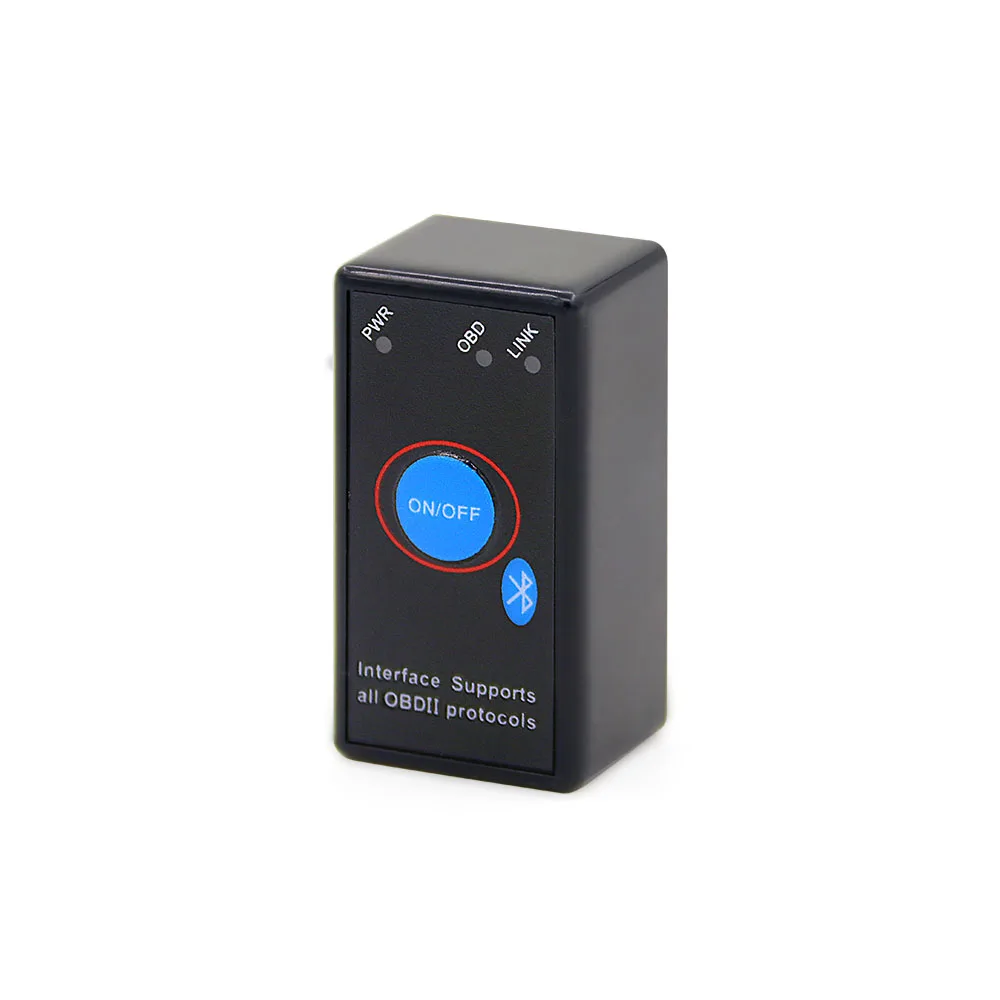

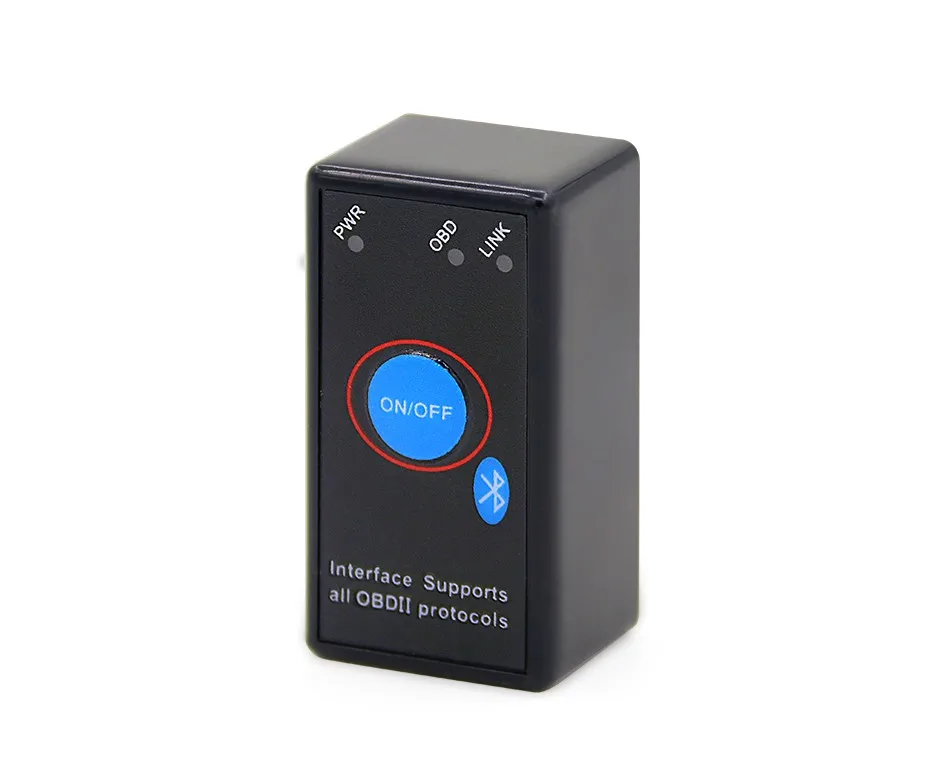

Super mini ELM327 Bluetooth With Power Switch V1.5 higher quality.

*This one CAN'T support for Diesel or Trucks.

*Latest software version supports most of OBD-II protocols.

*This one Doesn't support for iOS System.

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:
  1.Engine RPM
  2.Calculated Load Value
  3.Coolant Temperature
  4.Fuel System Status
  5.Vehicle Speed
  6.Short Term Fuel Trim
  7.Long Term Fuel Trim
  8.Intake Manifold Pressure
  9.Timing Advance
  10.Intake Air Temperature
  11.Air Flow Rate
  12.Absolute Throttle Position
  13.Oxygen sensor voltages/associated short term fuel trims
  14.Fuel System status
  15.Fuel Pressure

Specifications:
Model name: ELM327 OBD2 bluetooth
Type: code readers & scan tools
Output protocol: bluetooth
Color: black & white
Material : plastic
Voltage: 12V
Current: 45mA
Wave frequency: 38400Hz
Applicable scope: 5-10m / 16.4-32.8ft
Item size: 4.8 * 2.5 * 3.5cm / 1.89 * 0.98 * 1.37in
Item weight: 23g / 0.81oz
Package size: 8.8 * 8.8 * 4cm / 3.4 * 3.4 * 1.5in
Package weight: 48g / 1.69oz

Support OBDII Protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
SAE J1939
J1979

Packing List:
1 * ELM327 OBD2 bluetooth diagnostic interface
1 * CD-ROM
