P6060 60MHZ X10 X1 Top Quality Test Probe Oscilloscope Probe Kit Oscilloprobe Oscilloscope Sonde

This oscilloscope probe is top quality of oscilloprobes and very practical for testing the oscilloscope. It is provided with several accessories designed to make probing and measurement simpler.

Features:
Use the slide switch to set probe attenuation ratio.
Use the alligator clip to attach the probe to a ground reference.
Use the adjustment tool for probe compensation adjustments.

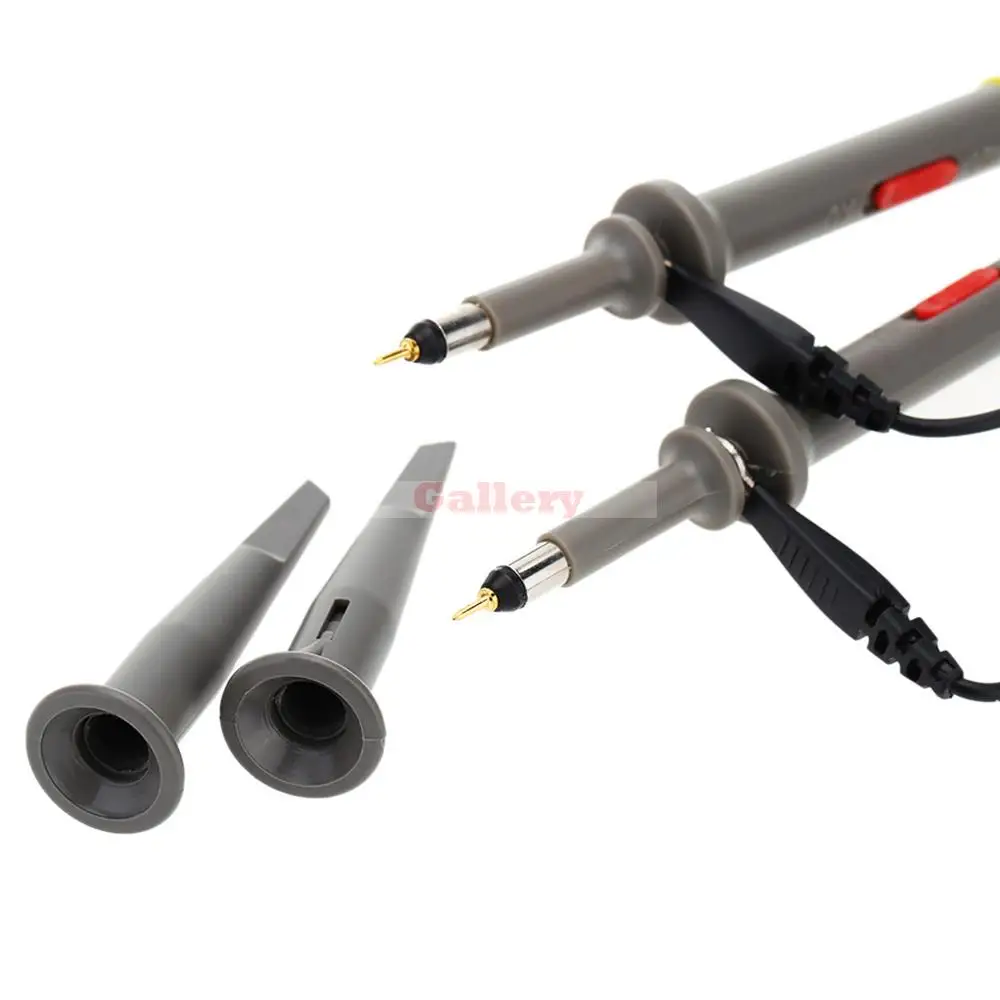

Use locating sleeve could ensure the stability and reliability of the tip exposed to the test point.
Spare maker rings attach the matched color rings onto the probe cable and shaft to identify different channels.
Considerate design and efficient assist tools.

Specifications:
Bandwidth: 60MHz
Rish Time: 5.8ns
Attenuation Ratio: 1X & 10X
Input Resistance: 1X: 1M2% 10X: 10M2%
Input Capacitance: 1X: 70pF120pF 10X: 14pF18pF
Maximum Input: 1X: 200 Working Voltage (Vp-p) 10X: 600 Working Voltage (Vp-p)
Compensation Range: 1545pF
Operation Environment: 050, 080%RH
Storage Environment: -2060, 090%RH
Color: Grey + Black
Material: PVC, Copper Pipe
Length of the Item: Approx. 123cm / 48.4in
Item Weight: 98.1 / 3.4oz
Package Size: Approx. 22 * 14 * 2cm / 8.7 * 5.5 * 0.8in
Package Weight: 128g / 4.5oz

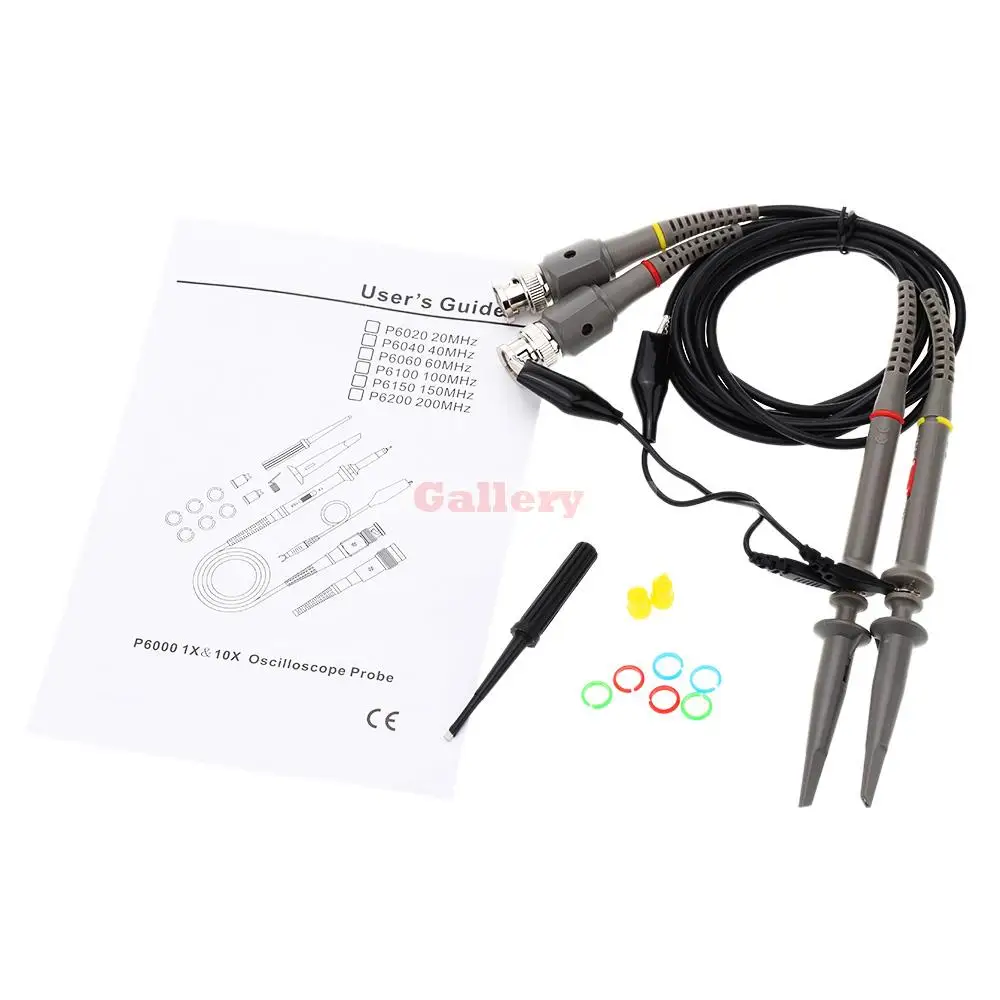

Package List:
2 * Probe Wire
2 * Retractable Hook Tip
1 * Adjustment Tool
2 * Locating Sleeve
6 * Maker Rings
2 * Ground Lead
