Statement

High-performance.direct displaying data,millesimal precision

Application

rubber,plastic,cables,hard alloy,glass,new materials researching laboratory.

Standards

​According to ASTM D792,GB/T1033,GB/T2951,JIS K6268,ISO 2781,ISO 1183,GB/T208,GB/T5163,GB/T 1933 standards etc.

DH-300 is one of the densimeter that have been widely applying in industry,as the medium of water,the density value can be displayed after two steps.Compared with traditional densimeter,there is no calculation by hand,which is more convenient.

With unicase injection moulding testing plat,and the high transparency water sink that built in imported PC.Testers can inspect the samples in water clearly.the suspension wire made up of 0.5mm stainless steel is perpendicular to nacelle,which would not touch the water sink,therefore accuracy of the test result can be ensured.DH-300 also can be applied to metal,powder,ceramics,fireproofing materials,magnetic materials,mechanical parts,mineral and rock,cement,precious metal,jewellery.,etc.

Specification

Mold: DH-300

Density Resolution: 0.001 g/cm3

Maximum Weight: 300g

Minimum Weight: 0.005g

Measuring Range: 0.001—99.999g/cm3

Assembling Steps

360° Show

Features

Fasting testing,more efficiency,can be applied in production site and laboratory.

Plastic particle,film,floating,seal ring,rubber,calcium carbonate powder can get quick tested.

Rubber DIN volume wear loss,Akron wear loss,expansion can be reading directly.

Function of automatic zero tracking,buzzer warning,and overload warning.

Function of solution compensation.necessary if liquid other than water is used as a medium for measurement.

Adopt the unicase high-capacity measurement accessories with the transparent injection mould tank,which can resist wear,fall off,and corrosion.

Adopt the unicase dedicated wind and dust cover,which makes the combination convenient and durable.

Interface of RS-232C is included.the printer of DE-40 is available to connect PC with instrument.

Standard Accessories

Host,Tank,Test board,Tweezer,Thermometer,100G weight,Wind and dust cover,A set of measuring grain accessories,A set of measuring floating body accessories,Power Transformer

Measurement Procedure

Place sample on test board to measure weight in air,and then press ENTER button to memory.

Place the sample into water to measure weight in water,and then press the ENTER button to memory. Density value is displayed.

Shopping Guide

Packaging

Customer Satisfaction

Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Feedback

Since your feedback is very important to our business`s development, we sincerely invite you to leave positive feedback for us if you are satisfied with our product and service. It`ll just take you 1 minute. Thank you

About Company

Cetification

Related Products

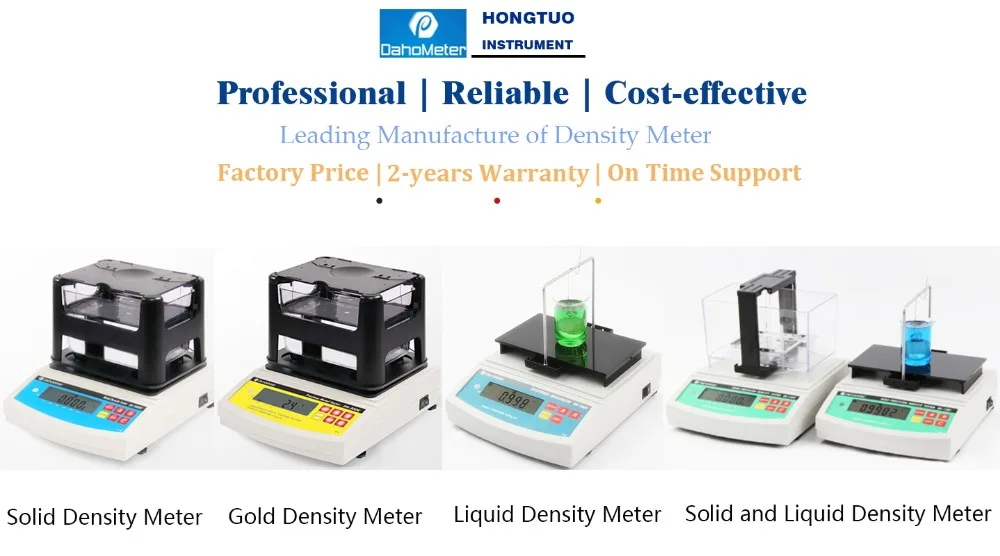

Solid series:DH-300,DH-600,DH-900,DA-300M,DA-600M,DA-900M,DA-1200M,DE-120M,DE-600M,DH-300M,DH-120M,DH-3000M,DH-120N

Liqulid series:DH-300L,DA-300W,DE-120W,DH-300W,DH-120W

Multi-function solid and liquid series:DH-300X,DA-300T,DE-120T,DH-300T,DH-120T

Series for rubber,tyre and shoes materials:DA-300DIN,DA-300M,DE-120DIN,DE-120M

Series for powder,magnetism,pottery and porcelain:DA-300MR,DA-300M,DE-120MR,DE-120M

Series for oil length,poriness:DA-300MQ,DA-300M,DE-120MQ,DE-120M

Series for wood,civil engineering:DA-300ML,DA-300M,DE-120ML,DE-120M

Series for cement,metal,plastic:DA-300MB,DA-300M,DE-120MB,DE-120M

Series for testing purity of gold,platinum,precious metal,tin:DH-300K.DH-600K,DA-600K,DA-900K,DA-1200K,DE-120K

Avaliable accessories:DE-40(printer),DE-20B(the components for anticorrosive liquid),DE-20A(the standard components for liquid)
