V44 A3967 EasyDriver Microstepping Driver Shield stepping Stepper Motor with Pins for Arduino 10PCS on - Шаговый двигатель V44 A3967 EasyDriver Microstepping Driver Shield с пинами для Arduino, 10 штук.

V44 A3967 EasyDriver Microstepping Driver Shield stepping Stepper Motor with Pins for Arduino 10PCS on - Шаговый двигатель с пинами для 10 штук.

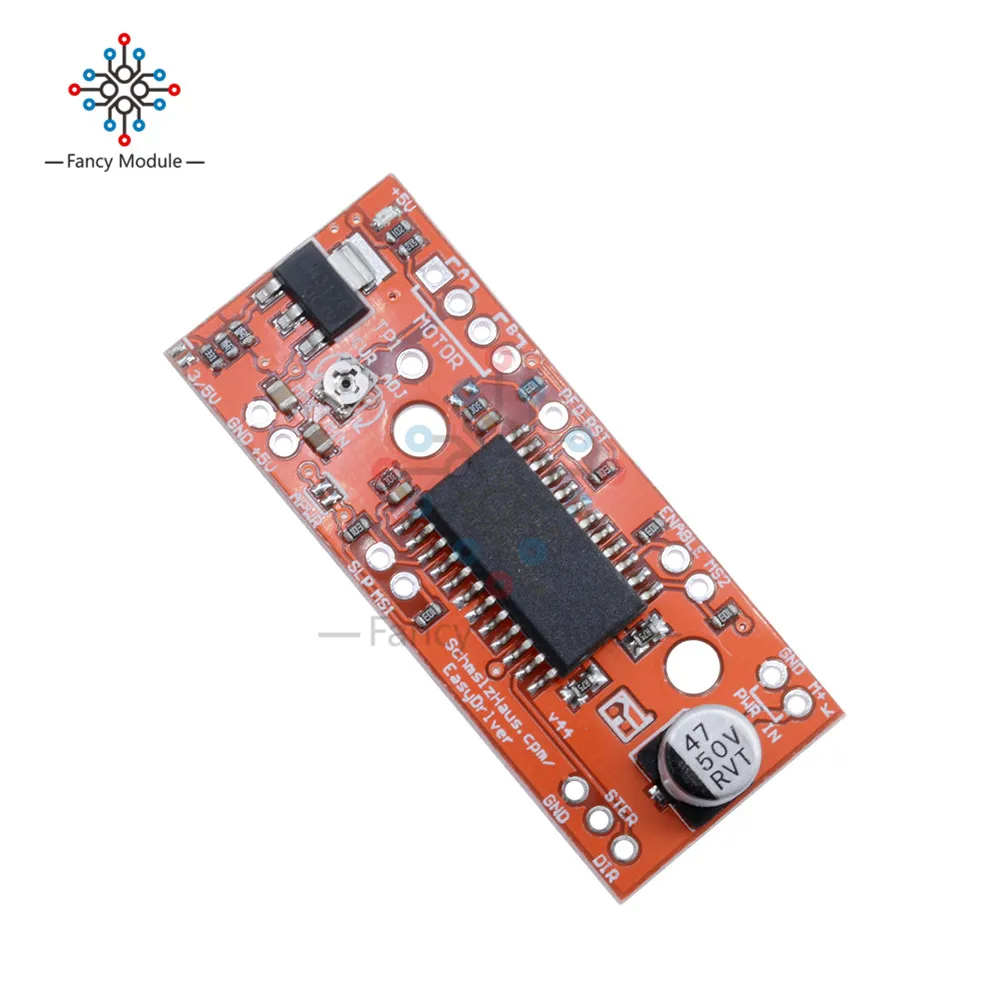

The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors. On this version (v4.4) we fixed the silk error on the min/max adjustment.

This is the newest version of EasyDriver V4 co-designed withBrian Schmalz. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.

Note: Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.

Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.

Features:

A3967 microstepping driver
MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth)
Compatible with 4, 6, and 8 wire stepper motors of any voltage
Adjustable current control from 150mA/phase to 750mA/phase
Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds

Package include:

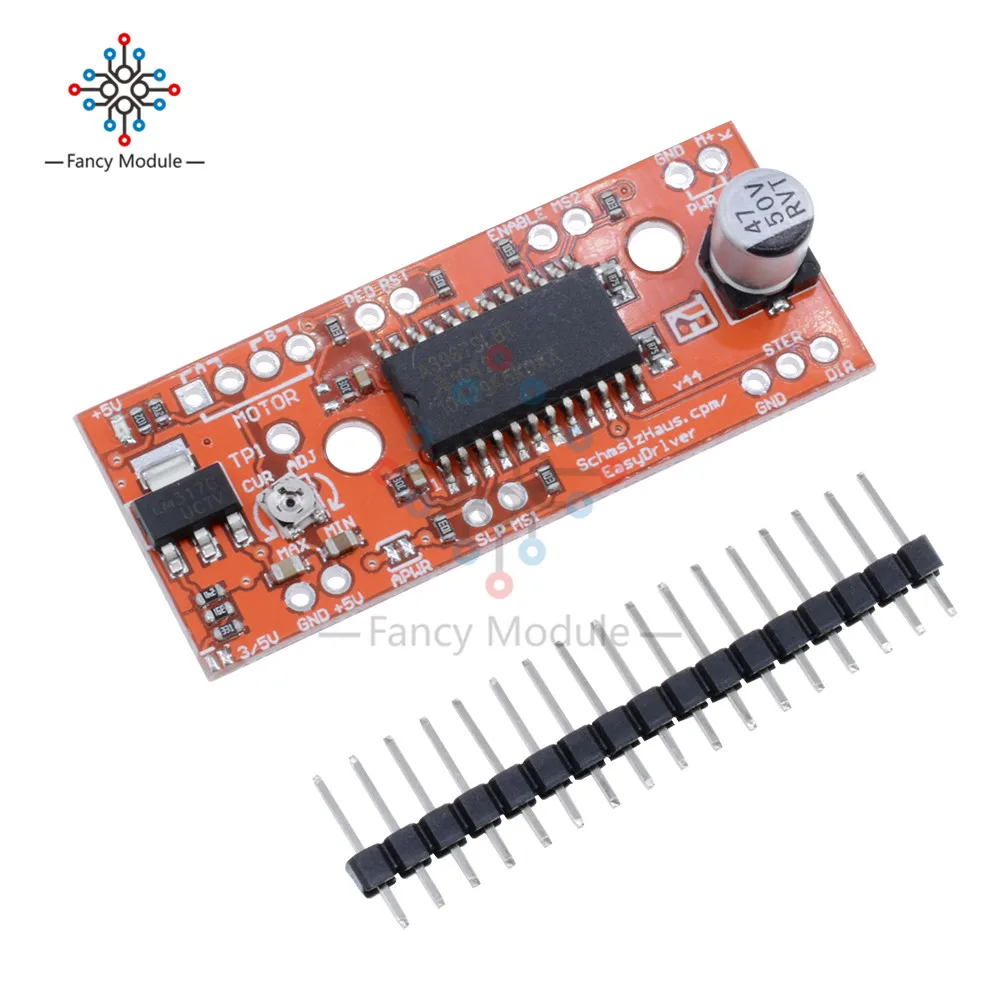

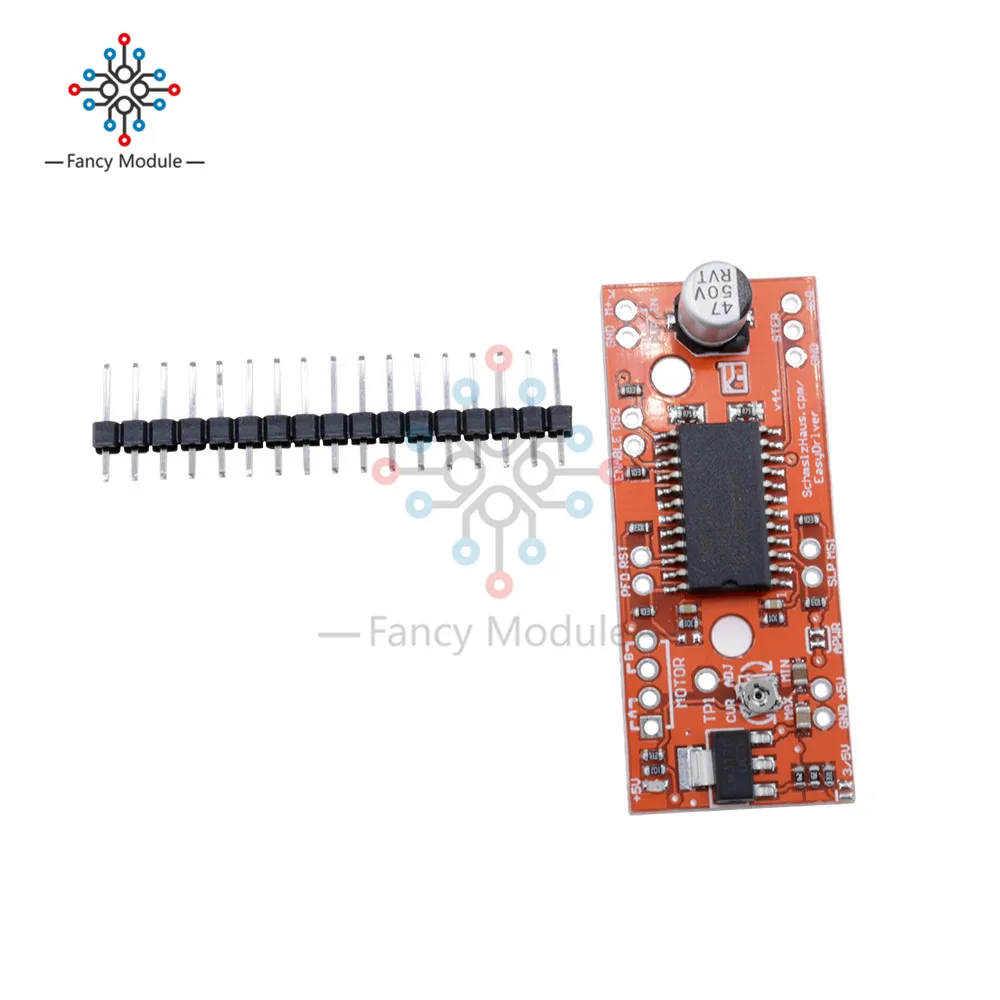

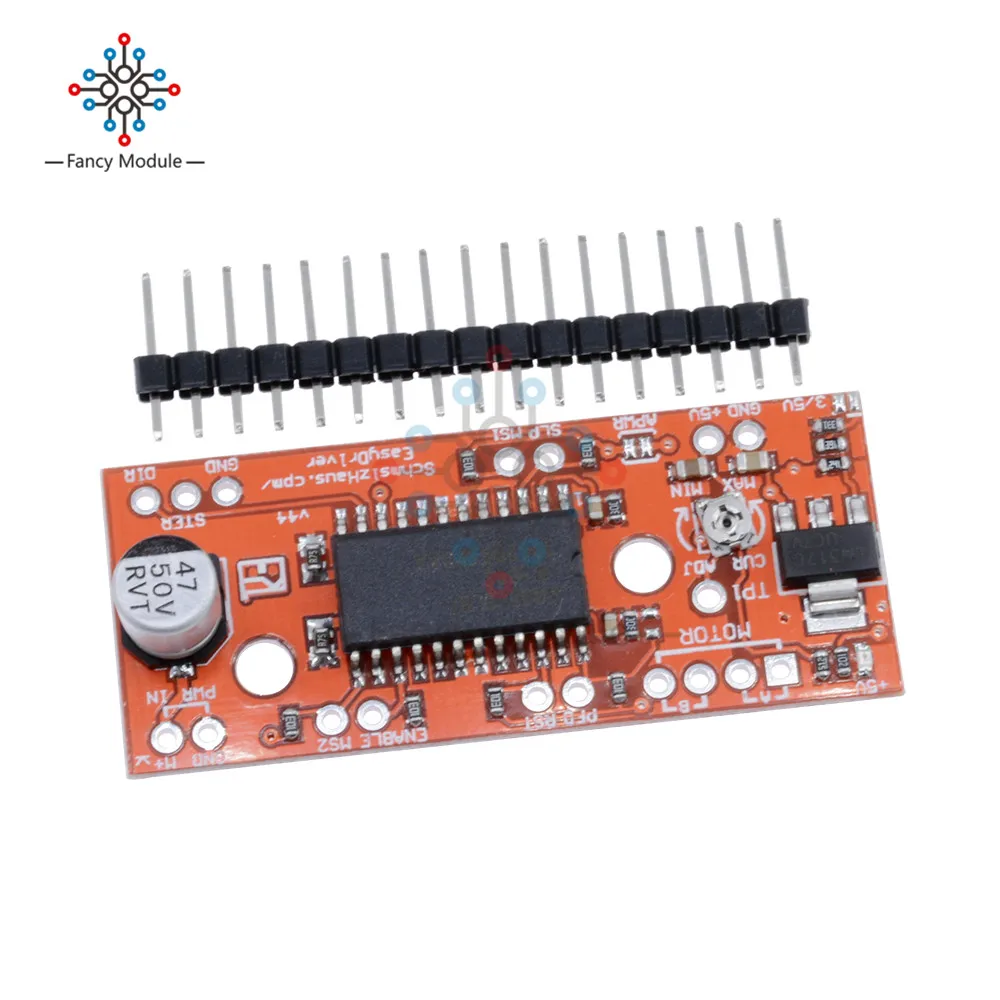

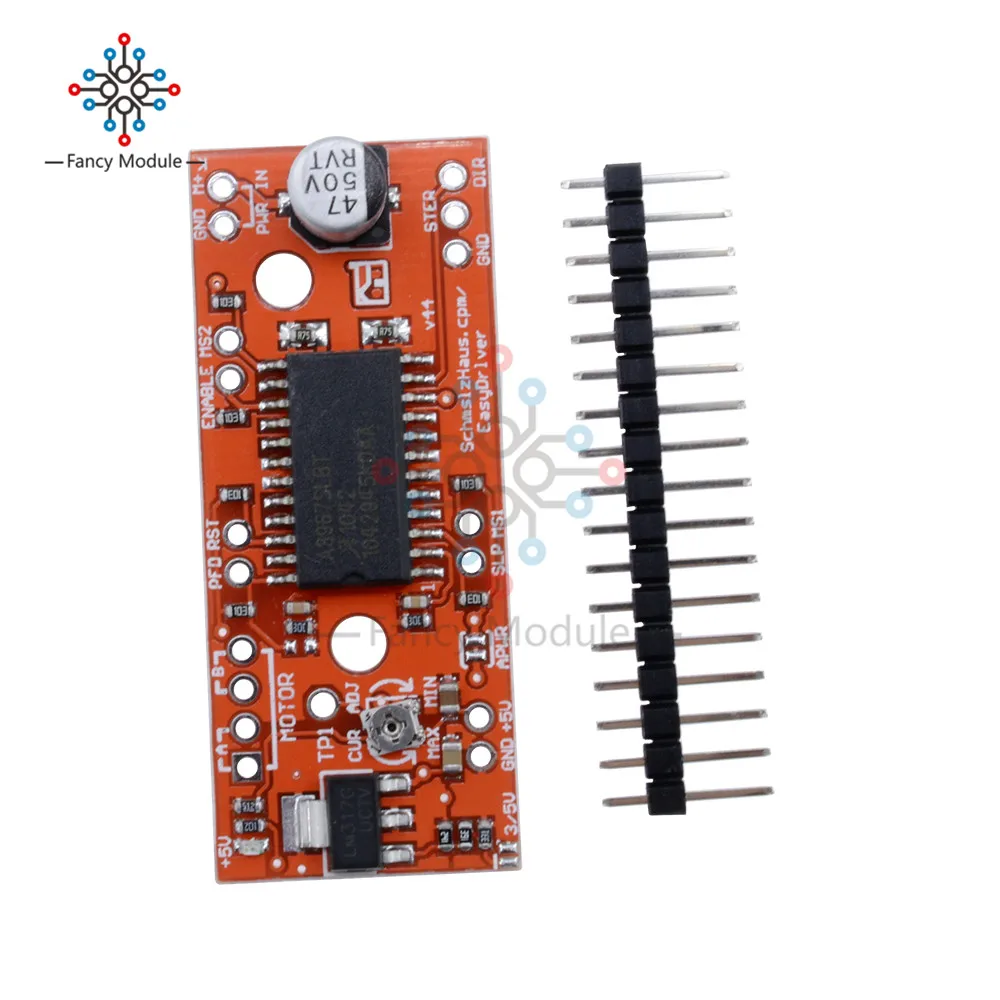

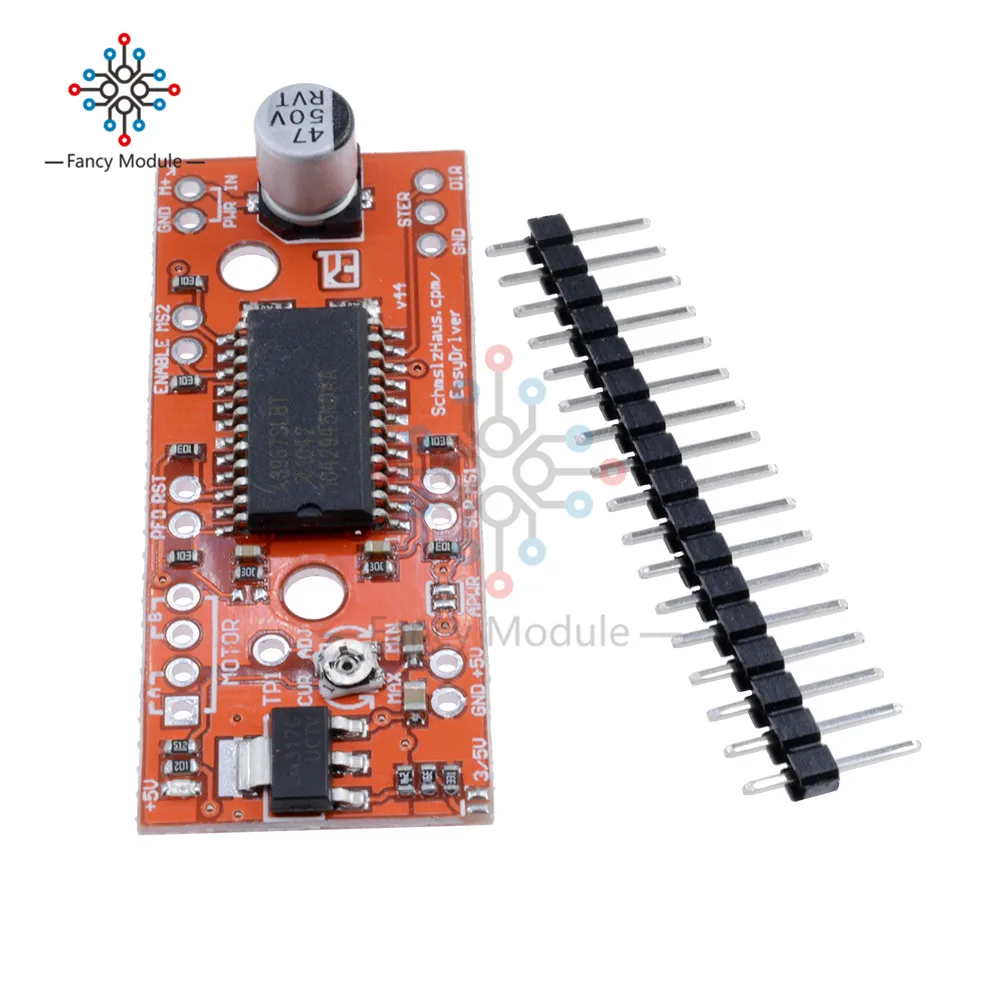

10*Easy Driver Shield stepping Stepper Motor Driver V44 A3967 For Arduino
