MHS-5200A High Precision Digital DDS Dual-channel Signal Source Generator Arbitrary Waveform Frequency Meter 200MSa/s 25MHz





description

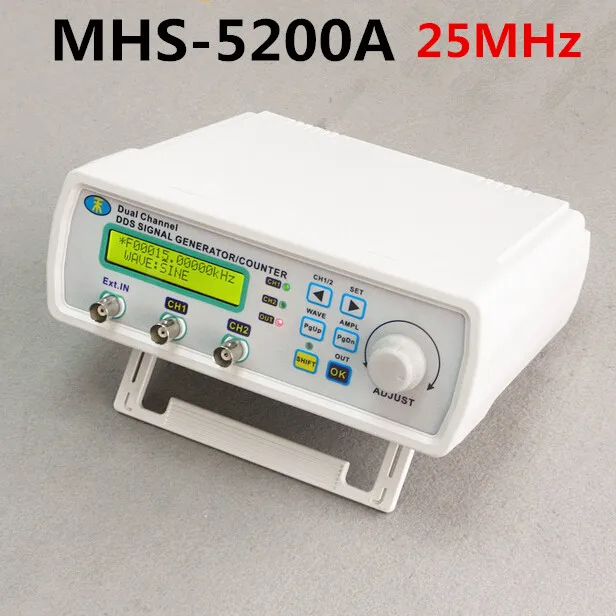

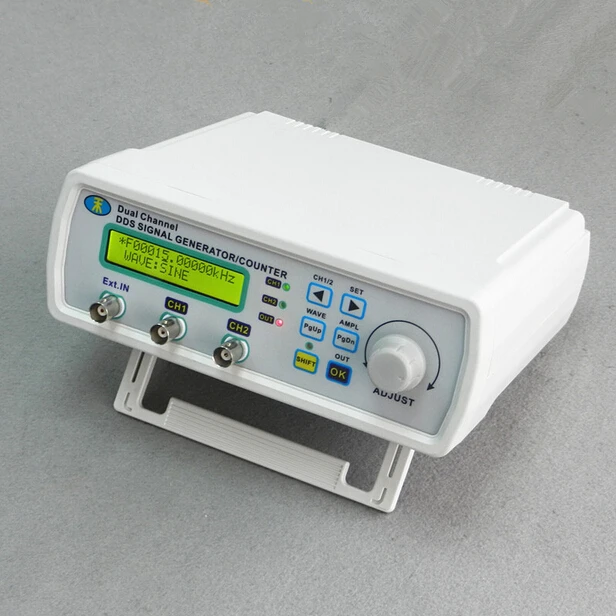

Arbitrary waveform DDS signal generator from MHS-5200A series is a multi-functional signal generator with high precision and high performance. It adopts large scale of FPGA integrated circuits, high-speed MCU microprocessor and SMT in the inner circuit, which can greatly improve the anti-interference and lifetime of the instrument. The LCD display is divided into two lines: the top line shows the current frequency and the following line displays additional parameters or functions. This instrument is of great advantage in generating signal, scanning waveform, measuring parameters, etc. It's an ideal testing or measuring instrument for electronics engineer, electronic laboratory, teaching and researching.

Features:
Can output arbitrary waveforms and conventional function waveforms(sine/triangle/square/sawtooth wave and TTL signal).
All functions are digitally controlled, precise and stable.
Dual-channel output, can work in sync, phase difference is adjustable.
With linear sweep(Max. up to 999s) and logarithmic frequency sweep functions.
Signal of both channels has built-in sophisticated -20dB attenuator in order to reach the minimum amplitude resolution 1mV.
With 120% ~ + 120% DC bias function.
4 TTL output(phase difference is adjustable).
Has a frequency measurement, period measurement, positive and negative pulse width measurement, duty cycle measurements and counting function.

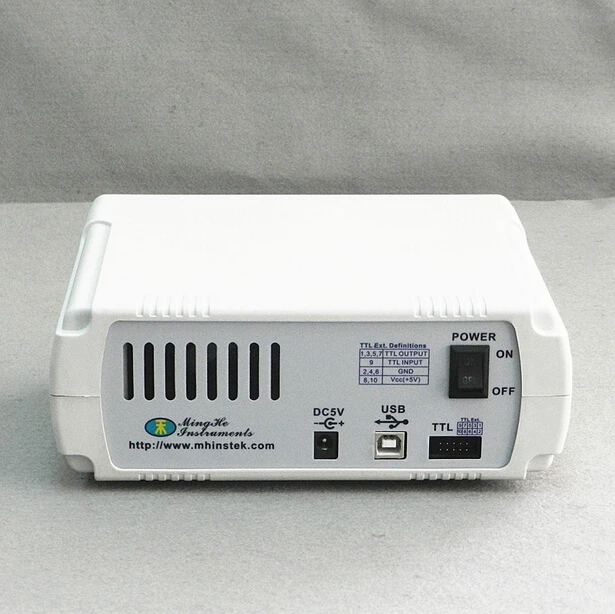

With USB interface, after the connection with PC, the PC can be used to control the instrument.

Specifications:

Project Parameters Key Features Frequency Range Sine Wave

Normal Modes(Optional): 0.01Hz~6MHz / 0.01Hz~12MHz / 0.01Hz~20MHz / 0.01Hz~25MHz

Square Wave 0.01Hz~6MHz Triangle Wave 0.01Hz~6MHz Sawtooth Wave 0.01Hz~6MHz Arbitrary Waveform 0.01Hz~6MHz TTL Digital Signal Wave 0.01Hz~6MHz Output Modulation Frequency Sweep Waveform Types Sine/Triangle/Square/Lifting Sawtooth Wave, CMOS Digital Signal Wave and Arbitrary Waveform Waveform Length 2048Points Sampling Rate 200MSa/s Waveform Amplitude Resolution 12Bits The Min. Frequency Resolution 10mHz Frequency Error +/-5*10^(-6) Frequency Stability +/-1*10^(-6) Amplitude Range(Peak to Peak)

5mVp-p~20Vp-p(12MHz or Less)

15mVp-p~Vp-p(12MHz and above)

Output Impedance 50Ω(+/-10%) Amplitude Resolution

1mVp-p (-20dB Attenuation)

10mVp-p (No Attenuation)

Offset Range -120%~120% (The ratio of bias voltage and signal amplitude) Bias Resolution 1% Phase Range 0~359° Phase Resolution 1° Sine Wave Harmonic Arrived System 40dBc(<1MHz); 35dBc(1MHz~20MHz) Distortion <0.8%(20Hz~20KHz) Square Wave Lifting Along Time ≤20ns Overshoot ≤10% Duty Cycle Adjustment Range 0%~99.9% TTL Lifting Along Time ≤20ns Low Level <0.3V High Level 1V~7.5V Arbitrary Waveform Quantity 16 Memory Depth/Group 1KB/16 Scan Scan Mode Linear Sweep, Log Sweep Scan Time 1s-999s Scan Range It is determined by the sweep parameter settings External Measurements Frequency Measuring Range

GATE-TIME=10S 0.1Hz - 60MHz

GATE-TIME=1S 1Hz - 60MHz

GATE-TIME=0.1S 10Hz - 60MHz

GATE-TIME=0.01S 100Hz - 60MHz

Input Voltage Range

0.5Vp-p~20Vp-p Counting Range 0~4294967295 Counting Manually Positive and Negative Pulse Width Measurement 10ns Resolution, the Max. Measurable 10s Periodic Measurement 20ns Resolution, the Max. Measurable 20s Duty Cycle Measurement 0.1% Resolution, Measuring Range from 0.1%~99.9% Source Selection 1. Ext. IN Input(AC Signal) ; 2. TTL-IN Input(Digital Signal) Memory Quantity 10 Location M0~M9 Interface Interface Mode using USB to Serial Interface Communication Rate 57600bps Protocol Using the Command Line, the Agreement Public Power Supply DC MHS5200A DC 5V Power Supply General Size 19.5 * 17.5 * 7cm / 7.67 * 6.9 * 2.75in Weight 542g / 19.12oz Package Size 24 * 24 * 12cm / 9.55 * 9.45 * 4.72in (L * W * H) Package Weight 1027g / 36.25oz

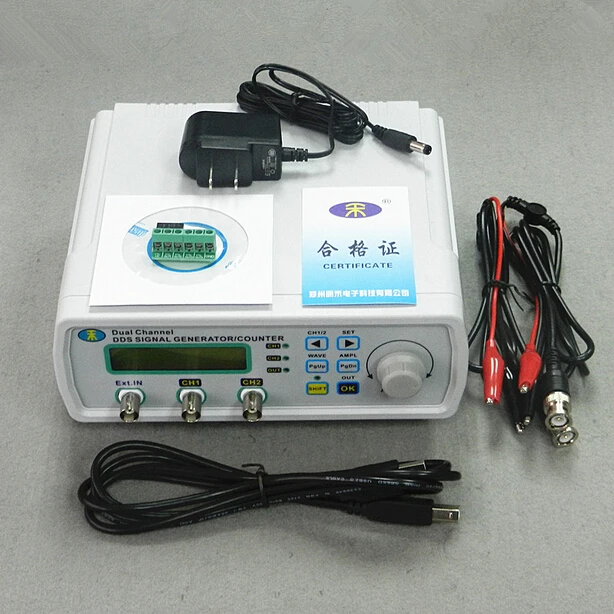

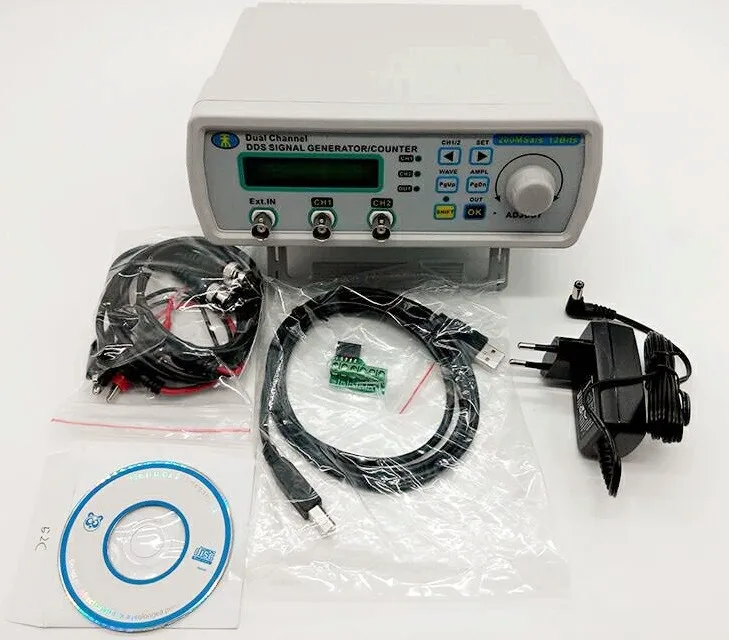

Package List:
1 * Signal Source Generator
1 * USB Cable
1 * CD
1 * TTL Expansion Board
2 * BNC Clips Cable
