Coil heater description:

Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.

D-NAIL/E-NAIL Coil SERIES:

Name of product

Electric D-nail/Enail Heating unit

Inner Diameter of coiled heater

8/10/14/16/18/20mm  ( + 0.05mm)

Coil Height

13.3mm/12.7mm  ( + 0.05mm)

Flat Coil

ID9mm,OD26mm

ID10mm,OD27mm   ( + 0.05mm)

Voltage

12v;24v;120v;220v

Wattage

100w;120w;150w;250w

Cross-section

3x3mm;2.2x4.2mm

Thermocouple

K or  J type

Connector plug

Xlr female and male 5 pin

Sleeve  material

kevlar/fiberglass(Fashional)

Sleeve color

red,black,yellow,green,blue,and black with yellow strip

PID Temperature controller

L130xW120xH70mm

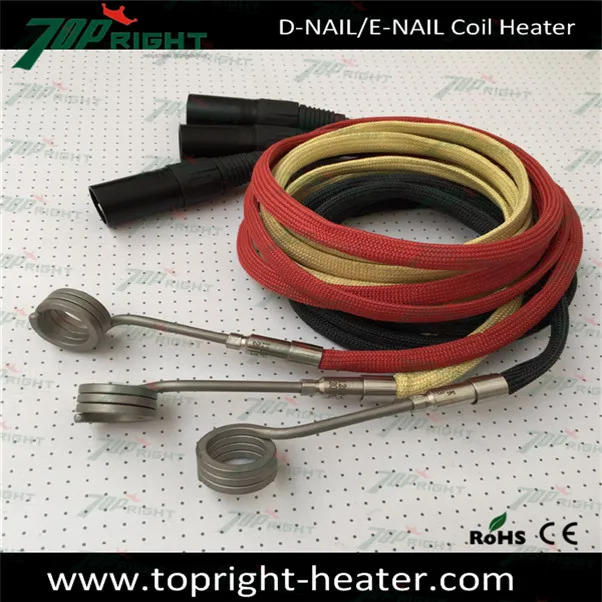

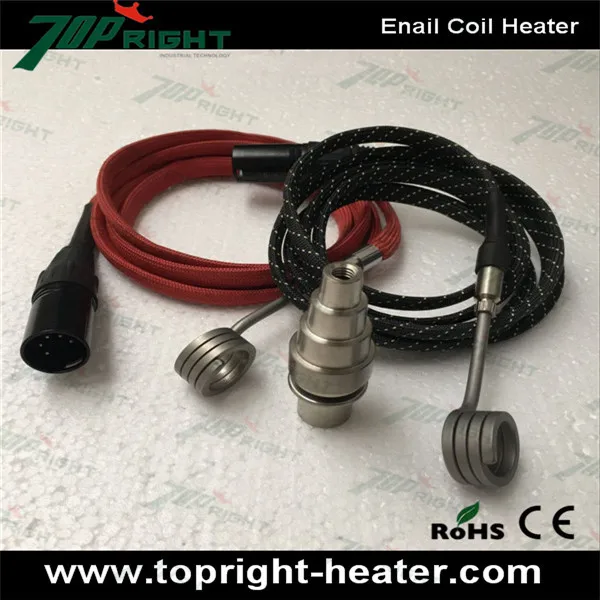

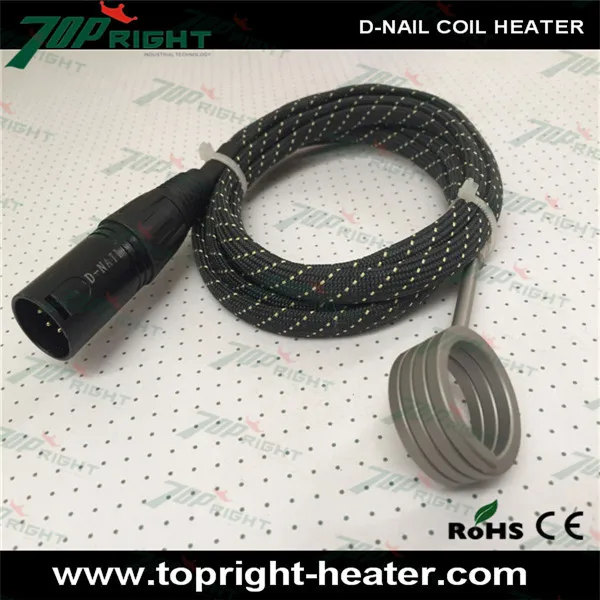

Coil Heater Photos:

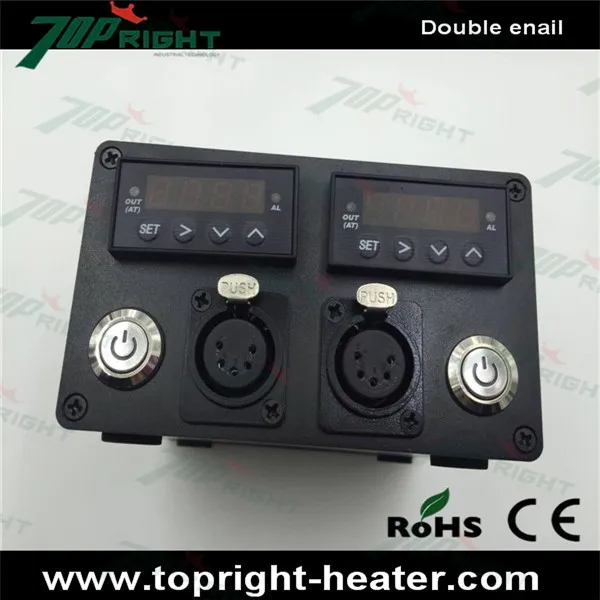

double control box

Hot Runner Heater packaging Photo:

Welcome to contact us for more details ,Thank you!
