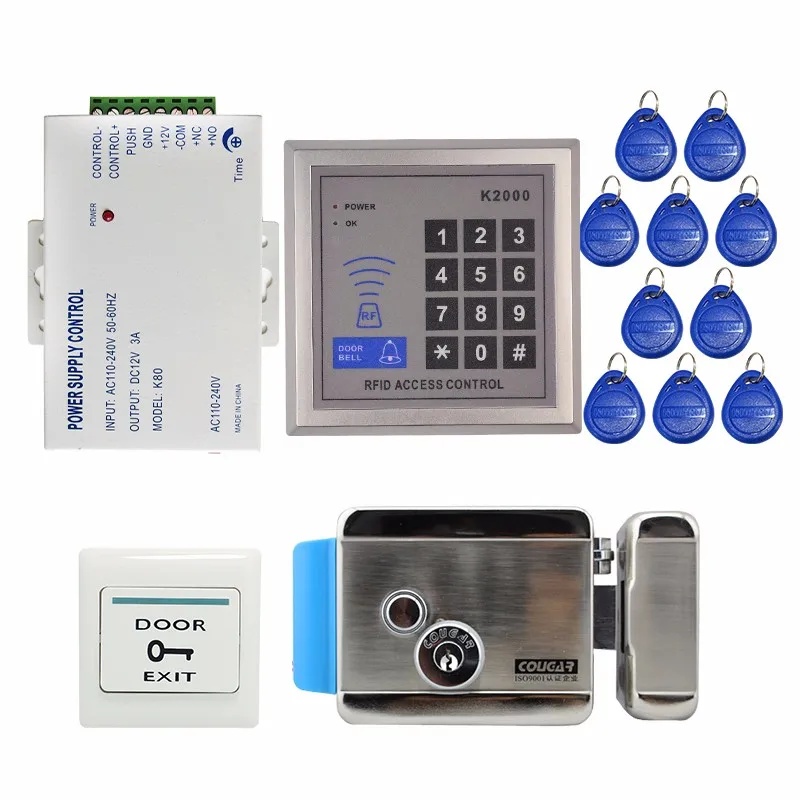

DIY RFID Access Control System Kit Set with Electric Control Lock

Power Supply +Electric Control Lock + 10 ID Keyfobs +Exit button

It enables you to control who has access to your building



RFID Access controller
  This is a NEW RFID Reader Access Control Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!
  Contactless RFID transponder technology
  Full programming from the keypad
  Support Card, PIN, Card + PIN
  Connection for external release button(Exit button)
  Build in RFID reader
  User capacity: 500users (each card only can add one password)
  Does not need to connect on the computer, it can work alone.
  ​   Power supply

This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
  It controls electric lock directly.
  Can reduce the load of access controller, save wiring to reduce the hidden trouble
  Based delay control circuit, lock time can be in 0-15 seconds
  Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  Operative device: E/M Lock, Access Controller, Exit Push Button.



Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.




NO Mode - (Locked while power is off); Material: Stainless Steel; Authority Certification: CE & MA Approved

Application: wood/iron doors;

Working Voltage: 12VDC

Working Current: 0.2-0.45A

Weight: 1500g;

Dimension (Face Plate): 120mm x 105mm x 35mm

Center distance: 60mm

Door distance: 35-55mm

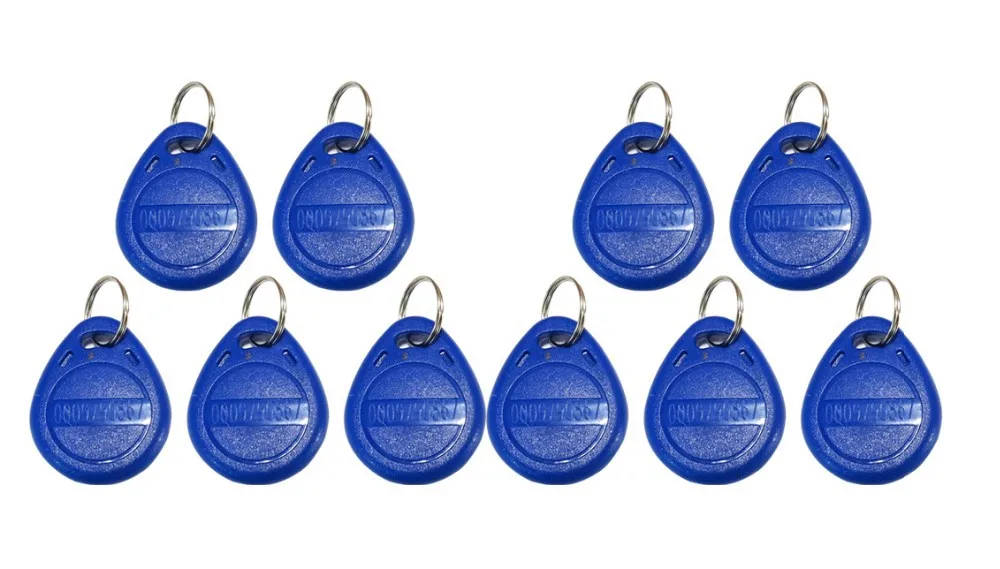

125Khz RFID Keyfobs

These are 10pcs 125KHz RFID Proximity Keyfobs, they can work with the product which has 125Khz RFID card reader.  Operation Frequency: 125KHz;



Reading distance: 8-10cm;



Each keyfob has an uniqe ID number.

Exit Button

This is a Exit Button for Access control use,when you want to go out, you just need to press this Exit Button, then you can go out:

Maximun Power Rating: 36 VDC 3A-5A output
  Performance Testing: 1000000 times aging test.     Access Controller Specification Wiring connection: Electric Lock, Exit Button Working Voltage: DC 12V Card Type: ID card Frequency: 125Khz Reading distance: 4-15cm  Dimension: 88mm×88mm×18mm
Power supply Specification AC input: Standard AC100V-240V 50-60HZ DC output: Stabilivolt DC12V/ 3 A Package Dimensions: 117 x 68 x 32mm   Lock Specification NO Mode - (Locked while power is off); Material: Stainless Steel; Authority Certification: CE & MA Approved

Application: wood/iron doors;

Working Voltage: 12VDC

Working Current: 0.2-0.45A

Weight: 1600g;

Dimension (Face Plate): 120mm x 105mm x 35mm

Center distance: 60mm

Door distance: 35-55mm

  Exit Button Opening device: Normal Open Power Rating: 3A/36VDC Faceplate Dimension: 85Lx85W (mm) Material: Hard Plastic

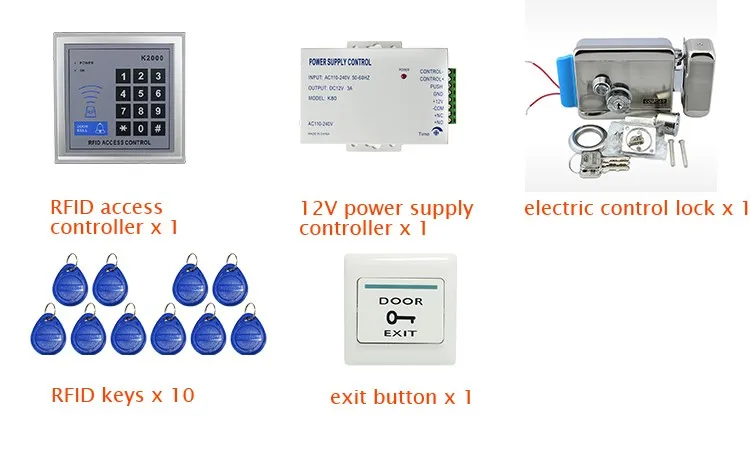

Package
