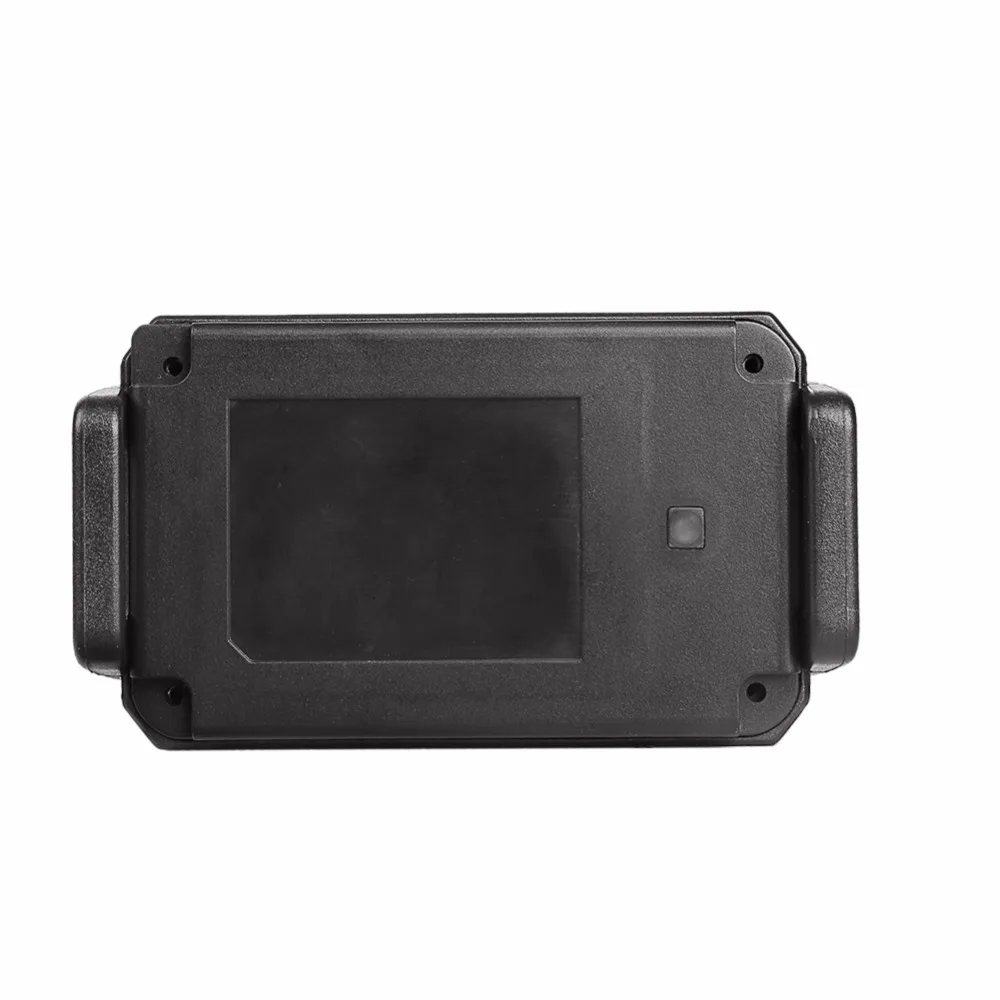

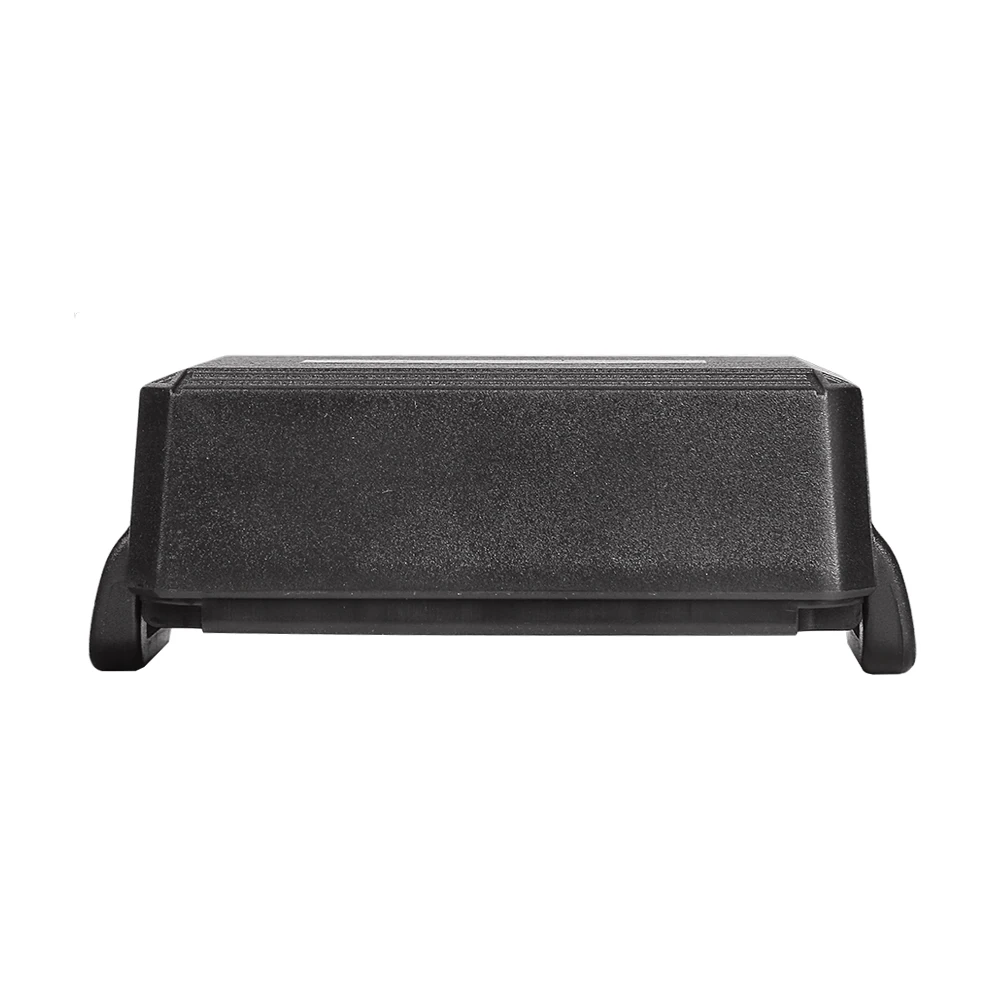

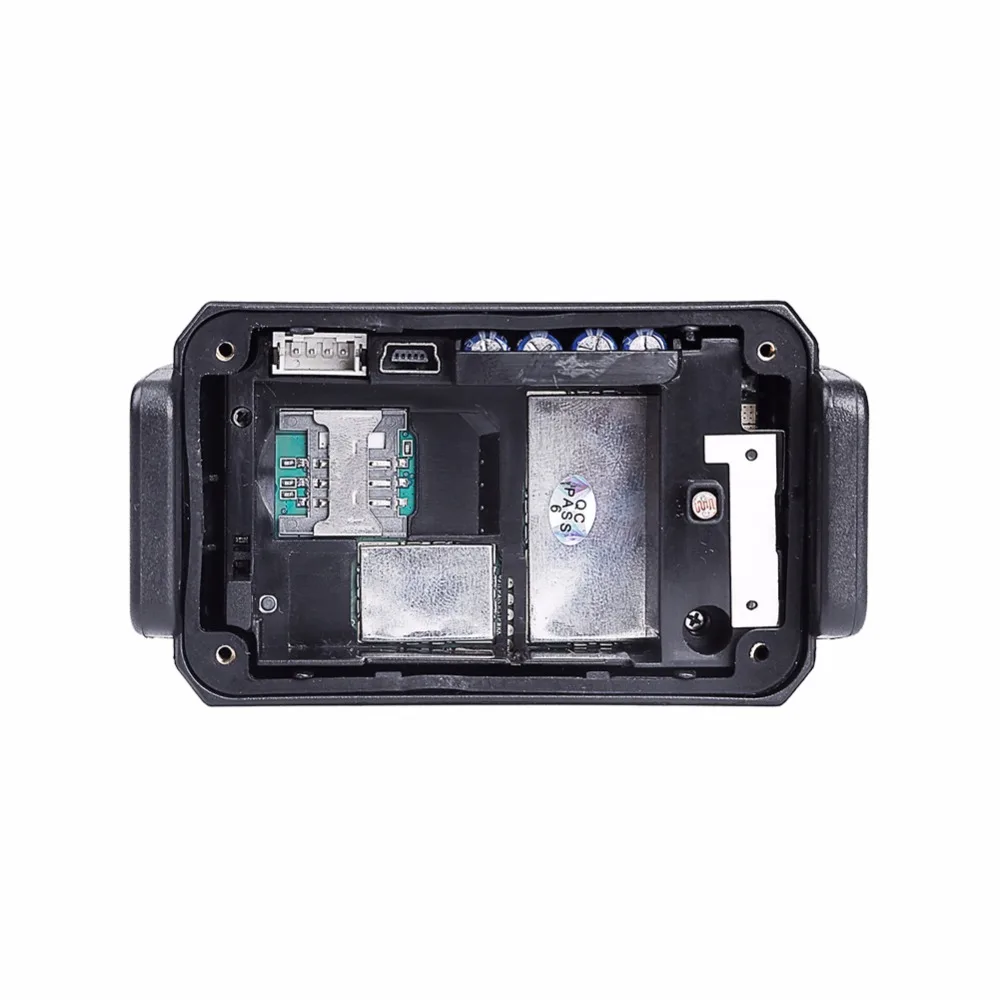

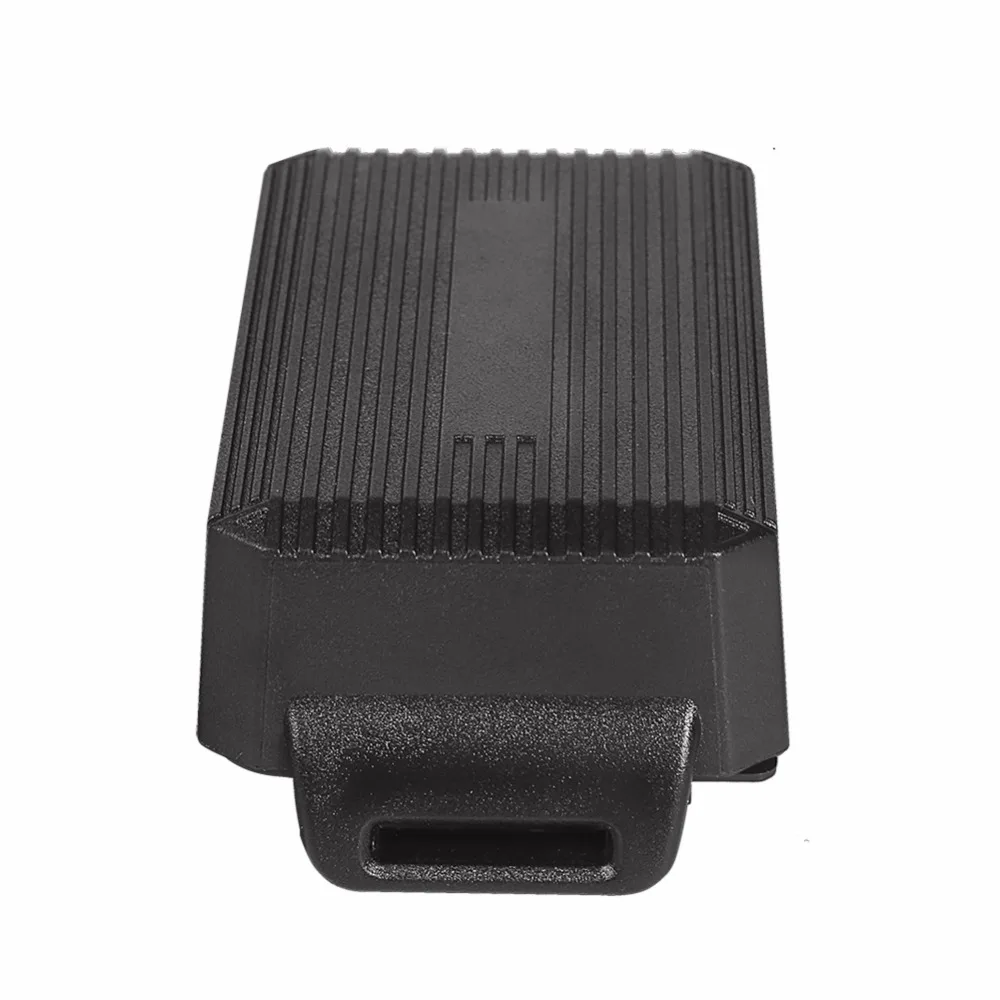

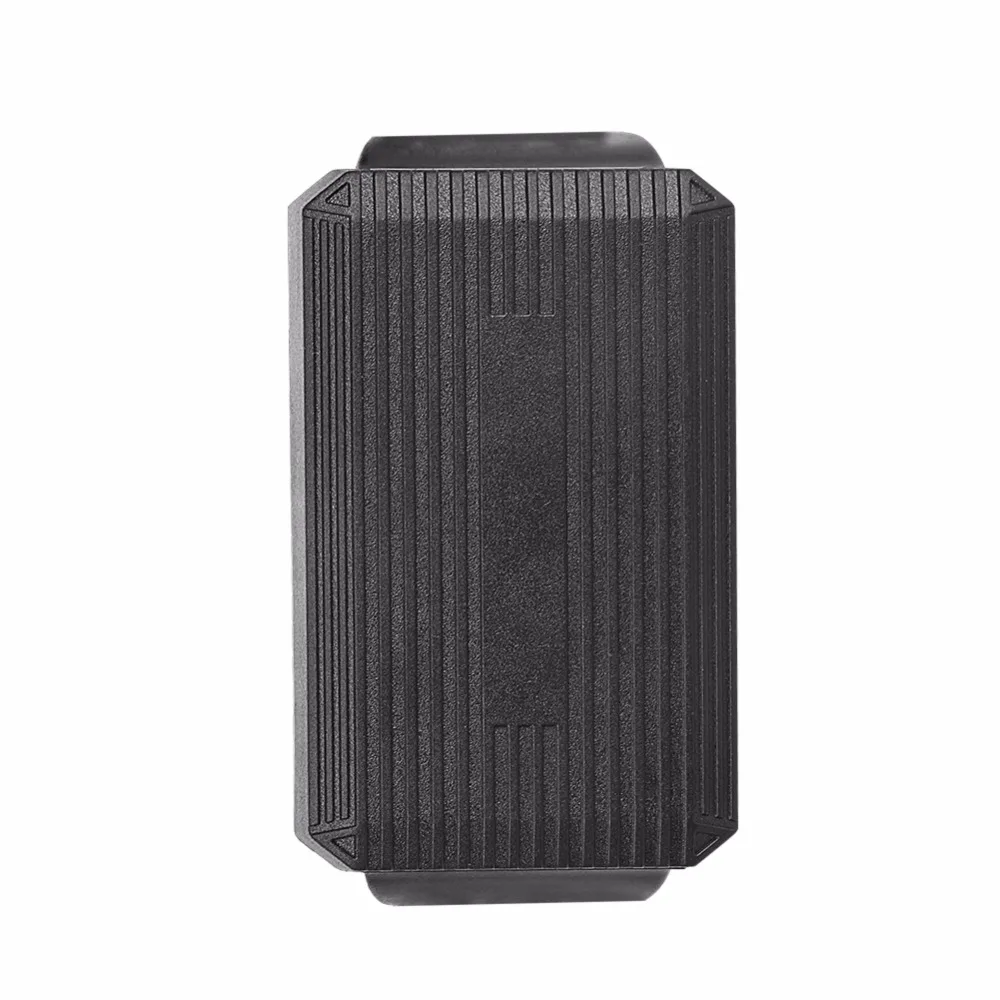

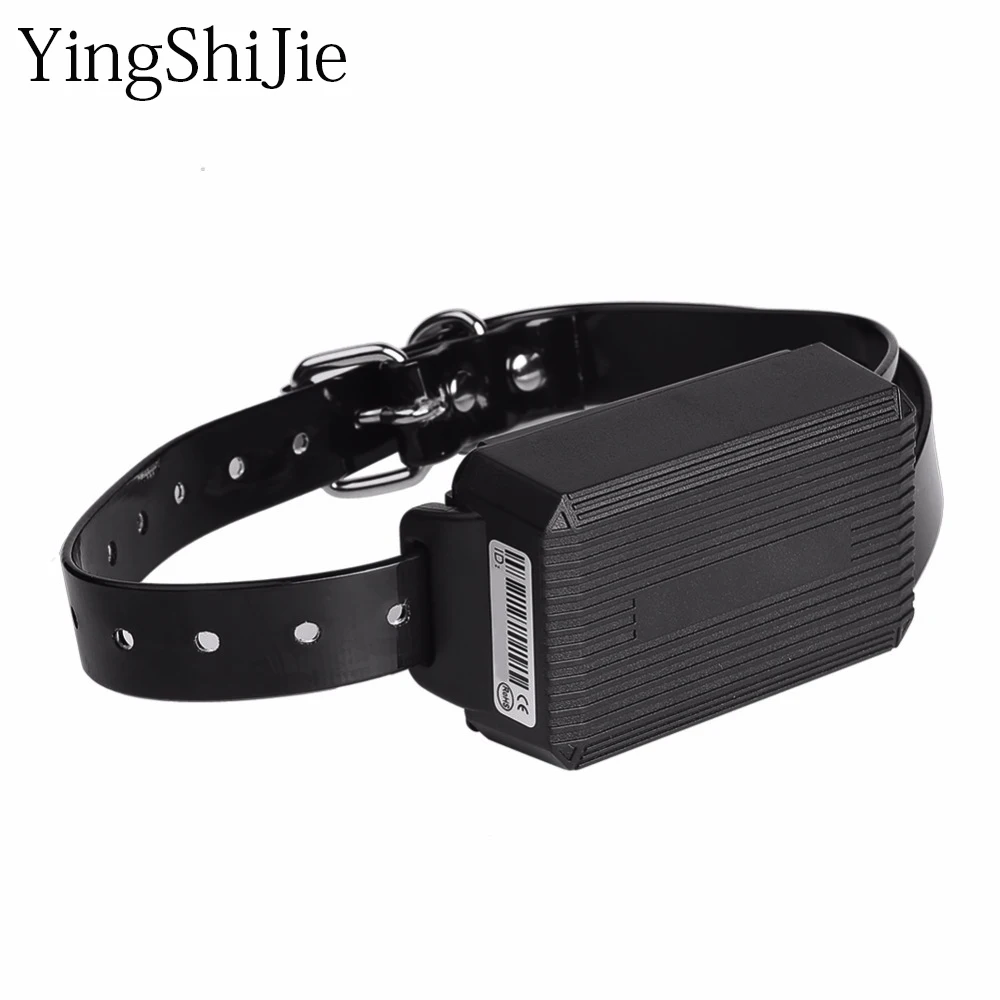

YingShiJie LK660 Waterproof Sheep Cow Horse GPS Tracking Positioning Device Tracker Pet vehicles garden | Автомобили и мотоциклы







Content Specs.

Content

Specs.

Dim.

75mm x 45mm x 25mm

Weight

105g

Network

GSM/GPRS

Band

850/900/1800/1900Mhz

GPS chip

UBLOX

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80s

Warm status  35s

 Hot status  1s

Battery

Un-chargeable 8000mAh

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing

​  LED Indicator Definition

Green Indicator：GPRS

Status of indicator

Meaning

Flash

GSM/GPRS conversation start

Continuously in bright status

No GPRS signal

Green Led off

Power off or in sleep mode

Blue Indicator：GPS

Status of indicator

Meaning

Flash

GPS location successful

Continuously in bright status

GPS signal searching

Blue led off

Power off or in sleep mode

Red Indicator：Power charge

Status of indicator

Meaning

Continuously in bright status

charging

Red led off

Power off or charged full



 More Commands

Function

Command Format

Reply

Delete

for example

APN

apn+123456+space+content

apn ok



apn123456 cmnet

apnuser+123456+space+content

apnuser ok





apnpasswd+123456+space+content

apnpasswd ok





admin number

admin123456+space+admin phone number

admin ok

noadmin123456

admin123456 186********

time zone

timezone+123456+space+GMT No.

timezone ok



timezone123456 +1

Power save(default)

sleep123456 time

sleep time ok





shock sleep

sleep123456 shock

sleep shock ok





no sleep

sleep123456 off

sleep off ok





upload frequency

upload123456+space+time

upload ok



upload123456 10

Cut and resume oil

555

Cut oil OK

666



Arm&Disarm

111 or SF

Arm delay in 0s

000 or CF



Position

G123456# or where

Google map





Restart

rst

restart ok





Back to factory

format

No reply







  Faults & The solutions Q：Start up Fail? A：Check the cable connect right or not. Q：The device can not obtain location information? A：Place the unit at the open area to test. Q：How to choose SIM card? A: the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit. Q: How to use in the foreign countries? A：please set the APN before use，please edit the text “APN123456 CMNET “ and send it to the SIM card of the device，CMNET is Chinese operator’s APN, Replace the corresponding APN when use in other countries, APN details, please consult your local SIM card carrier.  Cautions Please comply with the instructions to extend the unit life: 1. Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry. 2. Don’t use & store the unit in dusty places. 3. Don’t put the unit in overheated or over cooled places. 4. Handle carefully. Don’t vibrate or shake it violently. 5. Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent. 6. Don’t paint the unit, this may cause some foreign materials left in between the parts. 7. Don’t disassemble or refit the unit. 8. Please use the battery and charger provided by manufacturer. Using other batteries and chargers will cause unwanted situation
