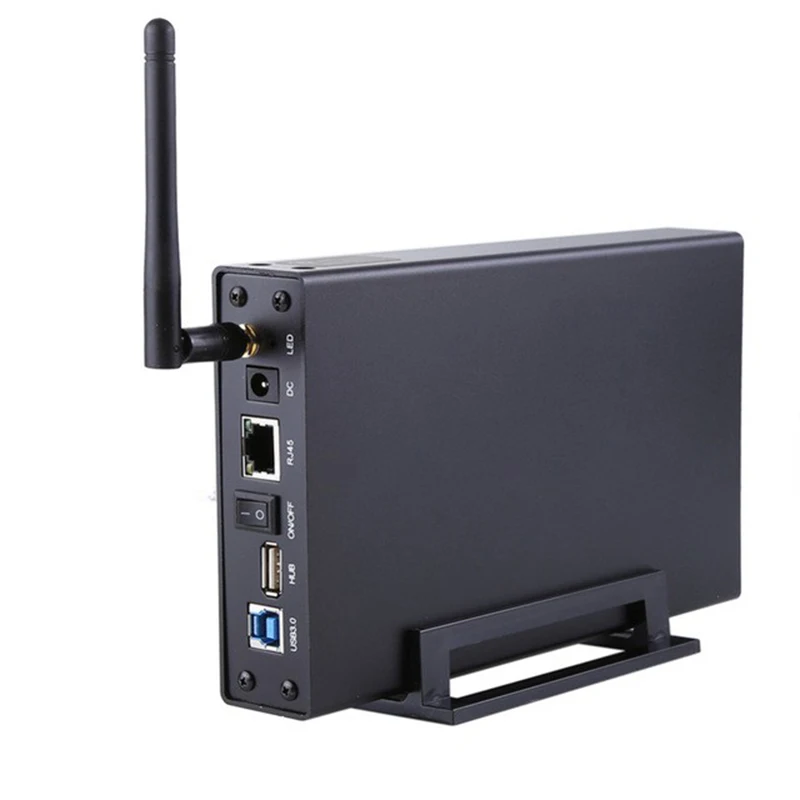

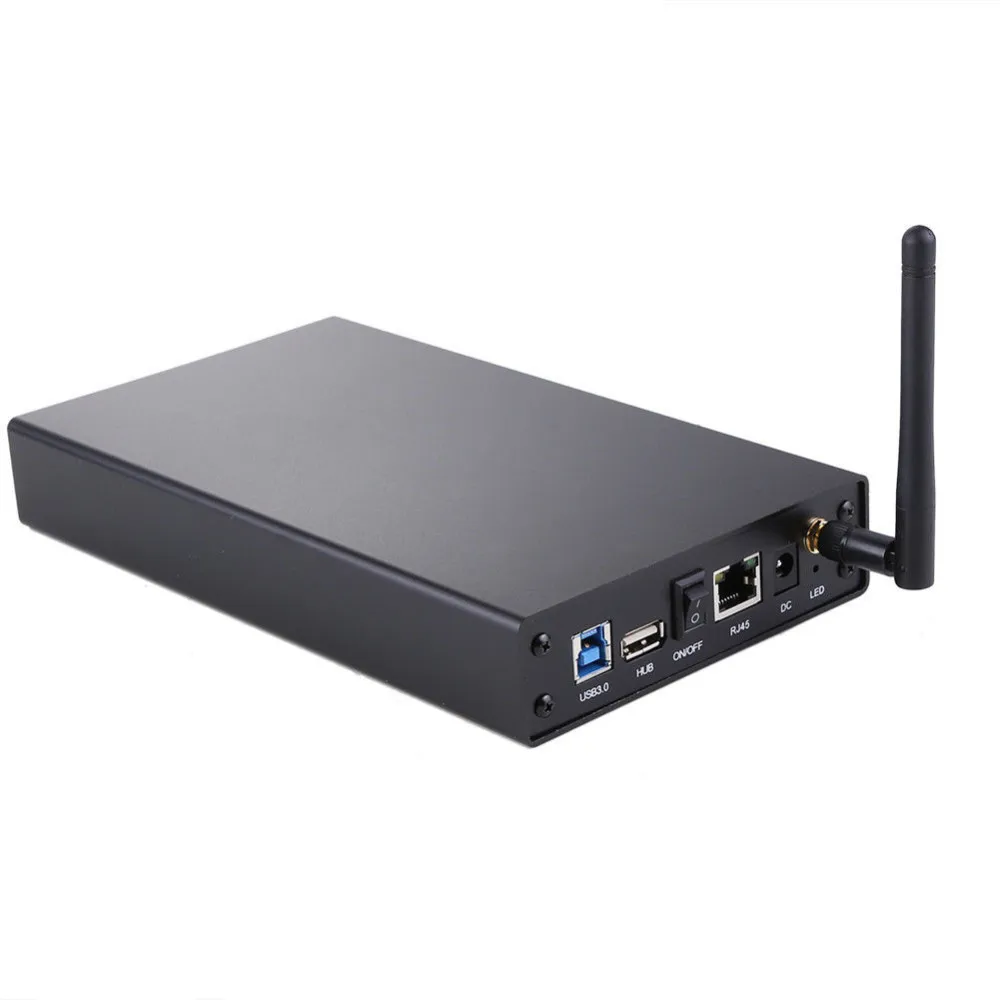

2.5/3.5 inch USB 3.0 USB 2.0 To SATA HDD Enclosure Hard Disk Case up to 6TB With WiFi Router Wireless storage Function

Please note : this is only a hdd case and don’t contains the hard disk .

General Feature:

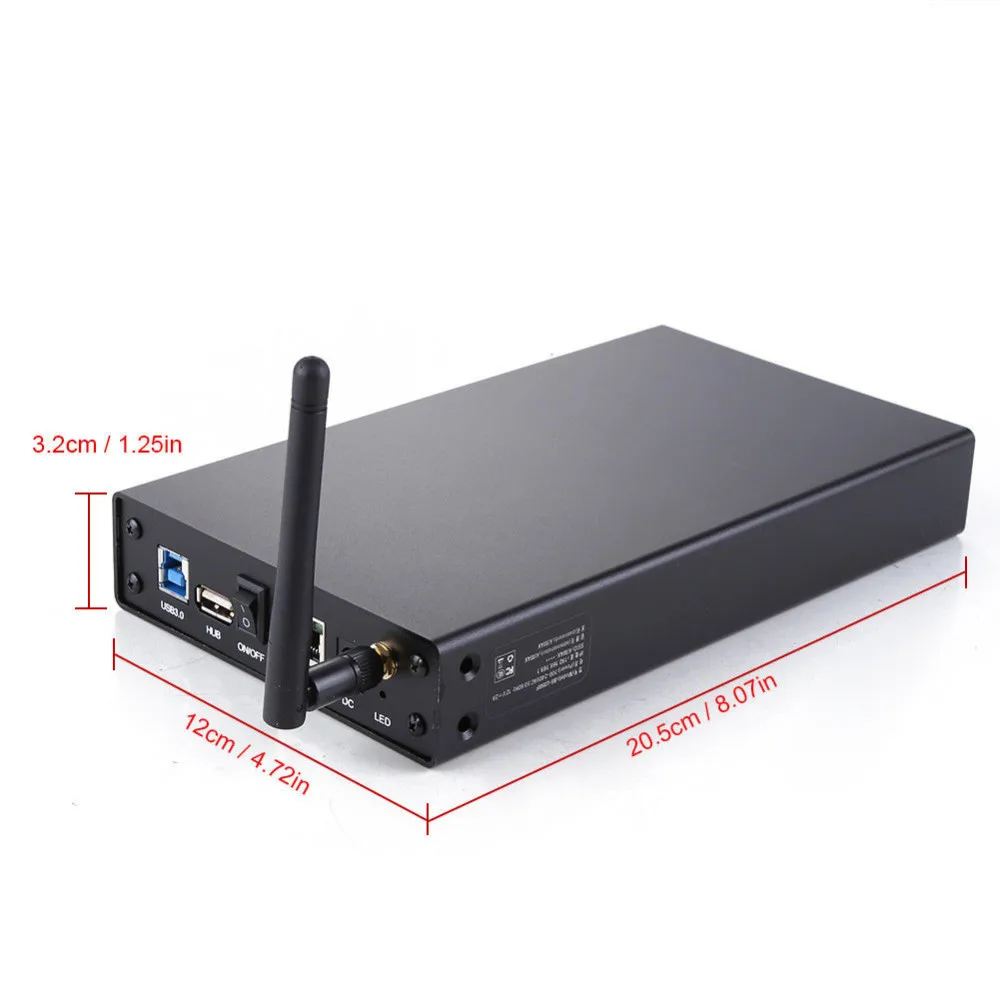

1. Size: 195*115*32mm
2. Color: black
3. Case material: aluminum

4. Model: BS-U35WF

Packing list:

1 x HDD Enclosure

1 x USB3.0 cable

1 x AC power cord

1 x AC power adapter

1 x screws kits

1 x screwdriver

1 x User Manual

Function 1: 3.5" usb3.0 HDD Enclosure

1. Chipset: INIC3619

2. Internal Interface:SATA

3. External Interface:USB 3.0,compatible with USB 2.0/USB1.1.

4. USB3.0 transfer rate 5Gbps,compatible with 480 Mbps for USB 2.0 and 12 Mbps for USB 1.1.

5. Supports 3.5inch 6TB SATA hard drive

6. System Support:Windows7/Vista/XP/2000/ME/98SE Linux Mac OS 8.6 or higher
7. Support Hot-swap,Plug and play

Function 2: WiFi Router

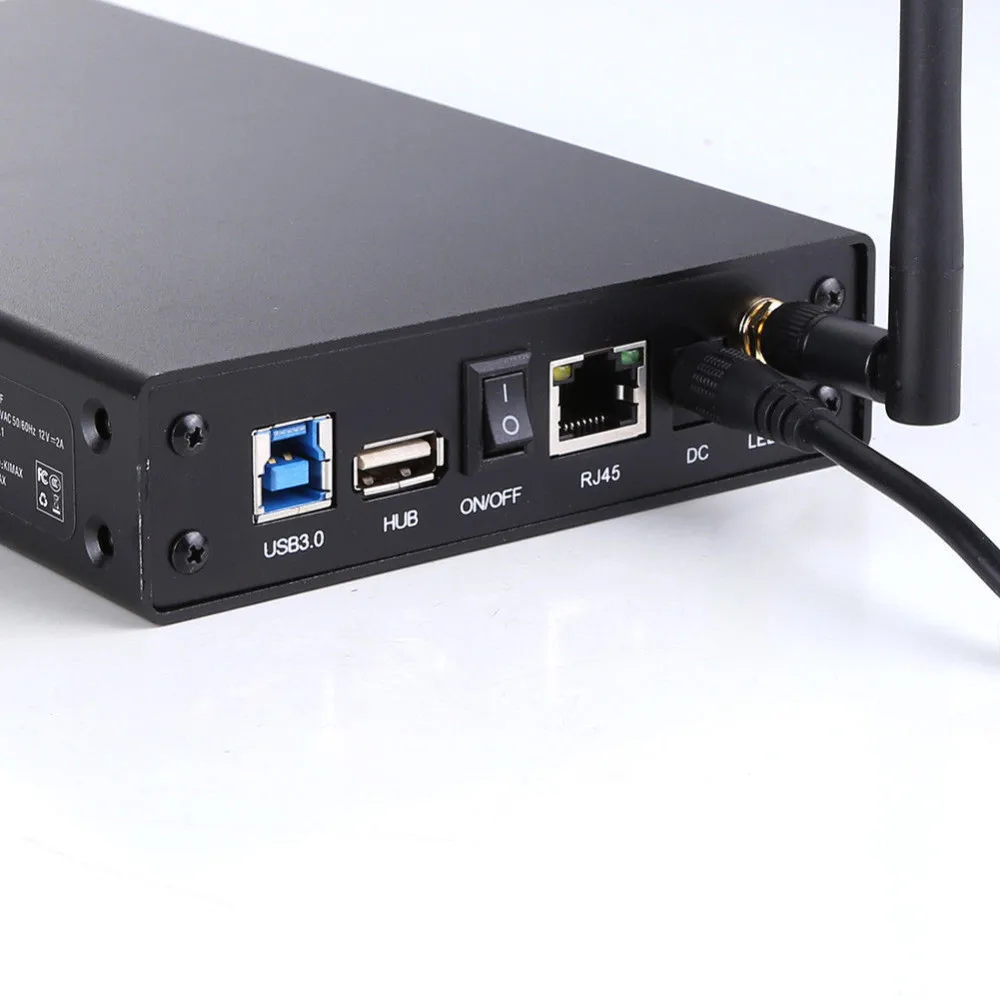

1. Network interface:RJ45 Ethernet interface

2. Built-in WIFI wireless network card and 1000M cable accessnetwork port, enabling you to fully enjoy the fun of high-speed internetaccess;

Function 3:WiFi Storage

1.  support multiple multimedia formats

Picture: JPG,TIFF,JIF,BMP
Audio: MP3,AAC,m4a,wav,aiff
Video:MP4,MOV,m4v,avi,M-JPEG,supporting 720P/1080P
Document: keynote,numbers,page,excel,word,pdf,txt,ppt

2. Automatically search videos, pictures and music in all harddisk partition to automatically create media video library, and sequence byclassifications

How to use hard disk function

1.check if your hard disk is NTFS or FAT format, if not, please format it . The hard disk function is only support NTFS format.

2.If you have connect the USB cable to the connect on computer or cellphone, you cannot use the wifi function to read the hard disk.and if you choose wifi as the way you ready the hard disk, please don't connect the USB cable. In another word, you only can choose one way to read the hard disk: usb cable or wifi. cannot use both of them at the same time

3. connect the WALAN wire to our machine. if you are on computer, click "window+R" hot keys,then insert"//192.163.169.1", if you use cellphone,please open your APP, then set IP" 192.163.169.1"(you have to install a WIFI APP).Then you can read the hard disk on your computer or your cellphone.

Can not open KAMIX manager screen

1.short press swicth button,the electricity lamp lighting(pls charger it if just 1 lamp lighting or no one lighting).

2.long press switch butoon,and stop it when wifi indicator lamp(red light) flash 1times.

3.After before step,the rounter wifi star work,and wifi indicator lamp(red light) flash again.

4.you can search the wifi name start by kimax*****,choose it,and inter default password 12345678 or without password.

5.you can open 192.168.169.1 on browse,and start set your wireless rounter.
