New Design MPEG-4 H.264 HD HDMI Encoder for IPTV Live Stream Broadcast HDMI Video                                                              Recording Server For Facebook

The HD video Encoder (HDMI input) is our newest professional HD audio & video encoding device with powerful functionality, which supports H.264 encoding, dual-Streaming data.

It is equipped with 1 channels of HDMI input, and supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format.

Its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV etc.

Besides, it can be integrated into single 3U Chassis which one can be inserted with 16pcs of HD encoders.

Powered by built-in dual power supplies to be system more stable. Compatible with VLC decode very well.

Specification
Input:
video:1 channel HDMI input (version 3.6), support HDCP
resolution:1920×1080_60i/60P/1920×1080_50i/1280×720_60p 1280×720_50p etc.
encoding:H.264/AVC High Profile Level 4.0(HD)
Data Rate:0.8Mbps~12Mbps
Data Rate control:CBR/VBR
GOP type:adjustable
video pre-processing:De-interlacing, Noise Reducing and Sharpening

Audio:
Encoding Audio format:AAC/MP3
Sampling rate:Adaptive and output sampling rate is optional
Bit-rate:32K/44.1K/48K/64K/96K/128K/160K/192K
Sampling accuracy:24 bit
Audio Data-rate:64Kb/s~384Kb/s

System:
RJ45:1000M interface
Program streaming:HTTP/UTP/RTSP/RTMP/ONVIF protocol
Control panel:WEB panel
update:Enable by uploading files to dashboard

Miscellaneous
Dimension (W× L× H):170*130*30mm
Chassis for multiple channels:3U structure , support 16 channels of Encoding boards
Gross weight:0.65KG/pc for single units;  10KG/pc for Chassis with 16 Encoders
Temperature:0~45  centigrade  (for working)/-20~80centigrade( for storing)
Input Voltage:DC 12V for single unit,  AC 220V±10%@50/60Hz for Chassis
Power Consumption:5W per unit  80W per chassis

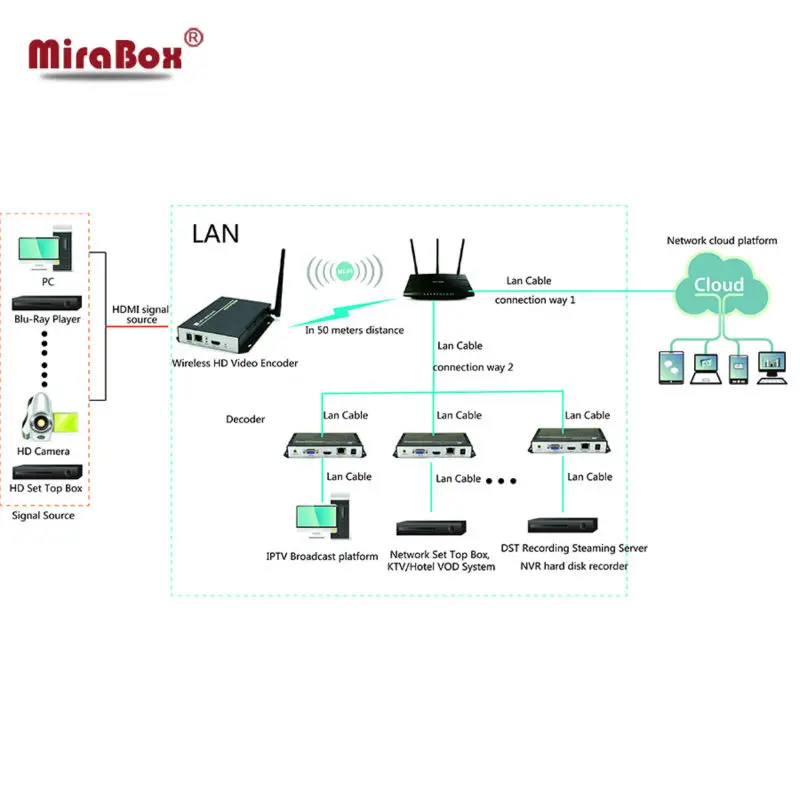

Application:

Network TV HD collection system

Digital signage HD streaming server

Network conference system video capture

HD video capture card

Cable TV system for hotel guest house

Operation room  recording and broadcasting system

Education broadcast, recording and broadcasting system

The digital high-definition broadcast, recording and broadcasting system

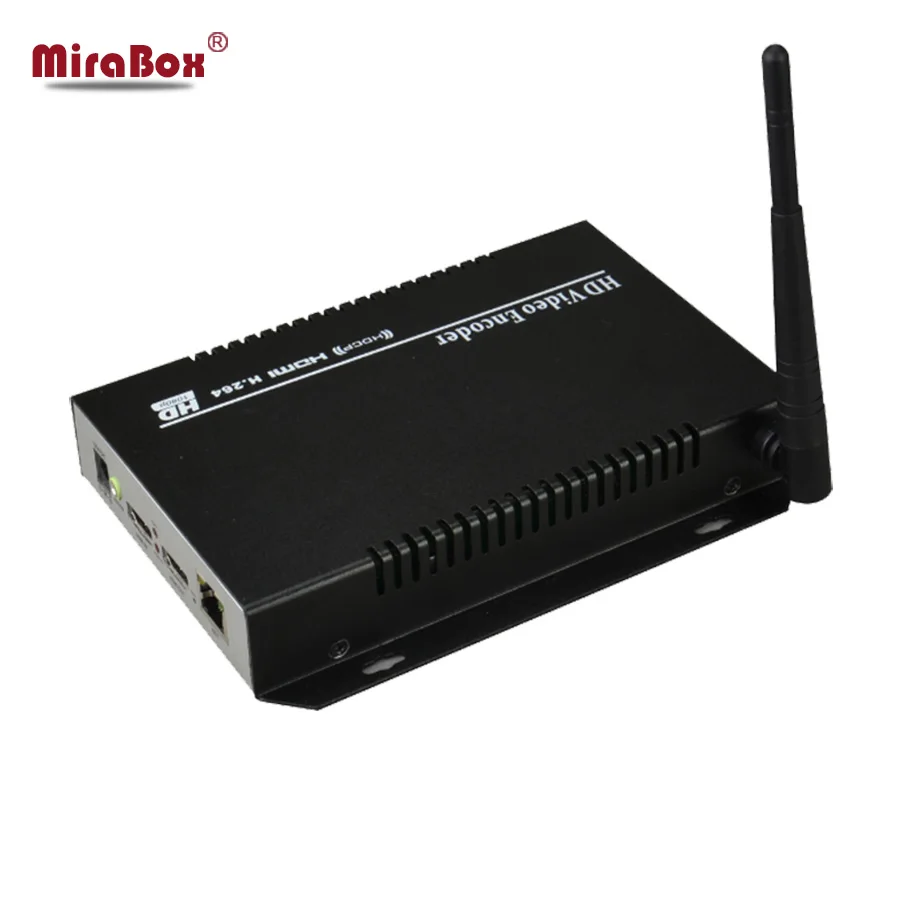

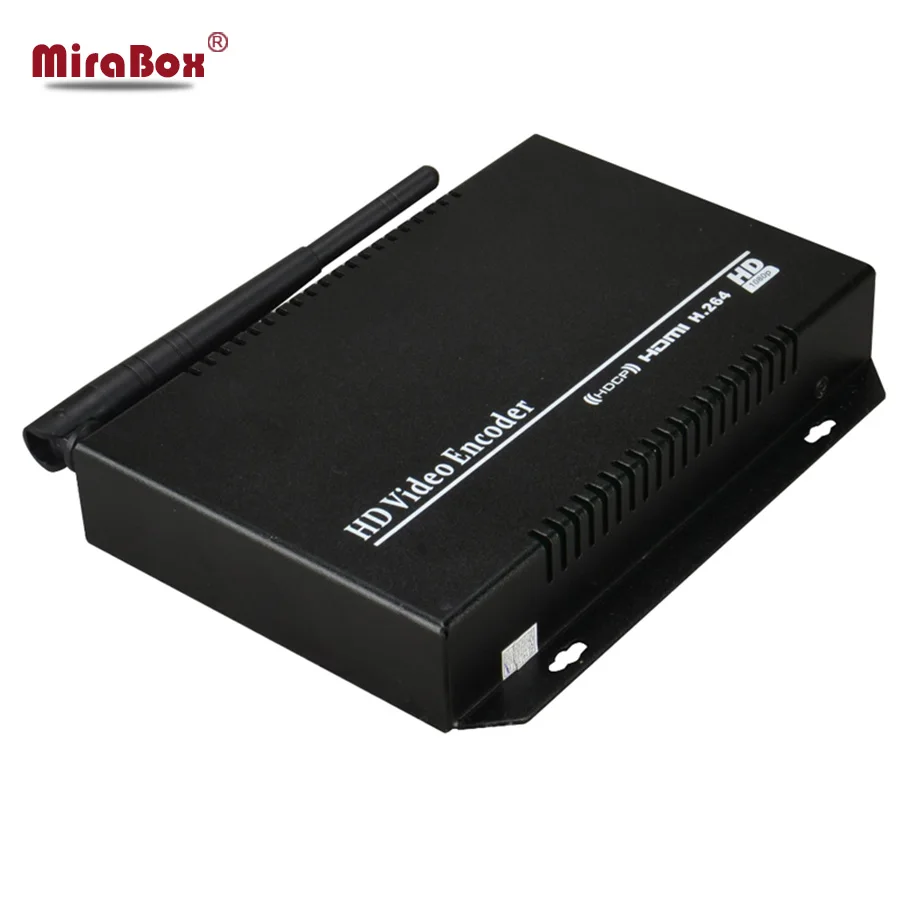

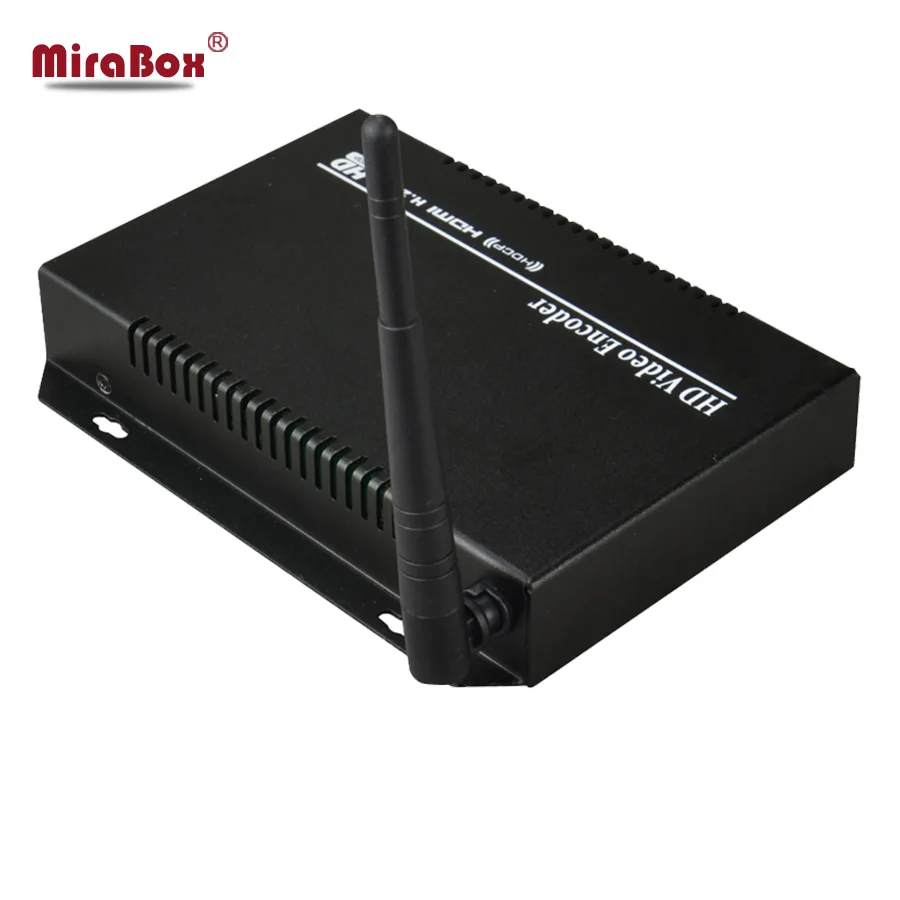

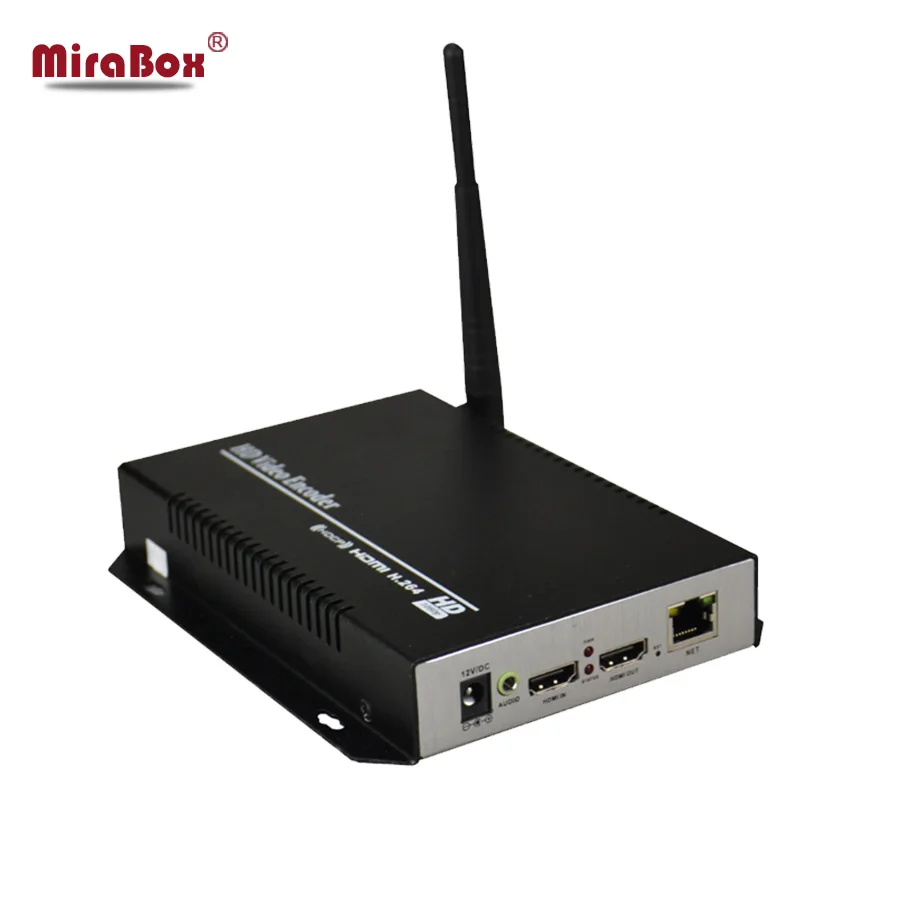

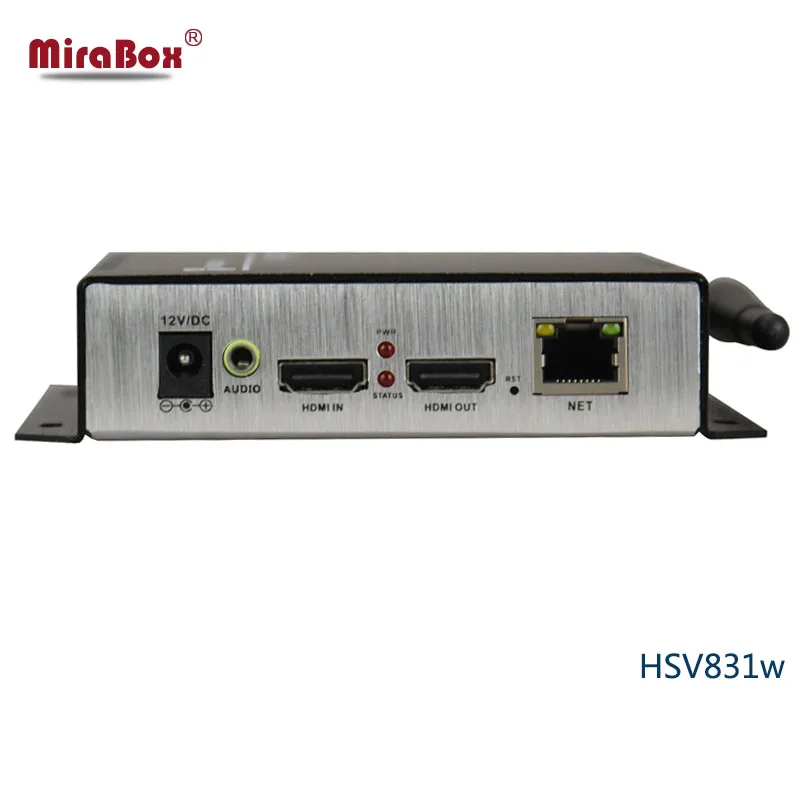

Product Picture:

​
