DDS720 multiple signal generator
First, an overview:
DDS720 is a small variety of signal generator, the frequency can be measured 1HZ ~ 200KHZ. The highest can produce 100KHz sine wave signal, but also can produce triangular wave, Di Zengbo, descending wave, rectangular wave, the heart waves and a high frequency pulse output.
The module is easy to use, the input frequency data through the button operation.

Two, product application:
The signal generator;
- meter calibration;
The DC motor control;
The frequency meter;

Three, technical parameter table:
Item parameter unit notes
1 sine wave range 0.1 ~ 100000 Hz
2 triangle wave range 0.1 ~ 10000 Hz
3 increasing wave range 0.1 to 10000 Hz
4 decreasing wave range 0.1 to 10000 Hz
5 rectangular wave range 0.1 ~ 10000 Hz duty cycle 50%
6 the range of the cardiac waves is 0.1 ~ 10000 Hz
7 high frequency pulse range 1, 2, 4, 8 MHz high frequency pulse signal
8 signal amplitude 5 5.0Vpp maximum amplitude VDC (amplitude invariant)
9 measurement frequency range HZ 1~200K
Frequency input voltage range of 10 ~ 0.7 ~ 10 VDC
11 working voltage 7 ~ 12 VDC
12 working current mA <50
13 working temperature -40 degrees Celsius to 65 degrees Celsius
14 storage temperature -40 degrees Celsius to 65 degrees Celsius
15 size mm X long 57*45*20 wide X high

Four, interface description and related operation
Five, wiring
P1 connection definition:
Symbolic meaning of serial number
1 VDD module power supply cathode (7V~12V)
2 GND module power cathode

P2 connection definition:
Symbolic meaning of serial number
1 FX high frequency pulse output
2 HS measured frequency of the input
3 OUT multiple signal output.
4 GND power supply negative (ground wire)

Four, key note
START: start / stop (output signal).
UP: on a page.
DOWN: next page.
LEFT: auto add key.
ROGHT: auto minus key.

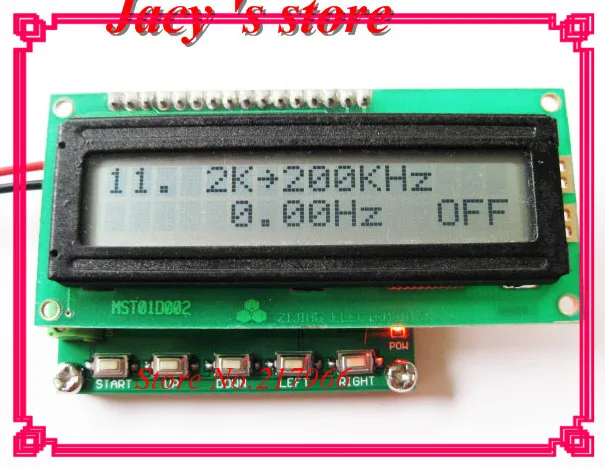

Be carefulDisplay with backlight, standard LCD1602 interface.

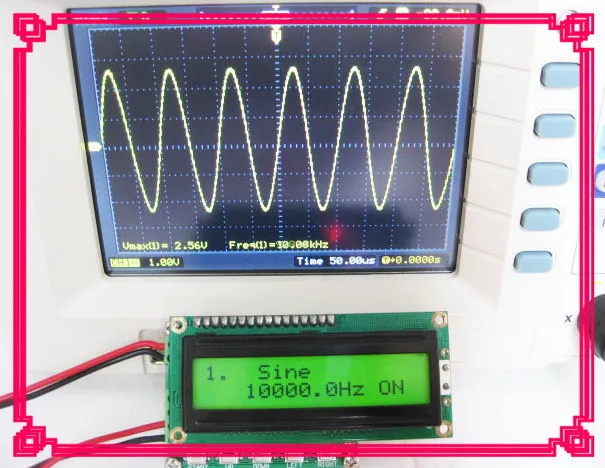

Sine wave 10kHz

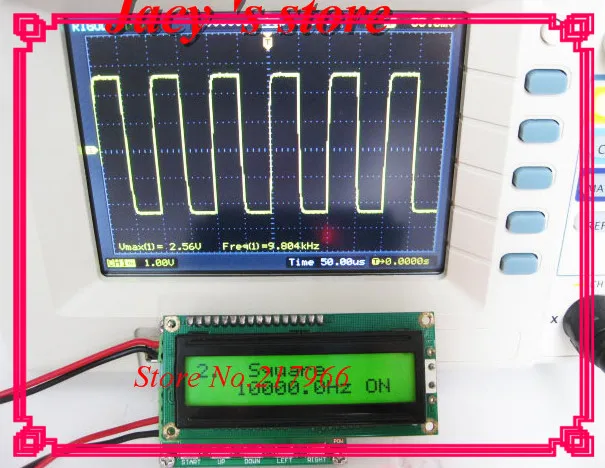

Square wave 10kHz

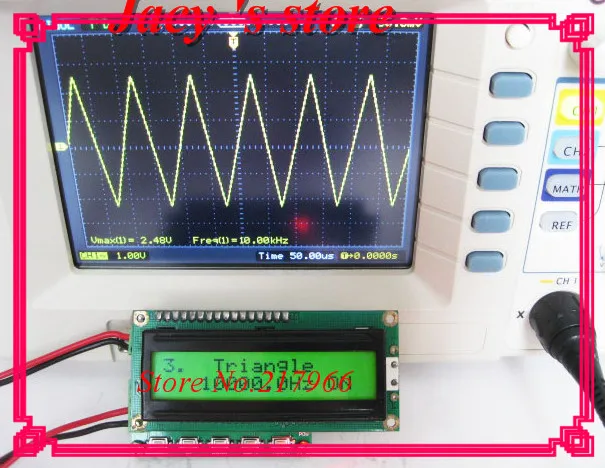

Triangle wave 10kHz

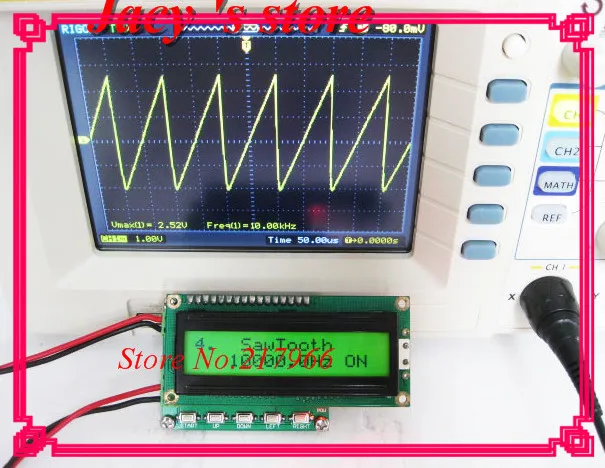

Di Zengbo 10kHz

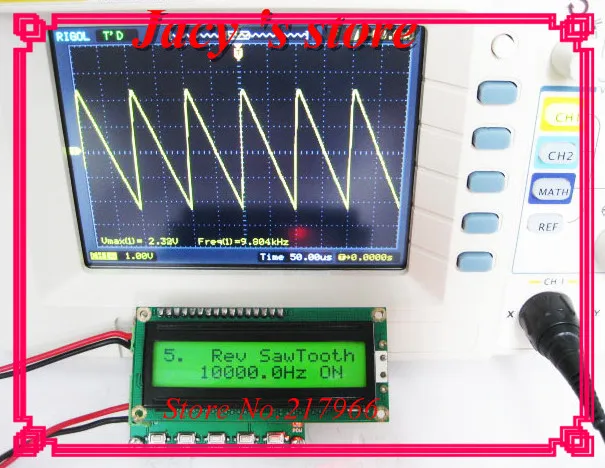

Decreasing wave 10kHz

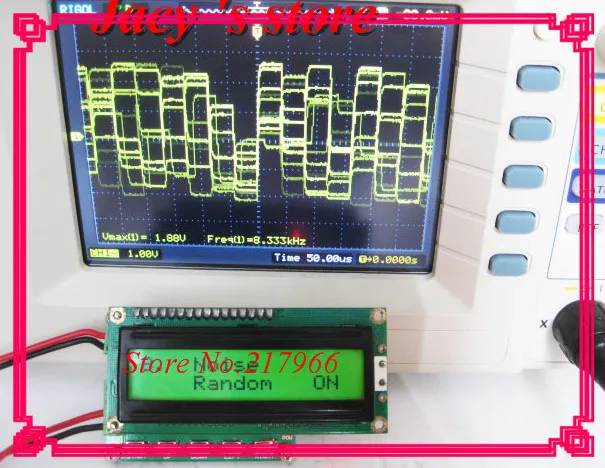

Noise wave 10kHz

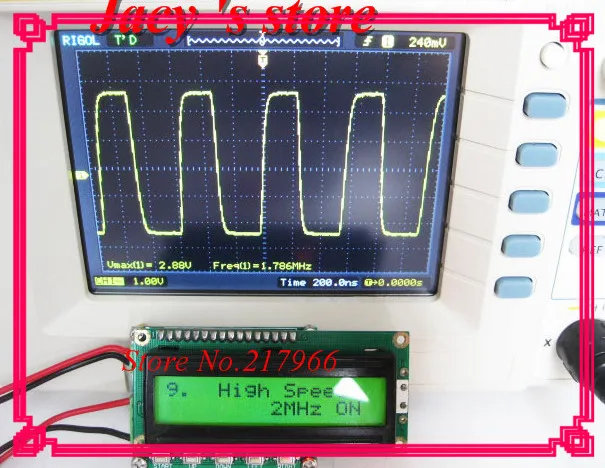

high-frequency square wave

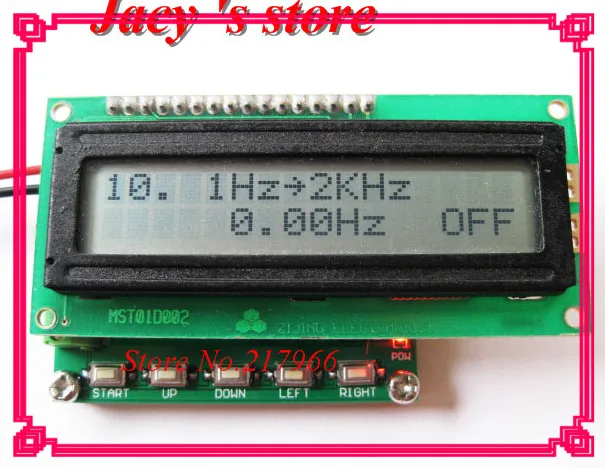

Frequency meter

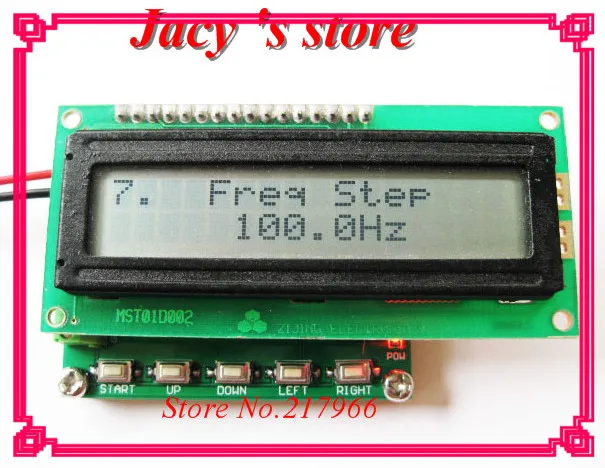

Set multiple
