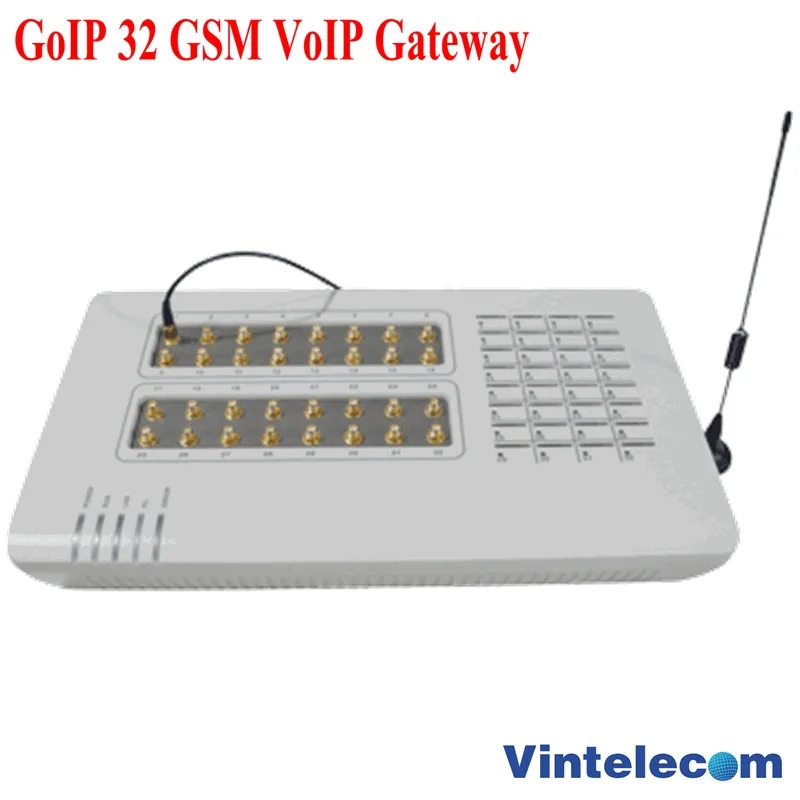

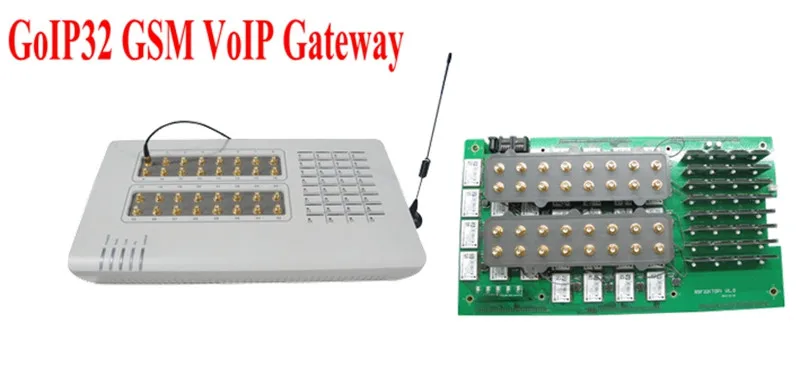

Original DBL GSM VoIP Router (32 SIMs)

Model: GoIP32

The GoIP-32 is 32ch VoIP GSM Gateways which support SIP&H.323 protocol forcall termination (VoIP to GSM) and origination (GSM to VoIP). It is SIP&H.323 based and it can be compatible with voip server system platforms,such as Asterisk, Elastix, VOS,Trixbox, 3CX, IP PBX, SIP Proxy Server, VoipBuster and so on.

General Information:

The GoIP32 enables direct routing between IP and GSM network without the use of a FXO port or the PSTN network.It is the GSM network and the VoIP network connecting seamlessly new poducts. Mobile phone SIM cards will be installed in the device, and GoIP32 users can be achieved through the GSM network on the car aligh.It bulit-in SIP and H.323, configuration flexibility. SIP can be thoroughly used when electricity came display numbers. With this GoIP32, the usage of VoIP is greatly enhanced with significant savings on long distance and roaming charges.

1. Appearance

1) LANConnect this port to an Ethernet Switch/Router, the Ethernet of a DSL modem, orother network access equipment.2) PCConnect a computer or other network device to this port.3) POWER :DC12V/4.5A +-10%4) ResetPress this button to reset the GoIP32 GSM VoIP Gateway to factory defaults.2. ProtocolTCP/IP V4 (IP V6 auto adapt)ITU-T H.323 V4 Standard.2250 V4 StandardH.245 V7 StandardH.235 StandardMD5,HMAC-SHA1ITU-T G.711 alaw/ulaw, G.729A, G.729AB, and G.723.1 Voice CodecRFC1889 Real Time Data TransmissionProprietary Firewall-Pass-Through TechnologySIP V2.0 Standard

Simple Traversal of UDP over NAT (STUN)

Web-base ManagementPPP over Ethernet (PPPoE)PPP Authentication Protocol (PAP)Internet Control Message Protocol (ICMP)TFTP ClientHyper Text Transfer Protocol (HTTP)Dynamic Host Configuration Protocol (DHCP)Domain Name System (DNS)User account authentication using MD5

Out-band DTMF Relay: RFC 2833 and SIP Info

3. Software SpecificationsLINUX OSBuilt-in HTTP Web ServerPPPoE Dial-upNAT Broadband Router FunctionsDHCP ClientDHCP ServerFirmware On-line upgradePSTN Caller ID transmitMultiple Language SupportSupported call divertSupported PSTN auto call out to PSTN

Supported Multi_devices Cooperate Mode(Group Mode)

Supported SMS call out

4. Hardware SpecificationsCharacteristics of the hardware and ParametersProcessor: ARM11 700MHZDSP:VPDSP101-4 100MHzRAM :128MFlash :8MPower: DC12V/4.5A +-10%  Input AC100V to AC240VGSM Module Type: Default 900M/1800M  Optional 850M/1900MConsumption: The Maximum 5 WLEDs:  RUN, GSM, LAN, PC,GSMNetwork Ports: 2 RJ45; Supported NAT 100/10BASE-TWeight :900 Grams Full SetWorking Temperature:  040Working Humidity : 4090 Not CongealedColour : GreyGSM SIM Ports:  32

VoIP Channels : 32

Application cases:

A1: Call Forward
1.Call Origination refers to a call initiated from the PSTN or cell phone network is terminated using VoIP.
2.Call Termination refers to a call initiated as a VoIP call is terminated using PSTN or cell phone network.
3.As shown in the network topology diagram, a VoIP Service Provider is using GoIPs as call origination and termination devices.
- A call dialed to a GoIP (right hand side) via GSM is first routed via VoIP and then terminated via a VoIP end point or VoIP Service Provider.
- A VoIP call originated from the left hand side is routed to a GoIP on the right hand side and then is dialed out as a GSM call.

A2: IP PBX Call Origination and Termination
1.Instead of FXO gateways, GoIP are as a call termination and origination device for the IP PBX as shown in the diagram above.
2.VoIP endpoints connected to the IP PBX can make calls to cellular/traditional telephone network via the GoIP GSM ports.
3.Outside callers can then call in via the GoIP GSM ports to reach any of the VoIP endpoints that are registered to the IP PBX.

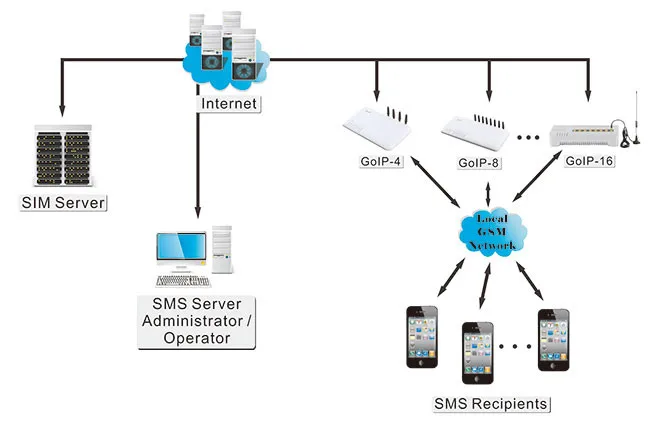

4.GoIP can be configured in a group mode such that all GSM ports can be used by just dialing only one GSM number. Please refer to the Call Center Application for more information.A3: Sending Bulk SMS Service
1.Sending bulk sms text messages is a common technique for telemarketing to reach the target customers.
2.A bulk SMS system can be implemented quickly and easily using GoIPs and our proprietary SMS server. Telemarketers are now have full control on how and when they want to send text messages.
3.In addition, SMS text messages are now used widely in many companies, organizations, schools, clubs as a mean for broadcasting information. They can now build their own SMS system without paying expensive charges to their GSM server provider.
4.This system can also take the advantage of using the same GSM service provider to send sms to the phone subscribers in the same service provider.A4: Call Back
1. Call Back is referring to the telecommunications event that occurs when the originator of a call is immediately called back in a second call as a response.
2. GoIP could be used to achieve this function alone or as an terminal that is integrated in an existing call back server / platform.3. For standalone operation, GoIP receives a call with caller ID information and then rejects the call immediately without answering the call. GoIP then calls back the caller so that he can dial a phone number to make a call. In this case, GoIP must register to a VoIP Service Provider who can offer terminate the call.
4.In a call back system, GoIP acts as a device to initiate the call back function. Typically, this is done in two ways. The first method is to send an SMS with the callee’s phone number to the GoIP. The GoIP then sends both the caller’s and callee’s phone numbers to the call back server to complete the call back function. The second method is to call the GoIP and the hang up (with the call being answered). GoIP sends the caller's phone number to the call back server and the call back server calls the caller directly so that the caller can then dial a phone number to make a call.
