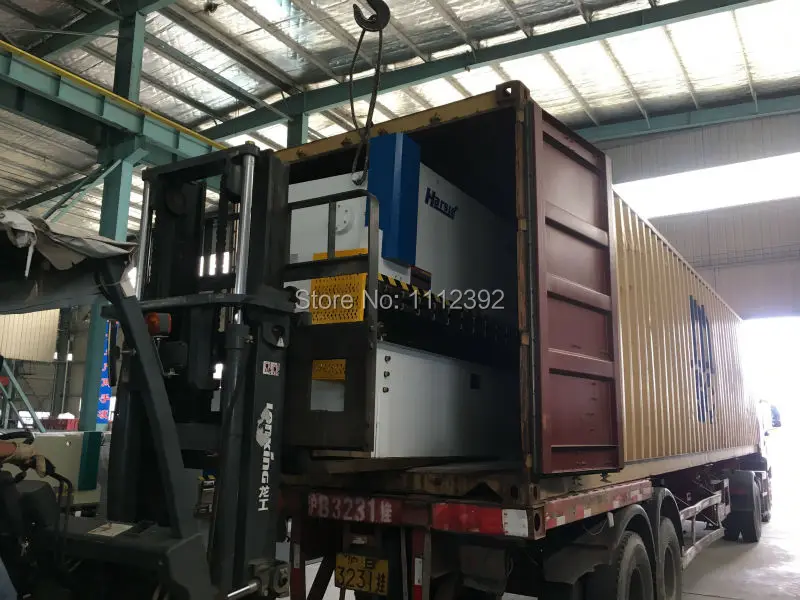

seaworthy packing

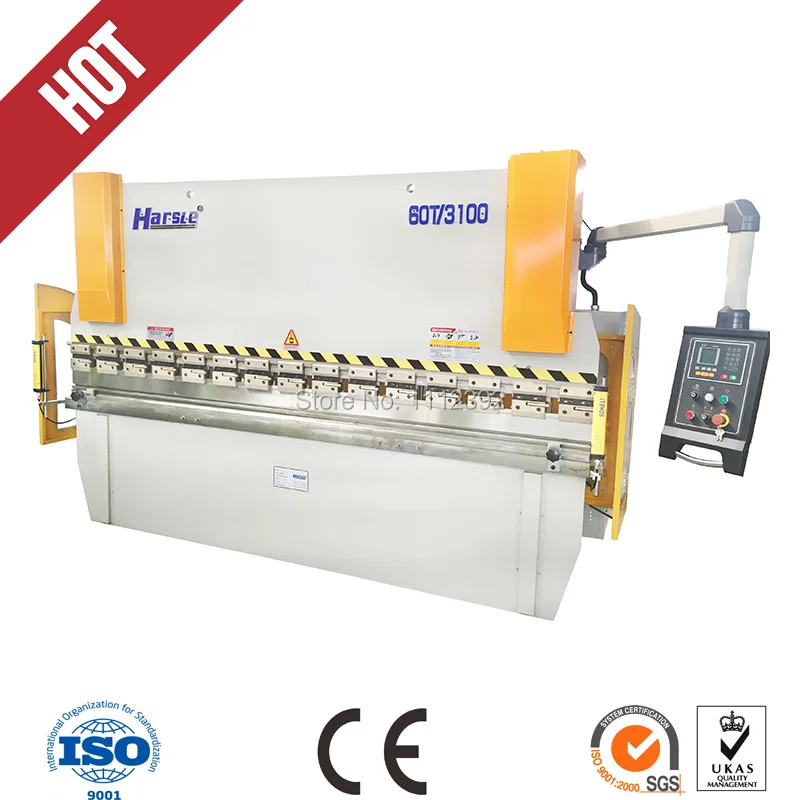

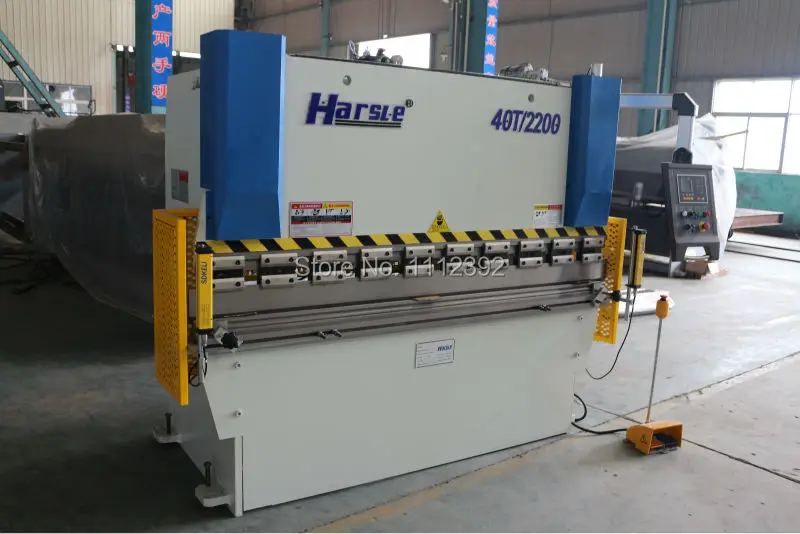

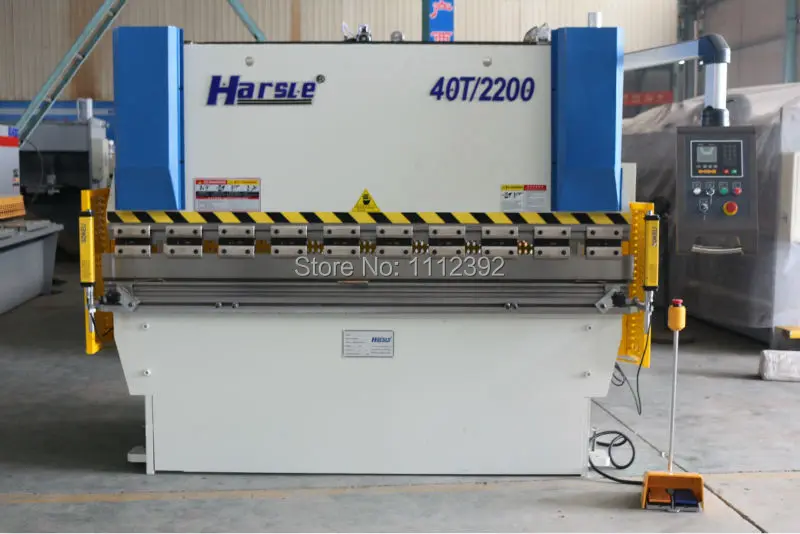

WC67Y Series Hydraulic Press Brake Plate Bending Machine

1.Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

2. HARSLE PRESS BRAKE is Equipped with the ESA user-friendly user interface,the Delem DA41 provides all main press brake functionality.

3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.

1. Hydraulic system:

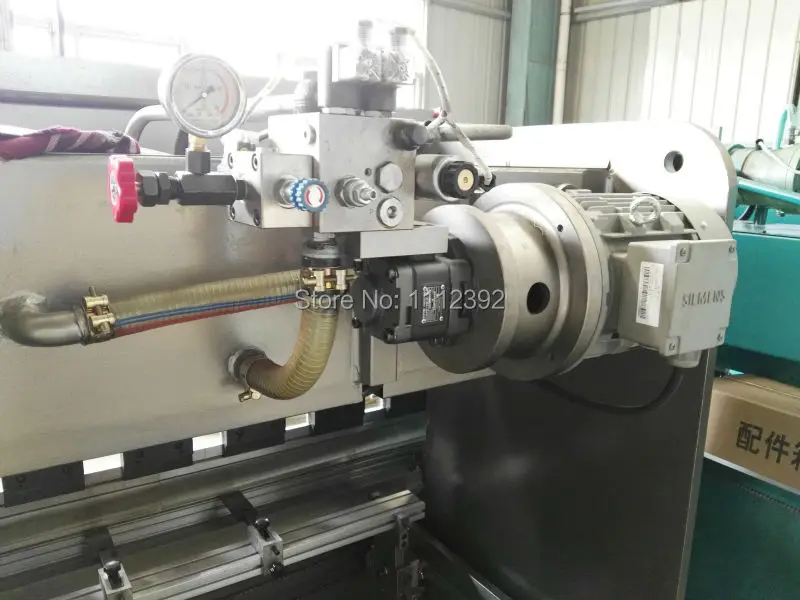

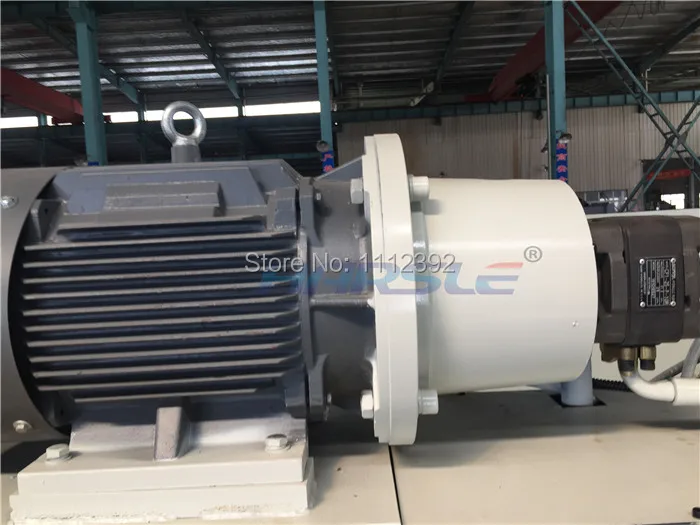

 1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.

2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

4. The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).

2. Electrical system and the safety interlock:

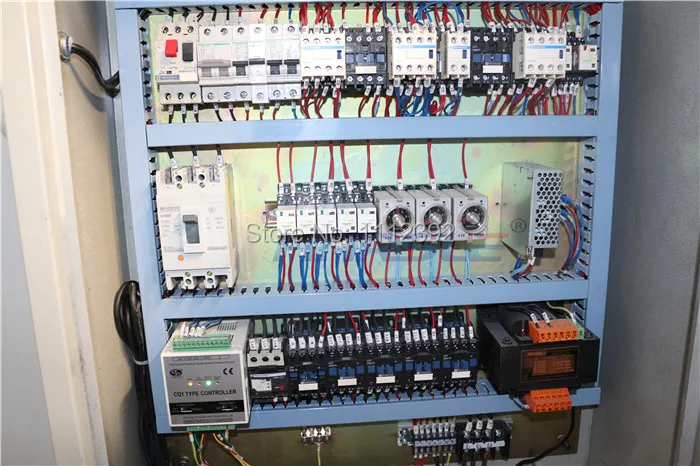

 1. Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability

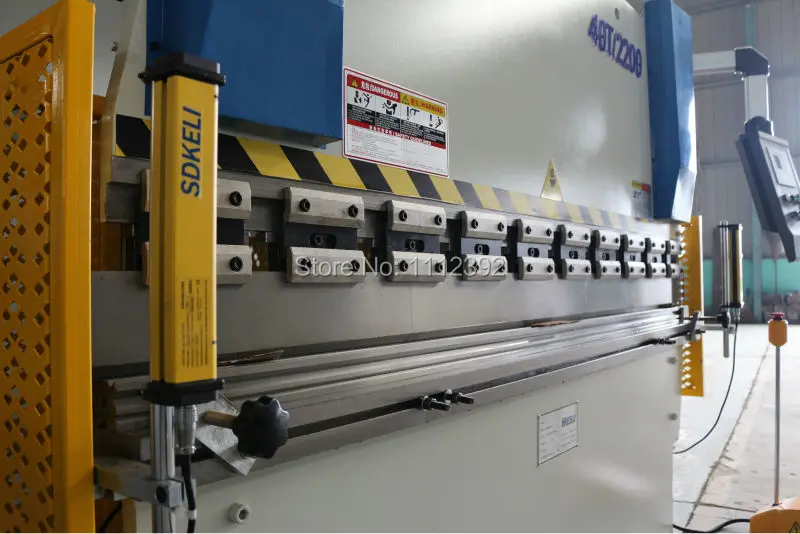

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate

3. Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.

3. Synchro control system:

 1. Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism

2. ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.

3.The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.

4. Bending depth adjustment and RAM structures:

1. The Machine By DELEM DA41 CNC Control With the point of programming, can automatically calculate the bending angle bending depth

2. Can move the ram up slowly,which allows the operator to control work piece conveniently.

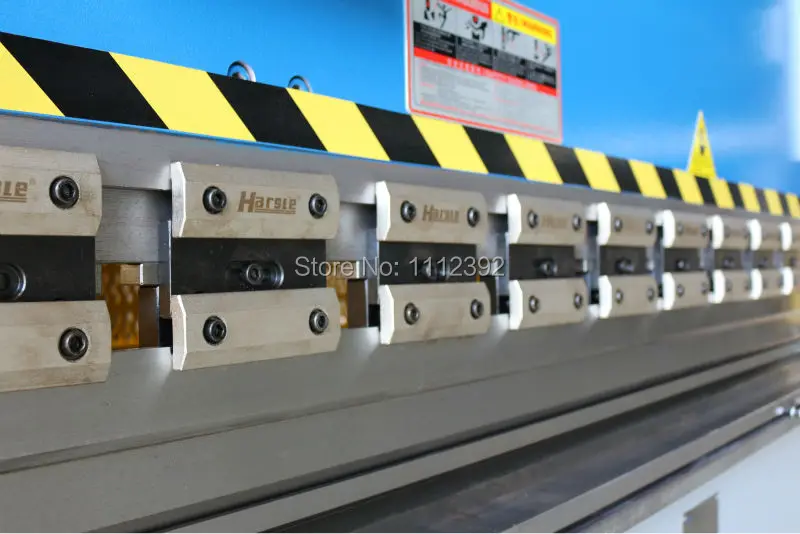

3. Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.

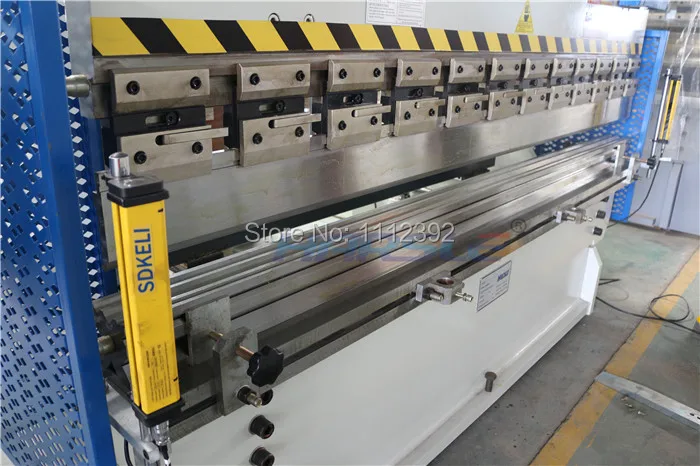

4. Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000 mm sections).

5. Servo motorized Backgauge (standard)

1. CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.

2. Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
