hot sale 20W Solar Panels + 10A 12V 24V Controller LCD display small solar home system 18V charger battery |

30786

Top Sale of Solar Panel

30783

Top Selling of Solar Charge Controller

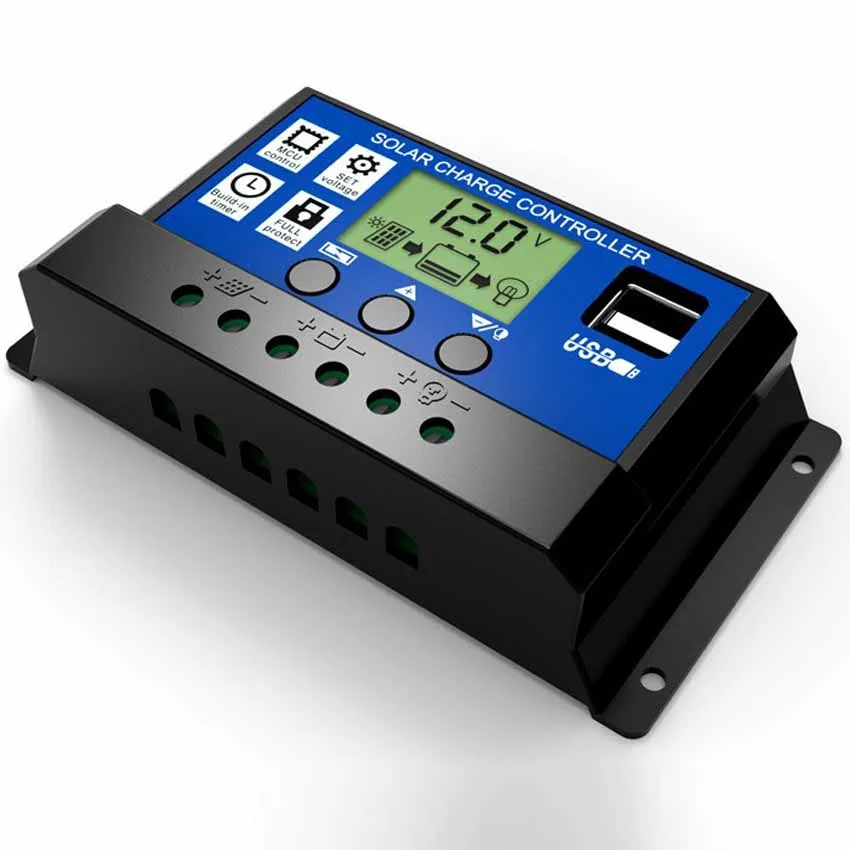

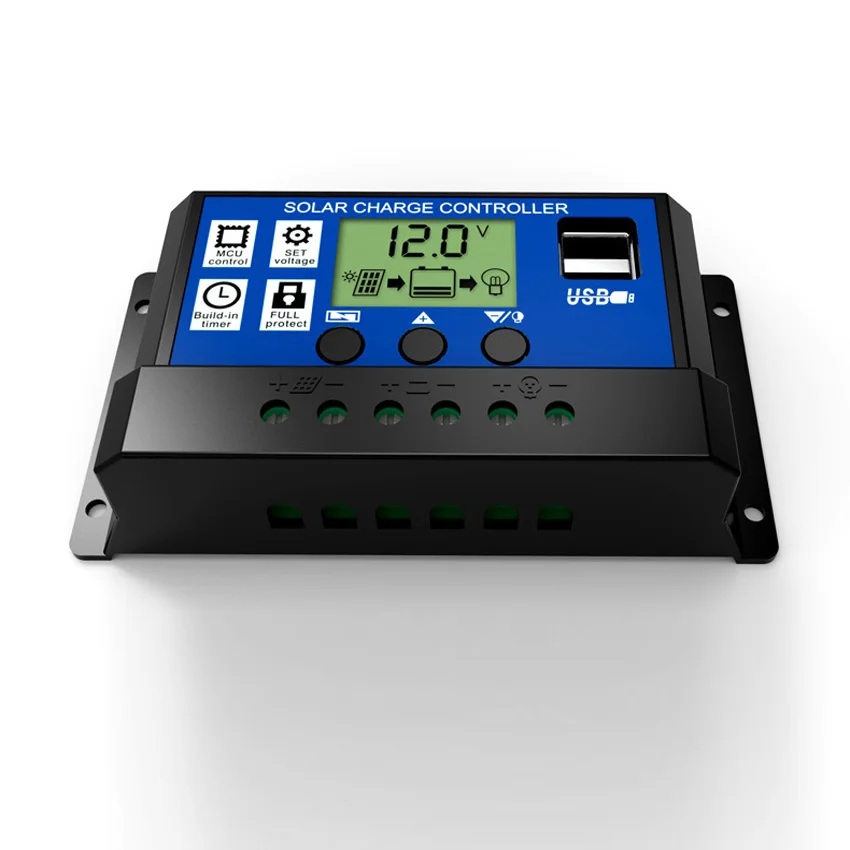

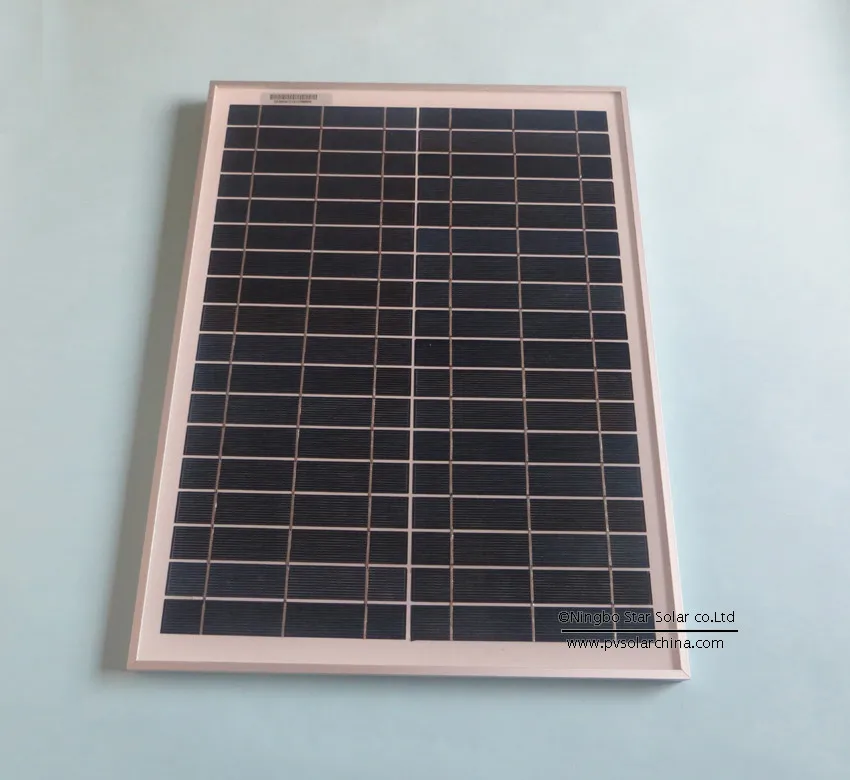

20W Solar panel +10A solar controller 12v 24V LCD





Features

1) High Efficiency
2) 12V DC standard output
3) CE Waterproof junction box
4) Lifetime:25 years
5) Warranty:5 years
6) 90% power 10 years
7) 80% power 20 years



Specification:

ITEM NO SSB20W-12 MONO or POLY POLY Maximum power (Wp) 20w Maximum power voltage (V) 17.3V Maximum power current (A) 1.16A Open circuit voltage (V) 21.6v Short circuit current (A) 1.27A Number of cells (Pcs) 36 Size of module (mm) 410x340x18mm Maximum system voltage (V) / Temperature coefficients of Isc (%) 0.065+/-0.015%/ C Temperature coefficients of Voc (%) -(2.23+/-0.1) / C Temperature coefficients of Pm (%) -(0.5+/-0.05)/ C Temperature coefficients of Im (%) +0.1/ C Temperature coefficients of Vm (%) -0.38/ C Temperature Range -40 - +85 C Tolerance Wattage (e.g. +/-5%)  +/-5% Surface Maximum Load Capacity 60m/s(200kg/sq.m) Allowable Hail Load steel ball fall down from 1m height Weight per piece (kg) 1.6KGS Junction Box Type 18 Length of Cables (mm) None Cell Efficiency (%) 16.93% Module Efficiency (%) > 12.79% Output tolerance (%) +/-5% Frame (Material, Corners, etc.)  Aluminum Standard Test Conditions  AM1.5   100mw/cm2   25 C Warranty 5 years product warranty and 20 years 80% of power FF (%) 75%

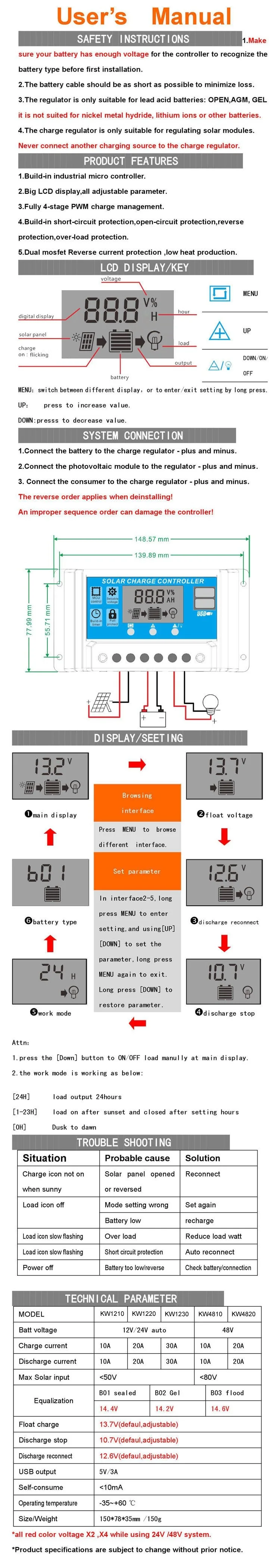

  if you have any question of above item, please contact me by massager of talk with me, user manual and specification are

  available on request.
