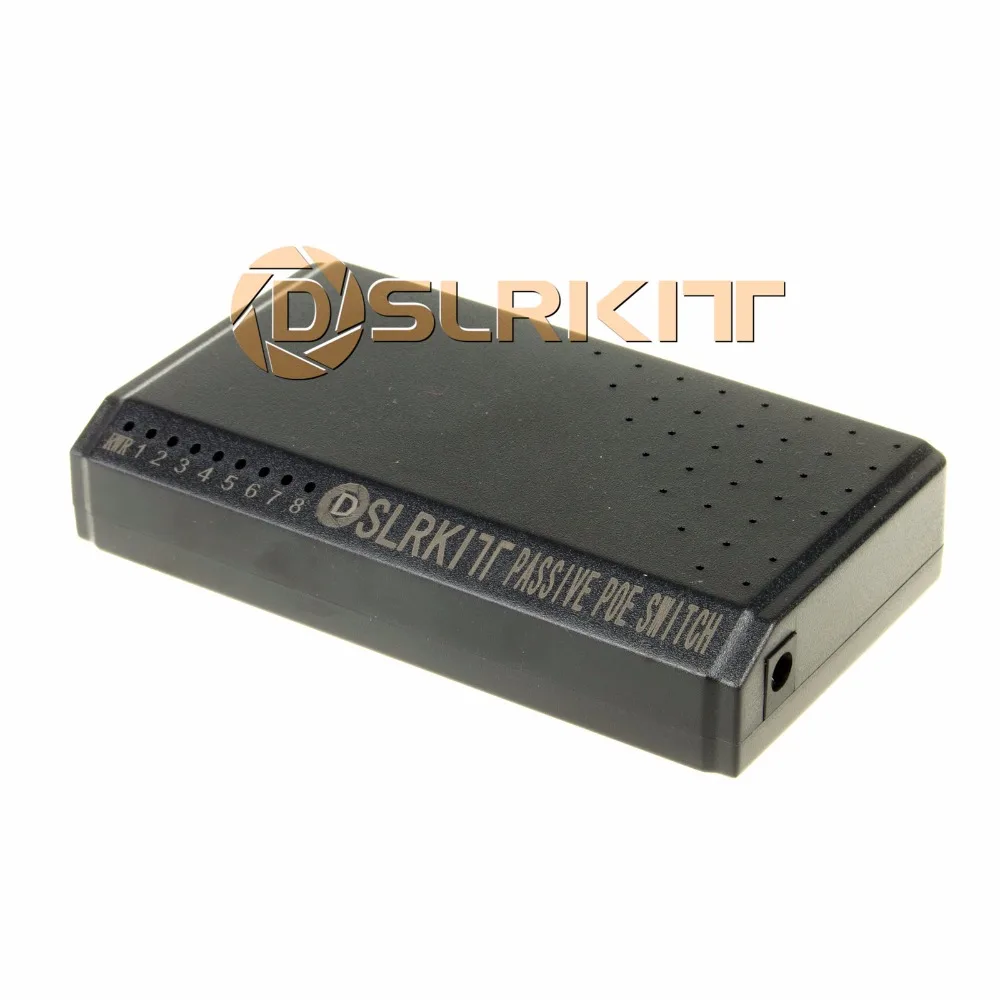

DSLRKIT PMID6P2U Passive PoE Injector Switch

8 Ports (2Uplink, 6 PoE) 10/100Mbps

Midspan Mode-B Unsolicited Power(4,5+/7,8-)

Compatible IEEE 802.3af/at, Per port Max 50Watt

Power OutPut DC 48V 72Watt(Max.90Watt) Wall Mount

(Usually for ensure the power supply is stable for a long time. it is recommended not to let the power load exceeds 80% of nominal value. For example, you intend to connect 6 cameras, while each camera power consumption is 12Watt, the total power consumption is 6x12=72watt. Then select the 96Watt (48V2A) power adapter is enough. if the total power consumption is over 80watt then it is recommended to choose 144W (48V3A) power adapter.)

This is an Passive Power Over Ethernet of 8 ports 10 / 100Mbps-T Ethernet switches, including 6 unsolicited PoE Ethernet ports and 2 Uplink ports. With an external 110V-240VAC to 48VDC power supply adapter, any one of the 6 PoE ports can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.

Which compatible with IEEE 802.3af/at Mode-B(4,5+/7,8-) POE switch device, but it does NOT include the 802.3af/at compliant detection feature.  It supplies power NO MATTER WHAT, so don't plug the "Power Link 3~8" side into anything that isn't ready for it.

This POE switch only support 10/100M connection, PoE ports do not support Gigabit ethernet connection, because  "Power Link 3~8" port using 4,5,7,8 pin as power transfer, Please do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "Power Link 3~8" port, this will damage your device.

Gigabit(1000Mbps) ethernet devicePlease do not access "Power Link port" this will damage your device.

Compatible all 802.3af/at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....

Note:

Features:

8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 6-Ports PoE function

Midspan Mode-B Unsolicited Power(4,5+/7,8-)

Supports PoE power up to 72Watt(max.90watt) for all PoE ports, Per port Max 48V 1A or 48Watt

Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.

Full/half duplex transfer mode for each port.

Specification:

ALL Port:

Standard 10/100Mbps Ethernet port. Support 10Mbps Ethernet and 100Mbps Fast Ethernet, can operate in full-duplex or half-duplex mode,must work with 4 pairs UTP Cat5/5e/6 cable

Power Link Port 3-8-:

any supported unsolicited power on pairs 45-78 pins compliant Powered Devices (PDs)

Power LED

LED ON: power on. LED OUT: power off

LED Light LINK/ACT

LED ON Indicates the port is connected to a network device and has been started

LED OFF Indicates that this port is not connected to a network device or has not been started

Standard

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3x Full-Duplex flow control

Protocol

CSMA/CD Ethernet

Data Transfer Rate

Ethernet: 10Mbps (Half Duplex)20Mbps (Full Duplex)

Fast Ethernet: 100Mbps (Half Duplex) 200Mbps (Full Duplex)

IC Chips

IC Plus IP178G

Network Media(Cable)

10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m)

100Base-TX:UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m)

PoE Power on RJ45

Power +: pin 4 & pin 5 ; Power -: pin 7 & pin 8

DC Output: 48V, Per port Max 1A or 50Watt, 6 POE ports Total Max. 72Watt

Number of Ports

8 x 10/100Mbps Auto-Negotiation RJ45 ports with 8 PoE enabled (port-3 ~ port-8)

AC Power Adapter

AC Input: 110V ~ 240VAC, 50Hz ~ 60Hz.

DC OutPut: 48V/2A 96watt

Power Consumption

3.2 Watts (max. no PD connected)

According to the actual power consumption of equipment

Temperature

Operation Temperature:0 ~40 (32 ~104 )

Storage Temperature: -40 ~70(-40 ~158)

Humidity

Storage Humidity 5%~90% non-condensing, Operating Humidity 10%~90% non-condensing

Product Dimensions

125mm W x 68mm D x 32mm H

RAM Register Capacity

64K bytes per device

MAC Address List

1K entries per device

Frame Forward Rate

10Mbps Ethernet: 14880pps/Port

Item Included:

DSLRKIT PMID6P2U 8pots 6PoE Passive PoE switch x1
AC Power Adapter(DC OutPut: 48V/2.0A) x1
AC Power Cable x1

AC power plug is US or EU type,if you need other type (AU or UK),Please leave a message.

12 Months Warranty from the date of purchase.
