Intelligent Digital Electronic PROGRAMMABLE Timer THC15A AHC15A Microcomputer Time Switch Relay Din Rail AC DC 12V 24V 110V 220V |

Intelligent Digital Electronic PROGRAMMABLE Timer THC15A AHC15A Microcomputer Time Switch Relay Din Rail AC DC 12V 24V 110V 220V |

Intelligent Digital Electronic PROGRAMMABLE Timer THC15A AHC15A Microcomputer Time Switch Relay Din Rail AC DC 12V 24V 110V 220V

We are factory! We provide OEM service, if you want to print your own logo,

feel free to contact us, MOQ only 20 pieces! If you need other voltage, please

also contact us!

Functions and uses:

This product can automatically open and close the power supply of all kinds of electrical equipment according to the time set by the user. Control objects can be a street lamp, neon lights, advertising signs, production equipment, radio and television equipment, and so on all the need to turn on and off the timing of power equipment and household appliances. Built in 1.2V/40mA rechargeable battery, high precision, industrial grade chip, strong anti-interference.

Product features:

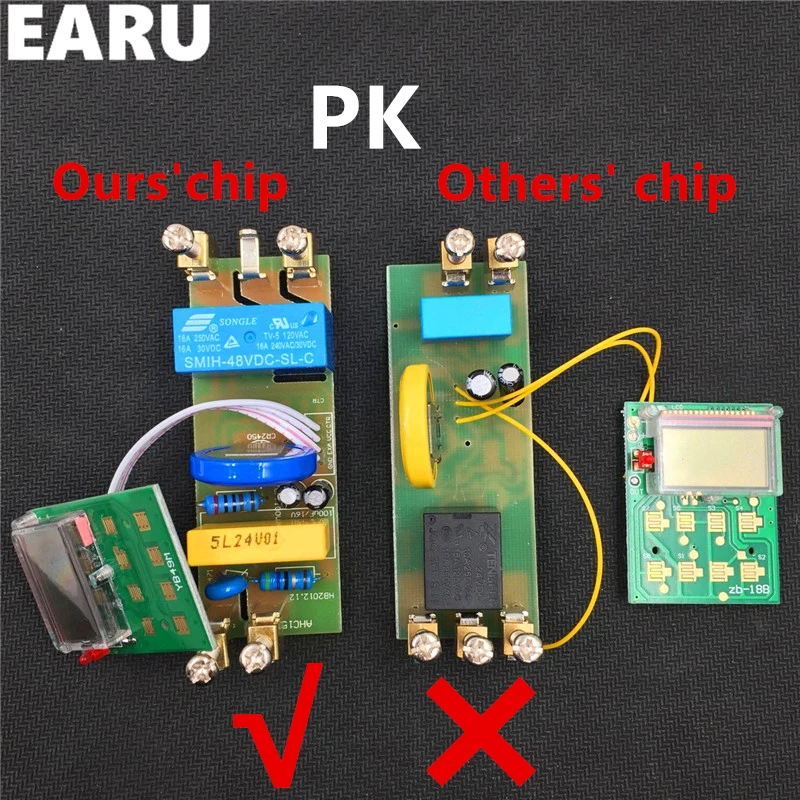

1) computer chip, liquid crystal display, travel time accurate, simple operation, high precision, industrial grade, strong anti-interference chip.
2) large screen liquid crystal display setting and operation prompt function can prevent the error touch small flip
3) built in rechargeable batteries, power cut without reset.
4) copper to optimize the structure of longer life mode function at any time switching state normally open normally closed switch

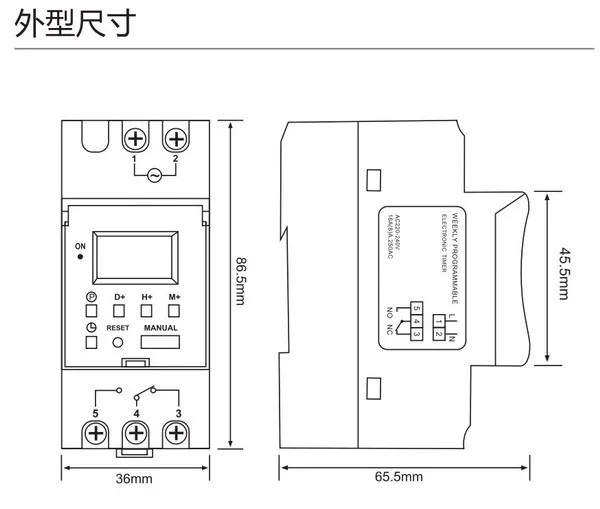

5) small size, light weight, easy to place size and size of 2p circuit breaker

Step button

Setting items

OnePress (manual)

Make the display display, displayAUTOautomatic

TwoPress (set)

Enter the timer settings (display1ON)

ThreePress (week)

Set the same daily, daily, Monday to Friday, the same Sunday to Saturday.

FourAccording to (when) (points)

Set the time to open

FivePress (set)

Enter timer settings (display1OFF)

SixAccording to (when) (points)

Set off time

Sevenrepeat2-6

She Dingdi2-16Time switch

EightPress (clock)

End time setting

Matters needing attention:
-For the prevention of strong current under the melting point of heat, the wiring must be screwed immediately after the line of the screw;
-Controller line220VAC/50-60HzPower, do not receive380VAC;
-The controller indicates that the internal switch is closed when the red light is red;
-Set time, can not cross set, should be set according to the order of time
