TVM920 Two Vision SMT Machine Reliable Automatic Pick and Place Robert/Two Vision SMT Machine with cameras Product Description



WHY CHOOSE US?
We own excellent sales team,top-notch R&D team and professional management group



                                                    1.Leaders of small p&p machine industry
                                                    2.Machines has sold to more than 50 countries
                                                    3.Products have a good reputation
                                                    4.Perfect after sales system



 Specification



 Name  TVM920  Max applicable PCB  327mm*570mm  Max XY Moving area   520*480mm  Max Z Moving area  15mm  Placement head quantity  4  Positioning accuracy  0.025mm  Max mounting capability  7000 pcs/h  Max capability with cision  4000pcs/h  Applicable Components  0402--5050, SOP, TQFP, QFN ,BGA  Components supply configuration  Tape reel, Vibration, Tray  Tape width  8mm, 12mm, 16mm, 24mm, 32mm  Vibration feeders  Max 8 Vibration feeders  Tape reel feeders  Max 56 feeders  Visual system  2 HD CCD Cameras  Down looking Visual system  Automatic identify mark  UP looking Visual system  Automatic identify the centre of components  Air source  External connection 0.6MP-0.8MP  Power Supply  AC220V / AC 110V  Power  350W  Machine size  L1080*W805*H750mm  Gross Weight  220kg  Net Weight  170kg  Volume  1.05  Support PCB design software  Protl99/AltiumDesigner/Eagle/Pads/proteus/Allege Ect

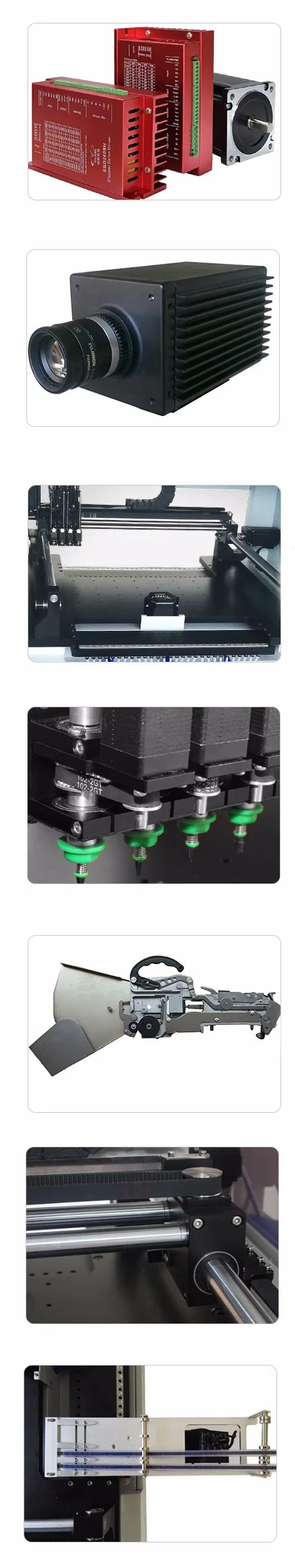

01 Closed-loop control

Step servo motor with the professional
flexible S deceleration,performance
as same as general servo motor.

02 HD CCD camera

Accurate / Quick

03 Special dual driver design

Special dual deiver design more
accurately more steadily.

04 pick and palce heads

types of high-precision nozzles,
compatibility as Juki.

05 Support general use feeder

more convenient and worry free after sale

06 All the key parts are top brands

is the base of reliable

07 Vibratory feeder

Perfect support general use
vibratoty feeder,max could
setup 8 once time

08 vision system
The up looking and down looking vision system,the mature visual performance(Automatic identify mark/Automatic identify the centre of components)



09 The second generation of control software
Base the successful of first generation control software,we independently developed the second generation control system.It will more fluently more reliably.
1.Humanization PC Softwate, lifetime free upgrade,and operate more convenience and easy
2.could support most of PCB design software in the world.
3.Automatic identify mark,any shape type,accuracy and quick
4.Support any multiple PCB set
5.automatically dispose and make up if picking fail or pick misaligned with vision.
6.Break point continue from any where
7.Automatic optimization the coordinate file,more efficiently

Company Information

Our Services

Packaging & Shipping

FAQ

1. Q: How many nozzles do you supply? Do you sell nozzles and spares?      A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM920 has four nozzle-heads, we supply eight nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.



2. Q: Do you provide software updates?

     A: Customers who buy our machines, we can offer free upgrades software for you.



3. Q: What air supply is required?

     A: Oil free compressor and air dryer be used.



4. Q: What is the performance?

     A: For TVM920 it's 7,000 cph no video, 5000 cph with video. For TVM802, it's 4000 cph with no video, 2000 cph with video.



5. How about the warranty?

    We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period. Contact us
