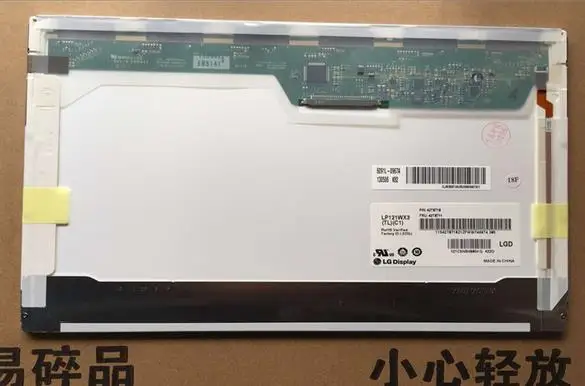

LG LP121WX3-TLC1 12.1 LCD screen LED panel support 1280*800 | Электроника

LG LP121WX3-TLC1 12.1 LCD screen LED panel support 1280*800 | Электроника

Brief description of LCD panel

Panel module

LP121WX3-TLC1

Panel size

12.1 inch

Resolution

1280(RGB)X800(WXGA)

Aspect ratio

16:10(W*H)

Surface

Glare

Active Area

260.93*163.08(W*H)

Bezel Area

266.50*166.60mm (W*H)

Outline Dimension

275.8*178.1mm (W*H)

Outline Depth

5.3(Max.) mm

Display module

TN, Normally White,Transmissive

Brightness

220cd/m2 (Typ.)

Contrast Ratio

300:1(Typ.)(Transmiss)

Display Color

262k(6--bit)

Color Gamut

Response Time

16(Typ.)(Tr+Td)(ms)

Viewing Angle

45/45/15/35(Typ.)(CR>10)(L/R/U/D)

Vertical Frequency

60HZ

Lamp Type

WLED

Lamp Driver Board

Signal Category

LVDS

Signal Glass

LVDS(1ch ,6-bit)

Pin Configuration

Input Voltage For Panel

3.3V(Typ.)

Input Current For Panel

250/285mA(Typ/Max.)

Panel Power Consumpation

 0.8/0.9w(Type./Max.)

Interface Type

Connector

Interface Brand

JAE

Interface Module

FI-XB30SL-HF10

Interface Pin Pitch

Interface Pins

Amount Per Box

30Pcs

Box Size

480x348x243mm (L*W*H)

Box Gross Weight

 1. About Packing

 2. About shipping

We will send out the goods as soon as possible . Usually lead time should be within three days if your purchase order is not special .

 A DHL/UPS/Fedex/4xp :2-7 days
B Singapore EMS /China EMS:15-45 days
C Singapore post air post :20-60 days
If your country need through other transportation to send the goods, Please contact us to help you solve the transportation problem.

Company Information

FAQ

1. About the quality

All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to our saleman .
We will be willing to deal with your problem at the first time .

 3. About warranty and Return

We will give our customer a best after-sale service , So we will offer one year warranty for most of our products and professional technical support .

Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
    --   1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
    --   2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.

4.About Mass order

If you are interested in our products and want to purchase a large quantity from us . Pleaes feel free contact our saleman to get the better price .
We will give all customer the best price and service !!!

Thanks for your support and hoping you enjoy your shopping in our store !

If you have any question ,please contact me,my skype is elice.yu
