Raspberry Pi 3.5 inch HDMI LCD touchscreen 3.5inch display 60 fps 1920*1080 With Case IPS touch screen |

Brand NameWaveshareOriginMainland ChinaDemo Board TypeARMMeasurement unitpiece/piecesEach pack13 070,44 ₽3 070,44 ₽Add to CartBuy now3 070,44 ₽loaderReviews

5,0

1 review10000Top reviewsWith photosFrom Russia

All stars

All starsAdditionalAnonymous user14 July 2022

Show moreOpen 1 reviewDescription1. How to  use  our LCD ? ? Methion  one. install our configed image OSspotpear.com/download/image/RPi-3.5inch-HDMI-LCD/ Or  Methion twoinstall our driver  at yourself raspbian OSspotpear.com/learn/EN/raspberry-pi/Raspberry-Pi-LCD/Drive-the-LCD.html-->Use at yourself Raspbian OS(need your pi connected with internet by WIFI or Network cableif no internet. the touch will not work) 2.. How to change  display resolution ? When you have make our LCD work  by metion one  or two.Open /boot/config.txtyou will see---------------------hdmi_group=2hdmi_mode=1hdmi_mode=87hdmi_cvt 800 480 60 6 0 0 0------------------------------ if you want to change to  480x320, you can changehdmi_cvt 800 480 60 6 0 0 0tohdmi_cvt 480 320 60 6 0 0 0 if you want to change to  1024x600, you can changehdmi_cvt 800 480 60 6 0 0 0tohdmi_cvt 1024 600 60 6 0 0 0 if you want to change to  1920x1080, you can changehdmi_cvt 800 480 60 6 0 0 0tohdmi_cvt 1920 1080 60 6 0 0 0 We recommend use 800x480, if change to  more big Resolution, will be Bad  disply 3. Attention The LCD Physical resolution is 480x 320.But Software resolution is : Adjustable 480x320- 1920x 1080.We recommend to use 800x480 resolution because that resolution is the best display to use.You also can set to more big resolution , but if Small LCD set big resolution which will make disply very little. All LCD will be that even if the LCD is Physical resolution 1920x 1080 the disply also will be very bad . because the LCD just is 3.5 inch not 7inch or 10inch

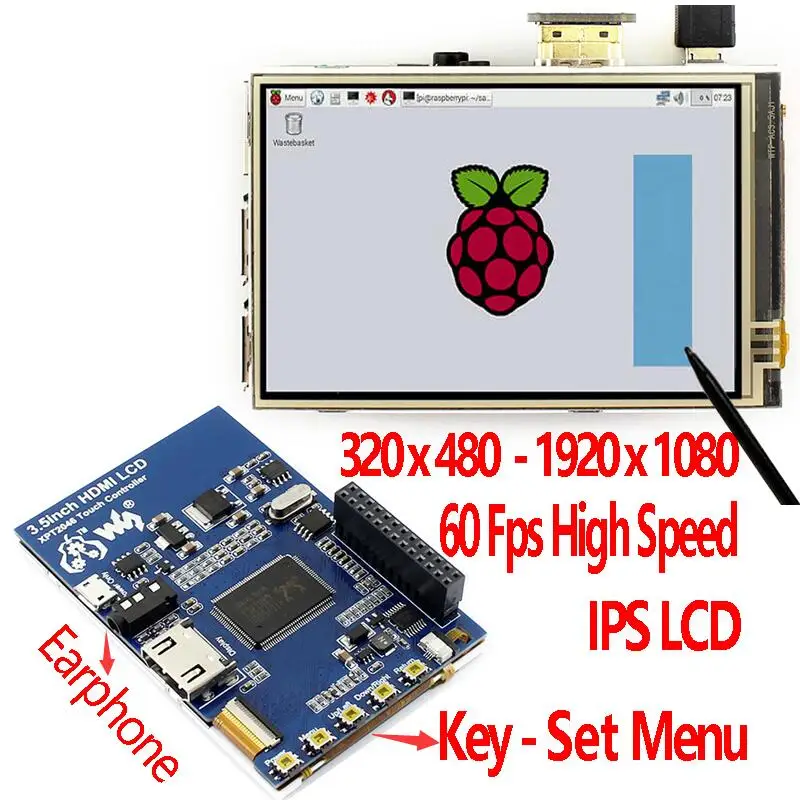

Features

Designed for Raspberry Pi, easy to use

With black Acrylic case

Driver provided

Adjustable resolution:320x480-1920x1080

60Fps high speed

Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

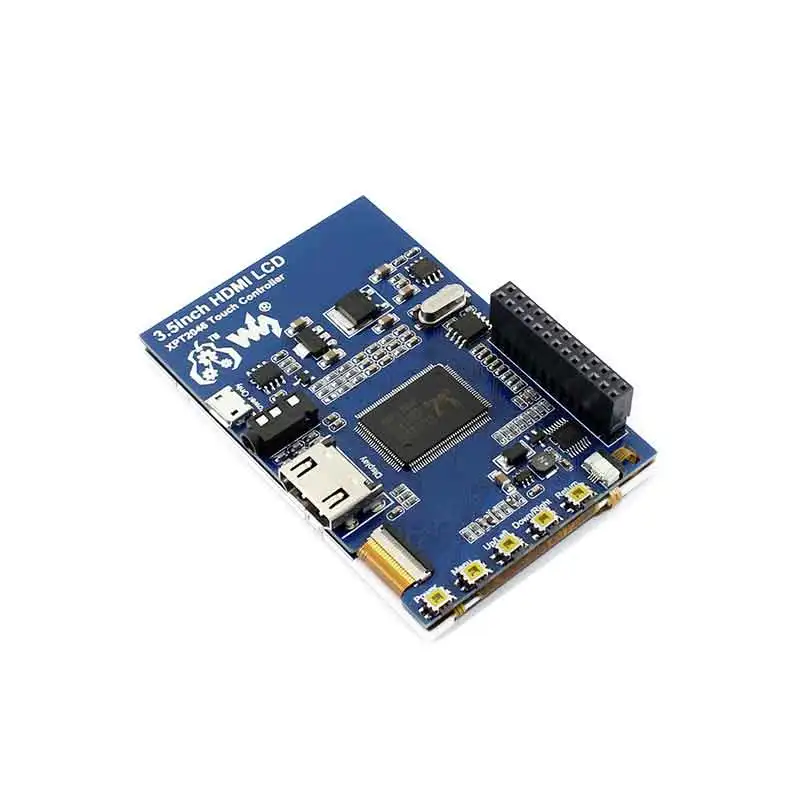

Photos

Do not include Raspberry Pi

Interface

PIN NO.

SYMBOL

DESCRIPTION

1, 17

3.3V

Power positive (3.3V power input)

2, 4

5V

Power positive (5V power input)

3, 5, 7, 8, 10, 22

NC

NC

6, 9, 14, 20, 25

GND

Ground

11

TP_IRQ

Touch Panel interrupt, low level while the Touch Panel detects touching

12

KEY1

Key

13

RST

Reset

15

LCD_RS

LCD instruction control, Instruction/Data Register selection

16

KEY2

Key

18

KEY3

Key

19

LCD_SI / TP_SI

SPI data input of LCD/Touch Panel

21

TP_SO

SPI data output of Touch Panel

23

LCD_SCK / TP_SCK

SPI clock of LCD/Touch Panel

24

LCD_CS

LCD chip selection, low active

26

TP_CS

Touch Panel chip selection, low active

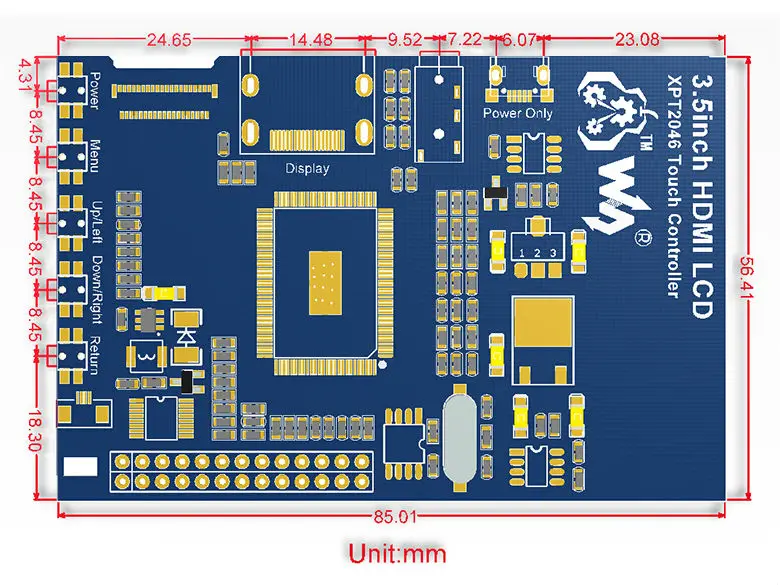

Size

Package Contains

3.5inch HDMI LCD x 1

Touch pen x 1

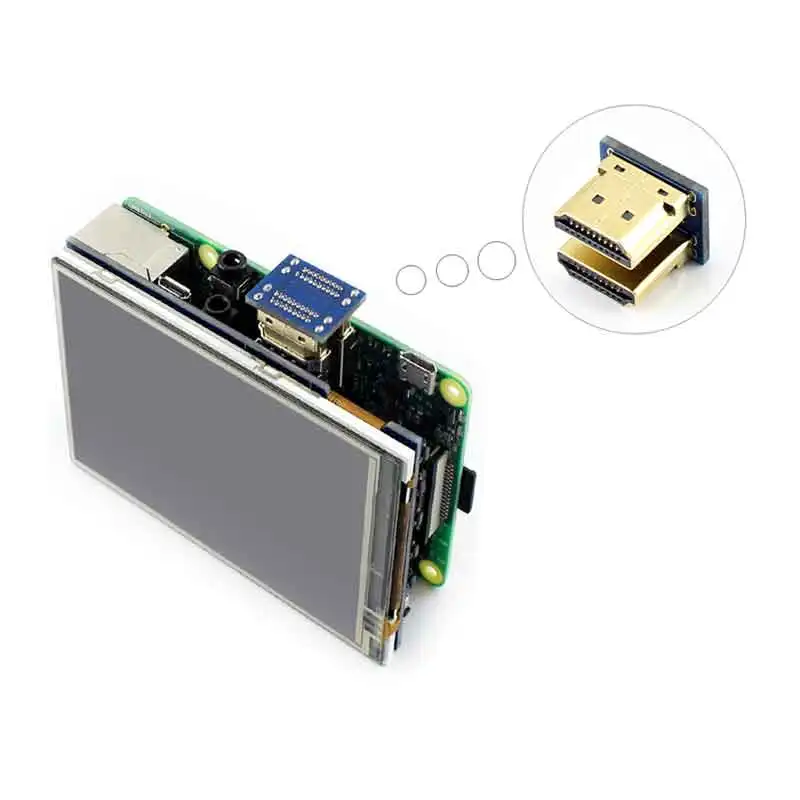

HDMI connectorx1

Black Acrylic case

---
