Hantek 1025G Signal generator 1 Channels 25MHz DDS Analog Arbitrary Waveform Function Generator PC Based USBXITM interface | Инструменты







HT1025G  25MHz Arb. Wave, 200MSa/s DDS;

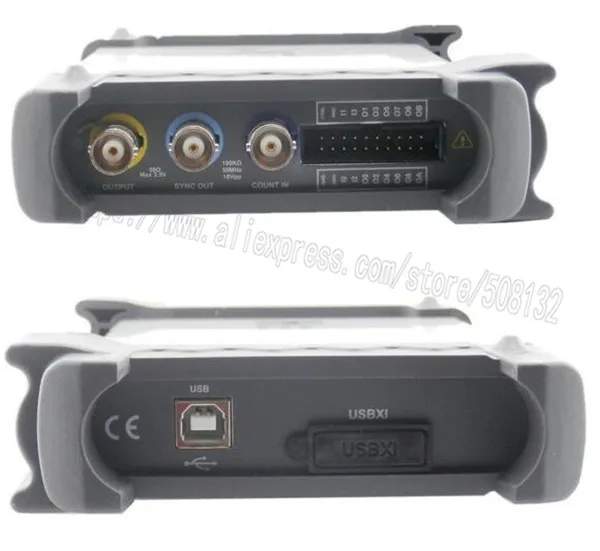

Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.



Features:

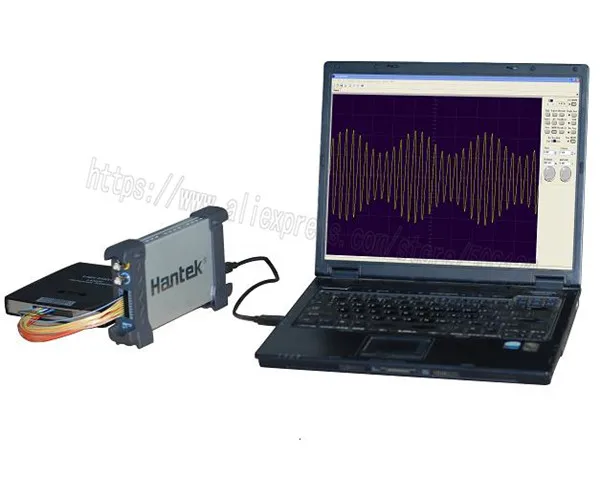

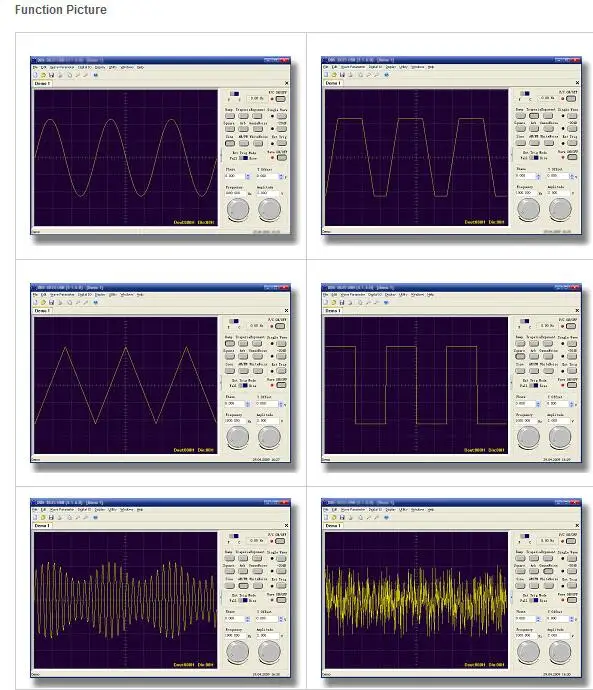

Cost-effectiveness; PC USB Function/Arbitrary Waveform Generator. Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Plug & Play USB interface, no external power source required; Similar operation interface to benchtop waveform generators, easy to use. It can be used disengaging the computer. Simulation of sensors and Real Word Signals. It will produce the needed arbitrary waveform signals when power on. 200MSa/s sample rate, 12 bits of vertical resolution; 25Mz arbitrary waveform output. (Sine wave up to 75 MHz). One computer can be linked with several HANTEK1025G to expand Multi-channels. 50 MHz Frequency Counter. Programmable Pattern Generator. Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument. Support System: Win 7, Windows NT, Windows 2000, Windows XP     Arbitrary Waveform Output Wave frequency DC~25MHz DAC clock 2K~200MHz adjustable Channels 1CH waveform output Waveform Length 4KSa Vertical Resolution 12 bit Frequency stabilization <30ppm Amplitude ±3.5V Max. Output impedance 50 Ω Output  current 50mA Ipeak=50mA System Bandwidth 25M Wave distortion -50dBc(1KHz),  -40dBc(10KHz) Frequency Counter Frequency area DC~50MHz Input Amplitude  400mVpp~18Vpp Coupling DC Frequency precision ±Time Base Error ±1 Count Input impedance > 100KΩ Pattern Generator Digit 12 Bits Pattern Generator and 6Bit digital In Type LVCMOS Working Environment Temperature 0~70 centigrade Humidity 0~95% Weight 0.3Kg     Notice:

The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!



Shipping:



We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can.

Standard Shipping: To USA,UK and Australia by ePacket,need 7-12 working days.

Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties.

Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



Warranty&Reture Policy:



We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you

A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions

manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.

30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.
