3000 пользователей TCP IP доступ к времени в офисе компактный и легкий Считыватель RFID

3000 пользователей TCP IP доступ к времени в офисе компактный и легкий Считыватель RFID

I.Main Features

The KJY-S60 is an IP based fingerprint terminal works both in network and standalone modes. In network mode, it can connect with Free software for access control and time attendance management.

Wiegand output makes KJY-S60 flexible to connect with any 3rd party controllers as a slave reader. Additionally wiegand input allows two units of KJY-S60 to configure with each other and utilize Master & Slave solution, which requires user verification at both entrance and exit.

II.Function

III.Specification

LCD

2.4-inch TFT Color Screen

Communication

TCP/IP,USB Host

Fingerprint Capacity

3000

Card Capacity

3000

Records Capacity

100,000

Access Control Interface

Electric lock, Door sensor, Exit button, Doorbell

Wiegand Signal

Wiegand input & output

Power Supply

DC 12V/3A

Operating Temperature

0 ~ 45°C (32°~113°F)

Operating Humidity

20 ~ 80%

Dimension(W x L x H)

105*105*26mm

Weight

0.2KG

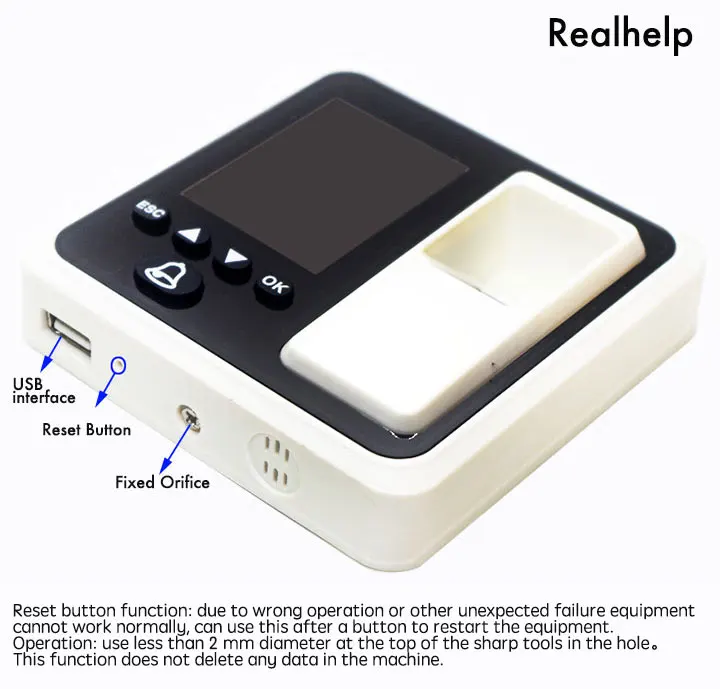

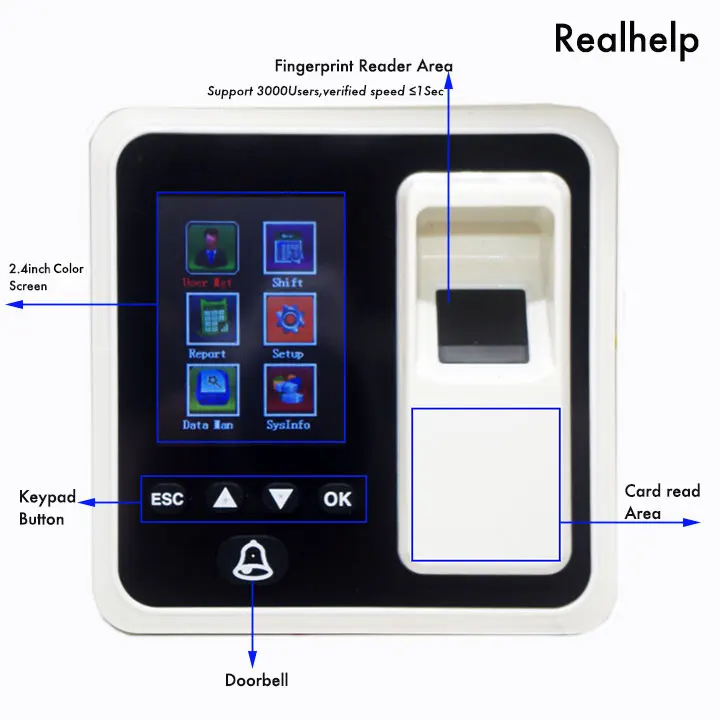

IV.Machine details

VI.Connect diagram

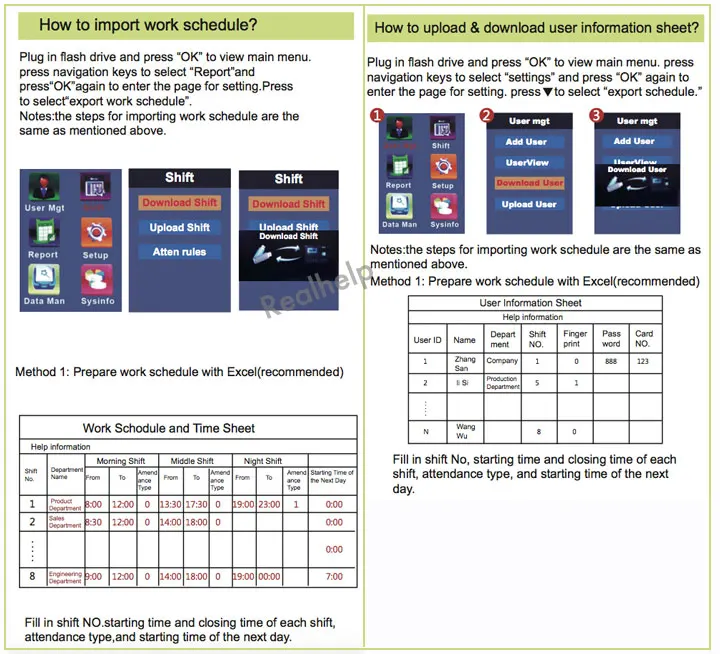

V.Machine Menu

Software Screenshot
