Lead Manufacturer GOODCOM *GT6000S* Portable POS Receipt Printer for Food online ordering can DIY LOGO and Order format

Brief introduction:

The SMS printer is a small, portable, standalone device for receiving and printing text messages sentto it. It takes the advantages of the wide coverage of mobile communication network and convenientinstallation to meet the fast increasing requirement of users.

Suitable for restaurants to receive orders either directly from the customer or from a dispatcher, taxis/cab firms/delivery drivers to receive instructions on new pickups, deliveries, or any other situation where messages need to be conveyed

to a remote party.

Main Festures:

* Firmware & configurations can be REMOTELY updated

* Supports Arabic, English, Spanish, Portuguese, French, German, Swedish, Danish,

  Slovak, Russian, etc. (customizable).

* OEM & ODM

* Quick & precise customization

* Format can be DIY

* Supports GPRS, GSM SMS, USSD & STK

* Can be customized to support HTTPS

* Can set the numbers for the printed copies

* with 1-year-warranty

* with technical and aftersales support

Specification:

Hardware/software/Mechanical

Items

Technology standard

CPU

SIM840w

Memory

Flash:8MB  RAM:4MB

GSM module

SIM840w

Display

128*64 pixels

Keyboard

21keys

Battery

1500mAh Li-ion battery, supports printing by battery supplied. Can be used for more than 96 hours in idle mode by battery supplied.

Developing environment

OS of SIM840w for design

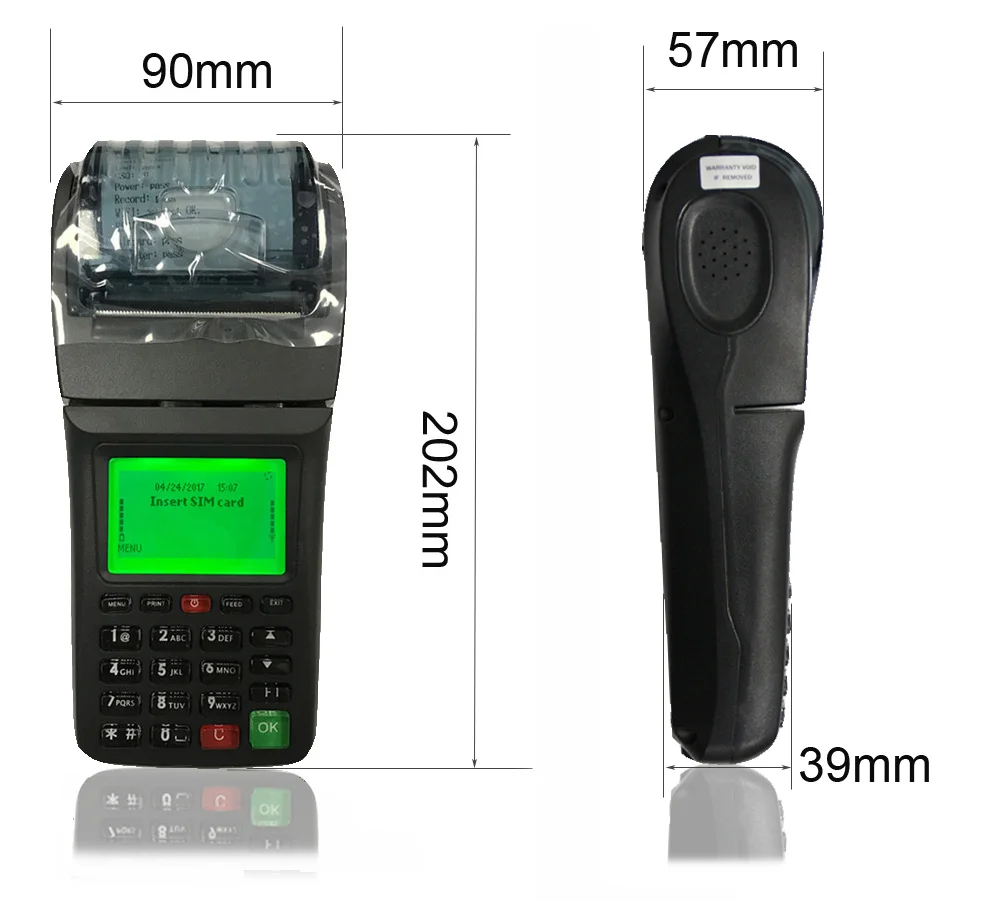

Dimensions

202mm*90mm*57mm

Weight

0.43kg

Power supply

AC input voltage

90V~250V AC

Power adapter output

DC 12V/2A

Application environment

Operating temperature

-15℃～55℃

Relative humidity

10%~95%

Environment noise

≤60dB(A)

Atmospheric pressure

86~106kPa

RF transmit frequency

GSM850       824-849MHz

E-GSM900     880-915MHz

  DCS1800      1710-1785MHz

  PCS1900      1850-1910MHz

Frequency stability

<2.5ppm

Receiver sensitivity

<-104dBm

GSM protocol

ETSI GSM Phase 2+

Transmit power

<2W(GSM，EGSM), <1W(DCS，PCS)

GSM parameters

SIM card interface

1.8V& 3V

Antenna

Internal,50Ω impedance,3dB gain

Micro Printer

Printing method

Thermal-line dot method

Paper

Thermal roll paper (standard) 57*45 mm

Effective Printing area

48mm

Speed

Maximum 70mm/sec(480 dot line/sec)

Printing resolutions

8 dots/mm

Character

12*24dots

Number of columns

32columns/line

Printing head life

Pulse resistance:100 million pulses/dot (under our standard conditions);

Abrasion resistance: paper traveling distance 50km (print ratio:25% or less)

Work flow of online food ordering & delivery

Clear picture

Green&Beautiful package
