750gph 12V/24V Volt bilge pump with switch submersible boat water set electric for boats | Обустройство дома



















Technical Parameters

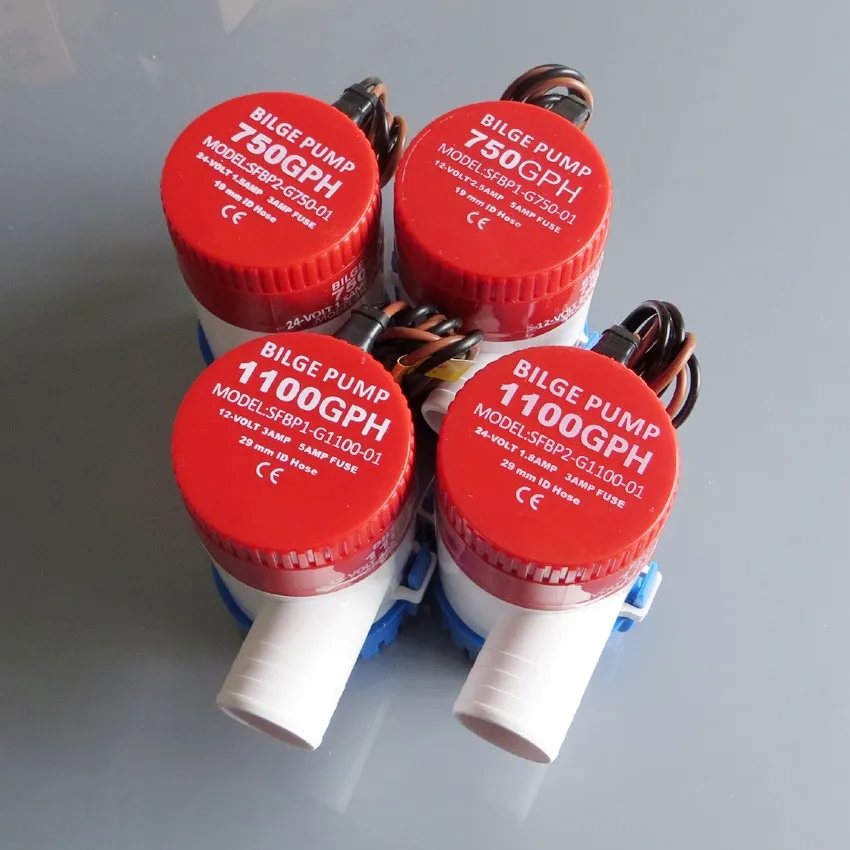

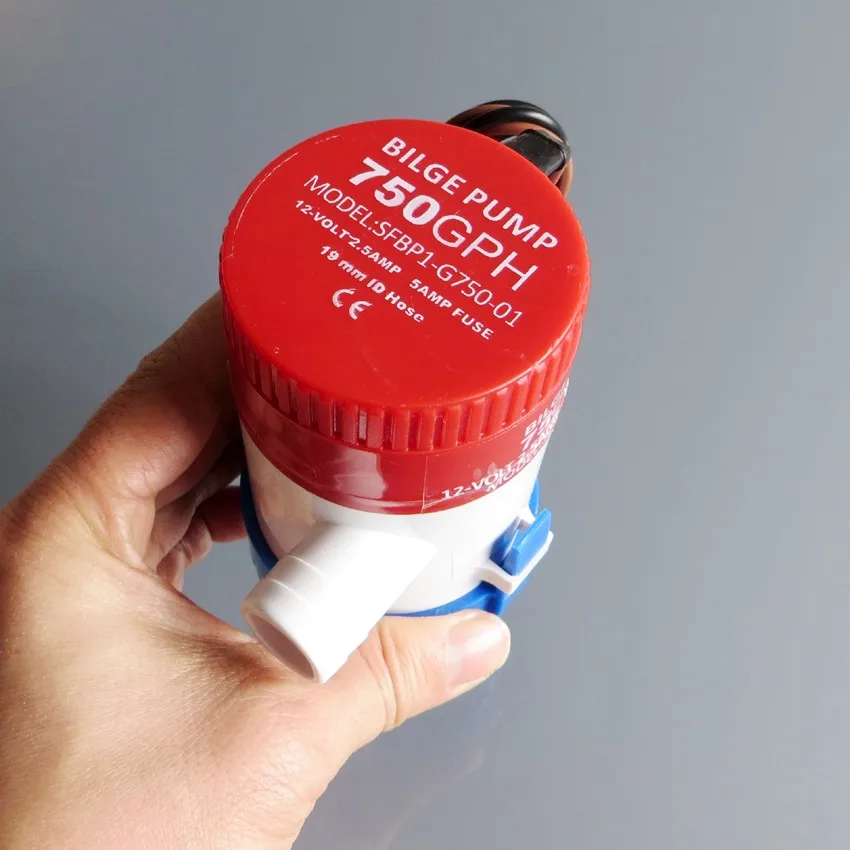

12V DC Marine Bilge Pump/    750GPH 1100GPH 12V DC Eletric Powered Water Pump



Features:

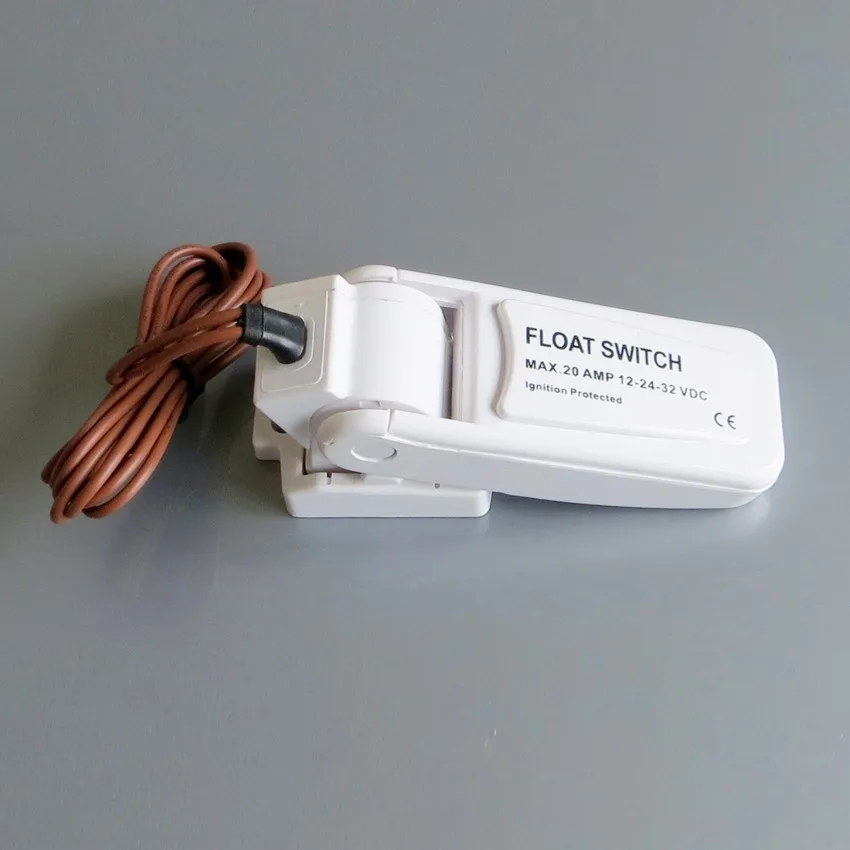

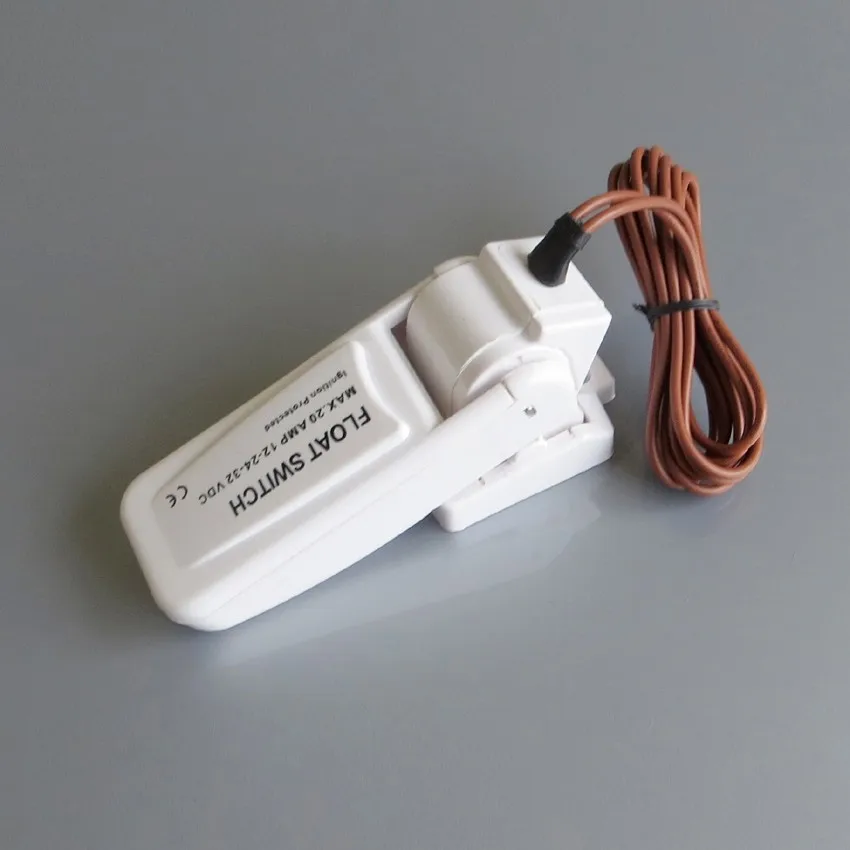

AUTOMATIC BILGE PUMP FLOAT SWITCH SUITABLE FOR 12 - 24 - 32 VOLTS SEAFLO float switch is good for yachtsmen,commercial fisherman&boat builder the world over for use with pumps drawing up to 20amps Provides automatic on/off bilge pump control Turns pump on when water level reaches 2" (51mm) and turns pump off when water level reaches 3/4" (19mm) COMPLETE WITH 28" WIRE CABLE WIRING DIAGRAM MAX AMPS 20 FOR 12 VOLTS MAX AMPS 10 FOR 24 VOLTS MAX AMPS 8 FOR 32 VOLTS Wire length: 100cm WIRE GAUGE SIZE: 16 (1.67 MM) SIZE:13*5.4*7CM





Description

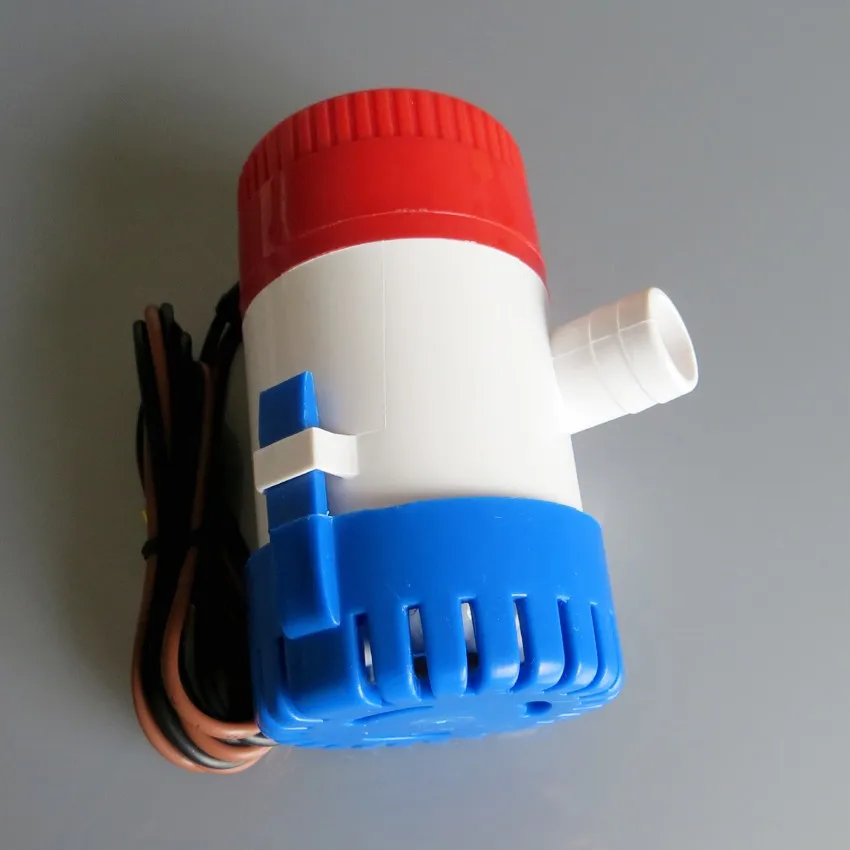

Heavy duty motors with stainless steel shafts and tough thermoplastic bodies;
Totally submersible and ignition protected;
To all existing safety standards;
Water cooled motors for long life, with anti airlock design and moisture tight seals;

Snap-lock strainer base for easy installation and removal, and silent vibration free running;
No burn out if run dry;

Max Amps 12V: 30A
Max Amps 24V: 15A
Wire Length: 100cm
Wire Gauge Length: 16





Application:

The float switch is good for yachtsmen, commercial fisherman & boat builders all over the world.For use with pumps drawing up to 20 amps.

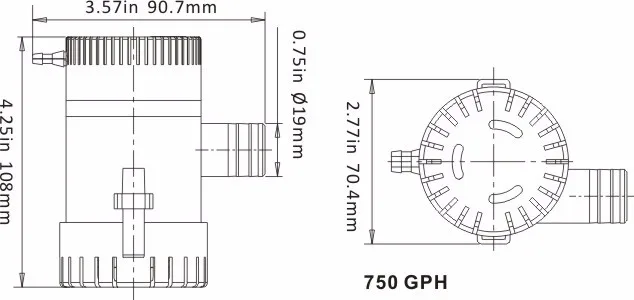

Model Flow Voltage Current Lift Wire Outlet diameter JK1-G350-01 350 GPH 12V 1.8A 3m 1 m 19 mm/3/4" JK2-G350-01 350 GPH 24V 1.0A 3m 1 m 19 mm/3/4" JK1-G500-01 500 GPH 12V 1.6A 3m 1 m 19 mm/3/4" JK2-G500-01 500 GPH 24V 1.2A 3m 1 m 19 mm/3/4" JK1-G750-01 750 GPH 12V 2.5A 3m 1 m 19 mm/3/4" JK2-G750-01 750 GPH 24V 1.2A 3m 1 m 19 mm/3/4" JK1-G1100-01 1100 GPH 12V 3.0A 4m 1 m 29 mm/1-1/8" JK2-G1100-01 1100 GPH 24V 1.8A 4m 1 m 29 mm/1-1/8" JK1-G1500-01 1500 GPH 12V 8.0A 5m 1 m 29 mm/1-1/8" JK2-G1500-01 1500 GPH 24V 4.0A 5m 1 m 29 mm/1-1/8" JK1-G2000-01 2000 GPH 12V 8.5A 6m 1 m 29 mm/1-1/8" JK2-G2000-01 2000 GPH 24V 5.0A 6m 1 m 29 mm/1-1/8" JK1-G3000-01 3000 GPH 14V 12.0A 8m 1 m 40 mm/1-1/2" JK2-G3000-01 3000 GPH 7V 7.0A 8m 1 m 40 mm/1-1/2" JK1-G3500-01 3500 GPH 12V 16.0A 8m 1 m 40 mm/1-1/2" JK2-G3500-01 3500 GPH 24V 8.0A 8m 1 m 40 mm/1-1/2" JK1-G3700-12 3700 GPH 12V 16A 8m 1m 40 mm/1-1/2" JK2-G3700-12 3700 GPH 24V 10A 8m 1m 40 mm/1-1/2"
