Shipping by sea 220V / 380V DPP-80 liquid blister packing machine Flat plate  Vacuum

Food Sealers  30-80 mm (customizable)

Notice : when the parcel arrived to your customs  ,please pay the

            tax and pick up the parcel  ,we are not responsible for

            any customs duty or import tax


              if your place is remote ,then need to pay 35usd .

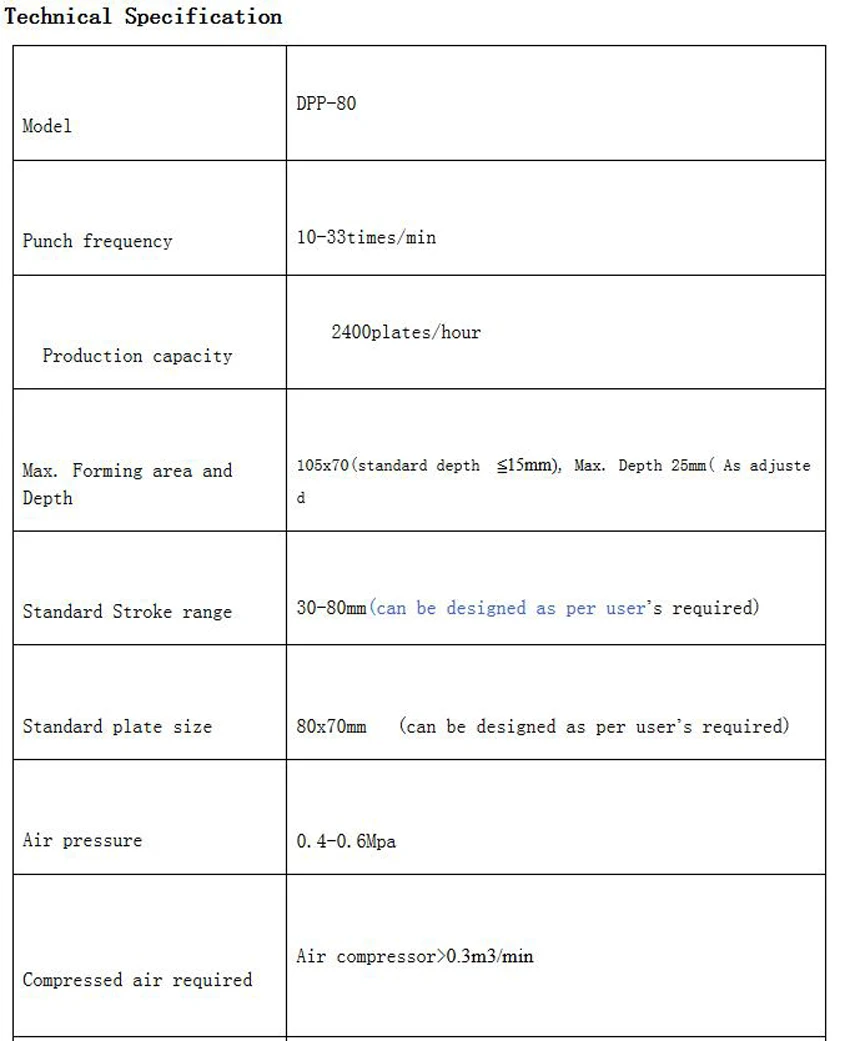

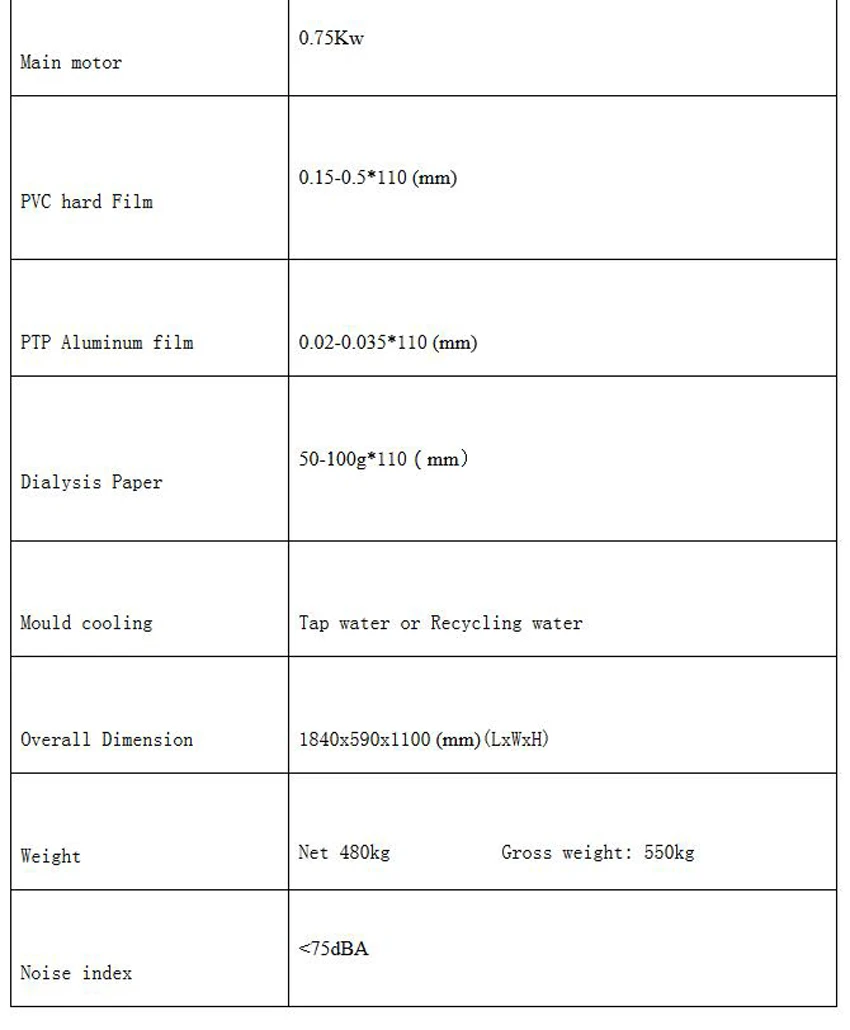

Specification:

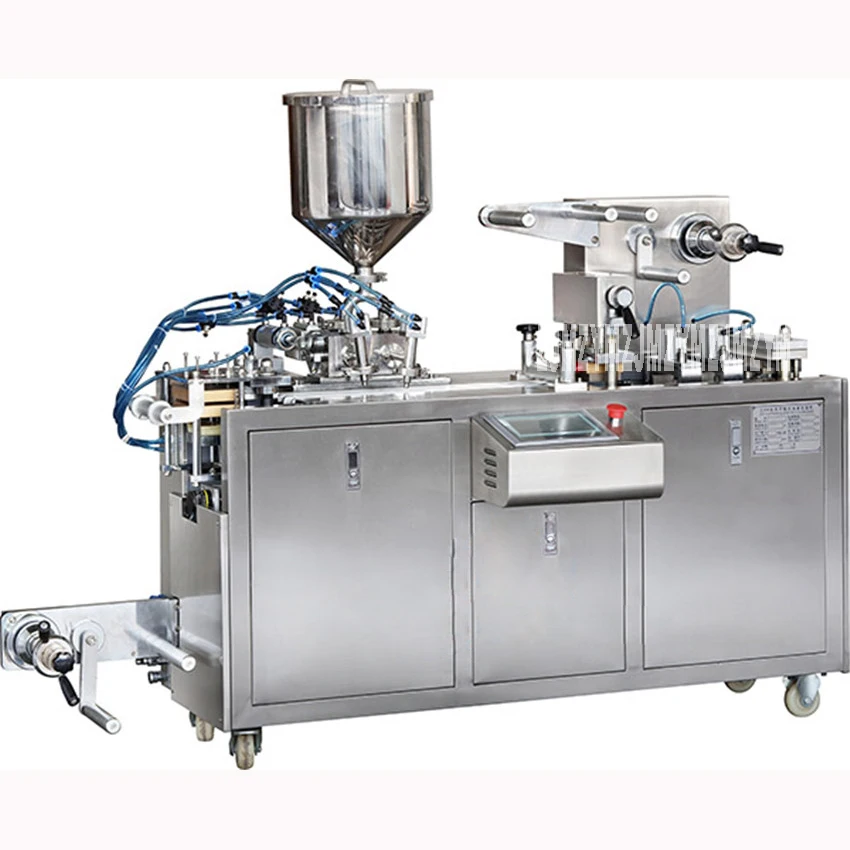

Product Name: Liquid Blister Packaging Machine
Model: DPP-80
Voltage: 220V / 380V (220V three-phase)
Power: 0.75KW
Production capacity: 2400 version / hour
Number of punching: 10-33 times / min
Mold cooling: tap water or circulating water
Standard travel range: 30-80 mm (customizable)
Standard section: 80 * 57mm (customizable)
Size: 184 * 59 * 110CM
Net Weight: 550KG

Note:product shipping by sea!

Features

1, using the latest large-scale transmission mechanism, driven by the chain drive the main drive shaft, eliminating the other gear transmission error and noise.

2, electrical import control system, can be in accordance with customer requirements, configuration missing material leakage device and the lack of particle detection device.

3, the use of photoelectric control system, PVC, PTP, hard aluminum packaging automatic feeding, automatic cutting edge cutting device to ensure long-distance multi-station synchronous stability.

4, can reprovision photoelectric detection correction device, with imported stepper motor traction, graphic version of the printing and packaging, optimize the packaging grade.

5, the machine for the industry: food, medicine, medical equipment, hardware, electronic bubble sealed packaging.

Liquid filling instructions

1, the use of plunger metering pump to perform filling, high precision; pump structure using quick-release disassembly mechanism, easy to clean, disinfection.

2, PLC control system, color touch screen display.

3, filling the needle with anti-drip device.

4. Filling accuracy ± 05% Filling two conventional: 5-25 ml (the amount of customers according to customer custom)

5, the machine shell and contact with the liquid part made of stainless steel, fully in line with GMP standards.
