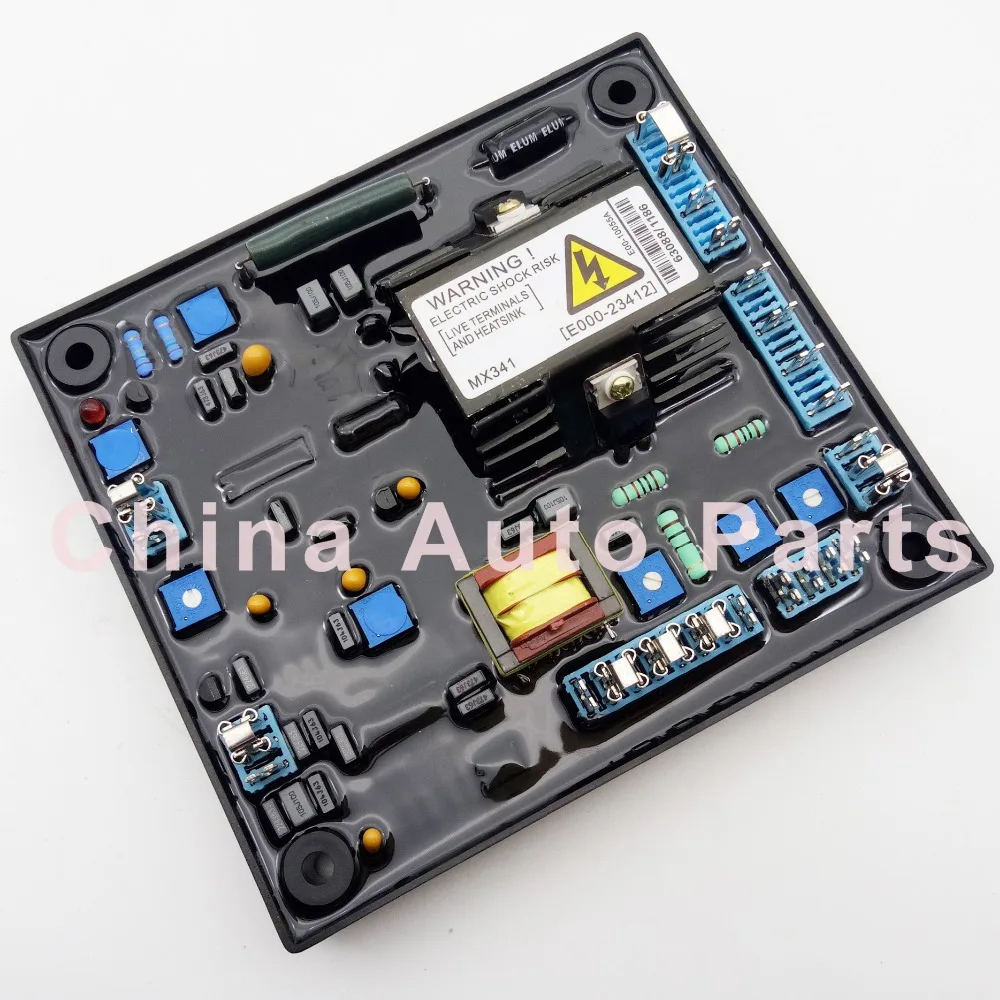

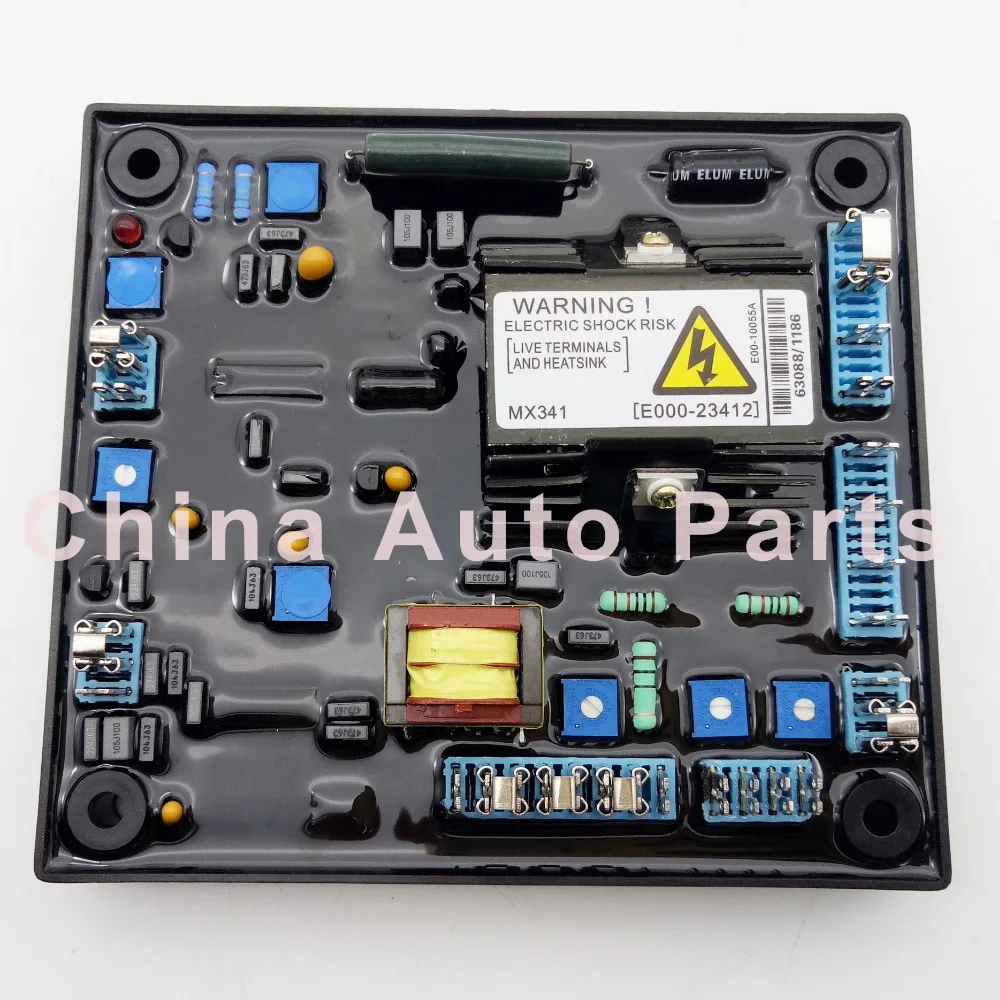

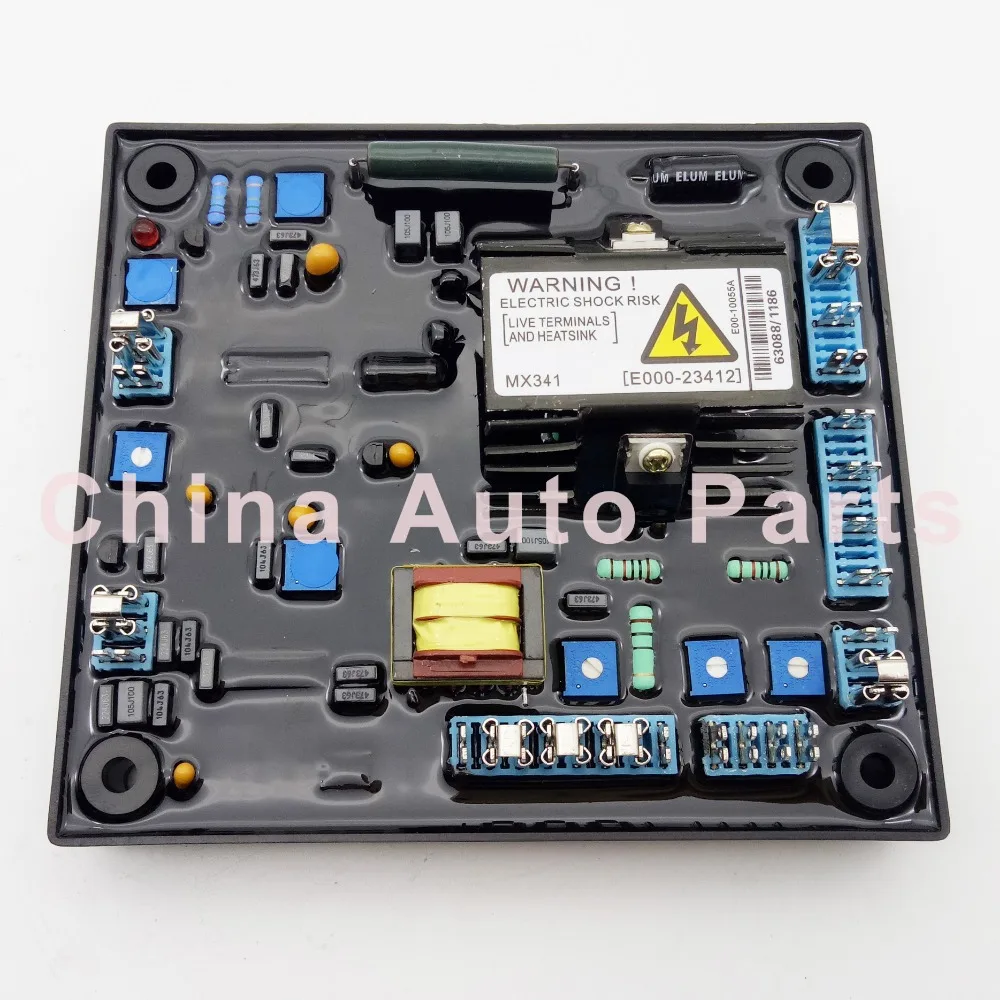

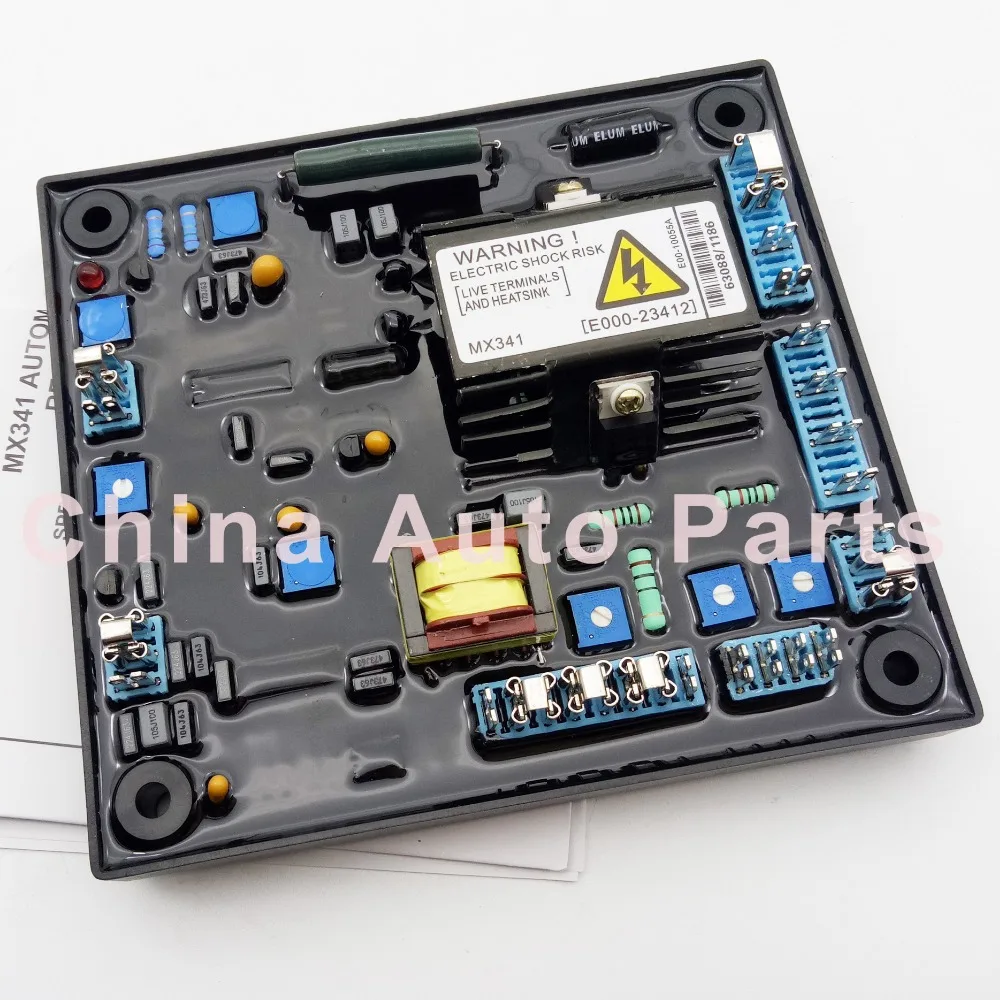

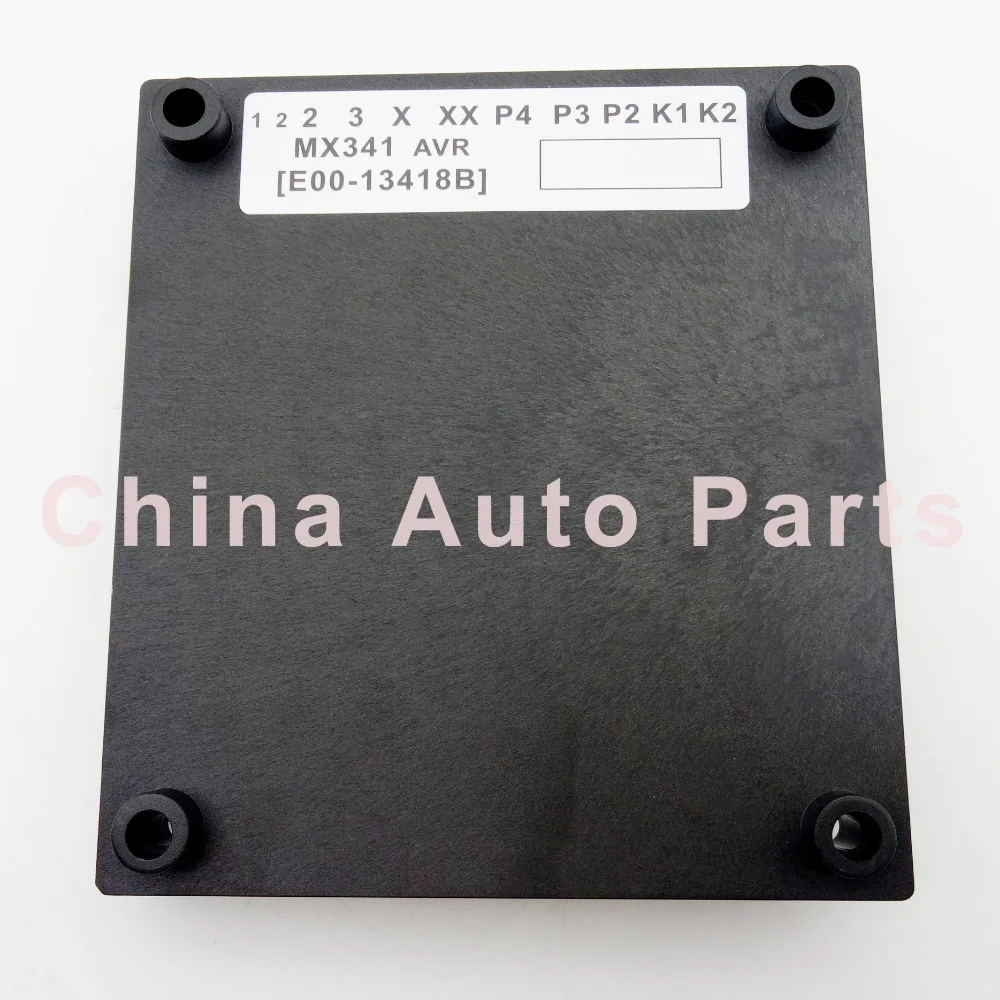

New Automatic Voltage Regulator AVR MX341 for Generator | Автомобили и мотоциклы





Specification: SENSING INPUT Voltage 190-264V ac max, 1 phase 2 wire Frequency 50-60HZ nominal  POWER INPUT Voltage 140-220 V ac max, 3 phase,3 wire CURRENT: 3A/phase Frequency 100-120HZ nominal OUTPUT Voltage max 120V dc Current continuous 2.7A dc Intermittent 6A for 10 secs Resistance 15 ohms minimum REGULATION +/-1%  THERMAL DRIFT 0.03% per deg.C change in AVR ambient SOFT START PAMP TIME 3 sec TYPICAL SYSTEM RESPONSE AVR respone 10ms Filed current to 90% 80ms Machine Volts to 97% 300ms EXTERNAL VOLTAGE ADJUSTMENT +/-10% with 1k ohm 1 watt trimmer UNDER FREQUENCY PROTECTION Set point 95%HZ Slope 170% down to 30HZ  UNIT POWER DISSIPATION 12 watts maximum ANALOGUE INPUT Maximum input +/-5V dc Sensitivity 1V for 5% Generator Volts(adjustable) Input resistance 1k ohm QUADRATURE DROOP INPUT 10 ohms burden Max.sensitivity:0.07A for 5% droop OPF Max.input:0.33A OVER EXCITATION PROTECTION: Set point:75vdc Time relay:10sec Environmental Vibration 20-100HZ 50mm/sec 100Hz 2kHz 3.3g Operating temperature -40 to +70 C Relative Humidity 0-70C 95% Storage temperature -55 to +80 C Notes: 1.With 4% engine governing. 2.After 10 minutes. 3.Applies to Mod status D onwards. Generator de-rate may apply. Check with factory. 4.Factory set, semi-sealed, jumper selectable. 5.Any device connected to the analogue input must be fully floating (galvanically isolated from ground), with an insulation strength of 500V ac. 6.Non condensing.   Have in stock! please don't worry!      Packing: Neutal packing also can accept customer's special packing demand.
