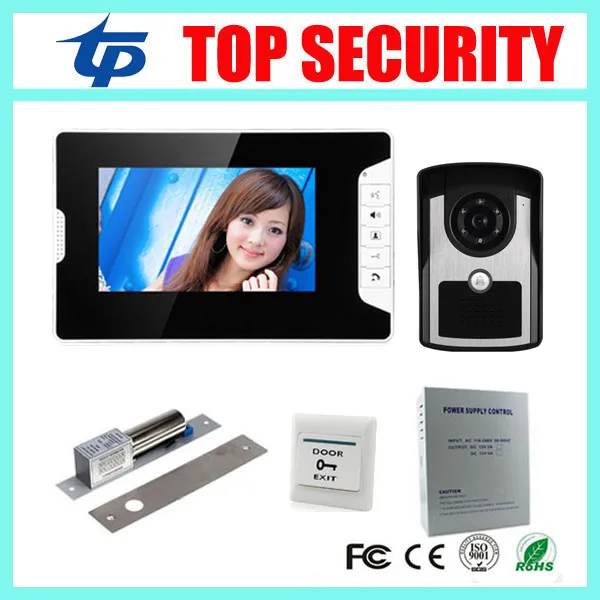

Introduction:

This stylish and modern video doorphone set is consisted of an outdoor doorbell and an indoor LCD panel. The outdoor unit serves as a doorbell with built-in 3.6mm camera to capture the scenes outside the door. Both the outdoor and indoor units have microphone and speaker to form a hands-free intercom systembetween the two sides of the door. The indoor unit equips an extra-large 7’’ color TFT LCD so that indoor people can see the outside with high image quality and visibility. The indoor people can talk to visitors and open electric door lock remotely by simply pressing the several keys.

The IR LEDs of the outdoor unit will turn on automatically in darkness so that indoor people can see the visitors clearly all the times. The outdoor unit is made of durable aluminum alloy and come with a protective shell so that it is rain and corrosion proof. The indoor unit is slim and back-mounted on wall to save your home space. And you can watch the outside through the LCD whenever you want, even without doorbell alerts.

With this doorphone set, you can find out who is visiting and unlock your door without walking to the door. You may communicate with visitors first before letting them in. It can make your life easier and at the same time keep your home entrance under control. You will find it very useful and convenient especially with big houses, villas, apartments or offices.

Features:

1. New and high quality wired video door phones
2. Hands free video door phone
3. This door station adopt high-definition COMS/CCD camera, making a better effect for image
4. Monitoring outside by pressing the key
5. Micro-processing technology, automatic remote control functionality, excellent performance, high reliability, wall or desktop mounting
6. One outdoor unit can also call up to six indoor units
7. A choice of multi-chord tunes are available with adjustable volume
8. Built-in led.
9.  420TVL IR Night version camera.
10. Explosion-proof, waterproof design, prevent-oxidation, wear-resistant metal case
11. Installation is simple and convenient, Users can install itself.

12. IP55 waterproof outdoor unit.

Specifications:

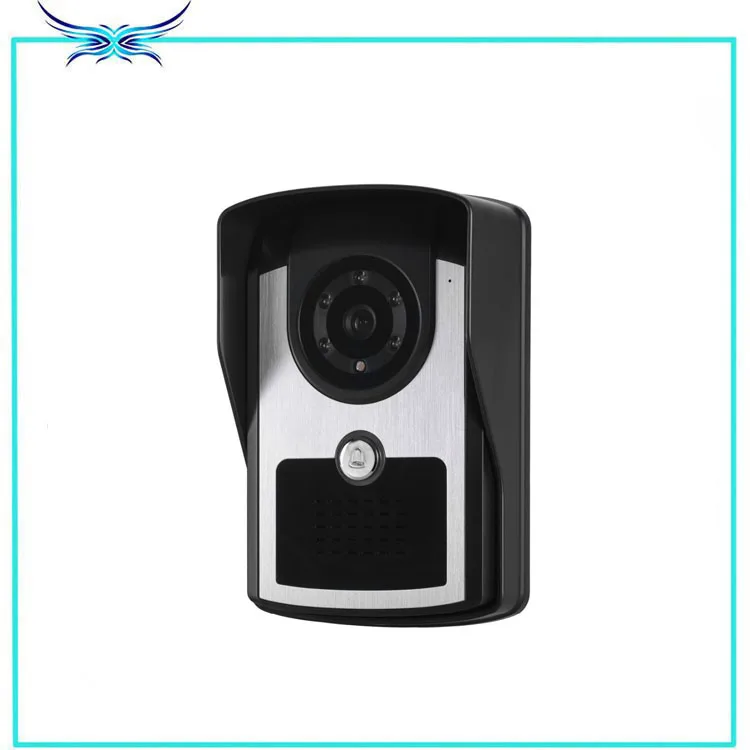

Outdoor Camera

1.Camera: 1/4" CMOS, 420TVL, 6pcs IR cameras
2.Angle of view: 92
3.Video output: 1Vp-p/75Ω
4.Adapter input: AC100~240V, 50/60Hz
5.Adapter output: DC15V/1.2A
6.Installation: Wall mounted
7.Material: ABS plastic & aluminum alloy
8.Wires for Lock-camera connection.
9. Working Temperature: -20 degree to 50 degree

10.Dimensions: 13 * 9.3 * 3cm

11.Weight: 430g

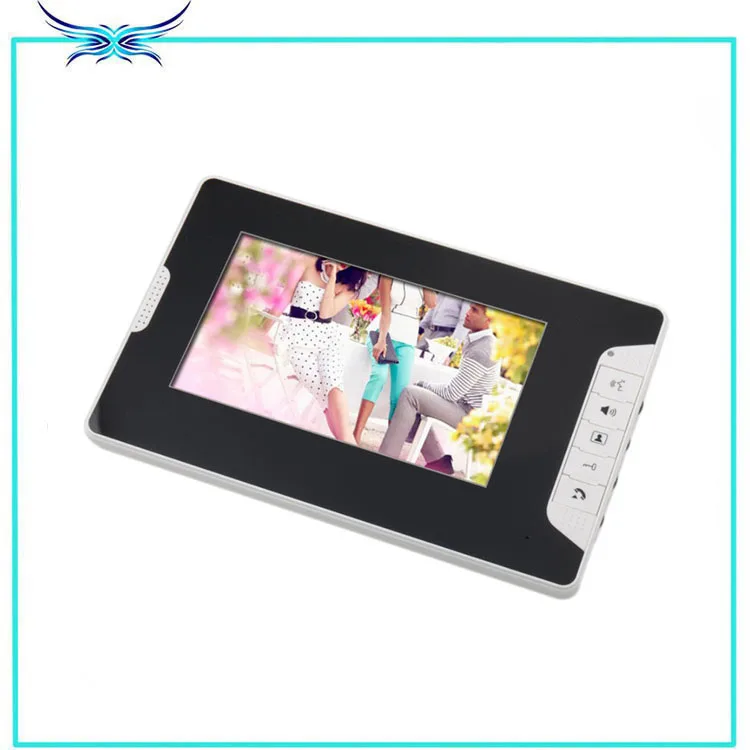

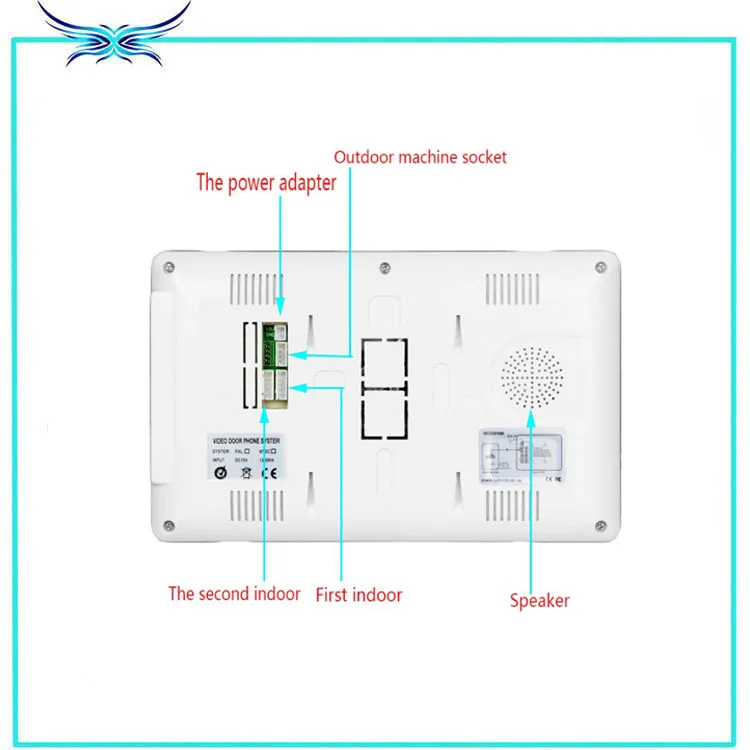

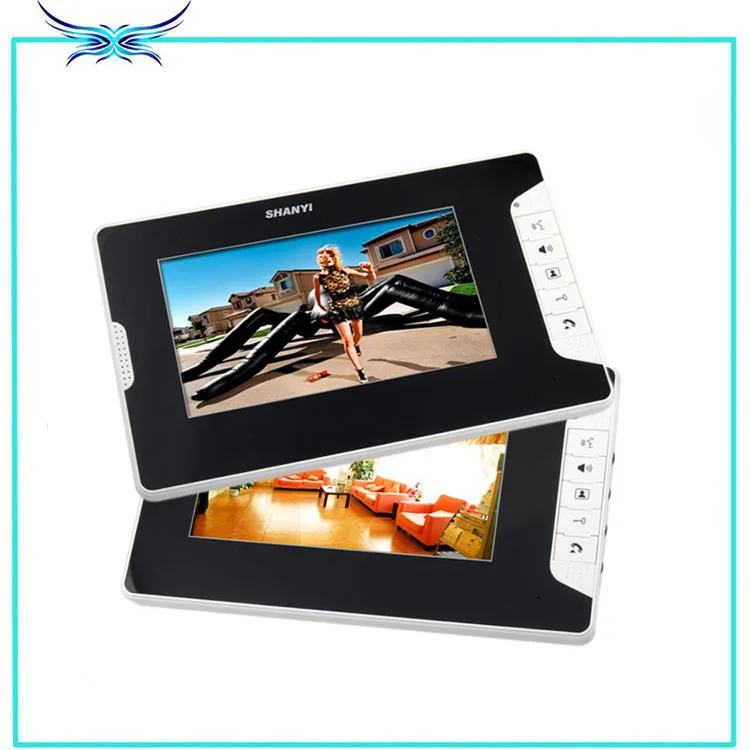

Monitor
1.Screen: 7" TFT Color Screen 840*234

2. Menu: OSD
3.Power source: AC100V-240V / 50-60Hz
4.Effective pixels: 480 * 234 * 30
5.Power: ≤14W (operation), ≤2W (standby)
6.Night Version: 6pcs IR camera.
7.Dimensions: 24.5 *15 * 2.3cm

8.Weight: 560g

9. Package size: 28.2* 18.3 * 11.8cm

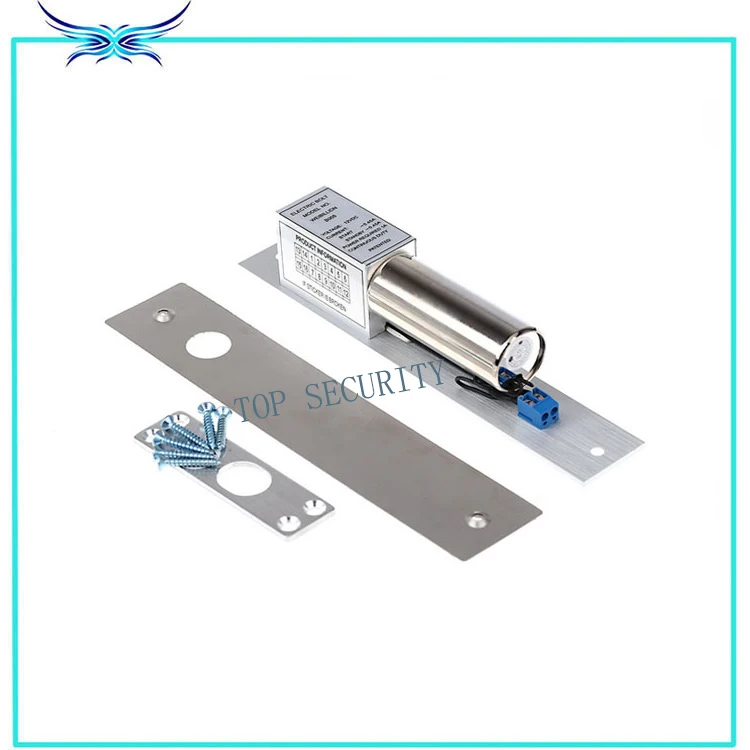

Features:
Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.

Specifications:
Color: Silver
Material: Aluminium Alloy
Working Voltage: DC 12V
Working Current:
Ordinary Mode:
Start State: 450mA
Persistent State: 450mA
Normal Mode:
Start State: 750mA
Persistent State: 180mA
Lock Mode: Magnetic Induction
Lock Size: 20.3 * 3.4 * 4.2cm / 8 * 1.34 * 1.65in (L * W * H)
Lock Weight: 425g / 15oz
Face Plate Size: 21.3 * 4.2cm / 8.4 * 1.65in (L * W)
Face Plate Weight: 31g / 1.08oz
Magnetic Base Size: 9 * 2.5cm / 3.54 * 0.98in (L * W)
Magnetic Base Weight: 16g / 0.58oz
Package Weight: 500g / 17.6oz
