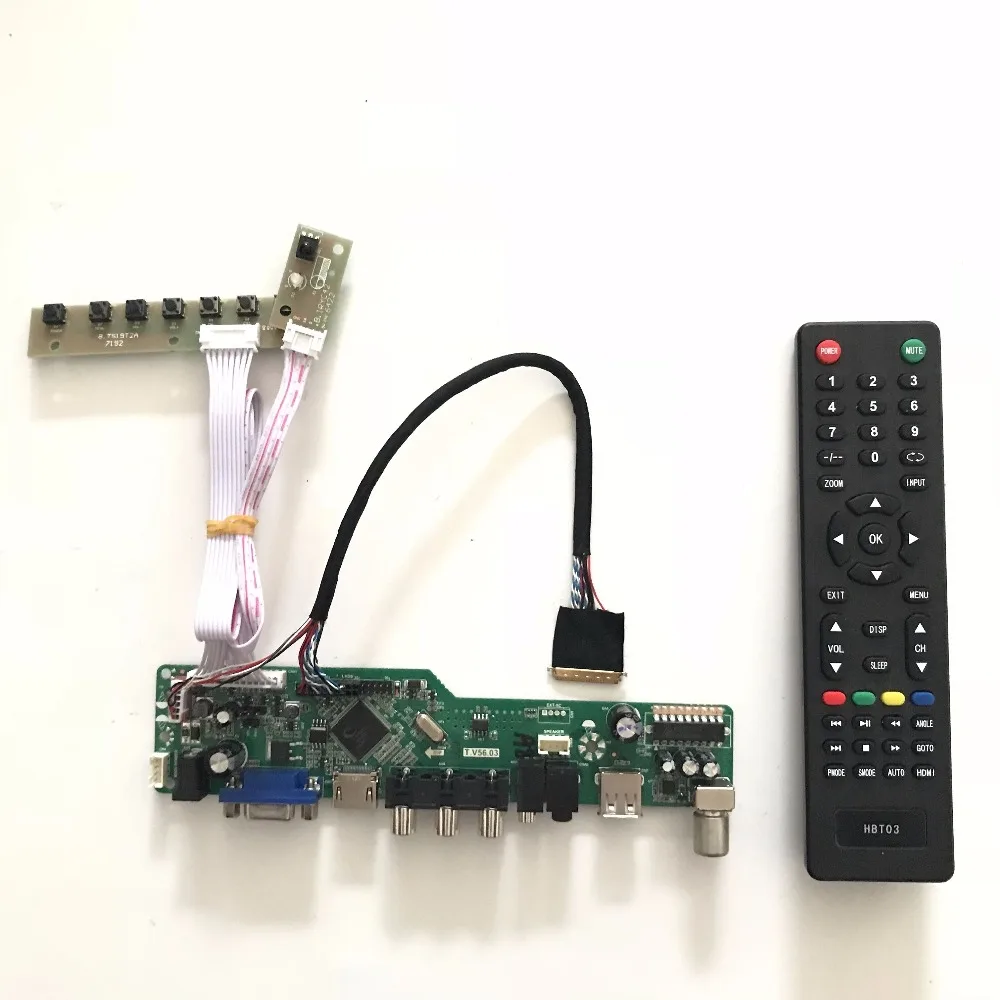

T.V56.03 VGA AV Audio USB TV LCD Controller Board Kit for N116B6-L07 LED 1366x768 11.6 inc h N116B6 L07 Plug and play | Электроника

T.V56.03 VGA AV Audio USB TV LCD Controller Board Kit for N116B6-L07 LED 1366x768 11.6 inc h N116B6 L07 Plug and play | Электроника

1. GENERAL DESCRIPTION

T.V56.03 is analog TV control board, which is suitable for Asia-Pacific and Middle-East market. It
can support less than 26 inch LCD panels which resolution is up to 1920×1080.
T.V56.03 support six kinds of main chip: TSUMV56RUE-Z1,TSUMV56RUU,TSUMV56RUE,TSUMV56RUU-0068,

TSUMV56RUU-SJ,TSUMV56RUE-0068,TSUMV56RUE-SJ, differences are in the following table.
This specification is only for T.V56.03 with main chip TSUMV56RUU .

2.FEATURES

MAIN CHIPSET

TSUMV56RUU-Z1

OPTIONAL CHIPSET

TSUMV56RUE-Z1,TSUMV56RUU,TSUMV56RUE,TSUMV56RUU-0068,

TSUMV56RUU-SJ,TSUMV56RUE-0068,TSUMV56RUE-SJ

OSD LANGUAGE

Asia

English,Chinese

South America

English, French, Spanish

PANEL

Panel Type

TFT LCD

Interface

Single/Dual LVDS

Max Resolution

1920*1080

VIDEO INPUT

TV(Details in 3.1)

ATV(PAL,NTSC)

PC-RGB

Format

Up to 1920×1080@60Hz

CVBS

Video System

PAL/NTSC

Video level

1.0 Vp-p±10%

HDMI

480i, 480p, 720p, 1080i, 1080p

*CEC, *ARC

HDCP Version

1.4

AUDIO INPUT

PC Audio

Earphone Input

0.2 ~ 2.0 VRMS

CVBS

L/R RCA input

0.2 – 2.0VRMS

Component

AUDIO OUTPUT

Frequency

response

100Hz-15KHz @±3dB(1KHz 0dB reference signal)

Max Output power

2×3W(4Ω) THD+N<10%@1KHz

(Power Supply:12V,Audio Input: 0.5VRMS)

POWER TO PANEL

3.3V, 5V, 12V

Management

Standby Power Consumption < 0.2W(Board Only)

USB FUNCTION

software upgrade, multimedia play

Button Types

Ground Key Interface

Note: 1. Licenses involved in specifications above are supposed to be obtained by customers themselves.

2. When 3.3V panel Irush≥2000mA, Inormal≥600mA,please contact CVTE engineers to confirm

3.3V panel power supply component selection.

3. Max current of USB2.0: 500mA. Large impact current of USB device(exceeds 500mA) may lead

to board abnormal work;

3.Key   Function  Description

1.Main chip : TSUMV59XU-Z1

2.VGA+HDMI+AV+Audio+USB+TV(PAL, SECAM)
3.Panel interface:Single/Dual Channel LVDS
4.Support Resolution: Up to 1920*1080@60HZ
5.Working voltage:+12V
6.Power to panel:+3.3V/+5V/+12V
7.OSD language:English, French, German, Italian, Spanish, Portuguese, Russian(optional)
8.Key function: CH-/CH+/MENU/VOL-/VOL+Souce/Power(Control by remote control)
9.Audio output power:2x2.5W(4Ω)
10.Standby Power Consumption < 0.3W
11.Support IR Control
12.Support USB firmware upgrade and media player function
13.Dimension(mm):189.5(L)*43(W)*17(H)

4.Applications

•TV  Set
•LCD Monitor
•Advertising machine
•Industrial machine
•Security monitoring displays
•Projection equipment
•etc

5. Supported resolutions:
