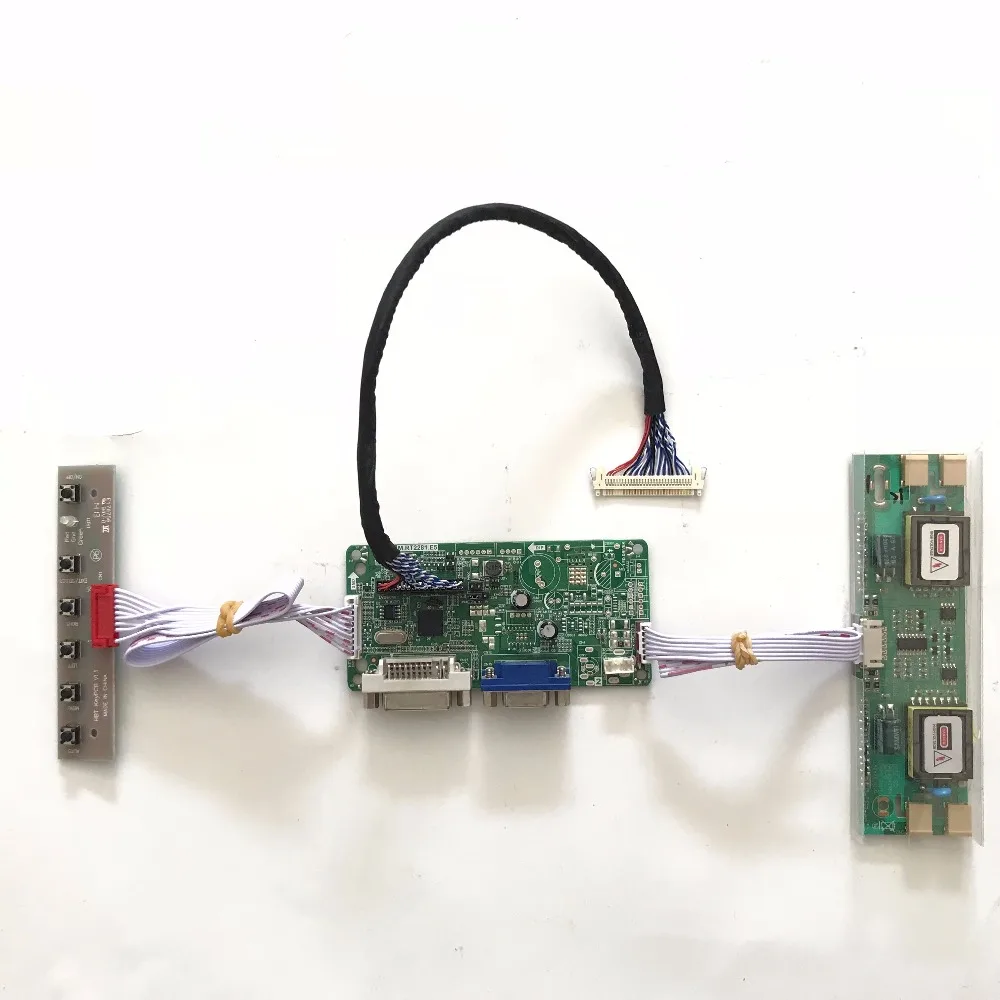

RT2281 Universal DVI VGA LCD Controller Board for 22 inch 1680x1050 M220EW01 V0 4CCFL LVDS Monitor Kit Easy DIY | Электроника

RT2281 Universal DVI VGA LCD Controller Board for 22 inch 1680x1050 M220EW01 V0 4CCFL LVDS Monitor Kit Easy DIY | Электроника

Product Description

1. GENERAL DESCRIPTION

M.RT2881.E5  is a multi-purpose LCD monitor. It is designed to support dual/single LVDS
LCD panel.
The main feature of M.RT2881.E5 can support VGA, DVI input.

Note:The specification of the board includes the description of all functions.Therefore,our
clients can select the functions which they require to produce the board.But the specification can
be introduced universally.

 2. FUNCTION LAYOUT

The following all pictures are reference only. Please take the actual objects as standards.
Elevation of M.RT2881.E5

3. FEATURES

Below you will find the detailed feature

MAIN CHIPSET

RTD2281CL

OSD LANGUAGE

OSD

Asia-Pacific

Simplified Chinese, Traditional Chinese, English, French,

German, Italian, Spanish, Portuguese, Japanese, Korean

(optional)

PANEL

Panel Type

TFT LCD

Interface

Single/Dual LVDS

Max Resolution

1920*1080

POWER TO PANEL

3.3V, 5V, 12V

Management

Standby Power Consumption < 0.2W(Board Only)

Button Types

Ground Key Interface

Note: 1. Licenses involved in specifications above are supposed to be obtained by customers themselves.

2. When 3.3V panel Irush?1000mA, Inormal?600mA,please contact engineers to confirm

3.3V panel power supply component selection.

3. Max current of USB2.0: 500mA. Large impact current of USB device(exceeds 500mA) may lead

to board abnormal work;

4. The normal operating current of 5V panel <= 1500mA.

4. PCB DIMENSIONS

  Dimension(mm) :107(L)*66(W)*17(H)
