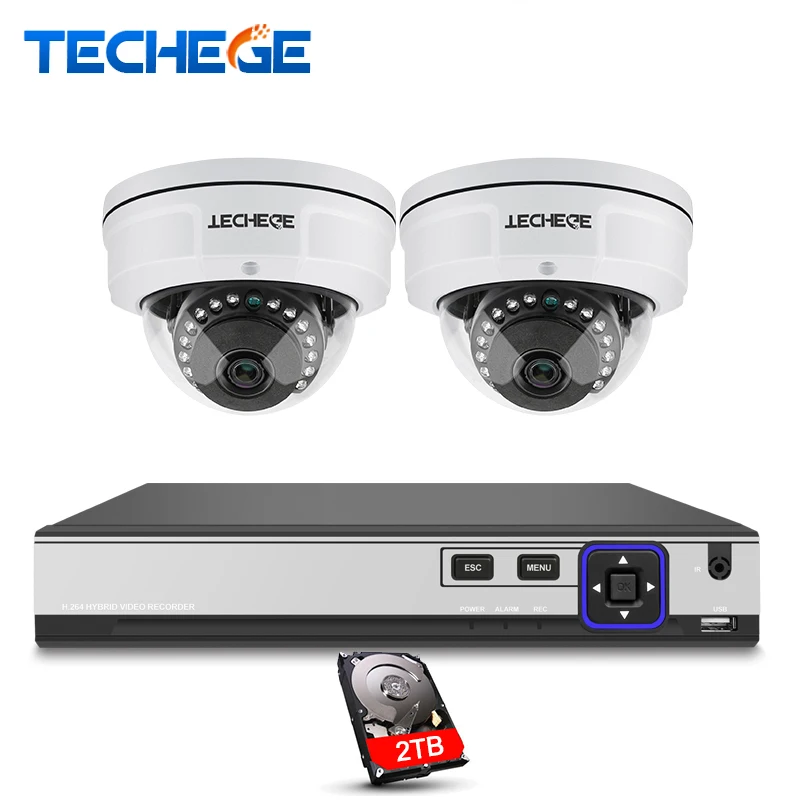

Package included

1 pcs 4Channel  48V 4K NVR bulit in 4 POE port

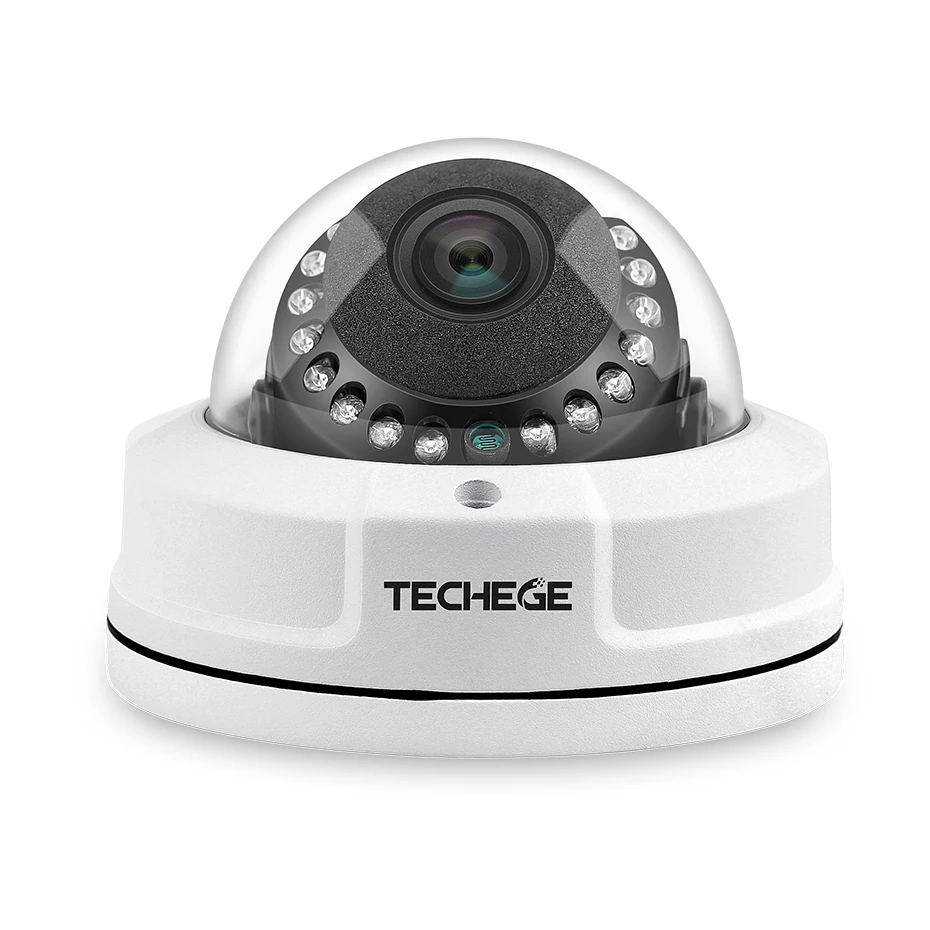

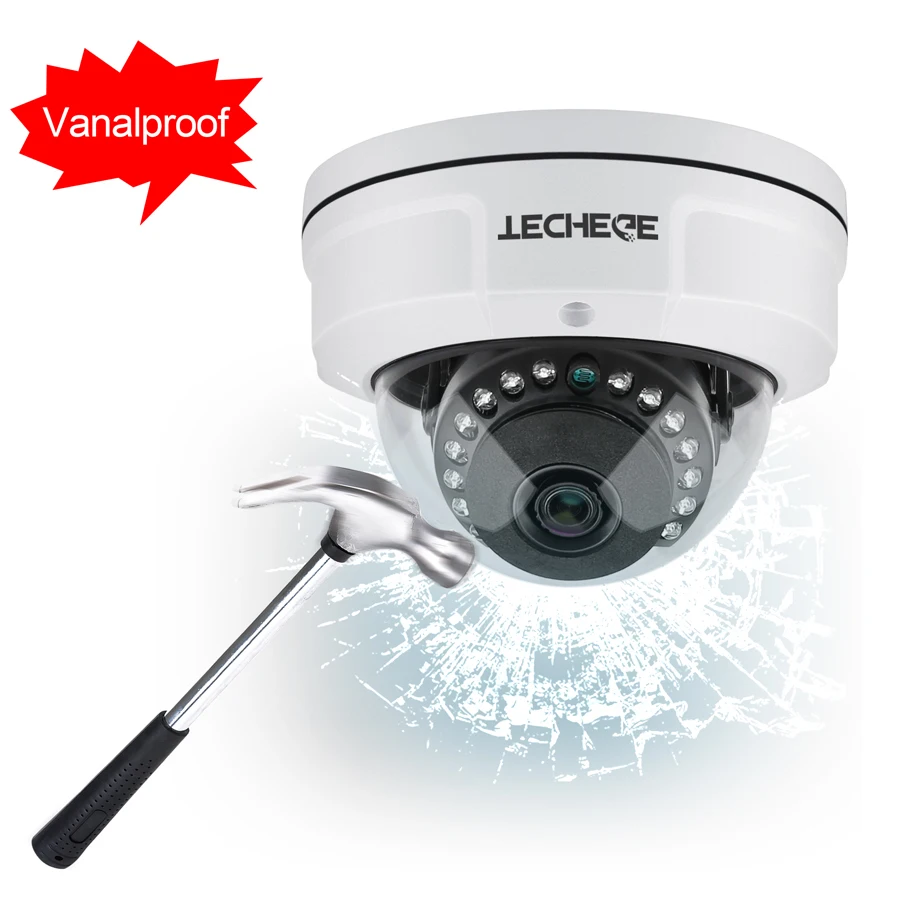

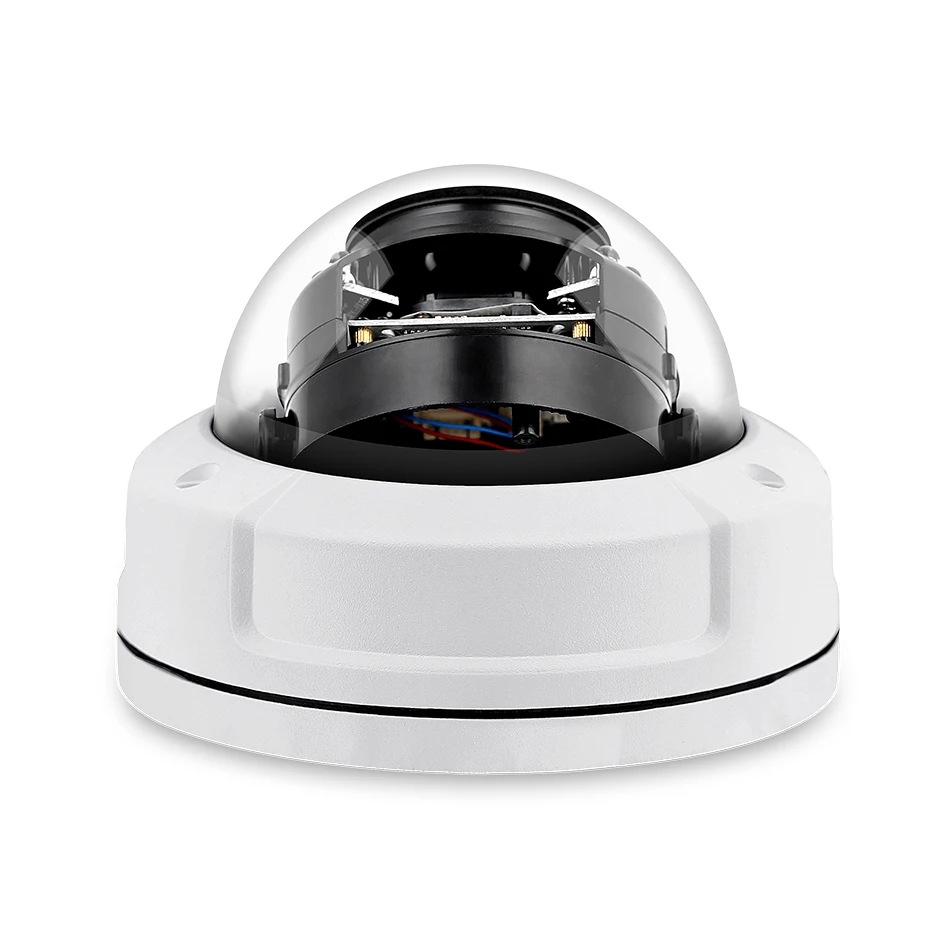

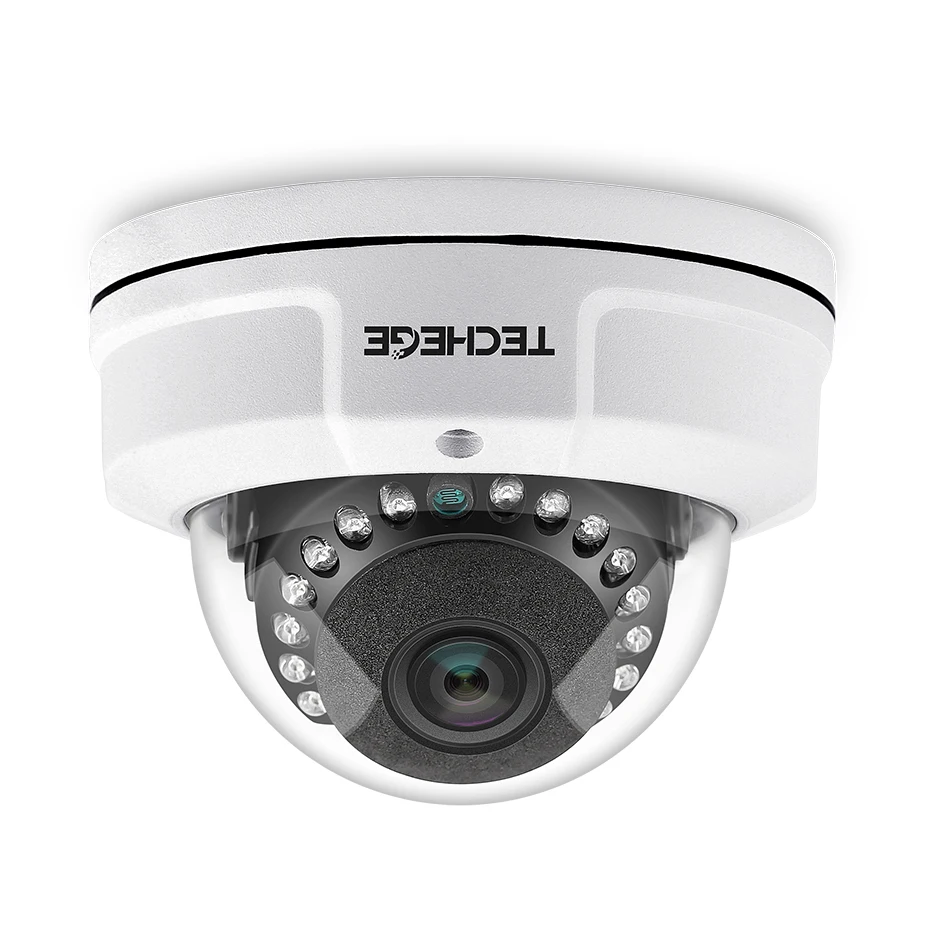

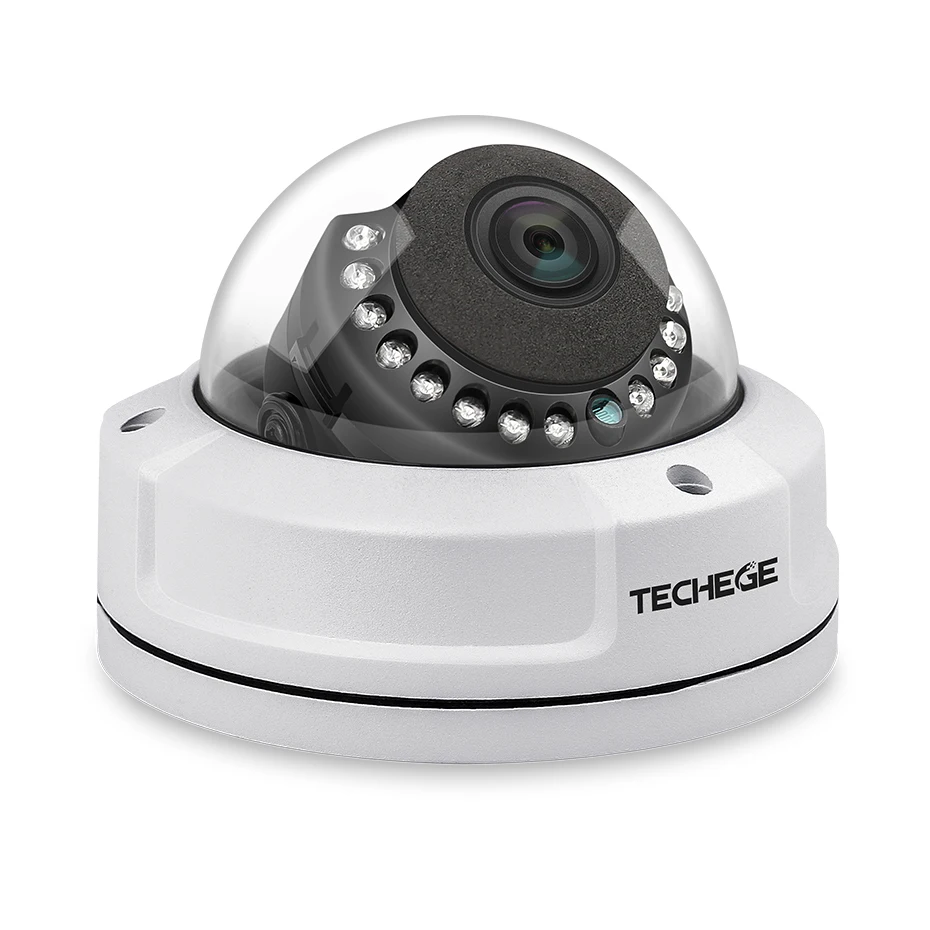

2 pcs 4.0Megapixels POE IP Cameras Dome camera

2 pcs 20m lan cable for cameras

1 pcs 48V Power Supply for NVR

1 pcs Mouse for NVR

1 pcs User manual

1 pcs CD

No Hard Disk Or 1TB HDD or 2TB HDD (Depends on the product properties you select)

Main Functions

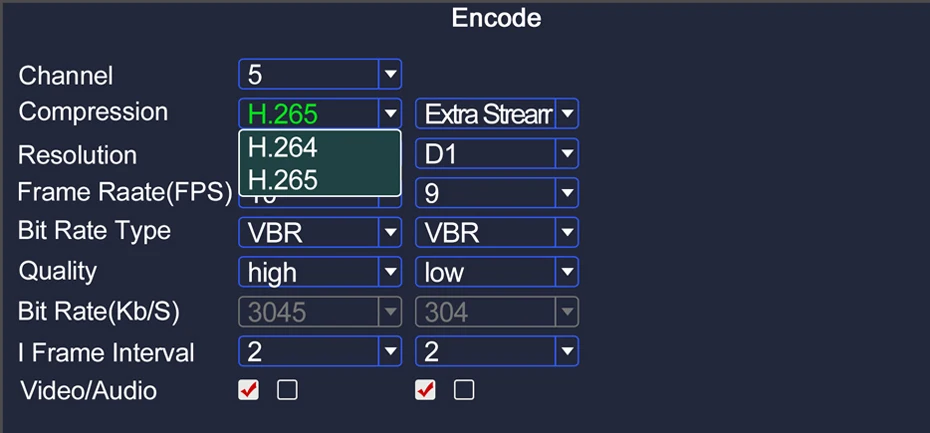

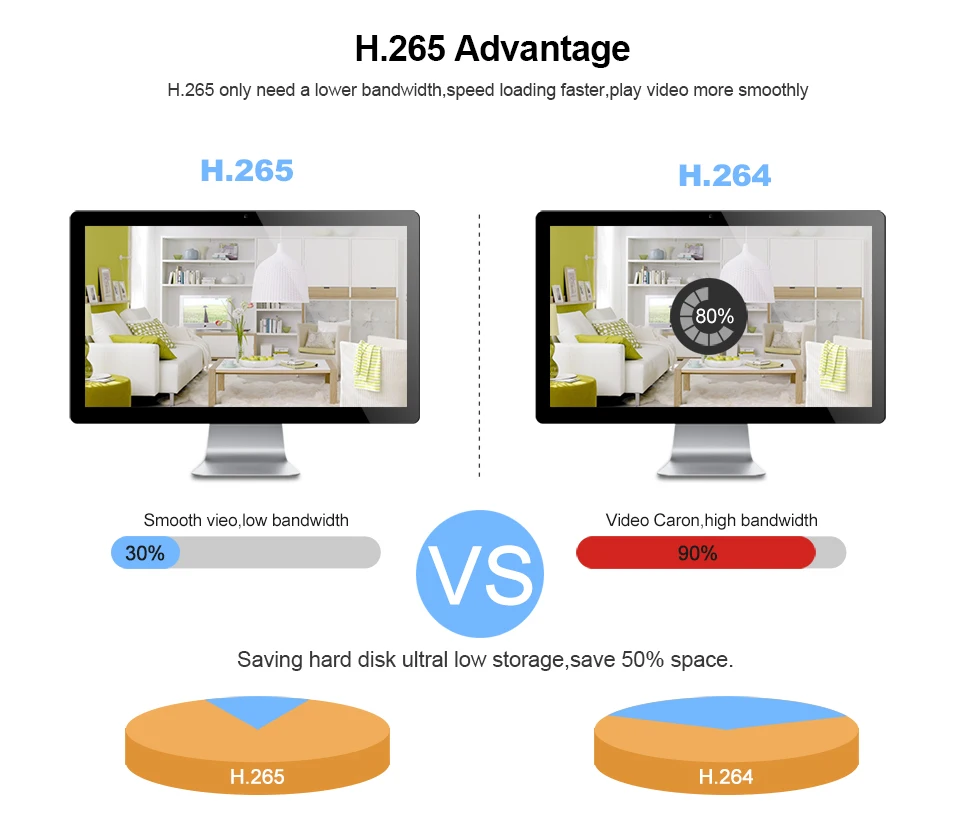

H.265 Advantage :

1, Reduces file size up to 50% with the same quality.

2, save 50% or more bandwidth

3, Low bit rate: H.265 has a low bit rate similar to H.264.

4, Extend far greater video quality experience compared to H.264

H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.

Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.

High compatibility,support H.265/H.264/Mjpge ect video compression fomat,can switch freely,image steadily.

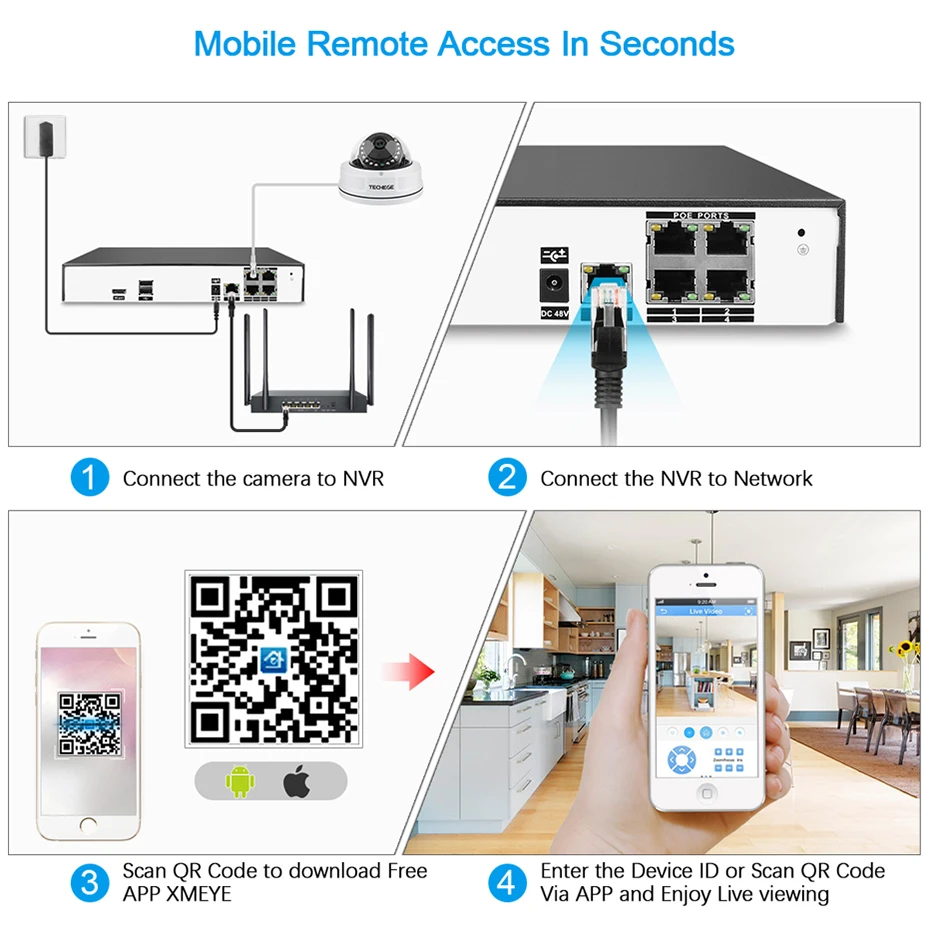

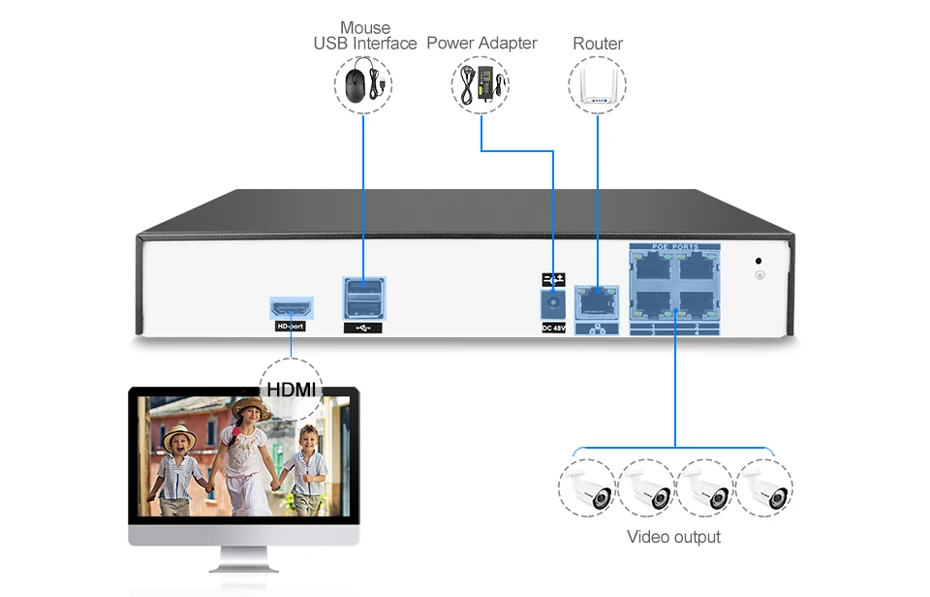

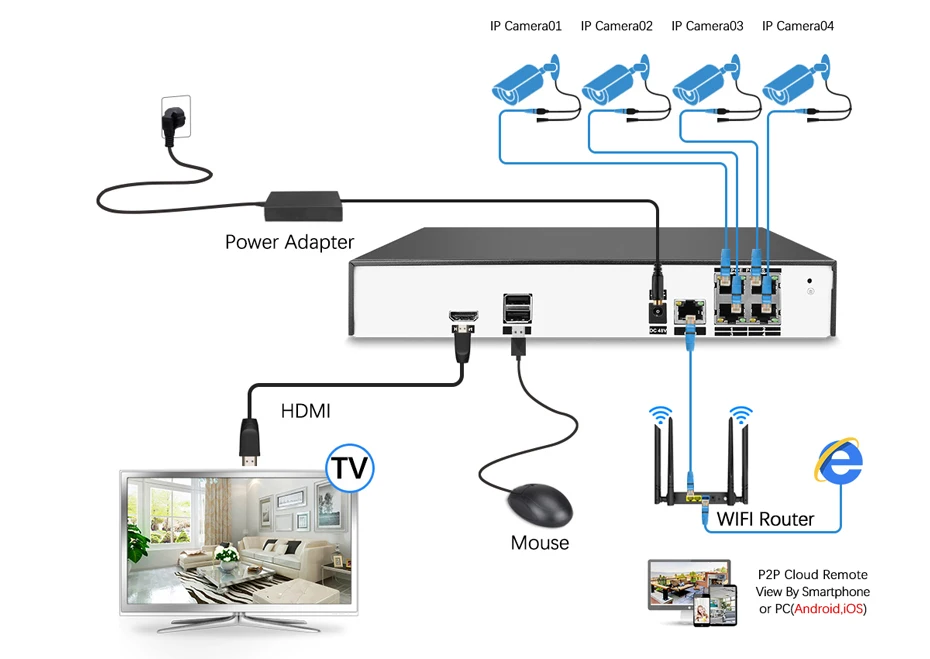

Connection Diagram

NO extra power cables or adapters are needed and just by connecting a IP camera to NVR with a single cable, you can easily complete the installation without the knowledge about the computer or network and start enjoy the super easy monitoring among your smart-phone, tablet or PC.

*PS: Please don't directly use NVR power to camera, it will be damage.

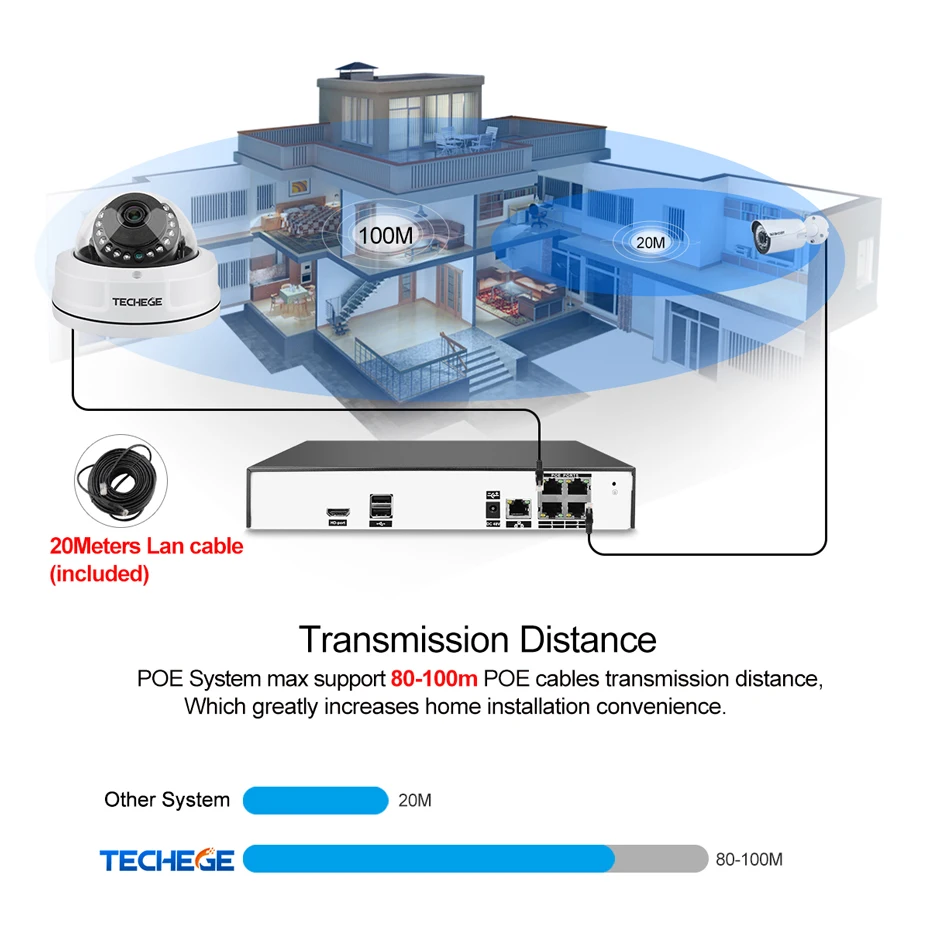

Transmission Distance

POE System max support 80-100m POE cables transmission distance, which greatly increases home installation convenience.

Remote Access Anywhere Anytime

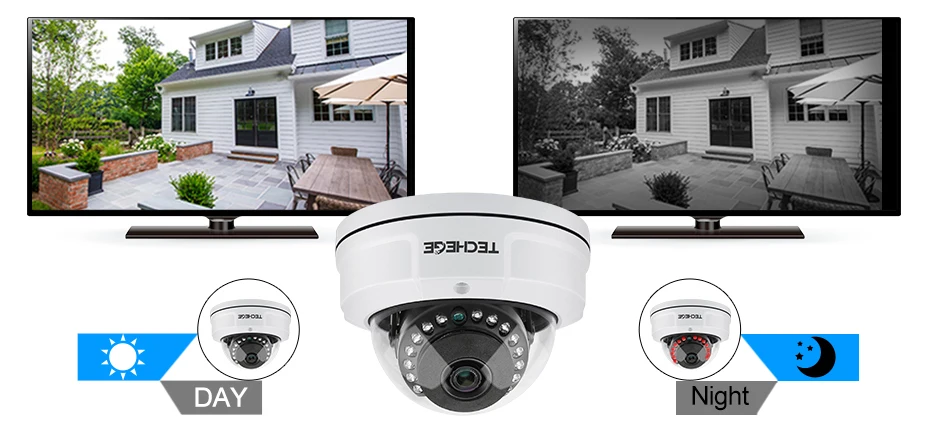

The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark

Motion detection & E-mail Alerts

DVR will send you mail automatically if there is any motion detected

Locate incident Video with Smart Playback

NVR Features:

1.Simplify installation and reduce

2.Easy remote access

3.Motion detection& E-mail alert

4.P2P cloud technology

5.Loop recording& Playback

6.HDMI interface choice of output port

7.Save installation cost with Power over Ethernet

8.H.265/H.264 Video compression,better image quality and less storage.

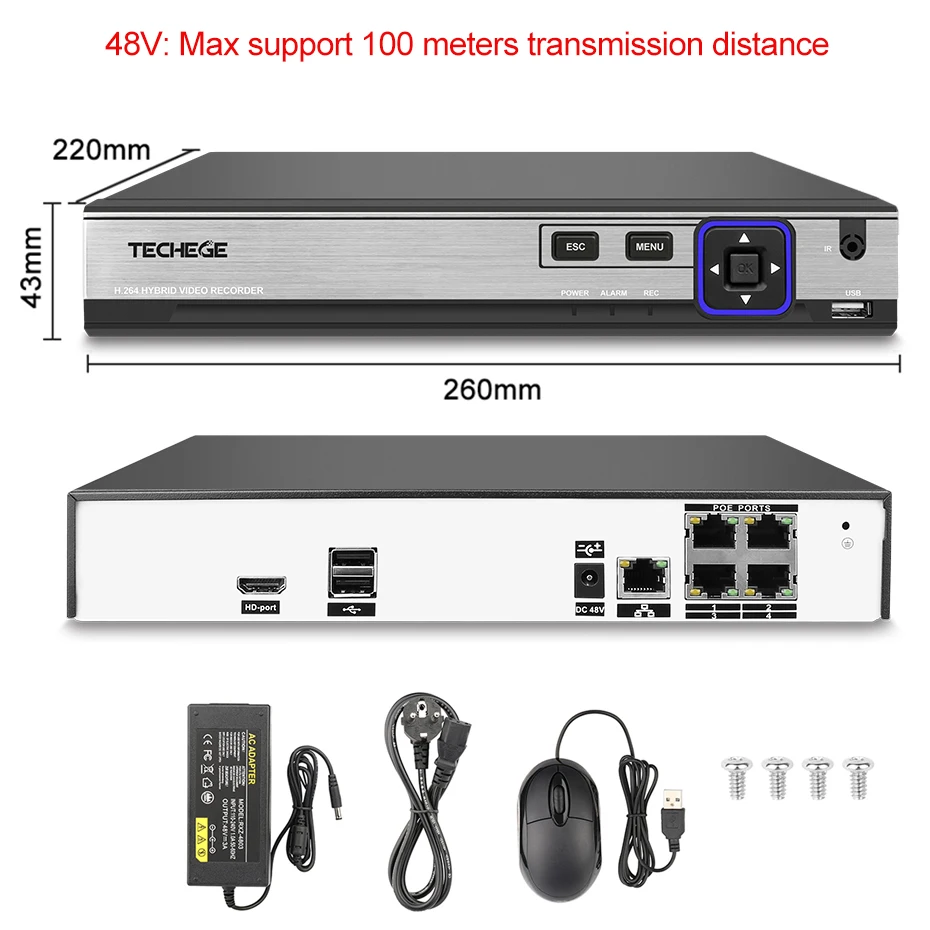

NVR Specification :

Main processor : HI3798M

Operating System : Embedded Linux

System Resources : Simultaneous multi-channel real-time recording, playback, network operation, USB backup

Operator interface :16-bit true color graphic menu operation interface, support mouse operation

Preview :  1/4

Video input (IP) :  4*5MP   4*4MP

Video standards : PAL(625TVL,50f/s);NTSC(525TVL,60f/s)

Video compression H.265/H.264

Display quality Max:Max 5MP

Playback quality : 1*5MP/2*4MP

Decode :  1*5MP/4*1080P

Motion detection : Depend on camera

Audio compression :G.711A

intercom :Unsupport

Recording mode :Manual>Alarm>Video Detection>Continuous

Search mode search by Time/calendar/event/channel

Record Storage :HDD ,network

Backup mode : Network backup, USB hard disk, USB burner, SATA burner

Video output : 1ch HDMI HD output

Network interface : 1* 10M/100M Adaptive Ethernet port,(4)8 POE ports

USB interface :2*USB2.0 port

Hard disk Port: 1*SATA(Up to 8TB ) don't include

PTZ control :Control PTZ device by network

ONVIF : Support

PoE Standard :IEEE802.3af With 15.4W Output Each Port

Power supply : 48V

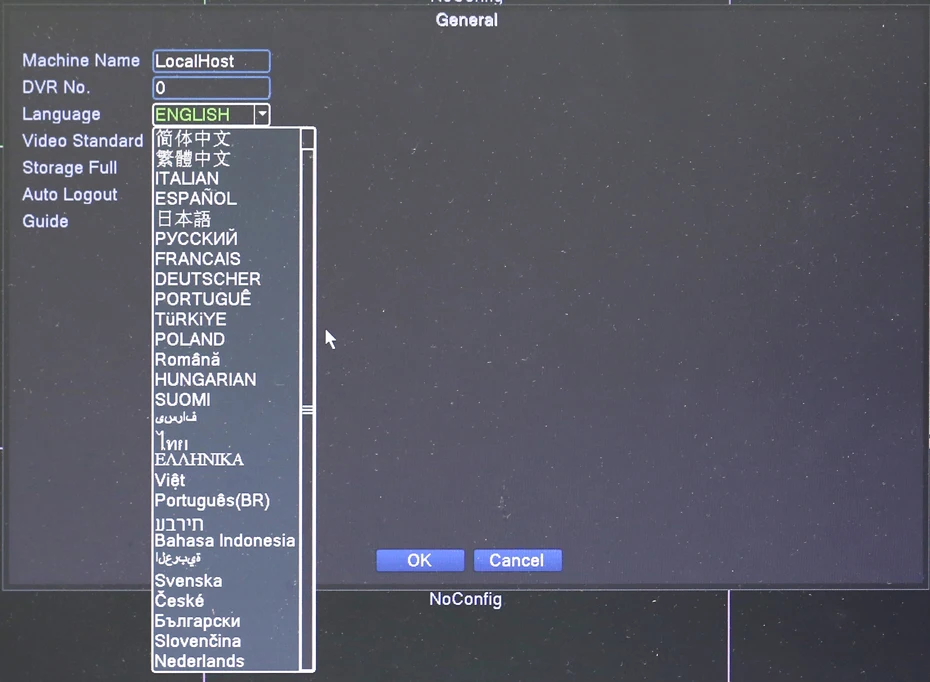

20+ Languages Available

Support multi language : Russian , English , Italian, Portuguses, Spanish, French...etc

H.264/H.265 Available

Note: the camera don't support Audio!
