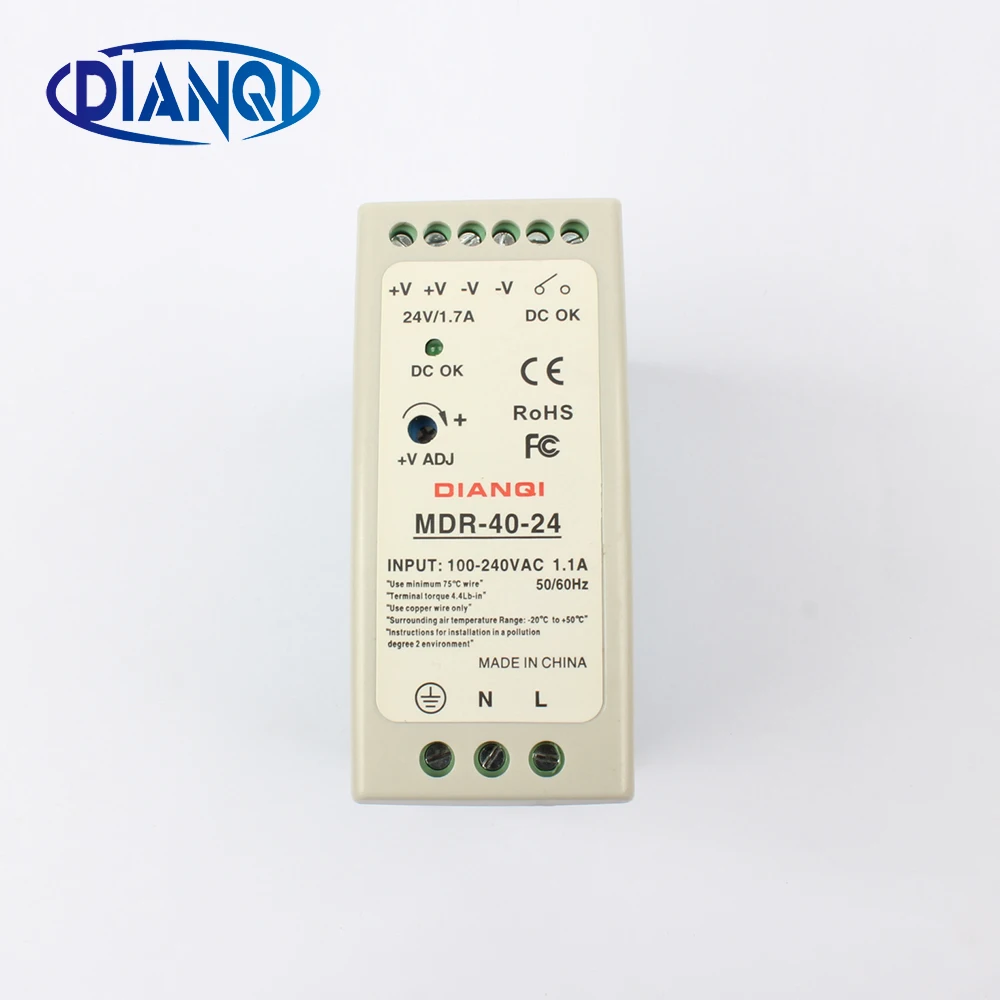

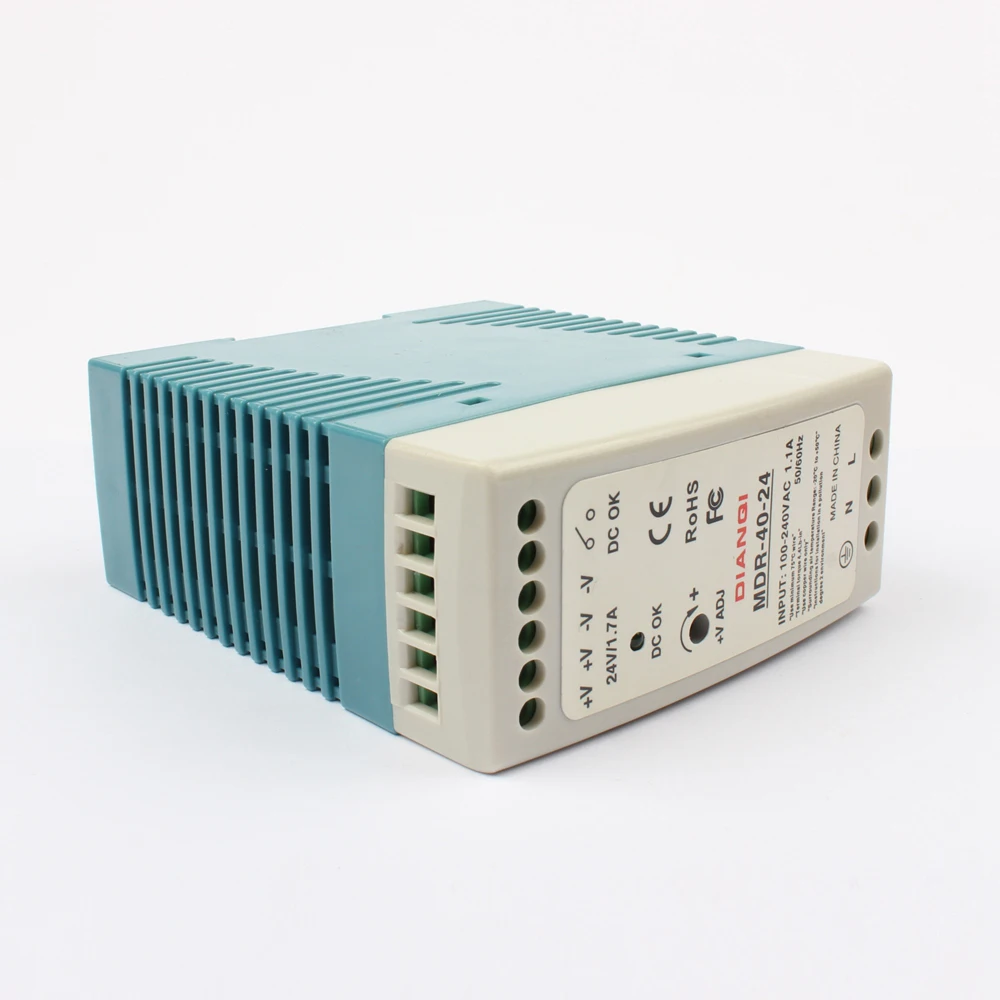

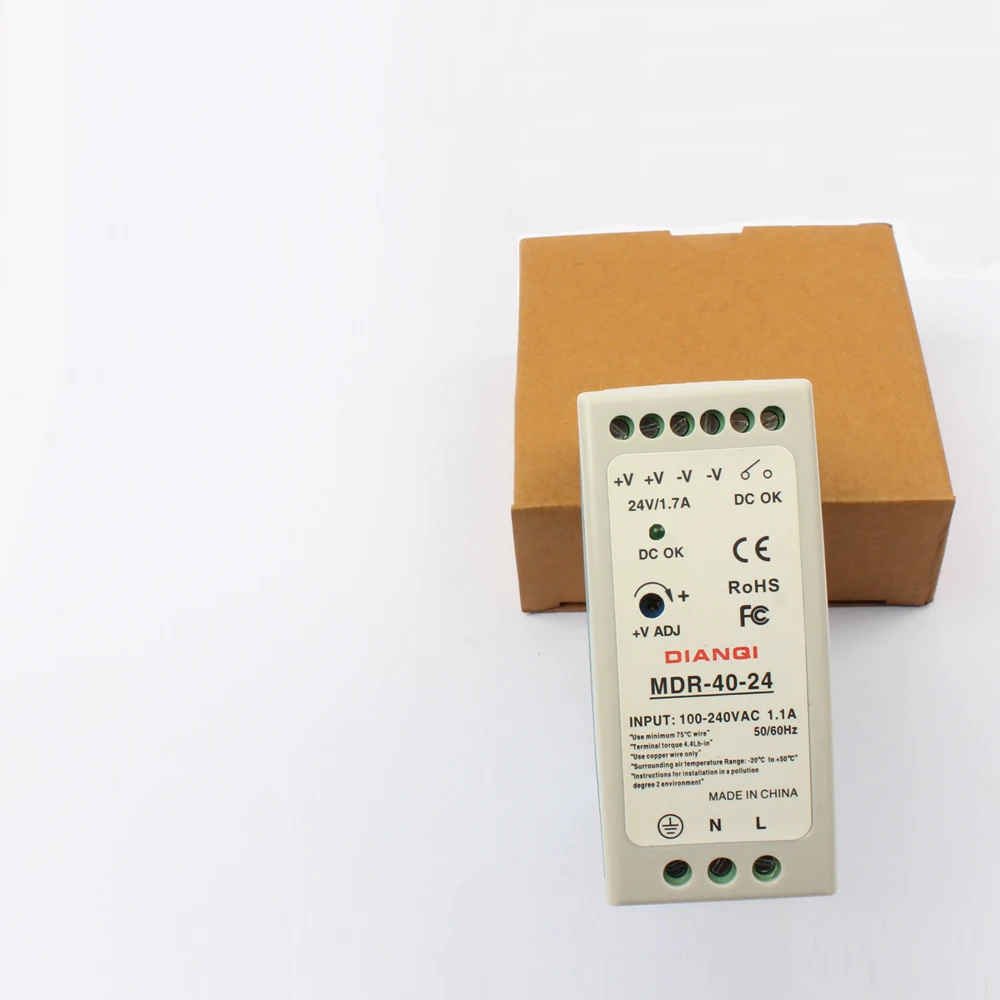

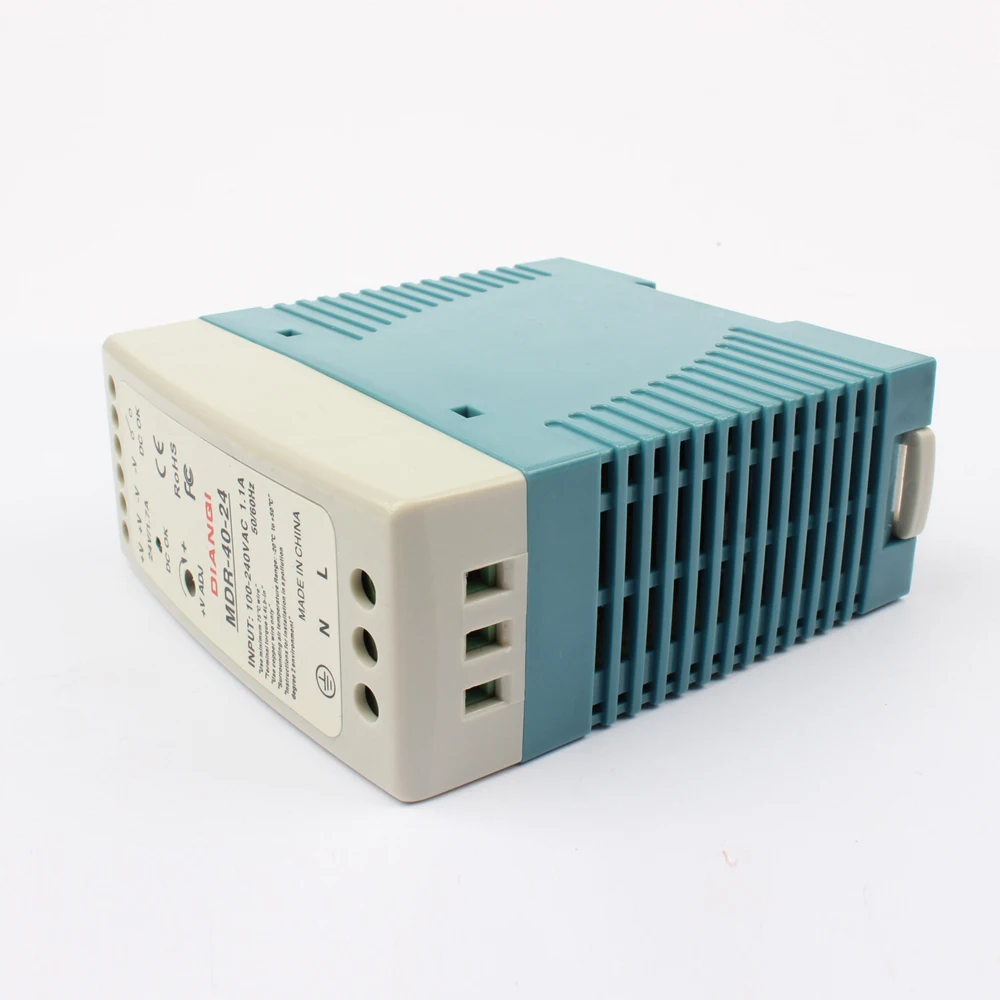

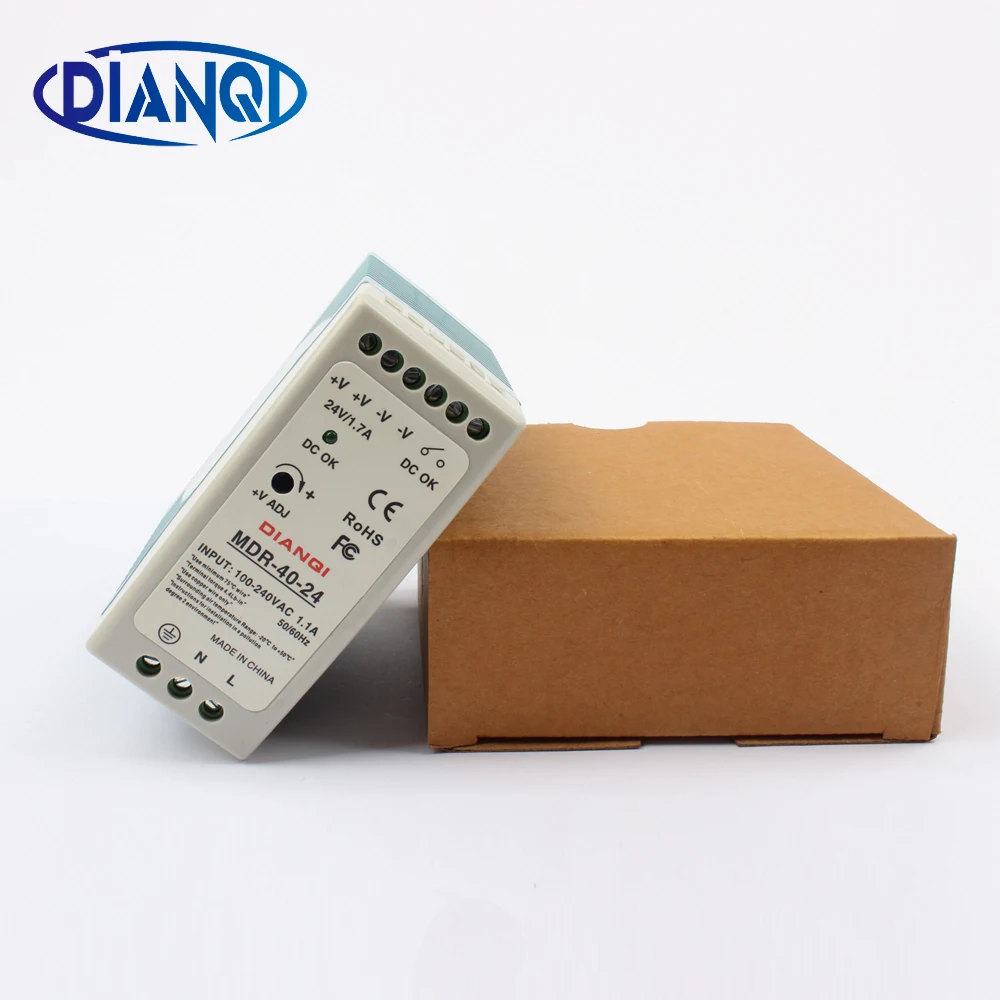

High quality din rail power supply switch MDR-40-24 40W 24V output DIANQI Switching | Обустройство дома

Fast-track:

Mini Din Rail Power Supply Switching



40W

60W

MDR-40-12

MDR-60-12

MDR-40-24

MDR-60-24

MDR-40-48

MDR-60-48

Superman's store





Features:

Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling byfree air convection
Canbe installed on DIN rail TS-35/7.5 or 15
isolation classⅡ
LED indicator forpower on
100% full load burn-in test
2 years warranty



SPECIFICATIONS OUTPUT Model MDR-40-12 MDR-40-24 MDR-40-48 DC Voltage  12V 24V 48V Rated Current  3.33A 1.7A 0.83A Current Range  0-3.33A 0-1.7A 0-0.83A Rated Power  40W 40.8W 39.8W Ripple & Noise  120mVp-p 150mVp-p 200mVp-p Voltage Tolerance  ±1% ±1% ±1% Line regulation  ±1.0% ±1.0% ±1.0% Load regulation ±1.0% ±1.0% ±1.0% Setup, Rise Time  500ms,30ms/230VAC   500ms,30ms/115VAC at full load Hold Up Time  50ms/230VAC   25ms/115VAC at full load INPUT Voltage Range  85~264VAC   47~63Hz; 120~370VDC AC Current 1.1A/115VAC   0.7A/ 230VAC Efficiency 86% 88% 88% Inrush Current  Cold start 30A/115VAC   60A/230VAC Leakage Current <1mA/240VAC PROTECTION Over Load  105% ~ 150% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed Over Voltage  15.6-18V 31.2-36V 57.6-64.8V Protection type: Shut down o/p voltage, re-power on to recover ENVIRONMENT Working Temp., Humidity -20~+70; 20%~90% RH non-condensing Storage Temp., Humidity -40~+85; 10%~95%RH Temp. Coefficient ±0.03%/(0~50) Vibration 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes SAFETY Withstand Voltage I/P-O/P: 3KVAC   I/P-FG:2KVAC   O/P-FG:0.5KVAC Isolation Resistance I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25/70% RH STANDARD Safety Standard Design refer to UL508,TUV EN60950-1 EMC Standard Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1EN61204-3, heavy industry level, criteria A OTHERS Dimension 40*90*100mm(W*H*D) Weight 0.3Kg Packing 42pcs/carton/13.6kg/0.82CUFT NOTE 1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 temp. of ambient temperature.  2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.  3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.



Size :
