UNI-T LM550 Red Laser level LM550G Green Level 5 Lines 360 Degree Self Nivel Horizontal Vertical |

UNI-T LM550 Red Laser level LM550G Green Level 5 Lines 360 Degree Self Nivel Horizontal Vertical |

UNI-T LM550 Red Laser level LM550G Green Laser Level 5 Lines 360 Degree Self Nivel Laser Horizontal Vertical

I. Introduction

These series products adopt diode laser beam, the waveform length of which is 635nm. The level laser can generate two or more laser sectors and one plump down point. The sector is formed by one horizontal beam and one or more vertical beams that is reflected on the wall. The included angle of every two vertical beams is 90˚. The focus of those beams is called Zenith.

II. Structure

Vertical beam button

Horizontal beam button

Bubble vials

Outdoor mode button

Vertical laser emission window

Horizontal laser emission window

Power switch/lock

Thumbscrew

Adjustable bracket

III. Operation instructions

1. Place the device on a tripod or a flat surface. Ensure the device is approximately on horizontal level

Note: If the device is out of level, the laser will be shut down automatically with audio alert.

2. Rotate the power switch clockwise to turn on the device. Laser beams are emitted with the green LED ON.

3. Rotate the device to make the laser beam pointing at the target.

4. Turn the thumb screw to locate the exact position.

5. After every task, turn the power switch anticlockwise to turn off the device.

Maintenance

1. Never let any liquid get inside the device. Never immerse any part of the device into a liquid.

2. Avoid shock and drop during operation and storage.

3. Please turn off the device before moving the device or it may affect the accuracy.

4. Keep the laser emission window clean. Use soft cloth to wipe the glass lens if there is dirt.

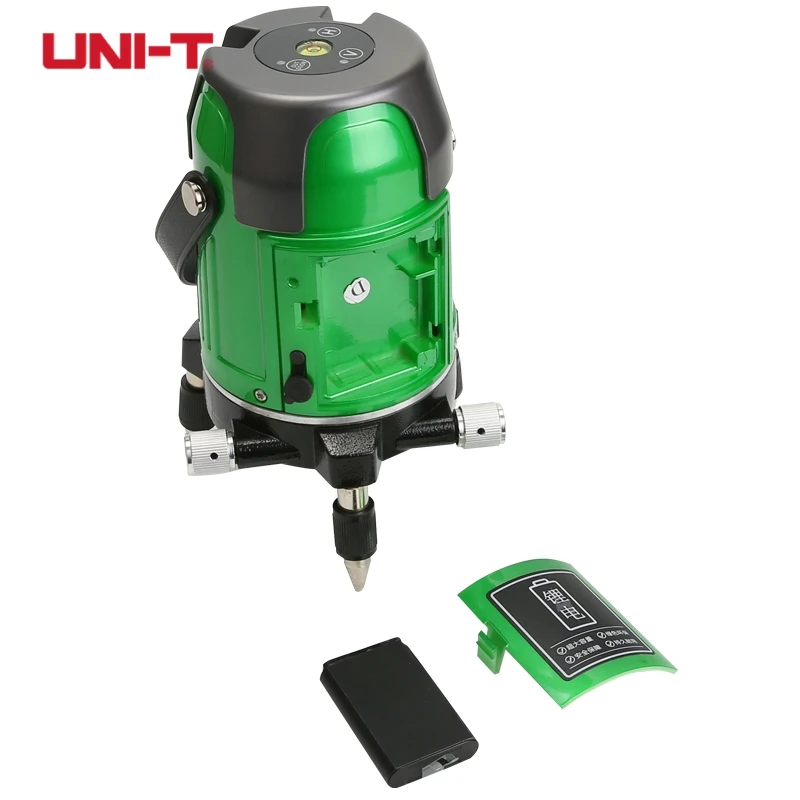

5. Take off the battery and store the device in the kit box if the device is not in use for long time.

Model

LM520

LM530

LM550

LM520G

LM530G

LM550G

Laser waveform length

635nm

532nm

Laser power

<1 mW

Laser grade

CLASS II

Laser line

2

3

5

2

3

5

Plump down point

√ (waveform length=650nm)

Laser strengthening point

√

Horizontal accuracy

±1mm/7m

Vertical accuracy

±1mm/7m

Orthogonality accuracy

90˚±60”

Plumb down point accuracy

±0.5mm/1.5m

Zenith accuracy

NA

±1mm/7m

NA

±1mm/7m

Emission angle

Vertical line≥110˚, horizontal line≥130˚

Operation distance

Indoor operating radius≈10m;

With corresponding laser detector, operating radius=50m

Self-leveling

Gravity pendulum-magnetic damp

Leveling range

±2.5 ˚

Outdoor mode

√

Battery type

Polymer lithium battery

Battery capacity (mAh)

1050

1800

1050

1800

Working hours

About 6 hours (with all laser tubes on)

Power indicator

Backlight of horizontal bubble locator is ON

Charge indicator

√

Low power indicator

√(Backlight of horizontal bubble locator is flashing)

​

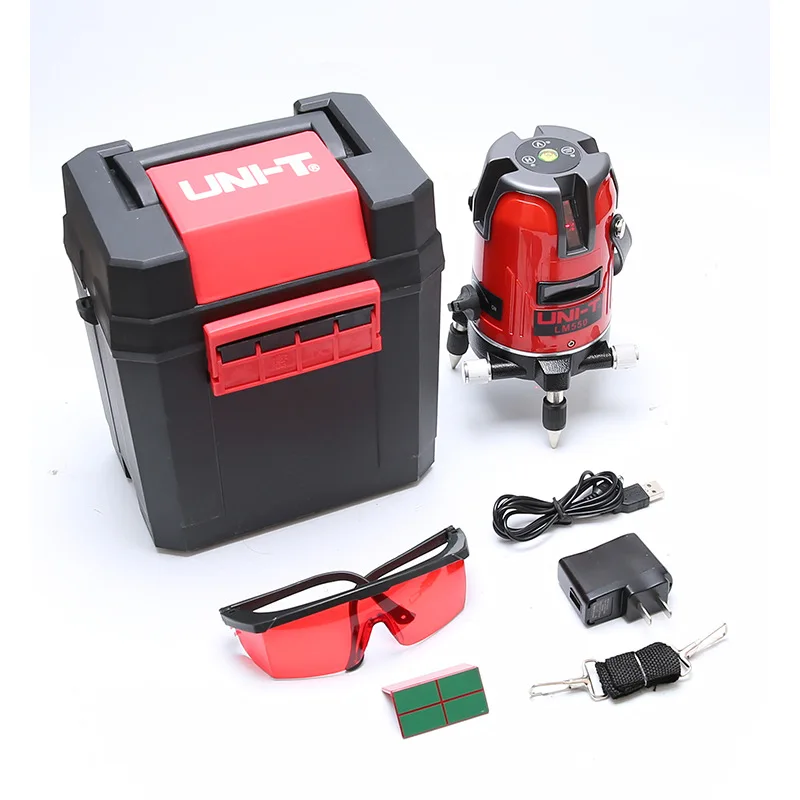

Package Content:

1 x Laser level

1 x Lithium Battery

1 x Kit box

1 x Strap

1 x Goggles

1 x Target Card
