CNC wireless channel DSP controller 0501 handle remote English version for DIY milling machine engraver router

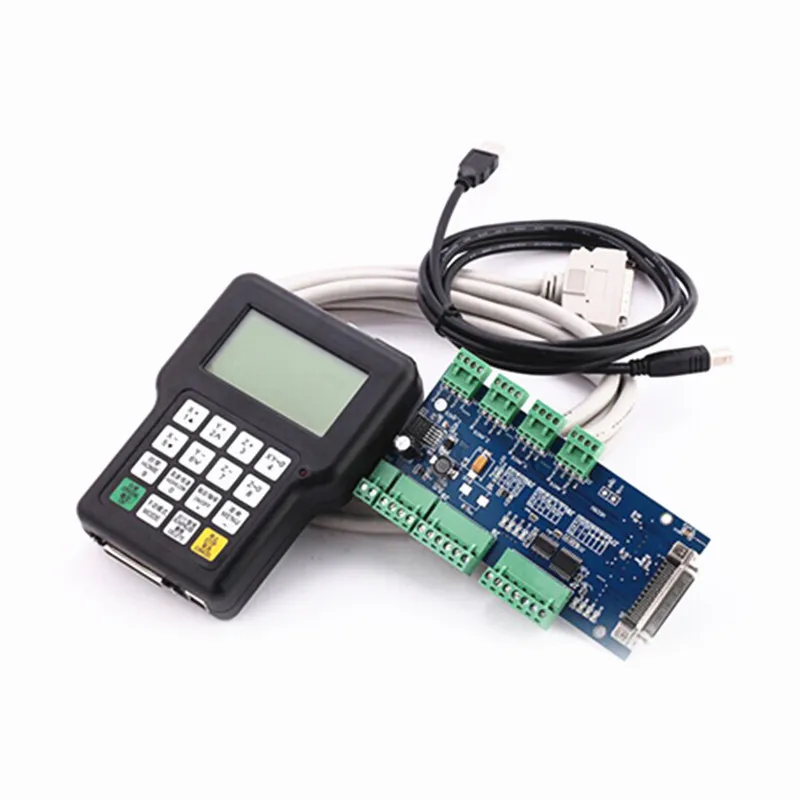

Packing list:

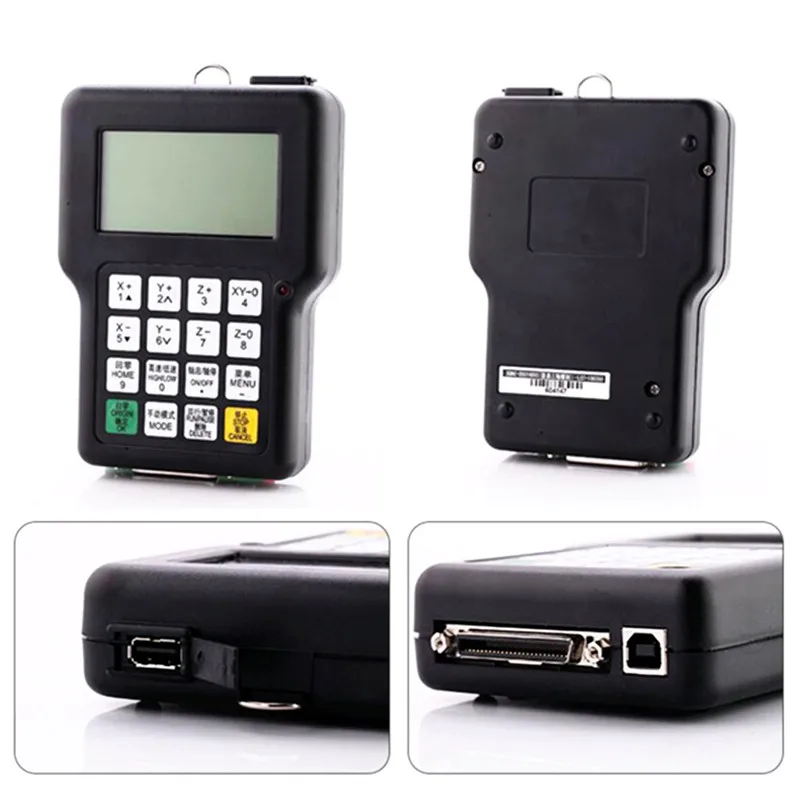

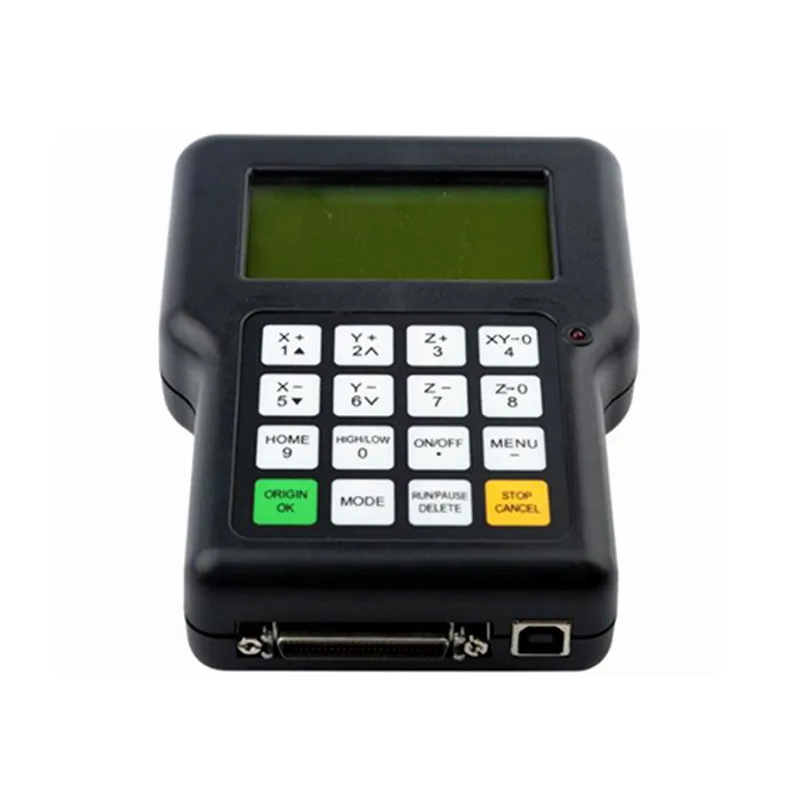

1pcs DSP Handle

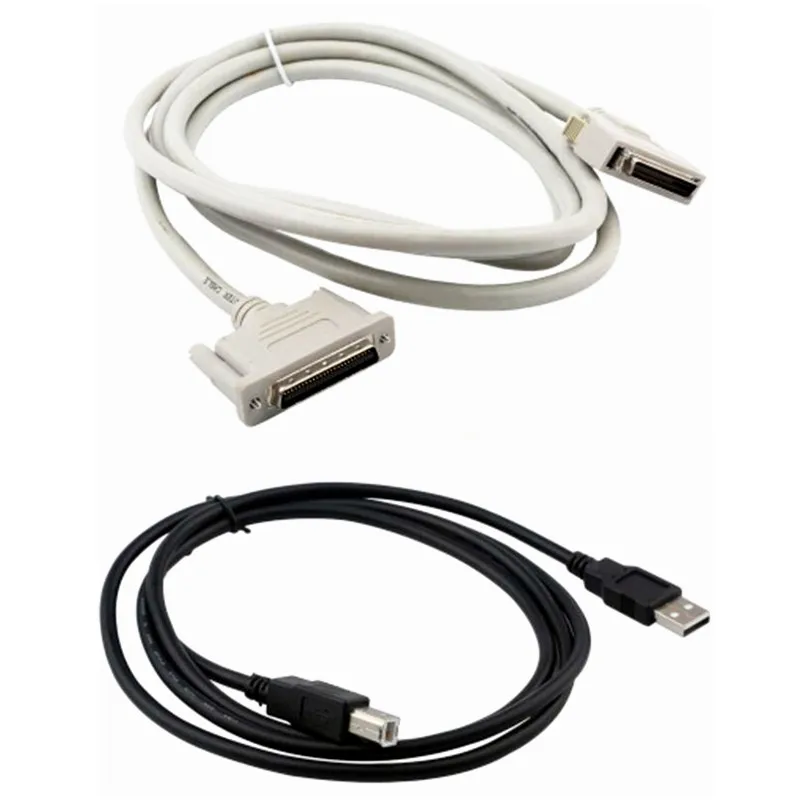

1pcs 50 core cable

1pcs USB cable

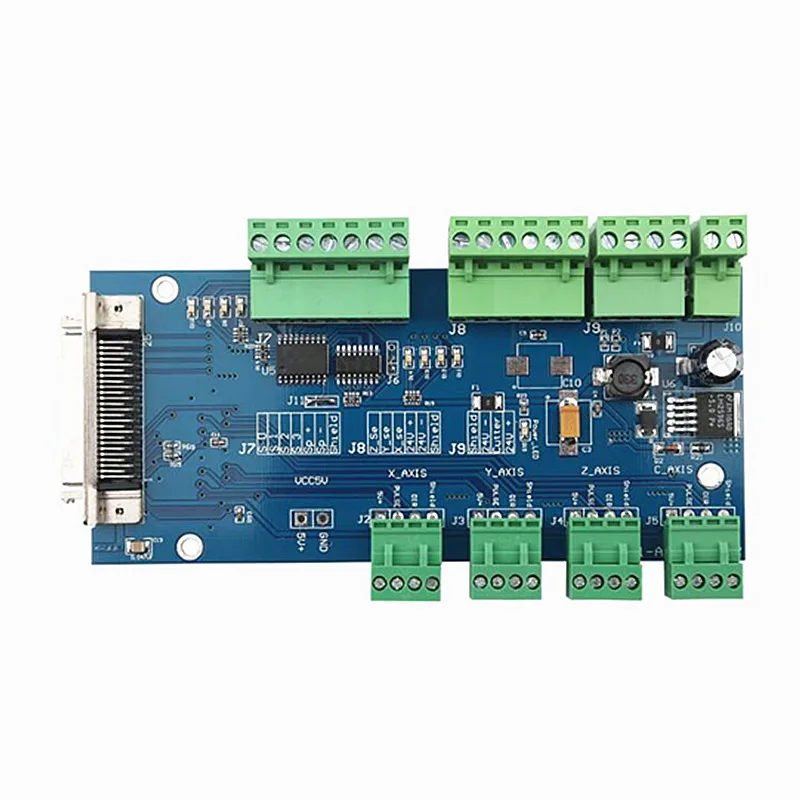

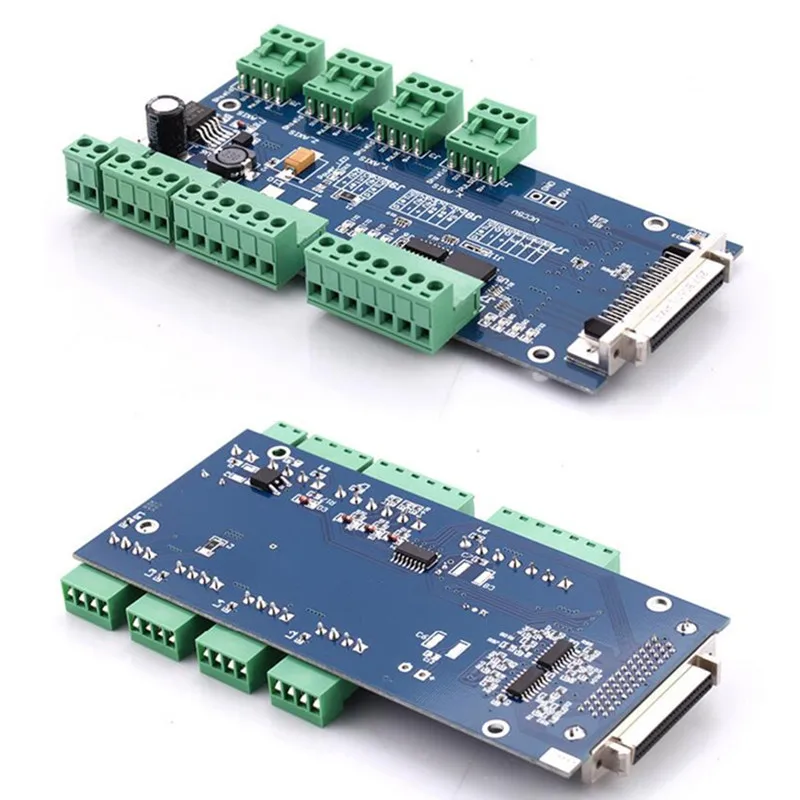

1pcs I/O wiring board

Characteristic:

1.Totally independent from PC platform;

2.Directly read files from U Disk;

3.Easily process G code or PLT file with super size;

4.Strong system and process file examining function;

5.Easy to update system program;

6.It supports high micro step which makes precise and fast process possible;

7.Support to process part of the file;

8.Reliable data protection and recover function;

9.Friendly operating interface

Description:

Contents

Specification

Processor

160M DSP

File Memorizer

128M memorizer inside, it supports file with any size because of adopting mobile memorize technology

Display

LCD with 128 dot*64 dot

Communication Terminals

USB terminal and U Disk

File Format

G code , PLT files (optional)

Axis

3

Help Function

Useful help information and guide

Languages

Chinese, English, Russia, France, Japanese(optional or customize)

Operating Interface

Friendly Buttons and Menu Drive

Drive System

Step Motors

Interpolation function

linear, curve

Cutter Adjusting function

Yes

Spindle Control Function

Yes

System Data Inspect Function

Yes

Processing Data Inspect Function

Yes

Processing Position Adjusting Function

Yes

Multi Working Coordinates

It has 9 working coordinates

Stop Point Reprocessing Function

Yes

Copy Processing Function

Yes

Data protection when power off

Yes

Working Temperature

0C to +70C

Humidity

<90% no dew no frost

Outer Voltage

5 V

Consumptions

2 W

Dimensions(mm)

156*110*38
