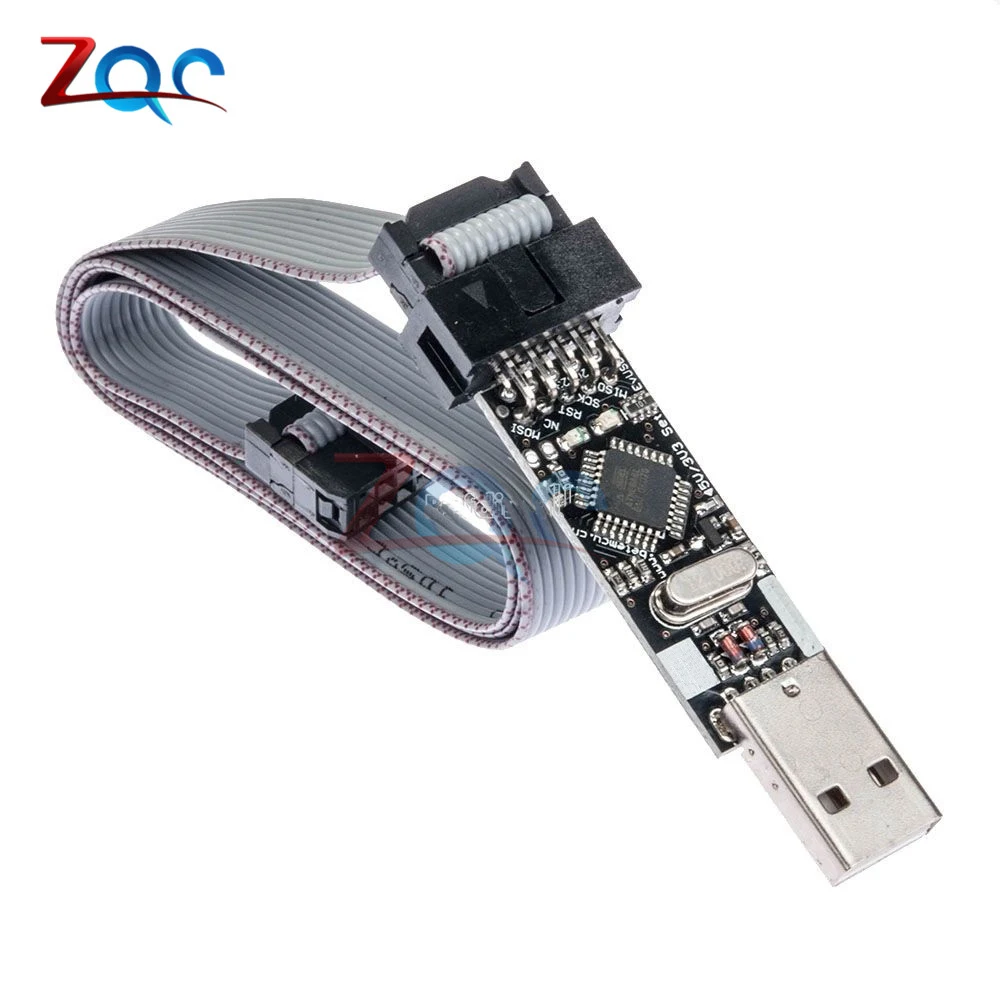

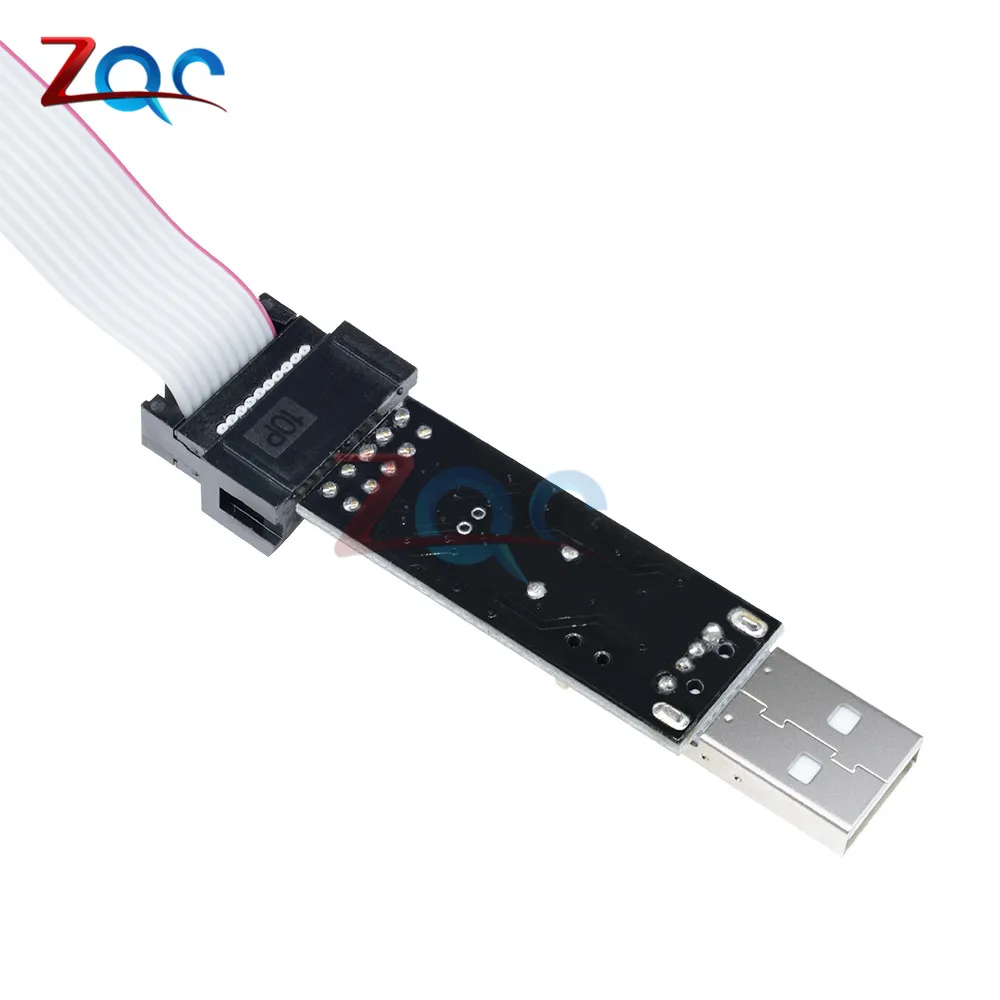

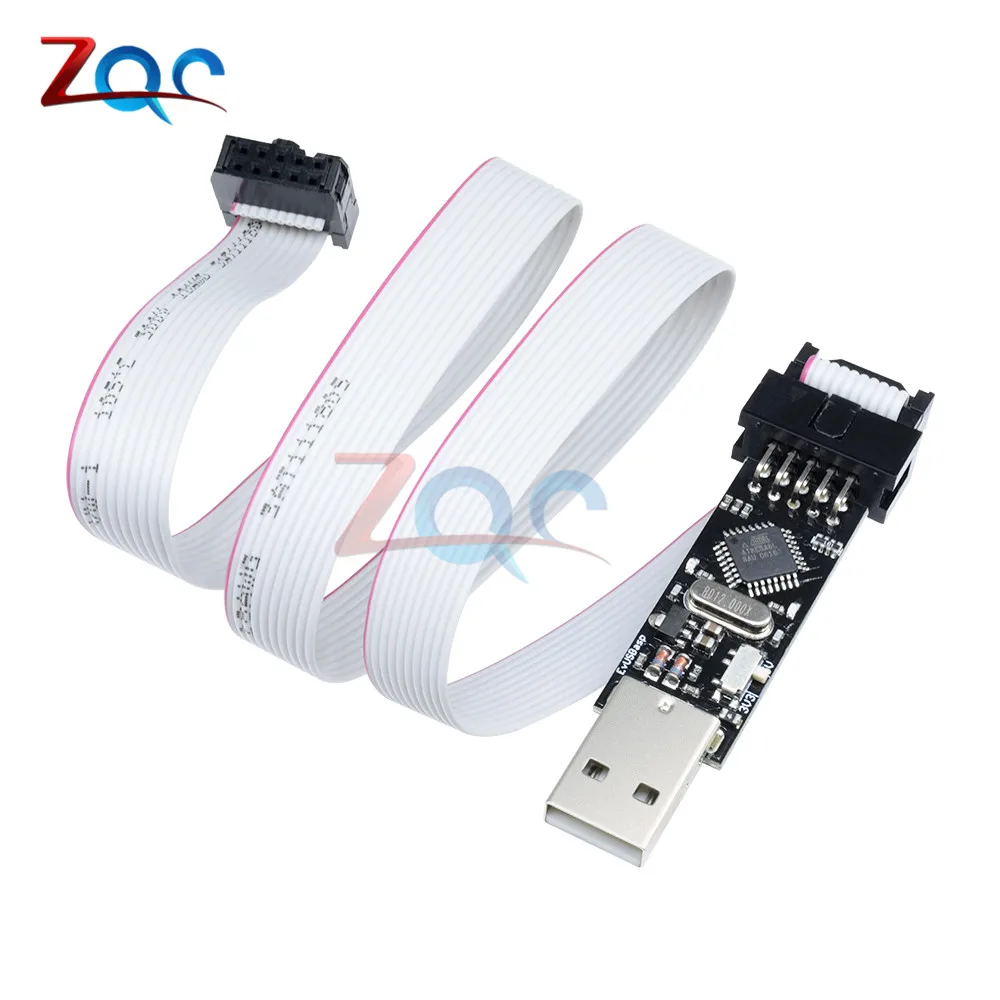

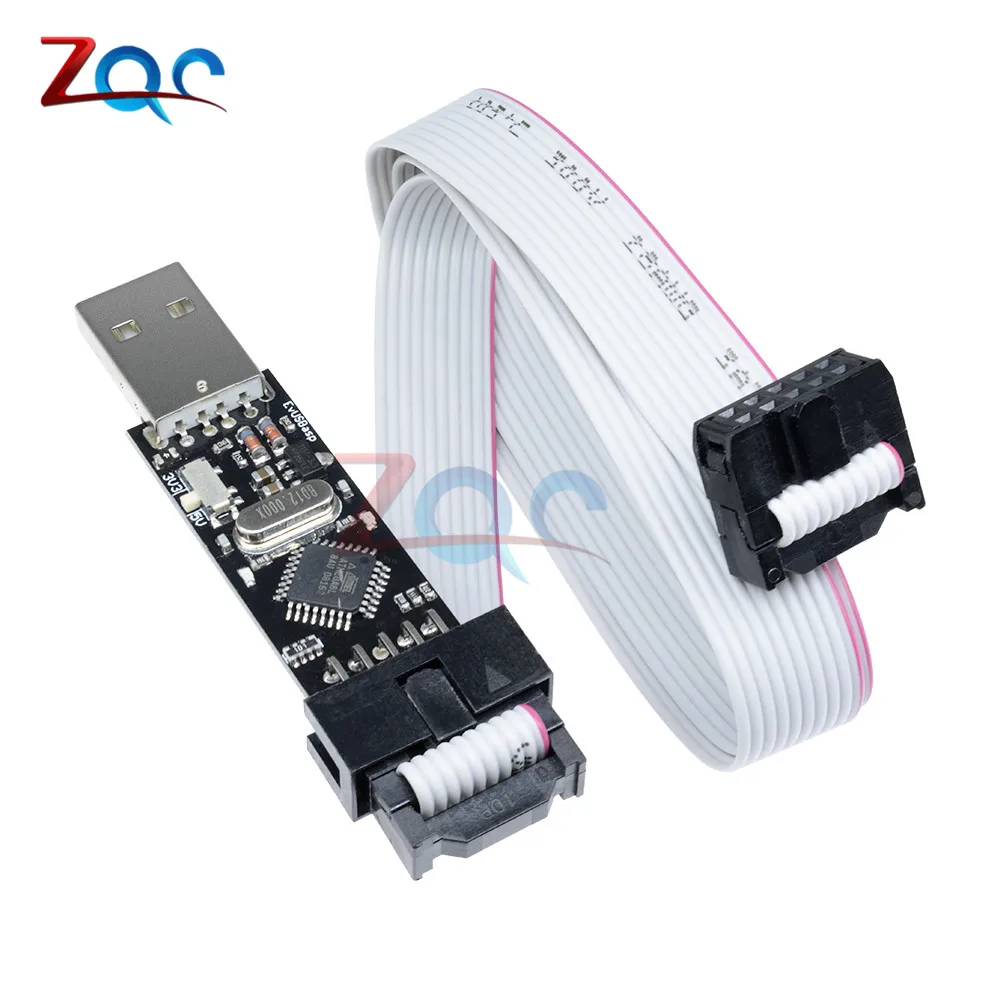

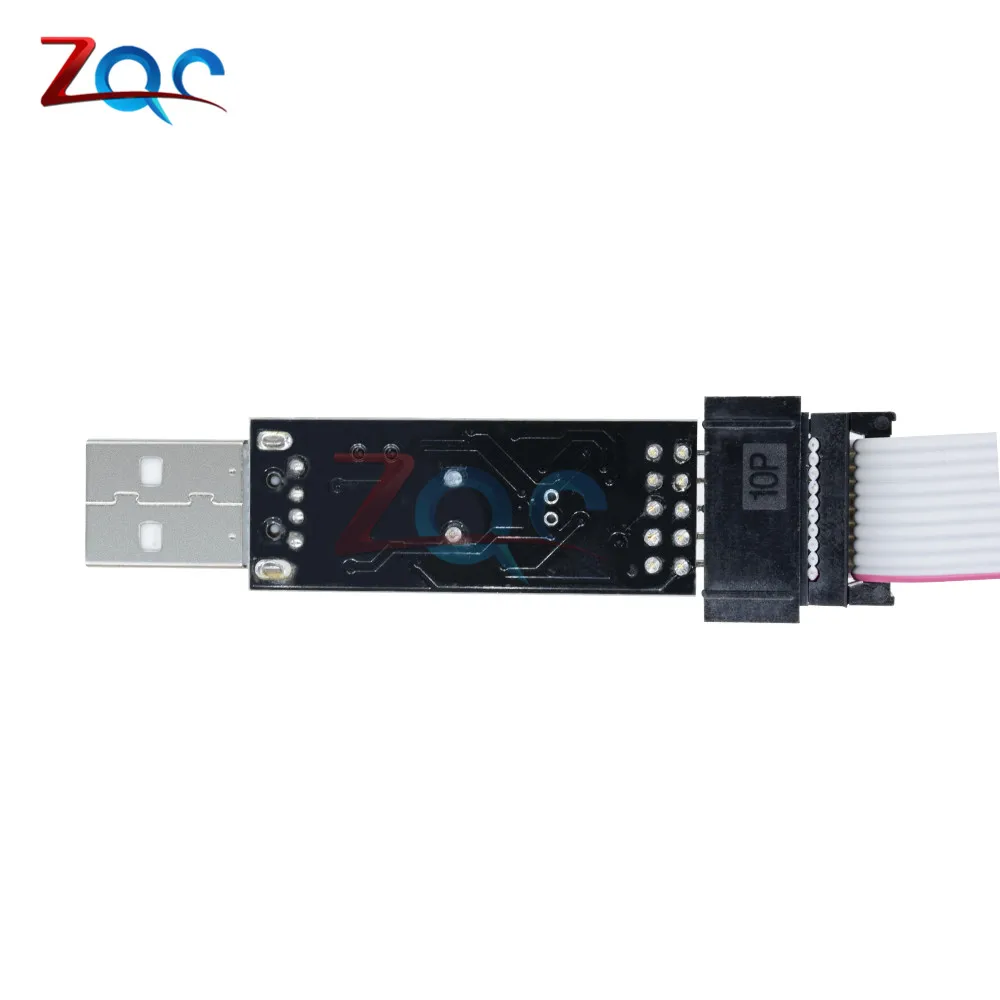

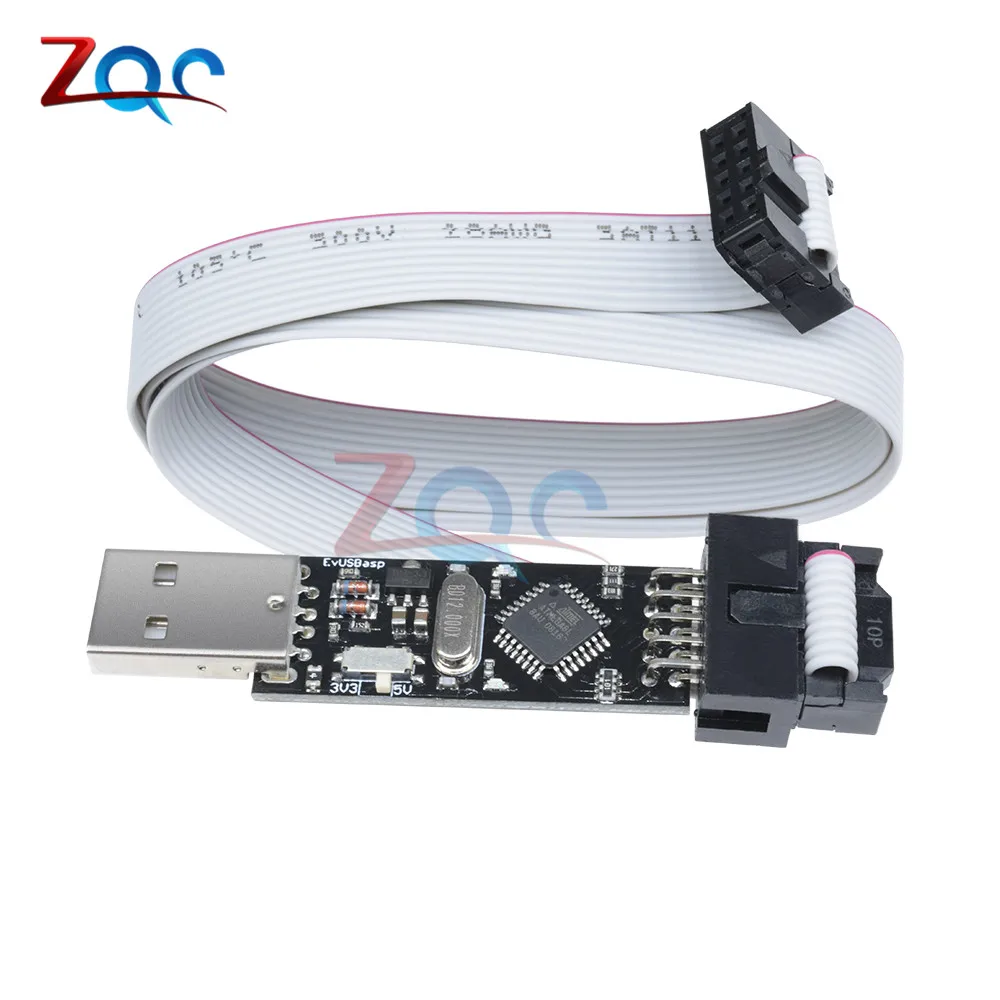

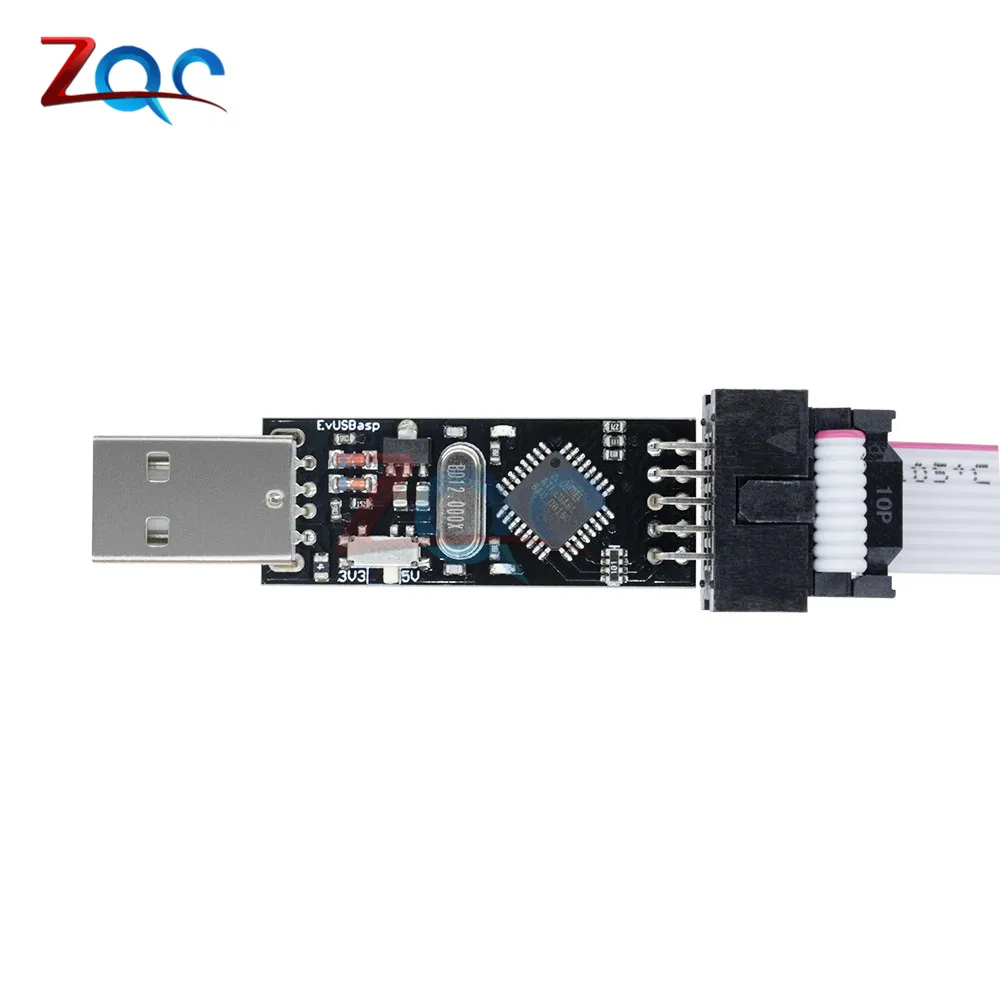

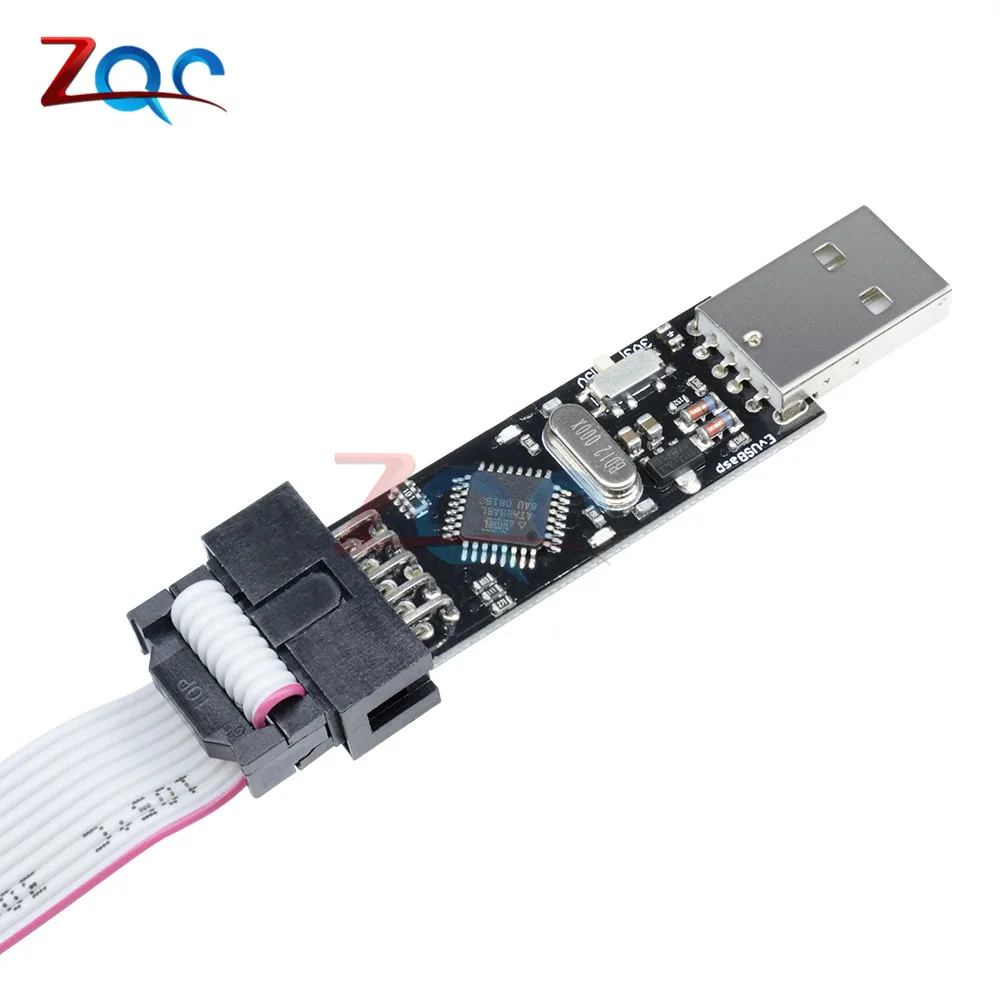

This programmer is based on USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegent. The USB interface is achieved by using an atmega processor and the rest is done in firmware. For those interested, the firmware source code can be downloaded from the USBasp website.

Some of the features include:

Support for AVRDude from version 5.2 onwards

Allows you to to read or write the microcontroller EEPROM, firmware, fuse bits and lock bits

Support for Linux, OS X and Windows (will work on vista)

5 KB/sec maximum write speed

Software controlled SCK option to support targets with low clock speed (< 1.5MHz)

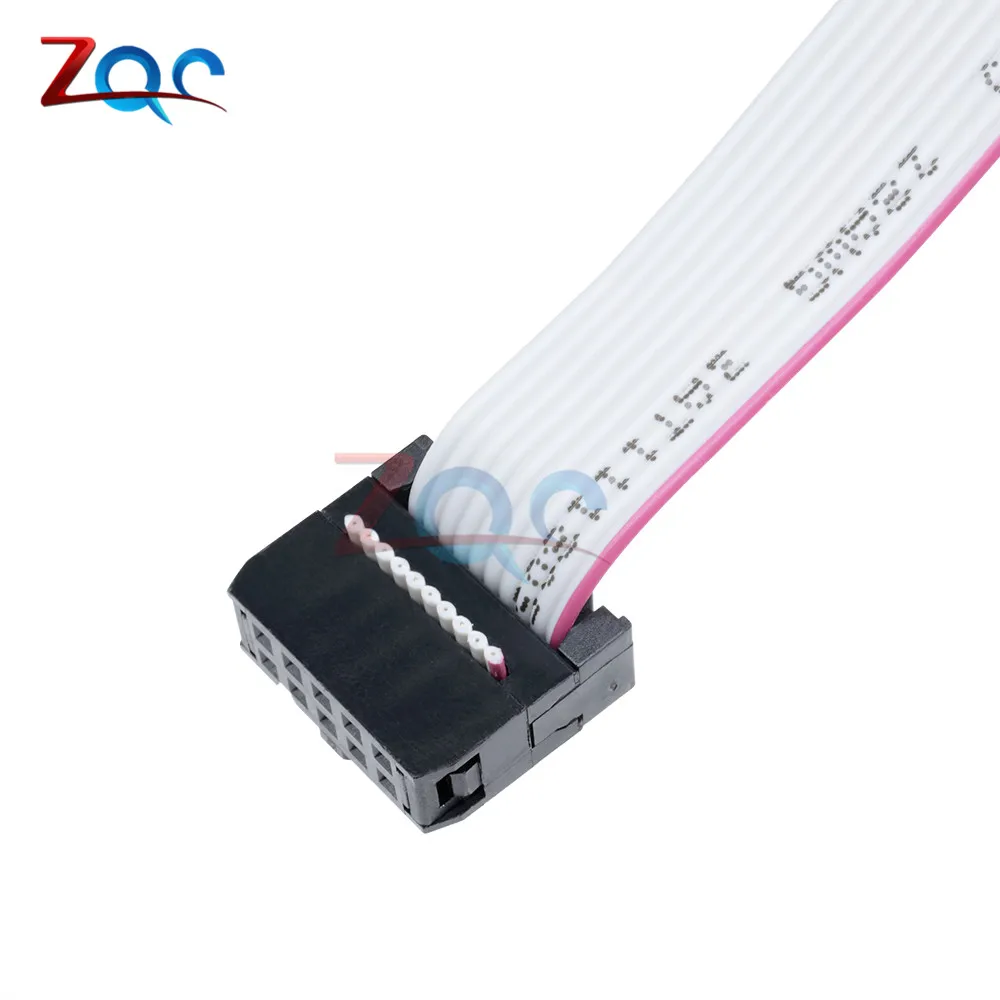

10 pin ISP interface

These programmers are a perfect companion to the Protostack 28 pin AVR Development Board or the Protostack ATMEGA8 Development Kit.

Supported microcontrollers include:

Mega Series

ATmega8 ATmega48 ATmega88 ATmega168 ATmega328

ATmega103 ATmega128 ATmega1280 ATmega1281 ATmega16

ATmega161 ATmega162 ATmega163 ATmega164 ATmega169

ATmega2560 ATmega2561 ATmega32 ATmega324 ATmega329

ATmega3290 ATmega64 ATmega640 ATmega644 ATmega649

ATmega6490 ATmega8515 ATmega8535

Tiny Series

ATtiny12 ATtiny13 ATtiny15 ATtiny25 ATtiny26

ATtiny45 ATtiny85 ATtiny2313

Classic Series

AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414

AT90S4433 AT90S4434 AT90S8515

AT90S8535
CAN Series
AT90CAN128
PWM Series
AT90PWM2 AT90PWM3

Package:
