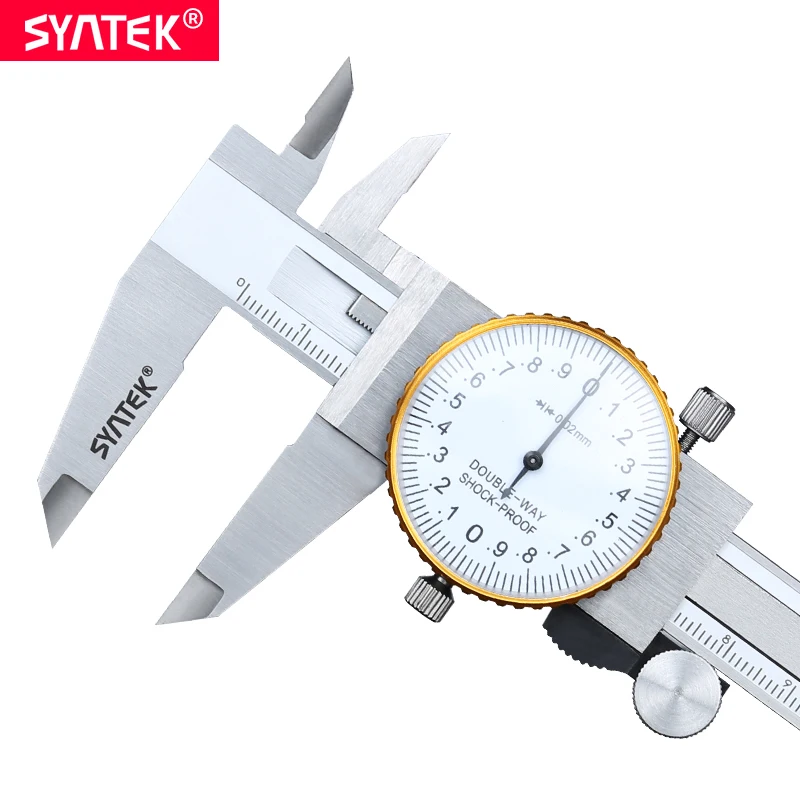

Dial Shock-proof vernier caliper

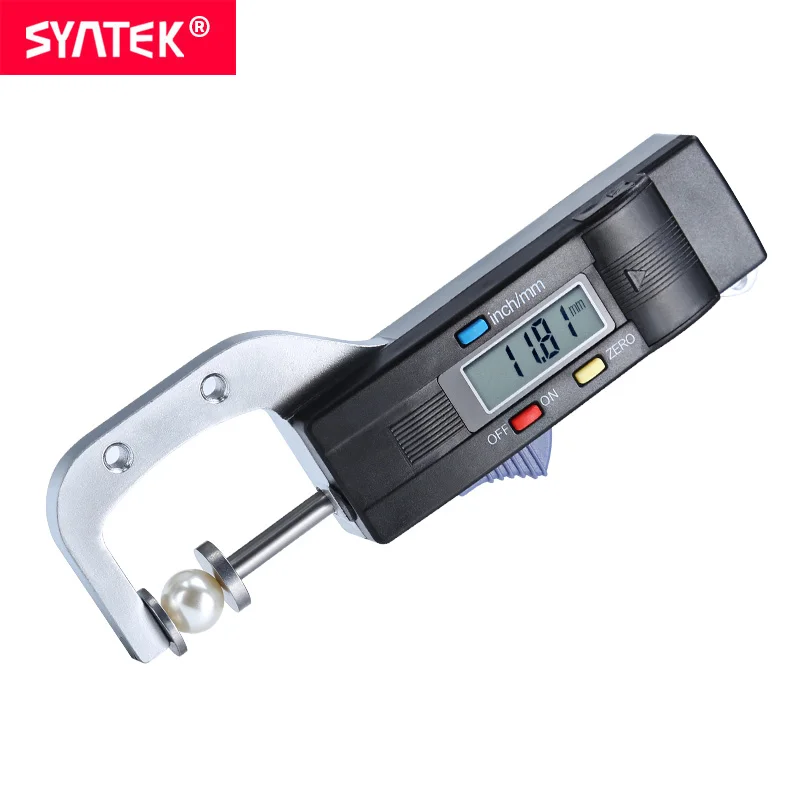

Pearl jewelry round beads Thickness Gauge

Electronic micrometer gauge

IP67 Electronic micrometer gauge

modname=ckeditor

Syntek IP67 Bluetooth Waterproof Digital Accurate Vernier Caliper Digital Stainless Steel Vernier Caliper 0-300mm

Features & Function

Inductive measureing system with relative mode

Made of 4cr13 stainless steel,Strong and durable

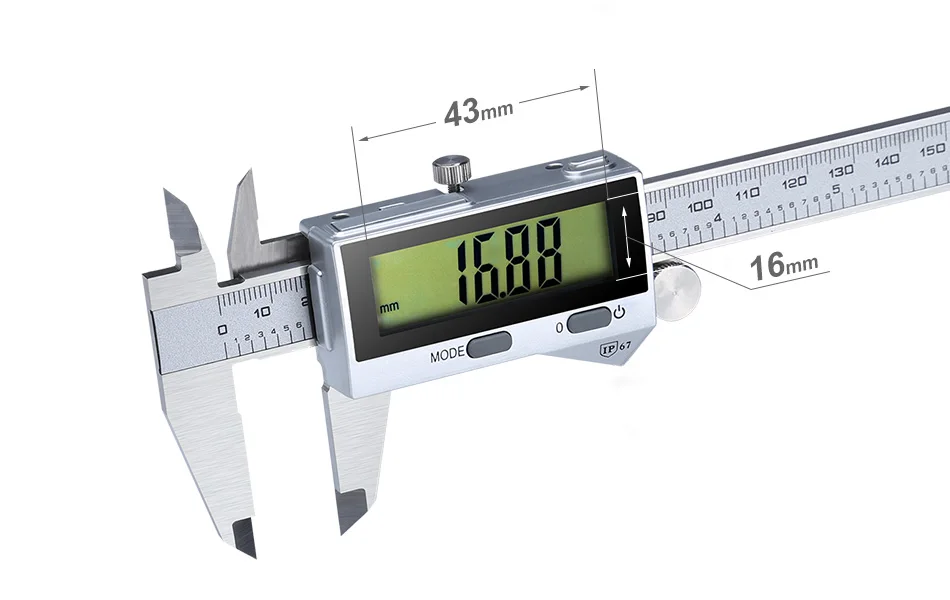

With large LCD display, easy to read

Zero-setting at any position

Four way measurement: inside diameter, outside diameter, depth, step

Minimum scale to read is 0.01 mm / 0.0005 "

mm/inch measurement system conversion

Auto power off. Power on when caliper moving

Bluetooth data transmissionProtection grade IP67:1.Prevent any dust 2.Can be used in the water(less than 1 meter depth) for a short timeLow power alarm: When"B"on display appears, you should replace the battery.

Technical Parameters

Measuring range

0-300mm/0-12inch

Resolution

0.01 mm / 0.0005 "

Accuracy

±0.04mm

Battery type

3V CR2032 battery (Not included)

Maximum measuring speed

3200mm/sec

Operating temperature

0 - 40 Deg.C

Influence of humidity

Storage Temperature: -20 - 70 Deg.CEnvironmental Humidity: unlimited

Display

Display:11mm high digit

Product Size (L x W x H)

400 x 102 x 18.5 mm

About Package

Package weight

0.76 kg

Package Contents

1 x LCD digital caliper

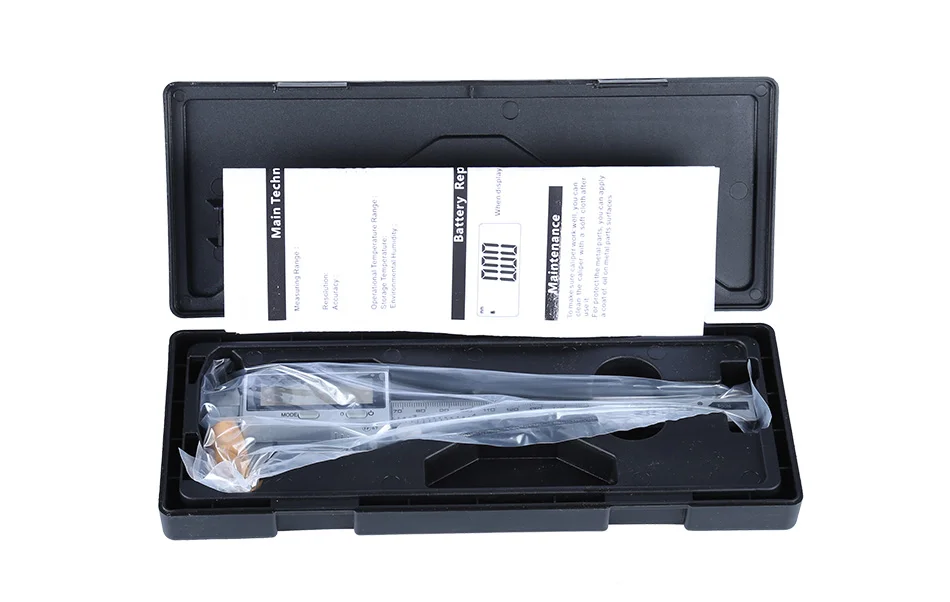

1 x Plastic case

Note: The parcel will be sent without battery ,The battery type is CR2032

IP67 high quality calipers

Product Details

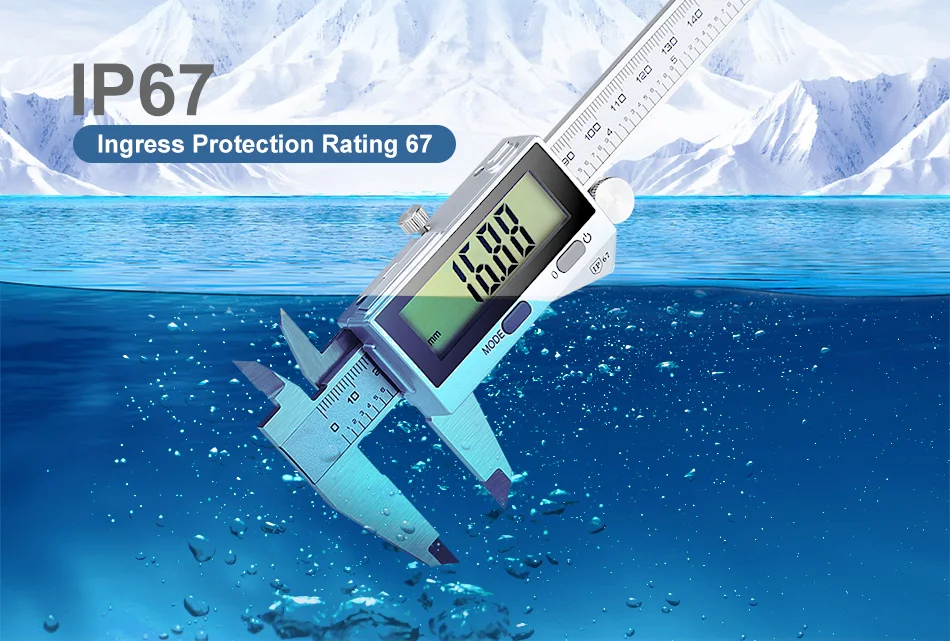

Protection grade IP67

Can be used in the water(less than 1 meter depth) for a short timePrevent any dust

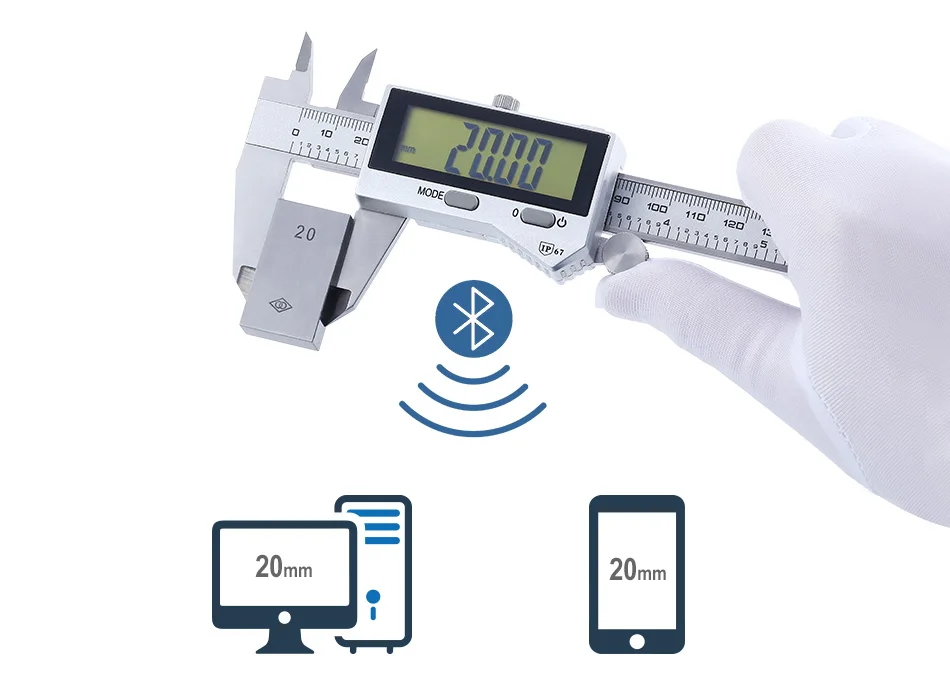

Bluetooth data transmission

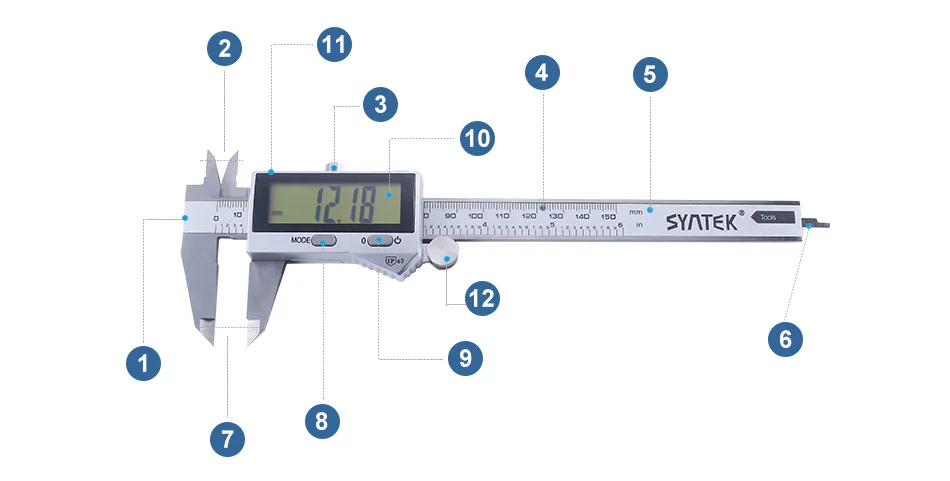

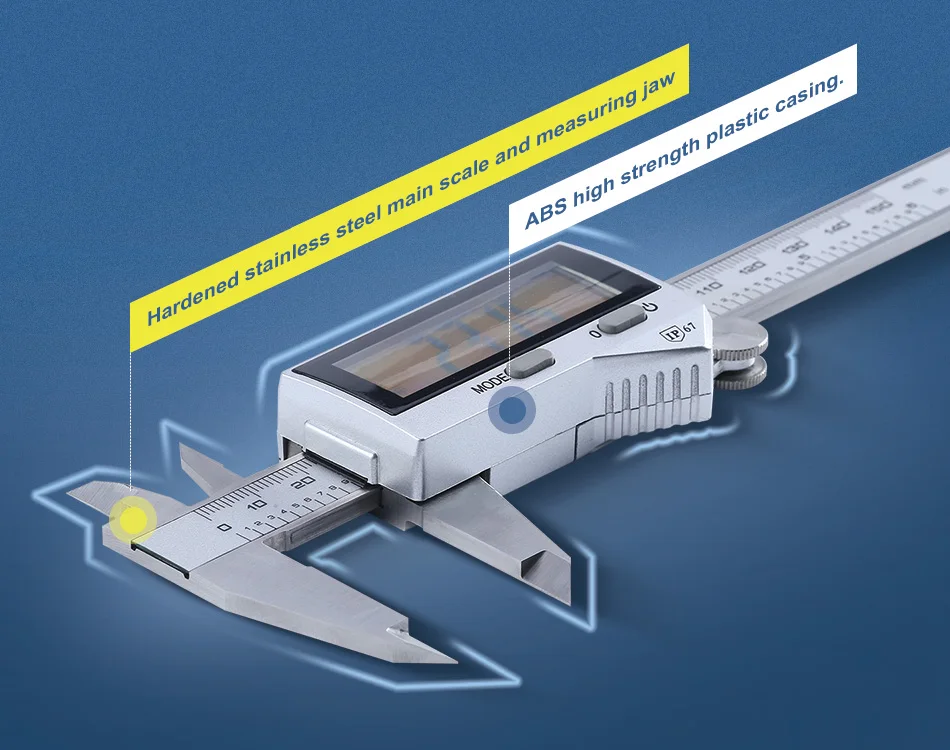

You can put the measured data into a computer or a cell phone.Support import EXCEL, WORD, text, and so on.Stainless steelHardenedstainless steel main scale and measuring jaw,ABS high strength plastic casing.Super large LCD screenFunctions1.Step measuring faces2.Internal measuring jaws3.Slider clamp screw4. Scale5.Beam6. Depth blade7.External measuring jaws8. mm/in change9.Power on and off/Zero setting10. LCD display11. Battery compartment12.Thumb rollerProduct Size(Unite:mm)

Order no

Range

Resolution

Accuracy

L

a

b

c

d

LYIP67F150

0-150mm/6"

0.01mm/0.0005"

±0.03mm

236

40

21

16.5

16

LYIP67F200

0-200mm/8"

0.01mm/0.0005"

±0.03mm

286

50

24

19.5

16

LYIP67F300

0-300mm/12"

0.01mm/0.0005"

±0.04mm

400

60

25

20.5

17

Note:manual measurement may have 1-2mm error

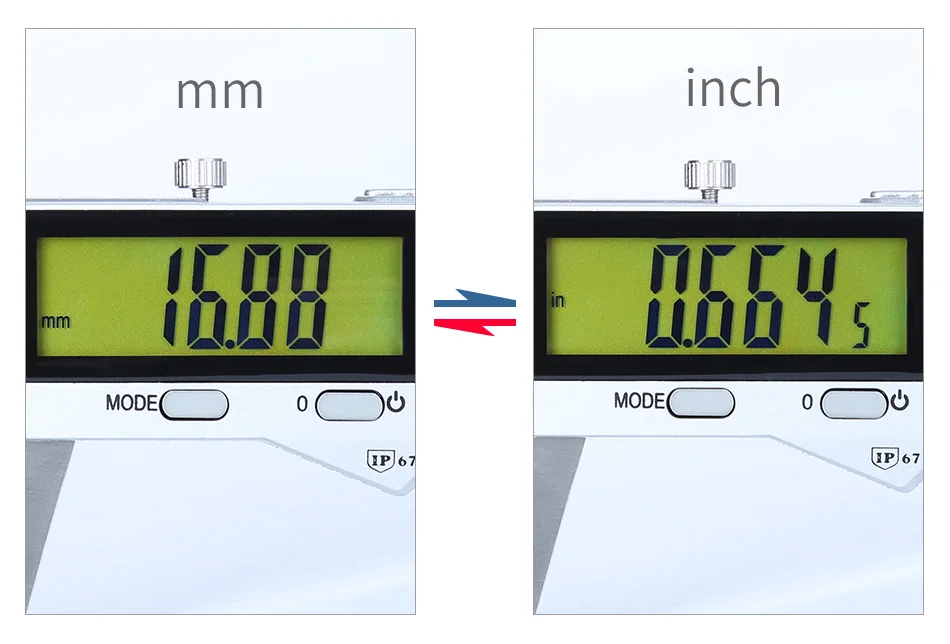

mm/inch measurement system conversion

SAE / Metric conversion switch automatically converts measurements to inches or millimeters with the simple press of a button

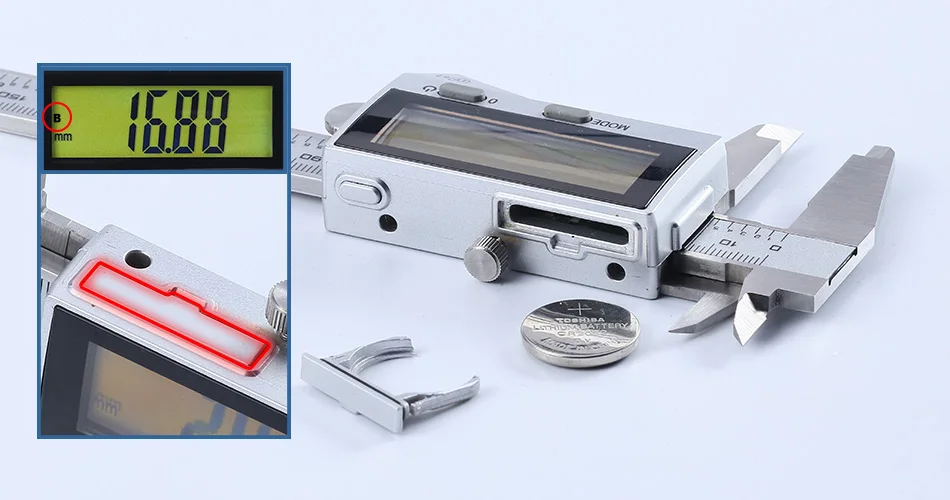

Battery type: 3V CR2032 battery (Not included)

" Pull out the lid of the battery to open screws to install the battery."When"B"on display appears, you should replace the battery.

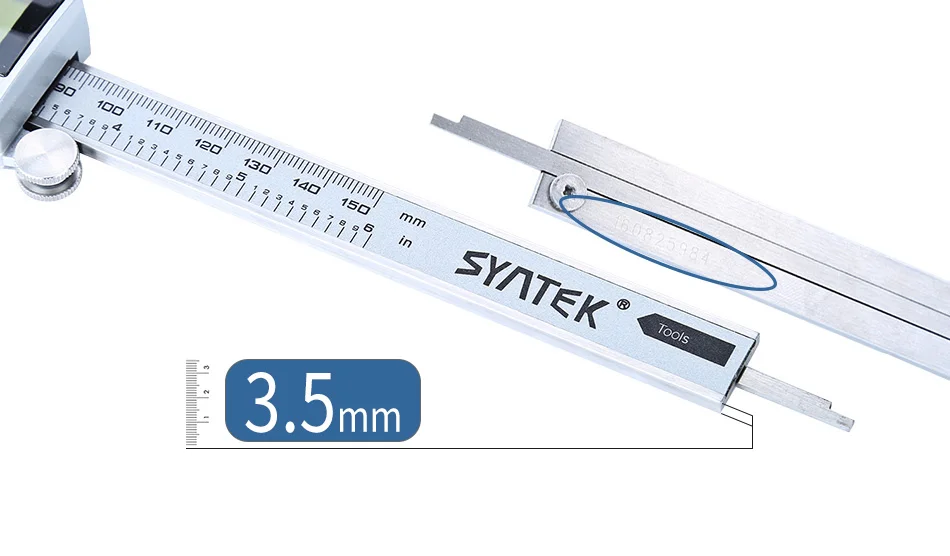

3.5mm thickness main ruler

Made of 4cr13 stainless steel,Strong and durable

Four way measurement

a.inside diameterb.outside diameterc.depthd.step

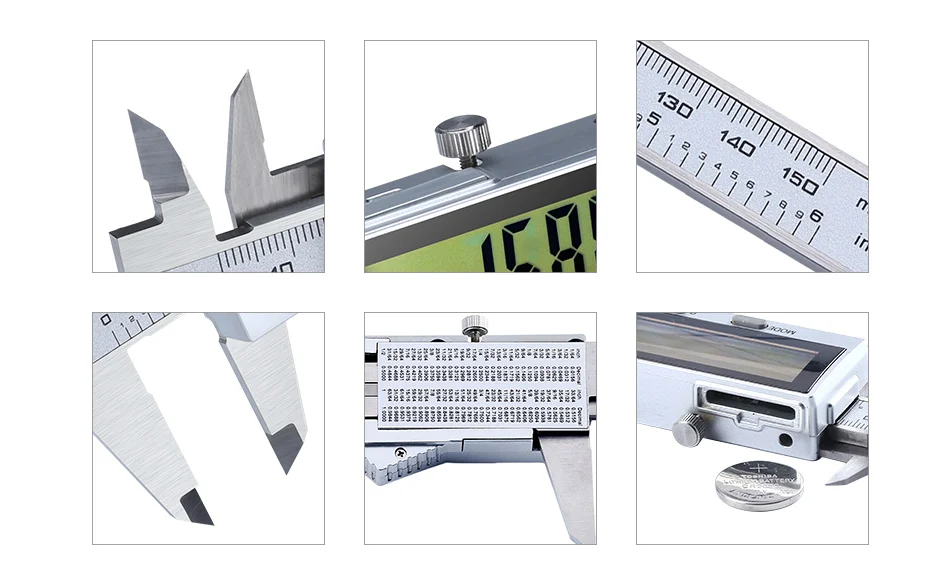

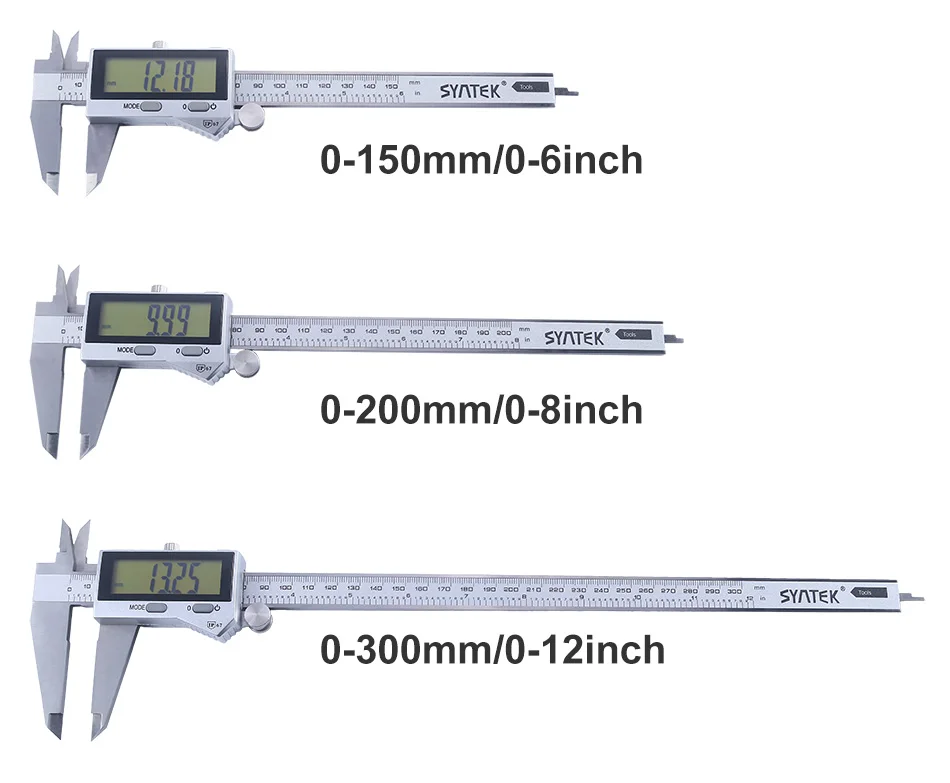

Three kinds of rangeYou can choose the appropriate range according to your needs: 0-150mm/0-200mm/0-300mmThedetails showPackage:Plastic caseDescription for bluetooth 3.0 module (wireless symbol on the LCD)

DATA: Bluetooth function button

SYMBOL-1:

Bluetooth connectingstatus indicator

SYMBOL-2:

Data sending statusindicator

1.Pair and send data:

As the measuring tool and bluetooth device(PC,mobile etc.)used for the first time,it needs to pa ir each other,the operation method as following(1) Open the bluetooth seeking function of the device(PC,mobile etc.),then press the  DATA button of measuring tool and keep over 3 seconds,until"A"blinks slowly(approx 1 second per time),that meaning is the measuring tool can be found by the receiving device, then relax the DATA button, waiting for "BluetoothKeyboard" symbol shows on the receiving device, and then click "Pair", the receiving device and the measuring tool will be connected.After the connecting successful,"A"will stay on the LCD.(2) If the pairing is unable to connect successful in 5 minutes,"A"will disappear and  the measuring tool will quit pairing mode automatic. Still needs to continue to pair, please repeat the previous operation.After the connecting successful, short press the DATA button and relax, the measuring tool will send data to receiving device (PC, mobile etc.),and"B"will blink once to alert user that data has been sent out.Notice:a.During pairing between the receiving device and the measuring tool,be careful  to keep them closely.b.Some of old version PC OS,such as Windows XP, you can choose "no key" option  when pairing operation.c.When the time is less then 1.5 seconds between twice sending,it will happen to  lose the data.

Auto OFF

Over when 15 minutes no data sending out or no any operation, insidebluetooth module will power off automatic to save power.

Reconnect

If the measuring tool has been paired with some receiving device (PC,mobile etc.)when  power off automatic or disconnect (disturbance of environment or over range will dis - connect)it needs to reconnect,please operate as following(1)   Keep bluetooth function of the receiving device (PC,mobile etc.) on,long press the  DATA button until"A"shows and blinks slowly, and then relax the DATA button immediately, the measuring tool will connect with the receiving device automatic,after successful,"A"will stay on the LCD.(2)  If"A"shows over 3 seconds and still unable to reconnect successful,the measuring tool will enter into pairing mode("A"blinks slowly),at this time you can start the seeking function of the receiving device, make them to reconnenct. Notice:In the pairing mode,long press DATA button until"A"disappears to quit the pairing mode when you want.?ver when 5 minutes still is unable to reconnect,the measuring tool will quit the pairing mode.

Temporary store function

When disconnecting status,the receiving device can not receive data, the measuring  tool will store data into flash(up to 99 data) after short pressing DATA button,and then  connecting staus,short press DATA button, all the temporary data in the flash will be  sent out.Temporary data will be lost when change the battery  or lower power.Notice:When connecting status, by external causes (such as disturbance of environment ,unstable signal, pc or mobile un-responses),it will happen to store data.

Attention

a.Just the measuring tool power on, system will detect the Bluetooth module is normal  or not and"A"will shows on the LCD, please do not operate DATA button at this time, waits"A"less than 10 seconds to disappear, and then operate DATA button; if wrong operation, please turn off and then turn on again, after"A"disappearing, can continue to operate the measuring tool.b.Just the Bluetooth module enters into sleeping status,"A"will delay to show on the  LCD less than 10 seconds,at this time operate DATA button will cause"A"to show status  error or long press DATA button no response,it is a small probability event only, user just  turns off and then turns on again,after"A"disappearing,can continue to operate the  measuring tool.

Data output

*Mobile terminal (mobile phone, tablet, etc.)(1) There are equipment codinga. First set the language into English mode in typewriting softwareb. Use the typewriting software of the system Please such as Android system  set it into Android Keybord (English) If use other system maymake mistakesc.When data in please not use other APP or it will affect the data transmission(2) No equipment codea. First set the language into English mode in typewriting softwareb. Use the typewriting software of the system Please such as Android systemset it into Android Keybord (English) If use other system may make mistakes*PCa. First set the language into English mode in typewriting softwareb. Use the typewriting software of the system Please such as Android systemset it into Android Keybord (English) If use other system may make mistakesAbout usWe Are The ManufacturerWe are specialized in manufacturing toolscaliper, micrometer, dial gauge, thickness gauge, angle gauge, height gauge, depth gauge, hardness tester and so on.Payment1. If you have any problem with the payment please contact with us.2. If you decide to buy lot of items,you can chat with us and the we will give you a discount.Shipping1. The item will be shipped within 1-5 business days.2. If you have not received your shipment within 60 days, please contact with us. we will tr ack the shipment and get it back to you as soon as possible .FeedbackYour feedback is really important to us,if you are satisfied with our items please give a good praise. on the contrary, if you donnot like our item please contact with us,and we will tr y our best to solve the problem and leave you a happy shopping mood here. Thank you very much .Wishing you a happy shopping !!!
