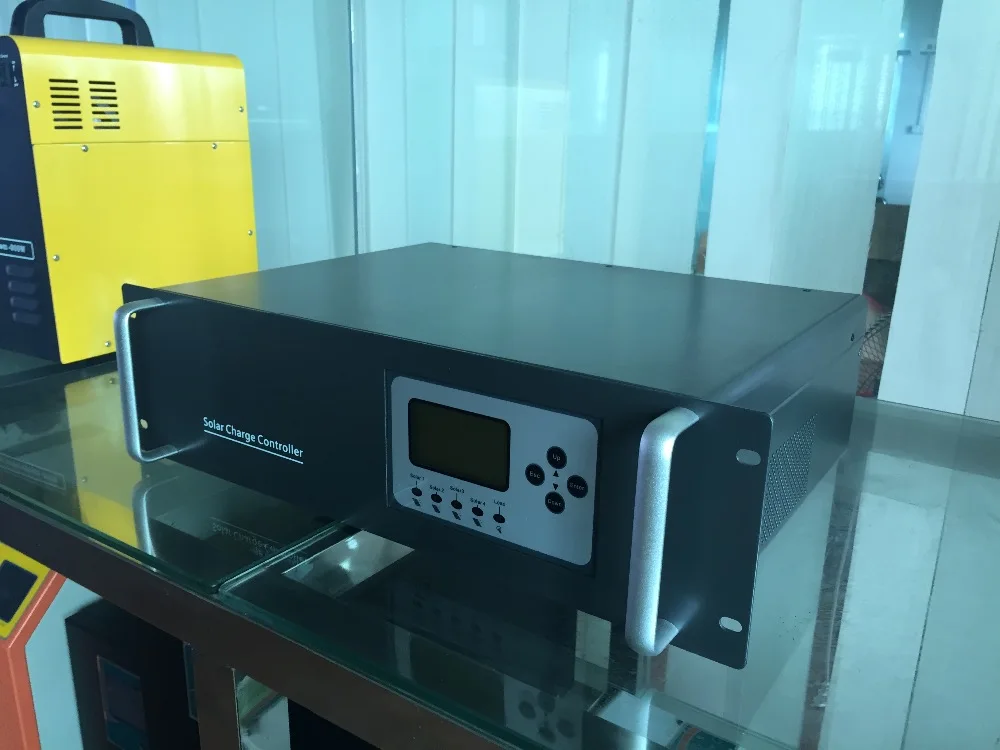

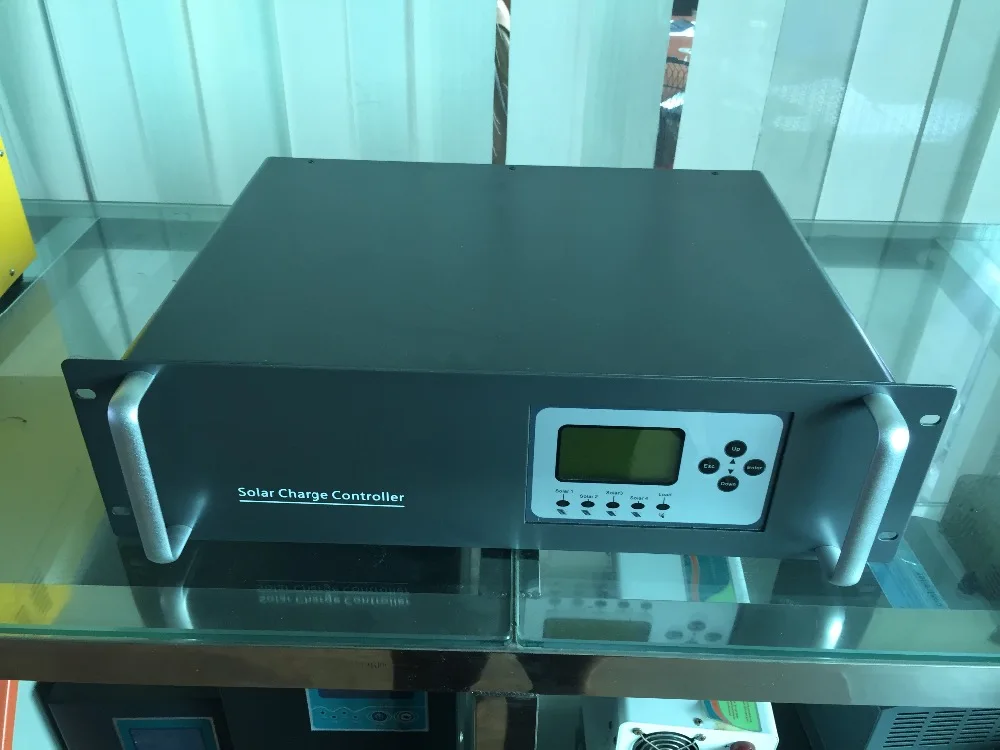

75A Rack Type PWM Solar Charge Controller 192V 220V 240V 384V 380V with 3 Circuits PV Independent Input | Обустройство дома

75A Rack Type PWM Solar Charge Controller 192V 220V 240V 384V 380V with 3 Circuits PV Independent Input | Обустройство дома

Welcome to contact us now to get our latest wholesale price list.

This series product is specially designed for battery using in the off grid solar power system, which can provide intelligent charge control.Adopt MCU control technology, PMW constant voltage charging mode.Be efficient to protect battery and extend its life span. It can be widely used in houses, schools, streets, stations,airway, industry and mineral,frontier, islands, pastoral areas, solar off grid power system, etc.

Notes:192V(12V*16pcs),220V(12V*18pcs),240V(12V*20pcs),384V(12V*32pcs)please choose your DC voltage!!

Please Note:

Features:

1.Excellent performance because of an MCU intelligent control technology .
2.Visualization of operation status of the equipment through Chinese and English menus, LEDs and an LCD .
3.Solar array, battery common-anode system input and multiple independent solar array input control .
4.Settable battery protection parameters .
5.Display of the current battery voltage, battery charge current, internal temperature of the case, total photovoltaic power generation capacity, total power consumption by the load, photovoltaic current when each solar array is separately charged .
6.Overall protection: protection an alarm for reverse connection of the battery poles, battery overcharge, cooling control for interior of the cabinet (the fan will be started upon 45°C) and back charge of the battery at night .
7.Function of historical records and password protection .
8.Function of clock display .

(Note:50A controller comes with 2 circuits solar inputs.75A controller comes with 3 circuits solar inputs.100A controller comes with 4 circuits solar inputs,please Choose the right solar input Voltage and Current)

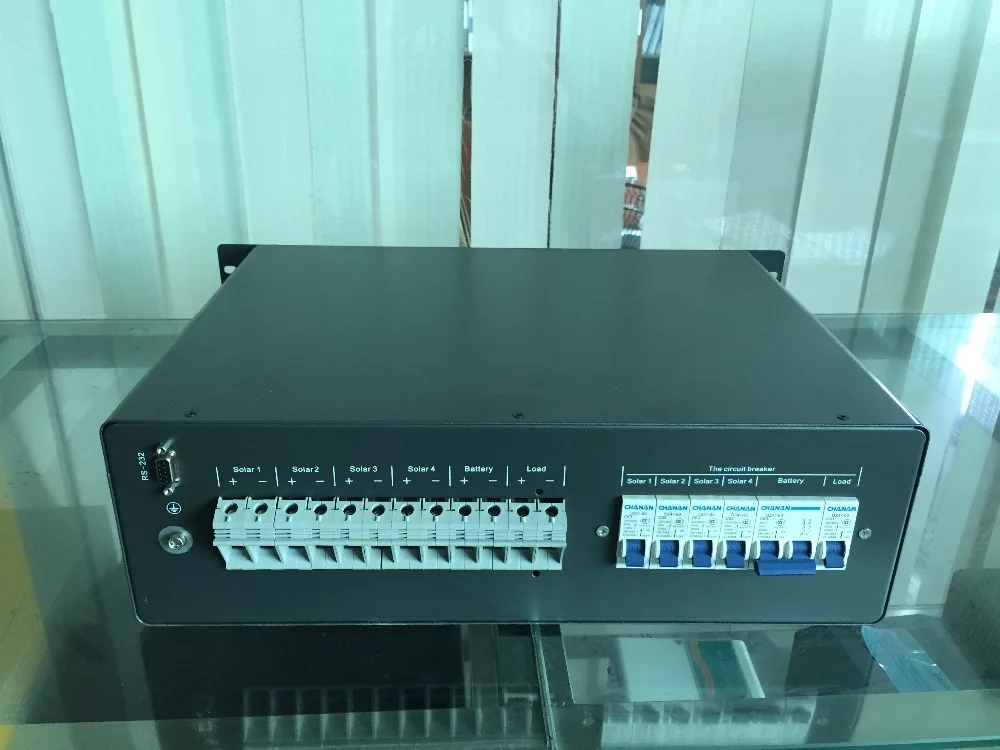

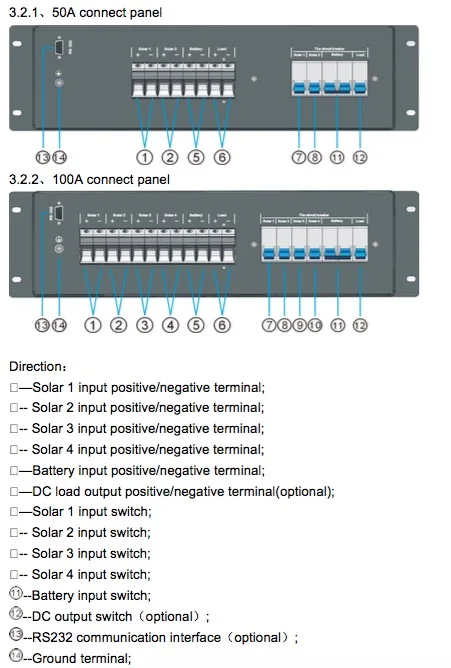

Below is the 100A controller Connect terminal Diagram.

Specification:

Model

CP-019275

CP-022075

CP-024075

CP-038475

Rated power（W）

14.4K

16.5K

18K

28.8K

Rated charger current（A）

75

Rated DC voltage（VDC）

192

220

240

384

Solar input

Max. DC voltage（VDC）

≤350

≤400

≤436

≤700

Charger voltage range（VDC）

160-350

183-400

200-436

320-700

3 circuits input

SOLAR1、SOLAR2、SOLAR3

Max. input power/circuit（Wp）

4.8K

5.5K

6.0K

9.6K

Max. input current/circuit（A）

25

Over charge protection voltage（VDC）

223.9

256.6

279.9

447.8

Over charge recovery voltage（VDC）

219.2

251.2

274.0

438.5

DC output

Rated output current（A）

50

Low voltage protection（VDC）

175.4

201

219.2

350.8

High voltage protection voltage（VDC）

248.0

284.2

310.0

496

Efficiency

＞98%

Protection function

Charge over current, over voltage, low voltage, high voltage, over current, etc.

Exhaust fan starting temperature

＞45℃

Operating environment temperature

0-40℃

Storage environment temperature

-15 - +50℃

Run / storage environment

0-90%（No condensation）

Machine size: L*W*H（mm）

340*484*132

Package size: L*W*H（mm）

545*450*250

Net weight/Gross weight (kg)

8.3/10.6
