Шасси робота Smart Robot Tank с двойным DC-мотором и амортизатором для джойстика PS2 и платы управления Arduino для DIY проектов TS100.

Шасси робота Smart Robot Tank с двойным DC-мотором и амортизатором для джойстика PS2 платы управления Arduino DIY проектов TS100.

Please download manuals:

Installation manual: http://tui.doit.am/smt/InstallationforTS100.zip

Control BoardWiring: http://tui.doit.am/smt/uno+4 motor&&16 servo board wiring.zip

Car Control APP:http://tui.doit.am/smt/com.sibo.blefiwi.car（car app）.zip

PS2 use manual: http://tui.doit.am/smt/PS2 use manual.zip

Schematic diagramhttp://tui.doit.am/smt/驱动板的原理图.zip

Code:http://tui.doit.am/smt/4-wayMotor16-wayServoCode.zip

Introduction:

This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.

Provide source code, App and user manual.

Parameters:

Tank Chassis Parameters

Name: TS100 Intelligent tracked car/tank chassis

Material: aluminum alloy

Wheel: aluminum alloy

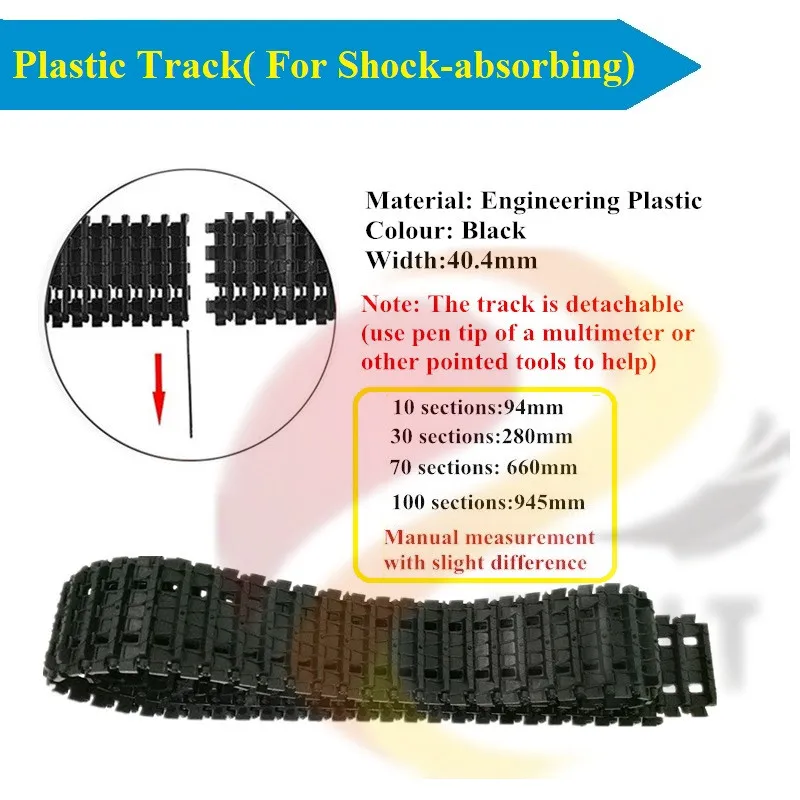

Track: engineering plastic

Product size: about 275*190*95mm (length * width * height)

Weight: 1100g

Color: golden yellow/silver/black

PS2 Control kit>>

Accessories Parameters

Shipping List:

Black/Silver/Yellow Full set:

Chassis: 1 pcs(golden yellow/silver/black)

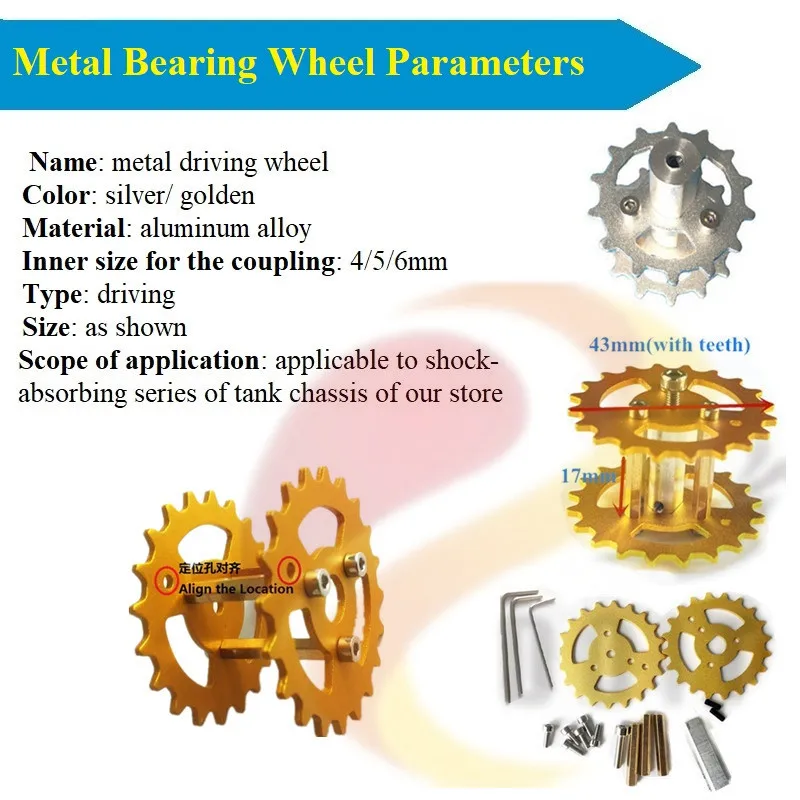

Driving wheels: 2 pcs

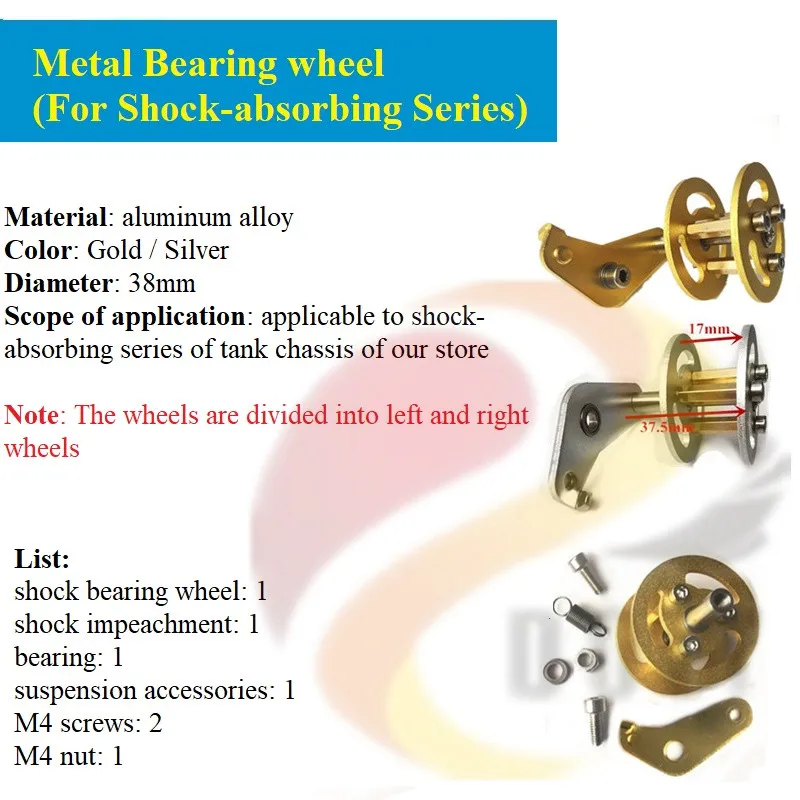

Bearing wheels: 10 pcs

Track: 2 pcs(can be changed the length)

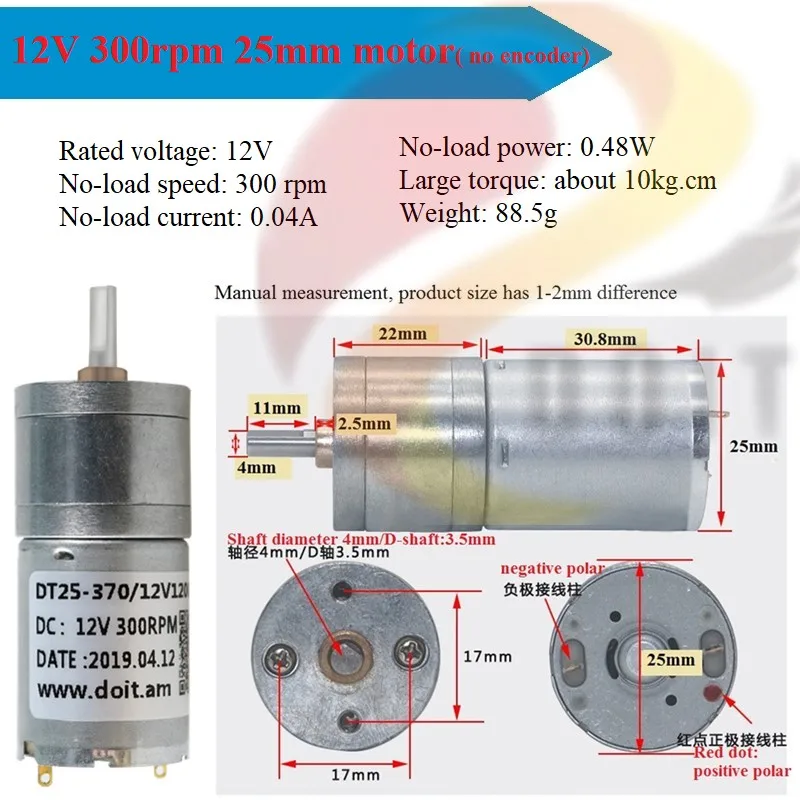

DC 9V motor: 2 pcs

Screws: 1 set

PS2 Control kit: 1 set

Only PS2 control kit:

2-channel motor&16-channel servo shield board: 1pcs

UNO board: 1pcs

USB Cable: 1pcs

Wireless controller: 1pcs

Receiver: 1pcs

Active buzzer: 1pcs

Copper pillar kit: 1set

Battery box: 1pcs

Dupont line: 1pcs

Black/Silver/Yellow 9V motor:

Chassis: 1 pcs(golden yellow/silver/black)

Driving wheels: 2 pcs

Bearing wheels: 10 pcs

Track: 2 pcs(can be changed the length)

DC 9V motor: 2 pcs

Screws: 1 set

Free:

Hexagon wrench: 1set

Battery box

Note:

For the convenience of transport, the tank chassis is unassembled.

NOT INClUDED THE BATTERY.
