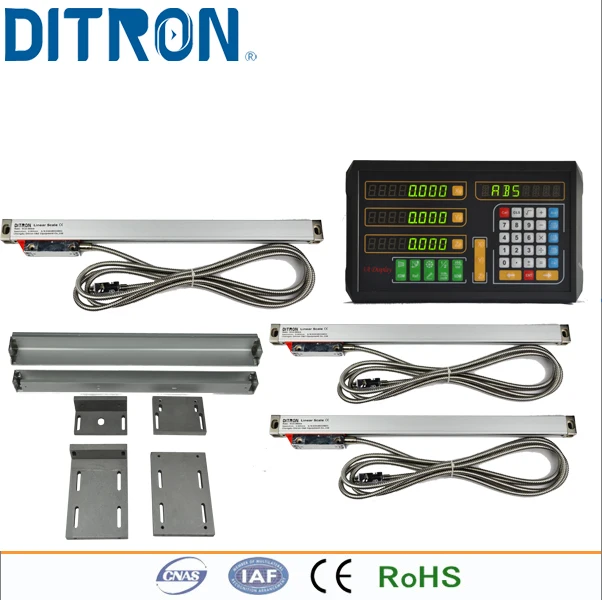

Note :1 This order includes 1 piece 2axis digital readout  , 2 pieces 5um linear scale glass scale and other bracket, but the travel length only must between 50-1000mm.

2 After place order,pls leave a message tell us the Travel length of the linear scale you need and What machine do you install.

3 We supply 1um resolution scale , each 1um scale cost an extra costs $10

4.When the parcel arrived to your coutoms,pls pay the tax and pick up the parcel ,we are not reaponsible for any customs duty or import tax.

5.If you need offer low price in the invoice,pls tell me.I will do for you, if you not , I will offter the order price in the invoice.

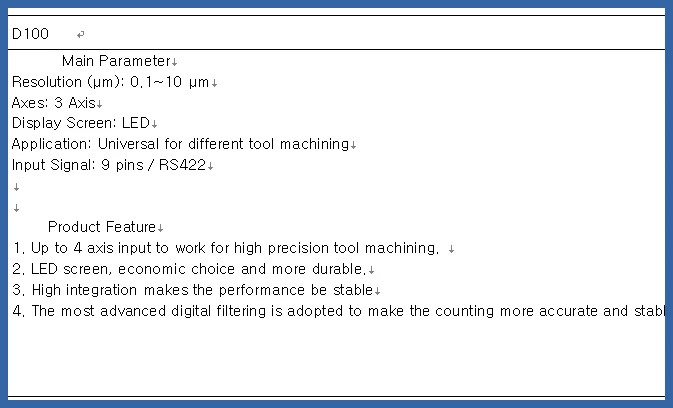

DIGITAL READOUT :D100

D100 technical parameter

1)Voltage range: AC 80V-260V/50HZ-60HZ

2)Power dissipation: 15W

3)Coordinate number: 1/2/3

4)Display: 8 bit display with signed

5)Times frequency: 4X

6)Readout box input signal: TTL

7)Input frequency:>100KHZ

8)Resolution:10um, 5um, 1um, 0.5um, 0.1um

9)Operating keyboard: light touch buttons

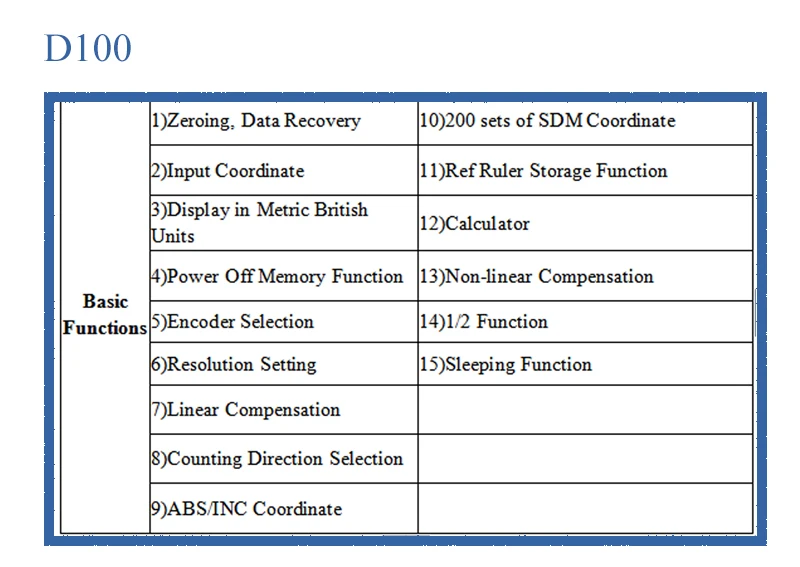

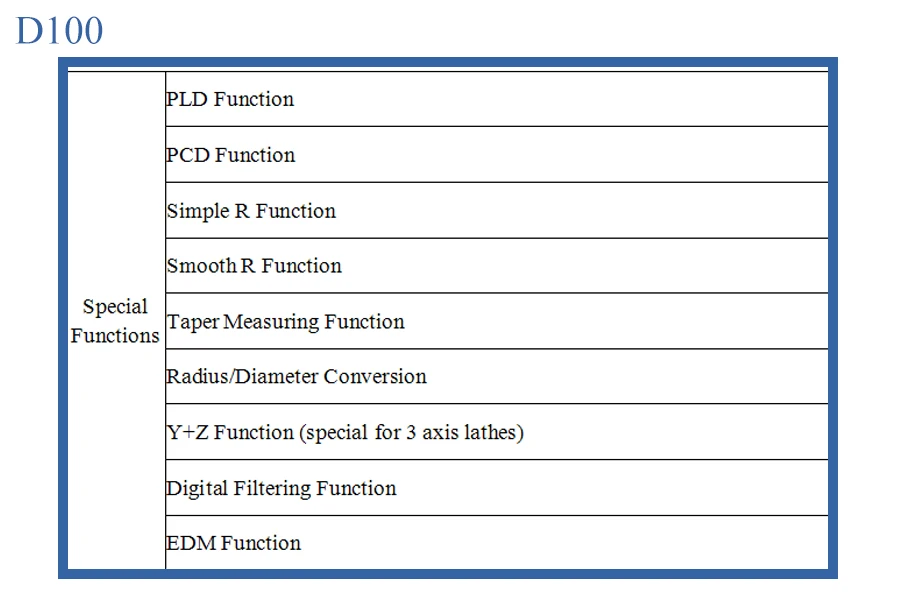

D100 Feature

1 Display as 8 digital readout with green LED.

2 Unique film covering on the windows makes the displaying much more recognizable.

3 High integration makes the performance be stable.

4 Switching on &Switching off can meet more than 100000 times.

5 Adopting the advanced digital filtering makes the counting be more accurate and stable.

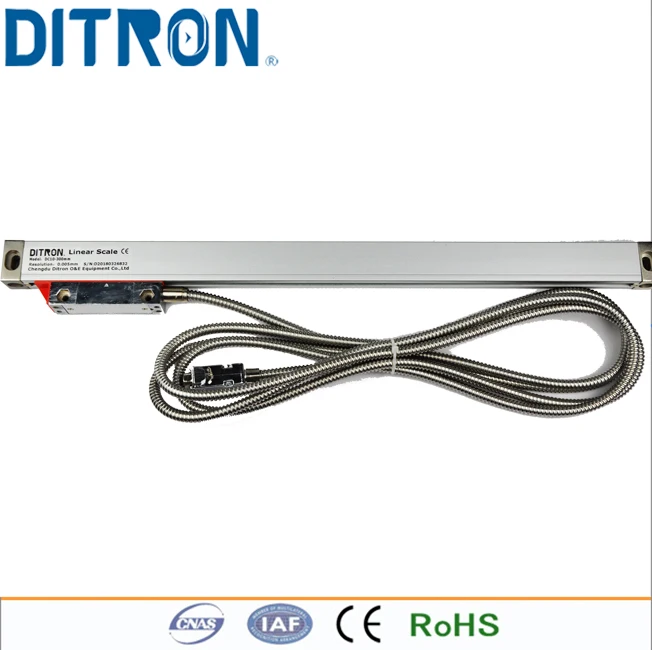

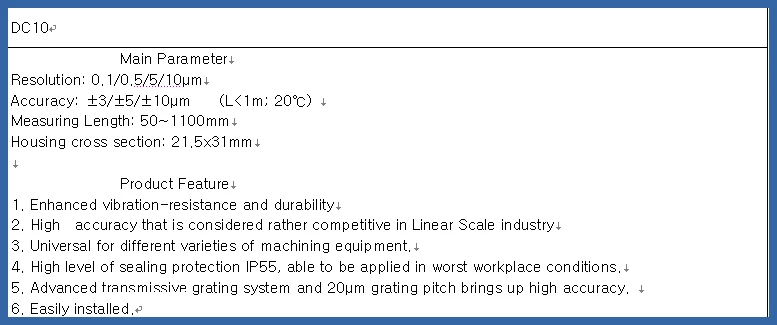

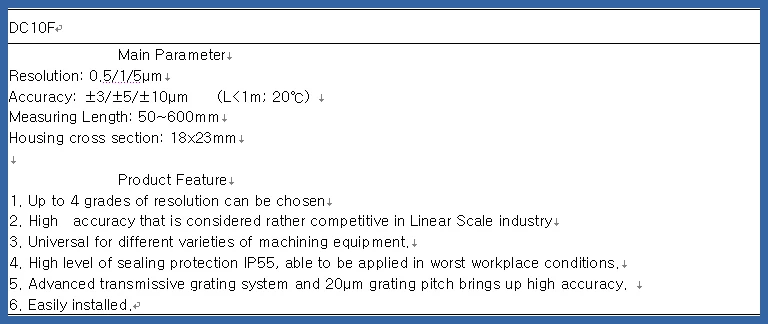

Linear Scale :DC10&DC10F

Characteristics:

1. Fast speed of movement, above 60m per minute
2. Bearings are adopted for the sliding part to provide convenient movement and  excellent repeated positioning function
3. Multi-layer isolating wire mesh and metal soft shell protection is adopted for signal cable to provide excellent water-proof and anti-interruption performance
4. Aluminum alloy material with anodic disposal is adopted for scale body and the scale head is cast with hard chrome-plating alloy of wearing resistance
5. Special rubber is adopted for dust proof cover, which is of good scraping and corrosion resistance and small friction resistance.
6. Individualized components make the linear encoder very easy to install, maintain and repair , and it is of Anti-water dust-proof and long-life
7 .Glass precision measuring grating is adopted for the Linear Encoder as measuring benchmark to ensure high precision

8. Single light source illumination is adopted for good integration
