420*594*1.5mm Heat Bed for 3d printe silicone rubber heater 220v 1600w adhesive 1 side 100k thermistor 1000mm lead wire | Дом и сад

Quick Details   Condition: New Type: Band Heater Power Source: Electric Place of Origin: Guangdong, China (Mainland) Brand Name: Alixd Model Number: XD-D-007 Dimension(L*W*H): On cutomer's request Weight: Custom Voltage: Custome Power(W): Custom Certification: CE TUV IP68 Warranty: One year After-sales Service Provided: Engineers available to service machinery overseas Size: Any size is avaiable Thickness: 1.5mm(standard) or custom marketing mode: directly selling sample: one piece is available Packaging & Delivery   Packaging Details: PP bag/Neutral Carton/WoodenCase or as customer required Delivery Detail: 7-10 Days

Descriptions:

Light and flexible heater Heats fast and high efficiency thermal conversion  Widely used on industry, agriculture, medical and household electrical appliances Can customize the practical power, voltage, size, customer's logo and more Lowest price and fast delivery of the goods Perfect after-sales service



Features:

Heats fast and long-lasting Flexible and can be customized Waterproof and nontoxic



Technical Parameters:



Dimension Dimensions on request Thickness 2mm  Note: There is an extra thickness at the connection point. Heating element Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core Nickel-Chromium or a Copper-Nickel resistance wire Voltage Any voltage on request Output Up to 8KW/M2 Tolerance ±10% on resistance Max surface temperature 250 degree Min exposure temperature -60 degree





What is a Flexible Silicone Rubber Heater  ?



Our heaters are made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then  vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.

Applications:   Freeze protection and condensation prevention for many types of instrumentation and equipment. Medical equipment such as blood analyzers and test tube heaters. Computer peripherals such as laser printers. Curing of plastic laminates. Photo processing equipment. Semiconductor processing equipment. Thermal transfer equipment Drums and other vessels and viscosity control and asphalt storage.

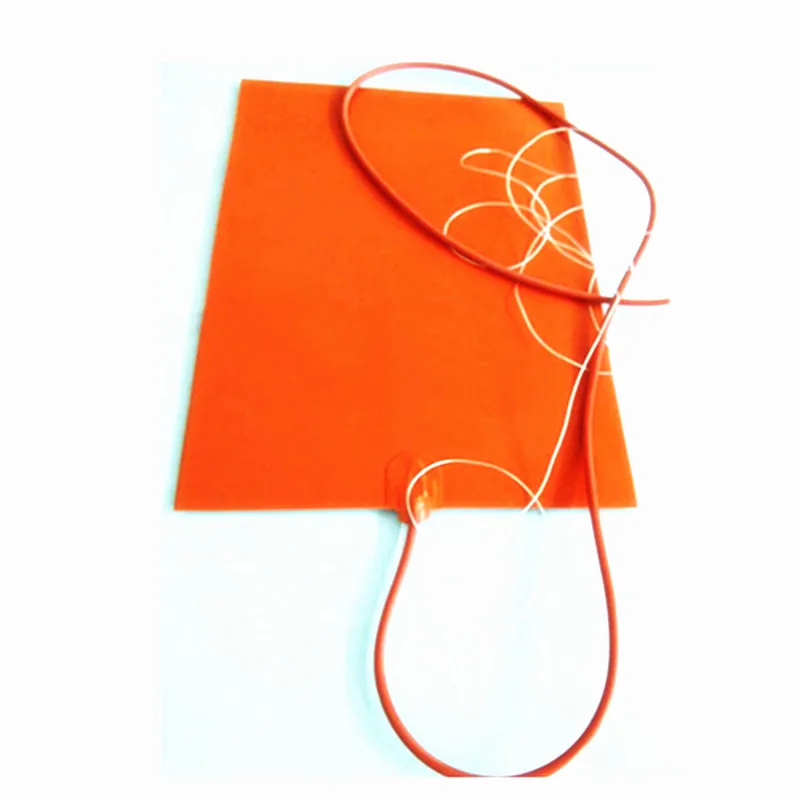

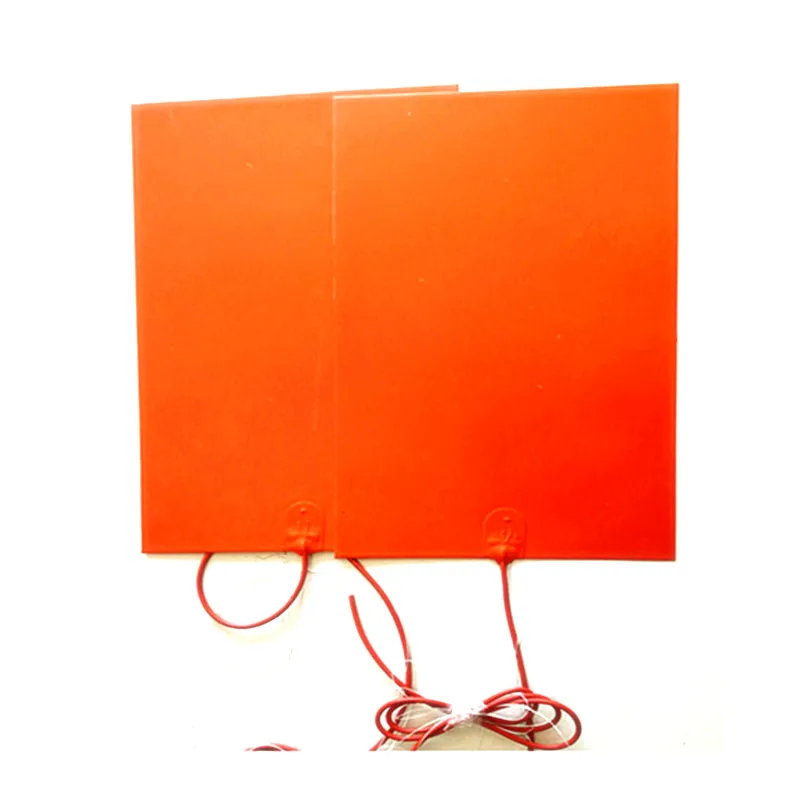

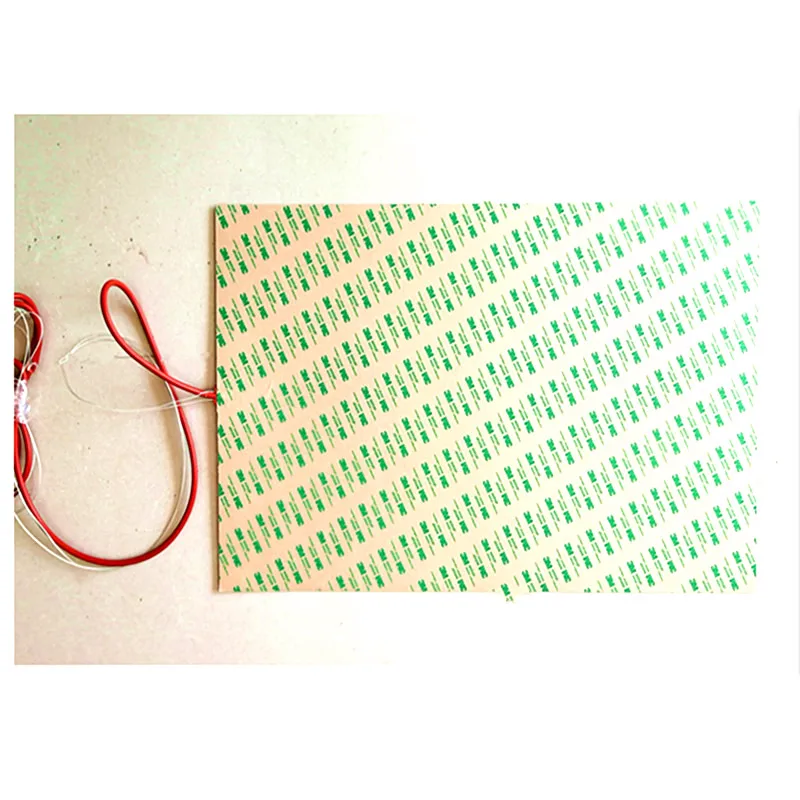

           420*594*1.5mm  Heat Bed for 3d printer  silicone rubber heater 220v 1600w  adhesive 1 side 100k thermistor 1000mm lead wire come out from middle of 420mm side     XD-D-007

Mode number Size(mm) Voltage(v) Wattage(w) Shape Length of lead(mm)   Attachment XD-H-M-1076 1000*1000*1.5 110V 2000W square 1000    adhesive 1 side 100k thermistor XD-H-M-1077 1000*1000*1.5 120V 2500W square 1000   adhesive 1 side 100k thermistor XD-H-M-1078 1000*1000*1.5 220v 4500w square 1000    adhesive 1 side 100k thermistor XD-H-M-1079 1000*1000*1.5 230v 2800w square 1000    adhesive 1 side 100k thermistor XD-H-M-1080 1000*1000*1.5mm 240v 3200w square 1000   adhesive 1 side 100k thermistor XD-H-M-763 1100*1100*1.5mm 110v 1200w square 1000   thermocouple XD-H-M-679 1100*1100*1.5mm 230v 2100w square 2000     XD-H-M-1073 1100*1100*1.5mm 220v  3500w square 1000     XD-H-M-1074 1100*1100*1.5mm 240v 300w square 1000     XD-H-M-1075 1100*1100*1.5mm 120v  2500w square 1000     XD-H-M-780 550*600*1.5mm 220v 1300w rectangle 1000   100k thermistor 4mm hole central XD-H-M-781 600*700*1.5mm 220v 1500 rectangle 1000   100k thermistor 4mm hole central XD-H-M-782 750*800*1.5mm 220v 2000w rectangle 1000   100k thermistor 4mm hole central XD-H-M-783 10"*20"(254*508*1.5mm) 110v 450w rectangle 1000     XD-H-M-784 10"*48"(254*1219.2*1.5mm) 110v 1000w band 1000     XD-H-M-785 10"*96"(254*2438.4*1.5mm) 110v 2000w band 1000





Primary Competitive Advantages:

Country of Origin Distributorships Offered Experienced Staff Guarantee/Warranty International Approvals Packaging Price Product Features Product Performance Prompt Delivery Quality Approvals Service Small Orders Accepted If you can't find your Size & Shape& Voltage& Wattage,Please contact with me,then We can provide professional sevice. It would be better send us your drawing or CAD pictures for specialized design,then we can do better!   Our Services:

1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.

3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.
6. Packages: Available for ploy bag and carton box
