20000W String Solar Power on Grid Tie Inverter 3 Phase AC 380V/440V DC 200-1000V PV Transformerless 7KW Wi-Fi |





7 years Store on Aliexpress . For new energy products , we are more professional .

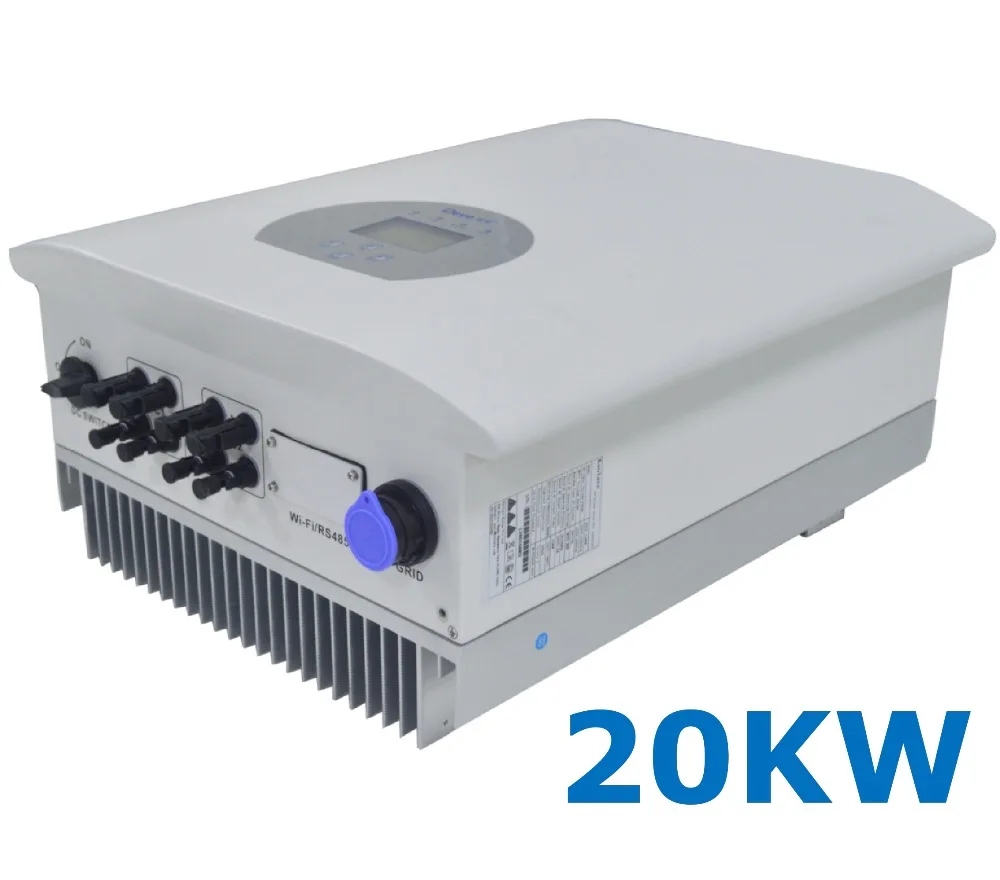

20KW 3 Phase String Solar Grid Tie Inverter Input Voltage : DC 200V-1000V , Output Voltage : 277V-460V 50/60Hz 3 Phas   Max Efficiency of 97.5% and wide input range. Dual MPPT design with precise MPPT algorithm. Natural cooling, IP65 protection. Compact and light design for easy Installation. Transformerless GT topology. RS485, WiFi Interface. Numerous protection functions. Phone APP monitoring available. 5 years standard warranty, 25 years lifespan design.







  Technical Specifications



​

Technical Specifications

Model

SUN-20K-G

Energy source

Grid-connected PV

Input Side

Max.DC Power(W)

22000W

Max.DC Input Voltage(V)

1000V

Start-up DC Input Voltage(V)

300V

MPPT Operating Range(V)

200-800V

Max.DC Input Current(A)

18A+18A

Number of MPP/Number of Strings

2/4

Output Side

Rated Output Power(kW)

20KW

Max. Active Power(kW)

21KW

Rated AC Grid Voltage(V)

380V/400V

AC Grid Voltage Range(V)

277-460V

Rated Grid Frequency(Hz)

50/60Hz (Optional)

Operating Phase

Three phase

Rated AC Grid Output Current(A)

29A

Max.AC Output Current(A)

31.9A

Output Power Factor

>0.99

Grid Current THD

<3%

DC Injection Current(mA)

<0.5%

Grid Frequency Range (Hz)

47-52Hz or 57-62Hz(Optional)

Efficiency

Max. Efficiency

97.5%

Euro Efficiency

97.3%

MPPT Efficiency

>99%

Protection

DC Reverse-Polarity Protection

Yes

AC Short Circuit Protection

Yes

AC Output Overcurrent Protection

Yes

Output Overvoltage Protection

Yes

Insulation Resistance Protection

Yes

Ground Fault Monitoring

Yes

Surge Protection

Yes

Islanding Protection

Yes

Temperature Protection

Yes

Integrated DC Switch

Optional

General Data

Size(mm)

455*550*240mm

Weight(kg/lb)

28kg / 62lb

Topology

Transformerless

Internal Consumption

<2W(Night)

Running Temperature

-25-60°C

Ingress Protection

IP65

Noise Emission(Typical)

<30 dB

Cooling Concept

Natural convection

Max. Operating Altitude Without Derating

2000m

Designed Lifetime

>20 years

Grid Connection Standard

EN50438,IEC61727,VDE4105 ,

NB/T32004(CQC),IEC62109-1-2

Operating Surroundings Humidity

0-100%

Stafty EMC /Standard

IEC62109-1/-2,NB/T 32004,

EN61000-6-1,EN61000-6-3

Features

DC Connection

MC-4 mateable

AC Connection

IP65 rated plug

Display

3.5TFT

Interface

RS485/RS232







Power Inverter Application System Type

1. Independent home using electrical power generating system

2. Communication base station system、expressway intelligent monitor system

3. Outdoor advertisement、The government demonstration project、Landscape lighting engineering

4. Island fishing boat、Remote mountainous area、frontier sentry etc photovoltaic system

Protection Function

short-circuit protection, overload protection, high-voltage protection, low-volatge protection,

high-temperature protection, reversed polarity protection and Reverse connect protection etc.

Remark

All the above products are solar power, can do household inverter, UPS, as well as with diesel, gasoline generator,

at the same time can be built-in solar controller,Mains mains break automatic conversion, charging and so on

CE ROHS SGS Certification
