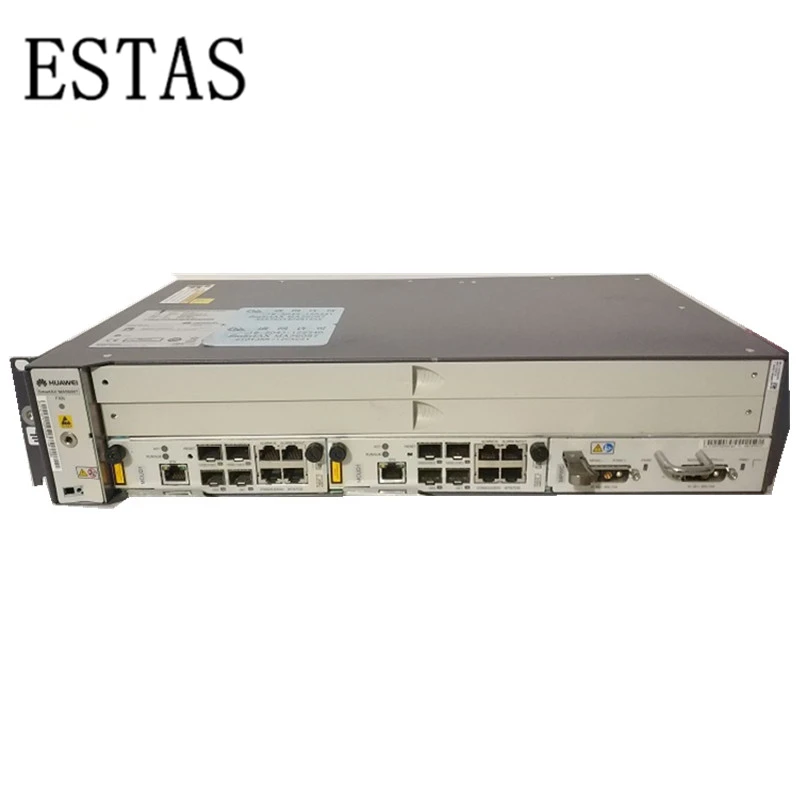

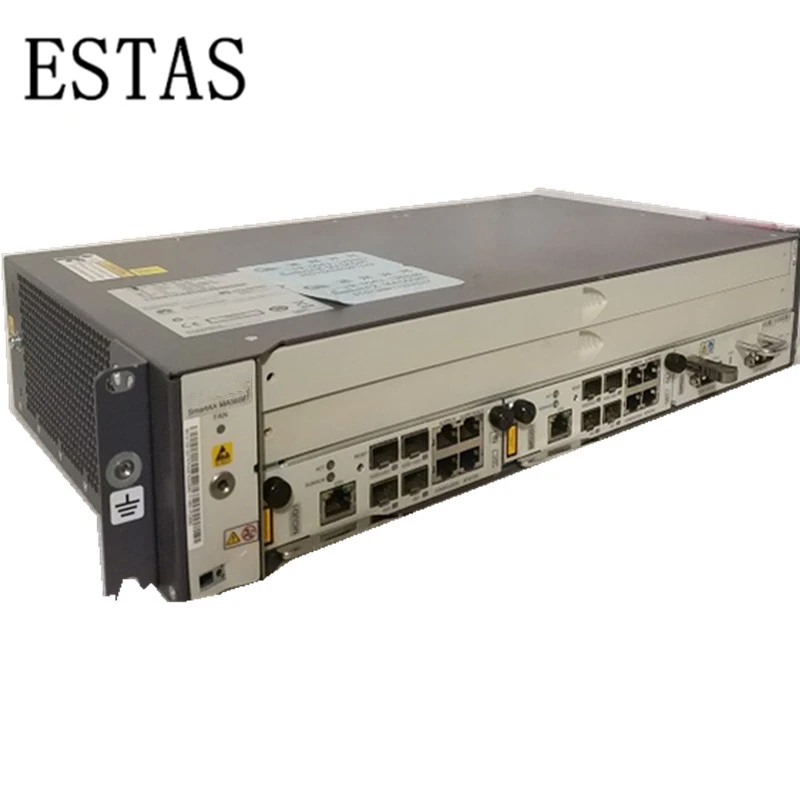

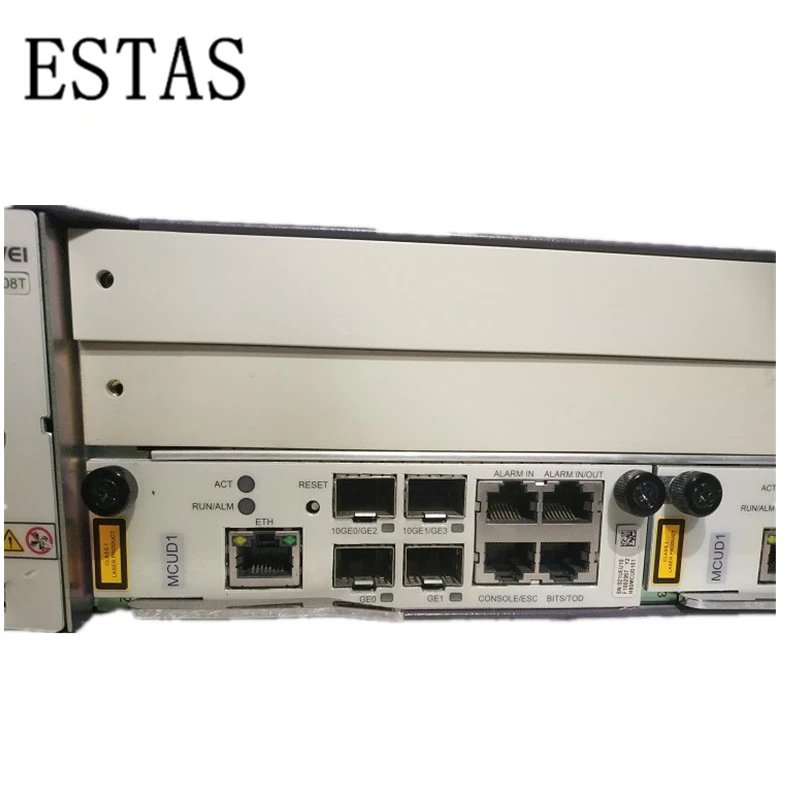

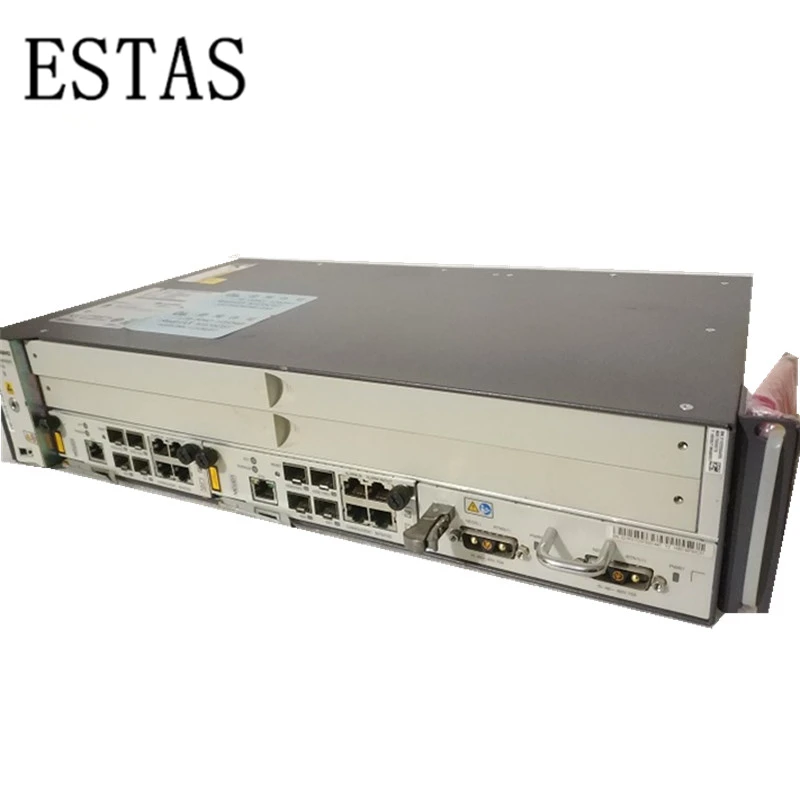

19 "inch GPON OLT MA5608T with DC MPWC Power

Specifications

MA5600T

MA5603T

MA5608T

Dimensions (H x W x D)

447 mm x 490 mm x 275.8 mm

263 mm x 442 mm x 283.2 mm

88 mm x 442 mm x 233.5 mm

Operating Environment

–25°C to +55°C

5% RH to 95% RH

–40°C to +65°C

5% RH to 95% RH

–40°C to +65°C

5% RH to 95% RH

Power

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

–48V DC power input

Dual-power supply protection

Operating voltage range of –38.4V to –72V

Switching Capacity — Backplane Bus

3.2 Tbit/s

1.5 Tbit/s

720 Gbit/s

Switching Capacity — Control Board

1,920 Gbit/s

960 Gbit/s

512 Gbit/s

Access Capacity

64 x 10G GPON

256 x GPON

768 x GE

24 x 10G GPON

96 x GPON

288 x GE

8 x 10G GPON

32 x GPON

96 x GE

Port Type

Upstream ports: 10 GE optical and GE optical/electrical ports

Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port

System Performance

Layer 2/Layer 3 line-rate forwarding

Static route, RIP, OSPF, and MPLS

Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD

Maximum split ratio of 1:256

Maximum logical distance between devices: 60 km​​​​

Package:

Transport:

Our Service:

1. All our products are all origina-new ones and with original package.

2. We could offer the newest products of these brands in time and stable supply.

3. We could accept the trial order and also with the competitive price for you.

4. We have the professtional enigneer to support our customer once they get some technical problem.

5. No matter you are the small or big customer, you could get the same best service from us.

FAQ:

Question 1:Can you put my brand name (logo) on these products?

Answer 1:Yes! The professional OEM service will be welcomed to us.

 Our factory accepts to make the logo free for bulk order.

Question 2:What's the leading time? (How long do you need to prepare my goods?)

Answer 2: Our order is very full every day,leading time is shorter than other,Delivery (no more than 1000pcs) will be arranged within 1-5 days after payment, more than 1000pcs is 2-9 days.

Question 3:Do you test all product?

Answer 3:yes, full test before delivery,we test material and check the production process,  we are professional ,quality and price is very good,our product have quality guarantee,match to latest market demand.

Question 4: Can we get lower price ?Any discount?

Answer 4: Yes, price is not problem,everything could be negotiated based on the quantity ,we give you the factory price ,we make sales promotion almost every week.

Question 5:If I want to purchase, how to pay?

Answer 5:T/T(Bank transfer), Western Union, Money Gram, Paypal, etc.after we receive your         payment,we will prepare for you as soon as possible.

Question 6:After pay,what about lead time and shipping method?

Answer 6:Goods can be delivered by air express or by sea.we get ready for you within 2 to 6 days.

Question 7:How can I trust you ?

Answer 7: We are honesty and professional, assessment report will could be sent to you bye-mail,Skype, WhatsApp, Wechat, Now we have many cooperation customers

 from all around the world . Contact Us! Do Not Hesitate!

Any questions,please feel free to let me know,thank you.
